1. 流量治理的核心概念
1.1 什么是流量治理？
流量治理是在微服务架构中对服务间调用流量进行精细化管理和控制的一系列技术手段，确保系统在高并发场景下的稳定性、可用性和安全性。
// 流量治理的现实比喻
public class TrafficGovernanceAnalogy {
/**
* 城市交通系统 vs 流量治理系统
*/
public class TrafficSystemComparison {
// 交通信号灯 → 限流控制
// 高速公路收费站 → 熔断降级
// GPS导航系统 → 负载均衡
// 交通警察 → 流量监控
// 应急车道 → 服务降级
}
/**
* 没有流量治理的后果
*/
public class WithoutTrafficGovernance {
// 1. 雪崩效应：一个服务故障导致整个系统崩溃
// 2. 资源耗尽：突发流量耗尽系统资源
// 3. 响应延迟：服务过载导致响应变慢
// 4. 数据不一致：重试机制不当导致数据错乱
}
}

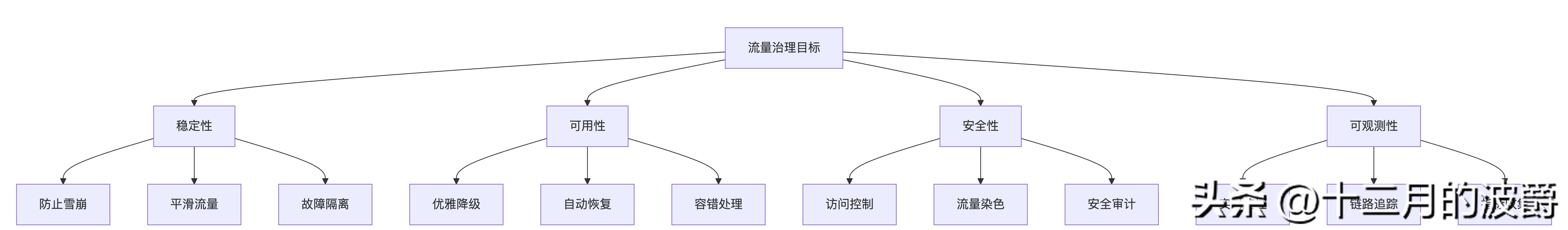

1.2 流量治理的核心目标
2. 流量治理核心技术
2.1 主流流量治理框架对比
|
特性 |
Sentinel |
Hystrix |
Resilience4j |
Spring Cloud Gateway |
|
限流能力 |
丰富多样 |
基础 |
丰富 |
基础 |
|
熔断降级 |
支持 |
支持 |
支持 |
支持 |
|
系统保护 |
支持 |
不支持 |
不支持 |
不支持 |
|
热点参数 |
支持 |
不支持 |
不支持 |
不支持 |
|
规则配置 |
动态 |
静态 |
静态 |
动态 |
|
监控面板 |
完善 |
基础 |
需要集成 |
基础 |
2.2 流量治理架构全景
3. Spring Cloud Alibaba Sentinel 实战
3.1 环境准备与依赖配置
<!-- pom.xml Sentinel依赖 -->
<dependencies>
<!-- Sentinel Starter -->
<dependency>
<groupId>com.alibaba.cloud</groupId>
<artifactId>spring-cloud-starter-alibaba-sentinel</artifactId>
<version>2022.0.0.0</version>
</dependency>
<!-- Sentinel Datasource Nacos -->
<dependency>
<groupId>com.alibaba.csp</groupId>
<artifactId>sentinel-datasource-nacos</artifactId>
<version>1.8.6</version>
</dependency>
<!-- Spring Boot Actuator -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-actuator</artifactId>
</dependency>
<!-- Web -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-web</artifactId>
</dependency>
<!-- AOP -->
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-aop</artifactId>
</dependency>
</dependencies>
3.2 Sentinel基础配置
# application.yml Sentinel配置
spring:
application:
name: order-service
cloud:
sentinel:
enabled: true
eager: true
transport:
dashboard: 192.168.1.100:8080 # Sentinel控制台地址
port: 8719 # 本地启动HTTP Server端口
datasource:
# 流控规则数据源
flow:
nacos:
server-addr: 192.168.1.100:8848
dataId: ${spring.application.name}-flow-rules
groupId: SENTINEL_GROUP
rule-type: flow
# 降级规则数据源
degrade:
nacos:
server-addr: 192.168.1.100:8848
dataId: ${spring.application.name}-degrade-rules
groupId: SENTINEL_GROUP
rule-type: degrade
# 系统规则数据源
system:
nacos:
server-addr: 192.168.1.100:8848
dataId: ${spring.application.name}-system-rules
groupId: SENTINEL_GROUP
rule-type: system
# 授权规则数据源
authority:
nacos:
server-addr: 192.168.1.100:8848
dataId: ${spring.application.name}-authority-rules
groupId: SENTINEL_GROUP
rule-type: authority
# 监控端点
management:
endpoints:
web:
exposure:
include: sentinel
endpoint:
sentinel:
enabled: true
# 日志配置
logging:
level:
com.alibaba.csp.sentinel: DEBUG
3.3 限流控制实战
// 订单服务限流控制
@RestController
@RequestMapping("/orders")
@Slf4j
public class OrderController {
@Autowired
private OrderService orderService;
/**
* 创建订单 - 资源名限流
*/
@PostMapping
@SentinelResource(
value = "createOrder",
blockHandler = "createOrderBlockHandler",
fallback = "createOrderFallback"
)
public ResponseEntity<Order> createOrder(@RequestBody OrderRequest request) {
log.info("创建订单请求: {}", request);
Order order = orderService.createOrder(request);
return ResponseEntity.ok(order);
}
/**
* 流控异常处理
*/
public ResponseEntity<Order> createOrderBlockHandler(OrderRequest request, BlockException ex) {
log.warn("创建订单触发流控, 规则: {}", ex.getRule());
Map<String, Object> result = new HashMap<>();
result.put("code", 429);
result.put("message", "系统繁忙，请稍后重试");
result.put("data", null);
return ResponseEntity.status(HttpStatus.TOO_MANY_REQUESTS).body(null);
}
/**
* 降级异常处理
*/
public ResponseEntity<Order> createOrderFallback(OrderRequest request, Throwable ex) {
log.error("创建订单服务降级", ex);
Map<String, Object> result = new HashMap<>();
result.put("code", 500);
result.put("message", "服务暂时不可用，请稍后重试");
result.put("data", null);
return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).body(null);
}
/**
* 查询订单 - 参数限流
*/
@GetMapping("/{orderId}")
@SentinelResource(
value = "getOrder",
blockHandler = "getOrderBlockHandler",
fallback = "getOrderFallback"
)
public ResponseEntity<Order> getOrder(@PathVariable String orderId) {
log.info("查询订单: {}", orderId);
Order order = orderService.getOrder(orderId);
return ResponseEntity.ok(order);
}
public ResponseEntity<Order> getOrderBlockHandler(String orderId, BlockException ex) {
log.warn("查询订单触发流控, 订单ID: {}, 规则: {}", orderId, ex.getRule());
return ResponseEntity.status(HttpStatus.TOO_MANY_REQUESTS).body(null);
}
public ResponseEntity<Order> getOrderFallback(String orderId, Throwable ex) {
log.error("查询订单服务降级, 订单ID: {}", orderId, ex);
return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).body(null);
}
}
// 自定义限流规则配置
@Component
public class SentinelRuleConfig {
/**
* 初始化流控规则
*/
@PostConstruct
public void initFlowRules() {
List<FlowRule> rules = new ArrayList<>();
// 创建订单流控规则
FlowRule createOrderRule = new FlowRule();
createOrderRule.setResource("createOrder");
createOrderRule.setGrade(RuleConstant.FLOW_GRADE_QPS); // QPS限流
createOrderRule.setCount(100); // 阈值100
createOrderRule.setControlBehavior(RuleConstant.CONTROL_BEHAVIOR_WARM_UP); // 预热模式
createOrderRule.setWarmUpPeriodSec(10); // 预热时间10秒
rules.add(createOrderRule);
// 查询订单流控规则
FlowRule getOrderRule = new FlowRule();
getOrderRule.setResource("getOrder");
getOrderRule.setGrade(RuleConstant.FLOW_GRADE_QPS);
getOrderRule.setCount(500); // 阈值500
getOrderRule.setControlBehavior(RuleConstant.CONTROL_BEHAVIOR_RATE_LIMITER); // 排队等待
getOrderRule.setMaxQueueingTimeMs(1000); // 最大排队时间1秒
rules.add(getOrderRule);
FlowRuleManager.loadRules(rules);
log.info("初始化Sentinel流控规则完成");
}
/**
* 热点参数限流规则
*/
public void initParamFlowRules() {
List<ParamFlowRule> paramRules = new ArrayList<>();
ParamFlowRule paramRule = new ParamFlowRule("getOrder")
.setParamIdx(0) // 第一个参数(orderId)
.setCount(10); // 单参数阈值
// 针对特定参数值设置独立限流
ParamFlowItem item = new ParamFlowItem().setObject("SPECIAL_ORDER_123")
.setClassType(String.class.getName())
.setCount(1); // 特殊订单限流更严格
paramRule.setParamFlowItemList(Collections.singletonList(item));
paramRules.add(paramRule);
ParamFlowRuleManager.loadRules(paramRules);
log.info("初始化Sentinel热点参数限流规则完成");
}
}
// 高级限流策略
@Service
@Slf4j
public class AdvancedRateLimitService {
/**
* 集群流控示例
*/
@SentinelResource(
value = "clusterFlowControl",
blockHandler = "clusterFlowBlockHandler"
)
public String clusterFlowOperation(String data) {
// 集群环境下的流控操作
return processData(data);
}
public String clusterFlowBlockHandler(String data, BlockException ex) {
log.warn("集群流控触发, 数据: {}", data);
return "集群流控限制，请稍后重试";
}
/**
* 网关层限流示例
*/
@SentinelResource(value = "gatewayFlowControl")
public ResponseEntity<?> gatewayLevelFlowControl(HttpServletRequest request) {
// 获取客户端IP
String clientIp = getClientIp(request);
// 基于IP的限流
if (isIpOverLimit(clientIp)) {
return ResponseEntity.status(429)
.body(Map.of("error", "IP访问频率过高"));
}
return ResponseEntity.ok("访问正常");
}
private String getClientIp(HttpServletRequest request) {
String xff = request.getHeader("X-Forwarded-For");
if (xff != null && !xff.isEmpty()) {
return xff.split(",")[0].trim();
}
return request.getRemoteAddr();
}
private boolean isIpOverLimit(String ip) {
// 实现基于IP的限流逻辑
// 可以使用Redis等分布式缓存记录访问次数
return false;
}
private String processData(String data) {
// 模拟数据处理
try {
Thread.sleep(100);
} catch (InterruptedException e) {
Thread.currentThread().interrupt();
}
return "processed: " + data;
}
}
3.4 熔断降级实战
// 熔断降级服务
@Service
@Slf4j
public class CircuitBreakerService {
@Autowired
private RestTemplate restTemplate;
/**
* 调用支付服务 - 熔断保护
*/
@SentinelResource(
value = "callPaymentService",
blockHandler = "paymentServiceBlockHandler",
fallback = "paymentServiceFallback",
exceptionsToIgnore = {IllegalArgumentException.class} // 忽略的异常
)
public PaymentResult callPaymentService(PaymentRequest request) {
log.info("调用支付服务: {}", request);
// 模拟外部服务调用
ResponseEntity<PaymentResult> response = restTemplate.postForEntity(
"http://payment-service/api/payments",
request,
PaymentResult.class
);
if (!response.getStatusCode().is2xxSuccessful()) {
throw new RuntimeException("支付服务调用失败: " + response.getStatusCode());
}
return response.getBody();
}
/**
* 流控异常处理
*/
public PaymentResult paymentServiceBlockHandler(PaymentRequest request, BlockException ex) {
log.warn("支付服务流控触发: {}", ex.getClass().getSimpleName());
return PaymentResult.failed("SYSTEM_BUSY", "系统繁忙，请稍后重试");
}
/**
* 降级异常处理
*/
public PaymentResult paymentServiceFallback(PaymentRequest request, Throwable ex) {
log.error("支付服务降级, 请求: {}", request, ex);
// 根据异常类型提供不同的降级策略
if (ex instanceof TimeoutException) {
return PaymentResult.failed("TIMEOUT", "支付服务响应超时，请检查支付状态");
} else if (ex instanceof ConnectException) {
return PaymentResult.failed("UNAVAILABLE", "支付服务暂时不可用");
} else {
return PaymentResult.failed("ERROR", "支付服务异常，请稍后重试");
}
}
}
// 熔断规则配置
@Component
@Slf4j
public class CircuitBreakerRuleConfig {
/**
* 初始化熔断降级规则
*/
@PostConstruct
public void initDegradeRules() {
List<DegradeRule> rules = new ArrayList<>();
// 支付服务熔断规则
DegradeRule paymentRule = new DegradeRule();
paymentRule.setResource("callPaymentService");
paymentRule.setGrade(RuleConstant.DEGRADE_GRADE_EXCEPTION_COUNT); // 异常数模式
paymentRule.setCount(5); // 异常数阈值
paymentRule.setTimeWindow(10); // 熔断时间10秒
paymentRule.setStatIntervalMs(60000); // 统计窗口60秒
paymentRule.setMinRequestAmount(5); // 最小请求数
rules.add(paymentRule);
// 库存服务熔断规则 - 慢调用比例模式
DegradeRule inventoryRule = new DegradeRule();
inventoryRule.setResource("callInventoryService");
inventoryRule.setGrade(RuleConstant.DEGRADE_GRADE_RT); // 慢调用比例模式
inventoryRule.setCount(500); // 响应时间阈值500ms
inventoryRule.setTimeWindow(10); // 熔断时间10秒
inventoryRule.setRtSlowRequestAmount(5); // 慢调用临界请求数
inventoryRule.setMinRequestAmount(10); // 最小请求数
rules.add(inventoryRule);
DegradeRuleManager.loadRules(rules);
log.info("初始化Sentinel熔断降级规则完成");
}
}
// 优雅降级服务
@Service
@Slf4j
public class GracefulDegradationService {
/**
* 多级降级策略
*/
@SentinelResource(
value = "multiLevelDegradation",
fallback = "primaryFallback",
fallbackClass = MultiLevelFallback.class
)
public ServiceResult primaryService(String request) {
// 主服务逻辑
return callPrimaryService(request);
}
/**
* 降级服务调用链
*/
@SentinelResource(
value = "degradationChain",
blockHandler = "degradationChainBlockHandler",
fallback = "degradationChainFallback"
)
public ServiceResult degradationChain(String request) {
try {
// 1. 尝试主服务
return callPrimaryService(request);
} catch (Exception e) {
log.warn("主服务失败，尝试备用服务", e);
try {
// 2. 尝试备用服务
return callSecondaryService(request);
} catch (Exception ex) {
log.warn("备用服务失败，返回兜底数据", ex);
// 3. 返回兜底数据
return getFallbackData(request);
}
}
}
public ServiceResult degradationChainBlockHandler(String request, BlockException ex) {
log.warn("服务调用链流控触发");
return ServiceResult.failed("DEGRADED", "服务降级中");
}
public ServiceResult degradationChainFallback(String request, Throwable ex) {
log.error("服务调用链降级", ex);
return getFallbackData(request);
}
private ServiceResult callPrimaryService(String request) {
// 模拟主服务调用
if (Math.random() < 0.1) { // 10%失败率
throw new RuntimeException("主服务异常");
}
return ServiceResult.success("primary: " + request);
}
private ServiceResult callSecondaryService(String request) {
// 模拟备用服务调用
if (Math.random() < 0.2) { // 20%失败率
throw new RuntimeException("备用服务异常");
}
return ServiceResult.success("secondary: " + request);
}
private ServiceResult getFallbackData(String request) {
// 返回兜底数据
return ServiceResult.success("fallback: " + request);
}
}
// 多级降级回退类
@Slf4j
public class MultiLevelFallback {
public static ServiceResult primaryFallback(String request, Throwable ex) {
log.warn("主服务降级，请求: {}", request, ex);
// 一级降级：尝试本地缓存
ServiceResult cacheResult = getFromLocalCache(request);
if (cacheResult != null) {
return cacheResult;
}
// 二级降级：返回默认值
return ServiceResult.success("default_value");
}
private static ServiceResult getFromLocalCache(String request) {
// 从本地缓存获取数据
// 模拟实现
if (request.contains("cache")) {
return ServiceResult.success("cached_data");
}
return null;
}
}
3.5 系统保护与热点参数限流
// 系统保护配置
@Component
@Slf4j
public class SystemProtectionConfig {
/**
* 初始化系统保护规则
*/
@PostConstruct
public void initSystemRules() {
List<SystemRule> rules = new ArrayList<>();
// LOAD自适应保护
SystemRule loadRule = new SystemRule();
loadRule.setHighestSystemLoad(3.0); // 最大系统负载
loadRule.setAvgRt(1000); // 平均响应时间
loadRule.setMaxThread(500); // 最大并发线程数
loadRule.setQps(1000); // 入口QPS
loadRule.setHighestCpuUsage(0.8); // CPU使用率阈值
rules.add(loadRule);
SystemRuleManager.loadRules(rules);
log.info("初始化Sentinel系统保护规则完成");
}
}
// 热点参数限流服务
@Service
@Slf4j
public class HotParamLimitService {
/**
* 商品详情查询 - 热点参数限流
*/
@SentinelResource(
value = "getProductDetail",
blockHandler = "productDetailBlockHandler",
fallback = "productDetailFallback"
)
public ProductDetail getProductDetail(String productId, Long userId) {
log.info("查询商品详情, 商品ID: {}, 用户ID: {}", productId, userId);
// 模拟数据库查询
return productService.getProductDetail(productId);
}
/**
* 热点参数限流异常处理
*/
public ProductDetail productDetailBlockHandler(String productId, Long userId, BlockException ex) {
log.warn("商品详情查询触发热点限流, 商品ID: {}, 用户ID: {}", productId, userId);
// 返回缓存数据或默认数据
return getCachedProductDetail(productId);
}
public ProductDetail productDetailFallback(String productId, Long userId, Throwable ex) {
log.error("商品详情查询服务降级", ex);
return getDefaultProductDetail();
}
/**
* 初始化热点参数规则
*/
@PostConstruct
public void initHotParamRules() {
List<ParamFlowRule> rules = new ArrayList<>();
// 商品ID热点参数规则
ParamFlowRule productRule = new ParamFlowRule("getProductDetail")
.setParamIdx(0) // 第一个参数productId
.setCount(50); // 单商品QPS阈值
// 特殊商品独立限流
Map<Object, Integer> hotItems = new HashMap<>();
hotItems.put("HOT_PRODUCT_001", 5); // 爆款商品限流更严格
hotItems.put("HOT_PRODUCT_002", 5);
productRule.setParamFlowItemList(
hotItems.entrySet().stream()
.map(entry -> new ParamFlowItem()
.setObject(entry.getKey())
.setClassType(String.class.getName())
.setCount(entry.getValue()))
.collect(Collectors.toList())
);
rules.add(productRule);
ParamFlowRuleManager.loadRules(rules);
log.info("初始化热点参数限流规则完成");
}
private ProductDetail getCachedProductDetail(String productId) {
// 从缓存获取商品详情
return new ProductDetail(productId, "缓存商品数据");
}
private ProductDetail getDefaultProductDetail() {
return new ProductDetail("default", "默认商品数据");
}
}
4. Spring Cloud Gateway 网关层流量治理
4.1 网关限流配置
# application.yml 网关配置
spring:
application:
name: api-gateway
cloud:
gateway:
routes:
- id: order-service
uri: lb://order-service
predicates:
- Path=/api/orders/**
filters:
- name: RequestRateLimiter
args:
redis-rate-limiter.replenishRate: 10 # 每秒令牌数
redis-rate-limiter.burstCapacity: 20 # 令牌桶容量
redis-rate-limiter.requestedTokens: 1 # 每次请求消耗令牌数
key-resolver: "#{@userKeyResolver}" # 限流键解析器
- name: StripPrefix=1
- id: user-service
uri: lb://user-service
predicates:
- Path=/api/users/**
filters:
- name: CircuitBreaker
args:
name: userServiceBreaker
fallbackUri: forward:/fallback/user
- StripPrefix=1
# Sentinel网关流控
sentinel:
filter:
enabled: true
scg:
fallback:
mode: response
response-status: 429
response-body: '{"code":429,"message":"请求过于频繁"}'
# Redis配置
redis:
host: 127.0.0.1
port: 6379
timeout: 3000ms
# 限流配置
resilience4j:
ratelimiter:
instances:
orderService:
limit-for-period: 100
limit-refresh-period: 1s
timeout-duration: 0
allow-health-indicator-to-fail: true
4.2 网关限流实现
// 网关限流配置类
@Configuration
public class GatewayRateLimitConfig {
/**
* 基于用户的限流键解析器
*/
@Bean
public KeyResolver userKeyResolver() {
return exchange -> {
// 从请求头获取用户ID
String userId = exchange.getRequest()
.getHeaders()
.getFirst("X-User-Id");
if (userId != null) {
return Mono.just(userId);
}
// 从Token解析用户ID
String token = exchange.getRequest()
.getHeaders()
.getFirst("Authorization");
if (token != null && token.startsWith("Bearer ")) {
String actualToken = token.substring(7);
// 解析Token获取用户ID（实际项目需要实现Token解析逻辑）
return Mono.just(actualToken);
}
// 使用客户端IP作为备用键
String clientIp = exchange.getRequest()
.getRemoteAddress()
.getAddress()
.getHostAddress();
return Mono.just(clientIp);
};
}
/**
* 基于IP的限流键解析器
*/
@Bean
public KeyResolver ipKeyResolver() {
return exchange -> Mono.just(
exchange.getRequest()
.getRemoteAddress()
.getAddress()
.getHostAddress()
);
}
/**
* 基于API路径的限流键解析器
*/
@Bean
public KeyResolver apiKeyResolver() {
return exchange -> Mono.just(
exchange.getRequest()
.getPath()
.value()
);
}
}
// 网关熔断降级处理器
@Component
@Slf4j
public class GatewayFallbackHandler {
/**
* 用户服务熔断降级处理
*/
@RequestMapping("/fallback/user")
public Mono<Map<String, Object>> userServiceFallback(ServerWebExchange exchange) {
log.warn("用户服务熔断降级");
Map<String, Object> result = new HashMap<>();
result.put("code", 503);
result.put("message", "用户服务暂时不可用");
result.put("timestamp", Instant.now());
result.put("path", exchange.getRequest().getPath().value());
return Mono.just(result);
}
/**
* 订单服务熔断降级处理
*/
@RequestMapping("/fallback/order")
public Mono<Map<String, Object>> orderServiceFallback(ServerWebExchange exchange) {
log.warn("订单服务熔断降级");
Map<String, Object> result = new HashMap<>();
result.put("code", 503);
result.put("message", "订单服务暂时不可用");
result.put("timestamp", Instant.now());
result.put("path", exchange.getRequest().getPath().value());
return Mono.just(result);
}
}
// 自定义网关过滤器
@Component
@Slf4j
public class CustomGatewayFilter implements GlobalFilter, Ordered {
@Override
public Mono<Void> filter(ServerWebExchange exchange, GatewayFilterChain chain) {
ServerHttpRequest request = exchange.getRequest();
// 1. 记录请求日志
log.info("网关请求: {} {}, 客户端: {}",
request.getMethod(),
request.getPath(),
request.getRemoteAddress());
// 2. 请求头校验
if (!isValidRequest(request)) {
return handleInvalidRequest(exchange);
}
// 3. 限流前置检查
if (isRateLimitExceeded(request)) {
return handleRateLimit(exchange);
}
// 4. 添加追踪头
ServerHttpRequest modifiedRequest = addTraceHeaders(request);
return chain.filter(exchange.mutate().request(modifiedRequest).build());
}
@Override
public int getOrder() {
return Ordered.HIGHEST_PRECEDENCE;
}
private boolean isValidRequest(ServerHttpRequest request) {
// 实现请求校验逻辑
return true;
}
private Mono<Void> handleInvalidRequest(ServerWebExchange exchange) {
ServerHttpResponse response = exchange.getResponse();
response.setStatusCode(HttpStatus.BAD_REQUEST);
DataBuffer buffer = response.bufferFactory()
.wrap("{\"error\": \"Invalid request\"}".getBytes());
return response.writeWith(Mono.just(buffer));
}
private boolean isRateLimitExceeded(ServerHttpRequest request) {
// 实现自定义限流逻辑
return false;
}
private Mono<Void> handleRateLimit(ServerWebExchange exchange) {
ServerHttpResponse response = exchange.getResponse();
response.setStatusCode(HttpStatus.TOO_MANY_REQUESTS);
DataBuffer buffer = response.bufferFactory()
.wrap("{\"error\": \"Rate limit exceeded\"}".getBytes());
return response.writeWith(Mono.just(buffer));
}
private ServerHttpRequest addTraceHeaders(ServerHttpRequest request) {
return request.mutate()
.header("X-Trace-Id", generateTraceId())
.header("X-Gateway-Timestamp", String.valueOf(System.currentTimeMillis()))
.build();
}
private String generateTraceId() {
return UUID.randomUUID().toString().replace("-", "");
}
}
5. 高级流量治理策略
5.1 自适应限流系统
// 自适应限流服务
@Service
@Slf4j
public class AdaptiveRateLimitService {
@Autowired
private MeterRegistry meterRegistry;
private final Map<String, AdaptiveLimitConfig> limitConfigs = new ConcurrentHashMap<>();
/**
* 自适应限流检查
*/
public boolean shouldAllowRequest(String resource, Map<String, String> context) {
AdaptiveLimitConfig config = limitConfigs.computeIfAbsent(
resource, k -> new AdaptiveLimitConfig());
// 获取系统指标
SystemMetrics metrics = getSystemMetrics();
// 计算动态限流阈值
int dynamicThreshold = calculateDynamicThreshold(config, metrics, context);
// 检查当前QPS
double currentQps = getCurrentQps(resource);
boolean allowed = currentQps < dynamicThreshold;
if (!allowed) {
log.warn("自适应限流触发: {}, QPS: {}/{}, 系统负载: {}",
resource, currentQps, dynamicThreshold, metrics.getSystemLoad());
}
return allowed;
}
/**
* 计算动态阈值
*/
private int calculateDynamicThreshold(AdaptiveLimitConfig config,
SystemMetrics metrics,
Map<String, String> context) {
int baseThreshold = config.getBaseThreshold();
// 基于系统负载调整
double loadFactor = calculateLoadFactor(metrics);
// 基于时间因素调整（比如高峰期）
double timeFactor = calculateTimeFactor();
// 基于业务因素调整
double businessFactor = calculateBusinessFactor(context);
return (int) (baseThreshold * loadFactor * timeFactor * businessFactor);
}
private double calculateLoadFactor(SystemMetrics metrics) {
double systemLoad = metrics.getSystemLoad();
double cpuUsage = metrics.getCpuUsage();
if (systemLoad > 4.0 || cpuUsage > 0.8) {
return 0.5; // 高负载时降低阈值
} else if (systemLoad > 2.0 || cpuUsage > 0.6) {
return 0.8; // 中负载时适当降低
} else {
return 1.0; // 正常负载
}
}
private double calculateTimeFactor() {
// 基于时间的调整因子
LocalTime now = LocalTime.now();
// 高峰期（9-12, 14-18）
if ((now.isAfter(LocalTime.of(9, 0)) && now.isBefore(LocalTime.of(12, 0))) ||
(now.isAfter(LocalTime.of(14, 0)) && now.isBefore(LocalTime.of(18, 0)))) {
return 1.2; // 高峰期提高阈值
}
// 凌晨低峰期
if (now.isAfter(LocalTime.of(0, 0)) && now.isBefore(LocalTime.of(6, 0))) {
return 1.5; // 低峰期进一步提高
}
return 1.0; // 正常时段
}
private double calculateBusinessFactor(Map<String, String> context) {
// 基于业务场景的调整因子
String userType = context.get("userType");
String requestType = context.get("requestType");
if ("VIP".equals(userType)) {
return 2.0; // VIP用户提高阈值
}
if ("read".equals(requestType)) {
return 1.5; // 读操作提高阈值
}
return 1.0; // 默认因子
}
private SystemMetrics getSystemMetrics() {
SystemMetrics metrics = new SystemMetrics();
// 获取系统负载
metrics.setSystemLoad(getSystemLoad());
// 获取CPU使用率
metrics.setCpuUsage(getCpuUsage());
// 获取内存使用率
metrics.setMemoryUsage(getMemoryUsage());
return metrics;
}
private double getSystemLoad() {
// 获取系统负载
return ManagementFactory.getOperatingSystemMXBean().getSystemLoadAverage();
}
private double getCpuUsage() {
// 获取CPU使用率（简化实现）
return 0.3; // 实际项目需要实现具体逻辑
}
private double getMemoryUsage() {
// 获取内存使用率
Runtime runtime = Runtime.getRuntime();
long usedMemory = runtime.totalMemory() - runtime.freeMemory();
long maxMemory = runtime.maxMemory();
return (double) usedMemory / maxMemory;
}
private double getCurrentQps(String resource) {
// 获取当前QPS（从监控指标中获取）
Counter counter = meterRegistry.counter("request.count", "resource", resource);
return counter.count(); // 简化实现，实际需要计算QPS
}
@Data
public static class AdaptiveLimitConfig {
private int baseThreshold = 100;
private int minThreshold = 10;
private int maxThreshold = 1000;
private double sensitivity = 1.0;
}
@Data
public static class SystemMetrics {
private double systemLoad;
private double cpuUsage;
private double memoryUsage;
private long gcCount;
private long threadCount;
}
}
5.2 流量染色与全链路压测
// 流量染色服务
@Component
@Slf4j
public class TrafficColoringService {
/**
* 流量染色类型
*/
public enum TrafficColor {
NORMAL("normal", "正常流量"),
TEST("test", "测试流量"),
GRAY("gray", "灰度流量"),
PRESSURE("pressure", "压测流量"),
DEBUG("debug", "调试流量");
private final String code;
private final String description;
TrafficColor(String code, String description) {
this.code = code;
this.description = description;
}
}
/**
* 染色流量过滤器
*/
@Component
public class TrafficColorFilter implements Filter {
@Override
public void doFilter(ServletRequest request, ServletResponse response, FilterChain chain)
throws IOException, ServletException {
HttpServletRequest httpRequest = (HttpServletRequest) request;
HttpServletResponse httpResponse = (HttpServletResponse) response;
// 获取流量染色标记
String trafficColor = getTrafficColor(httpRequest);
// 设置到请求上下文中
TrafficContext.setTrafficColor(trafficColor);
try {
// 根据流量类型进行不同处理
handleColoredTraffic(httpRequest, httpResponse, trafficColor);
chain.doFilter(request, response);
} finally {
// 清理上下文
TrafficContext.clear();
}
}
private String getTrafficColor(HttpServletRequest request) {
// 从请求头获取染色标记
String colorHeader = request.getHeader("X-Traffic-Color");
if (colorHeader != null && !colorHeader.isEmpty()) {
return colorHeader;
}
// 从参数获取染色标记
String colorParam = request.getParameter("_traffic_color");
if (colorParam != null && !colorParam.isEmpty()) {
return colorParam;
}
// 默认正常流量
return TrafficColor.NORMAL.code;
}
private void handleColoredTraffic(HttpServletRequest request,
HttpServletResponse response,
String trafficColor) {
switch (trafficColor) {
case "test":
// 测试流量：记录详细日志
log.debug("测试流量: {}", request.getRequestURI());
break;
case "pressure":
// 压测流量：跳过某些非核心逻辑
handlePressureTestTraffic(request);
break;
case "debug":
// 调试流量：开启调试模式
enableDebugMode(request);
break;
default:
// 正常流量：不做特殊处理
break;
}
}
private void handlePressureTestTraffic(HttpServletRequest request) {
// 压测流量处理逻辑
// 比如：跳过数据上报、跳过某些校验等
log.info("处理压测流量: {}", request.getRequestURI());
}
private void enableDebugMode(HttpServletRequest request) {
// 开启调试模式
// 比如：记录完整调用链、输出详细日志等
log.info("调试流量: {}", request.getRequestURI());
}
}
/**
* 流量上下文
*/
public static class TrafficContext {
private static final ThreadLocal<String> TRAFFIC_COLOR = new ThreadLocal<>();
public static void setTrafficColor(String color) {
TRAFFIC_COLOR.set(color);
}
public static String getTrafficColor() {
return TRAFFIC_COLOR.get();
}
public static boolean isPressureTest() {
return TrafficColor.PRESSURE.code.equals(TRAFFIC_COLOR.get());
}
public static boolean isTest() {
return TrafficColor.TEST.code.equals(TRAFFIC_COLOR.get());
}
public static void clear() {
TRAFFIC_COLOR.remove();
}
}
}
// 全链路压测控制器
@RestController
@RequestMapping("/pressure-test")
@Slf4j
public class PressureTestController {
@Autowired
private OrderService orderService;
@Autowired
private UserService userService;
/**
* 压测流量创建订单
*/
@PostMapping("/orders")
public ResponseEntity<Order> createPressureTestOrder(@RequestBody OrderRequest request) {
// 标记为压测流量
TrafficContext.setTrafficColor("pressure");
try {
log.info("压测流量创建订单: {}", request);
// 压测特定逻辑：跳过风控、使用影子表等
Order order = orderService.createPressureTestOrder(request);
return ResponseEntity.ok(order);
} finally {
TrafficContext.clear();
}
}
/**
* 压测数据清理
*/
@DeleteMapping("/data")
public ResponseEntity<Void> cleanupPressureTestData() {
log.info("清理压测数据");
try {
// 清理压测过程中产生的数据
orderService.cleanupPressureTestData();
userService.cleanupPressureTestData();
return ResponseEntity.ok().build();
} catch (Exception e) {
log.error("清理压测数据失败", e);
return ResponseEntity.status(HttpStatus.INTERNAL_SERVER_ERROR).build();
}
}
}
6. 监控与运维
6.1 流量治理监控
// 流量治理监控服务
@Component
@Slf4j
public class TrafficGovernanceMonitor {
@Autowired
private MeterRegistry meterRegistry;
/**
* 监控关键指标
*/
@Scheduled(fixedRate = 30000) // 每30秒执行一次
public void monitorTrafficMetrics() {
try {
// 监控限流情况
monitorRateLimitMetrics();
// 监控熔断情况
monitorCircuitBreakerMetrics();
// 监控系统负载
monitorSystemLoadMetrics();
// 检查异常情况
checkAnomalies();
} catch (Exception e) {
log.error("流量治理监控异常", e);
}
}
private void monitorRateLimitMetrics() {
// 获取限流相关指标
Map<String, Double> rateLimitMetrics = getRateLimitMetrics();
for (Map.Entry<String, Double> entry : rateLimitMetrics.entrySet()) {
String resource = entry.getKey();
Double blockQps = entry.getValue();
// 限流比例过高告警
if (blockQps > 10.0) {
log.warn("资源 {} 限流比例过高: {} QPS", resource, blockQps);
sendAlert("限流告警", String.format("资源 %s 限流比例过高: %f QPS", resource, blockQps));
}
}
}
private void monitorCircuitBreakerMetrics() {
// 获取熔断相关指标
Map<String, CircuitBreakerMetrics> breakerMetrics = getCircuitBreakerMetrics();
for (Map.Entry<String, CircuitBreakerMetrics> entry : breakerMetrics.entrySet()) {
String resource = entry.getKey();
CircuitBreakerMetrics metrics = entry.getValue();
// 熔断开启告警
if (metrics.isOpen()) {
log.warn("资源 {} 熔断器开启, 失败率: {}", resource, metrics.getFailureRate());
sendAlert("熔断告警", String.format("资源 %s 熔断器开启", resource));
}
// 高失败率告警
if (metrics.getFailureRate() > 0.5) {
log.warn("资源 {} 失败率过高: {}", resource, metrics.getFailureRate());
sendAlert("失败率告警", String.format("资源 %s 失败率过高: %f", resource, metrics.getFailureRate()));
}
}
}
private void monitorSystemLoadMetrics() {
// 获取系统负载指标
SystemLoadMetrics loadMetrics = getSystemLoadMetrics();
// 系统负载告警
if (loadMetrics.getSystemLoad() > 4.0) {
log.warn("系统负载过高: {}", loadMetrics.getSystemLoad());
sendAlert("系统负载告警", String.format("系统负载过高: %f", loadMetrics.getSystemLoad()));
}
// CPU使用率告警
if (loadMetrics.getCpuUsage() > 0.8) {
log.warn("CPU使用率过高: {}", loadMetrics.getCpuUsage());
sendAlert("CPU告警", String.format("CPU使用率过高: %f", loadMetrics.getCpuUsage()));
}
// 内存使用率告警
if (loadMetrics.getMemoryUsage() > 0.8) {
log.warn("内存使用率过高: {}", loadMetrics.getMemoryUsage());
sendAlert("内存告警", String.format("内存使用率过高: %f", loadMetrics.getMemoryUsage()));
}
}
private void checkAnomalies() {
// 检查异常模式
checkTrafficSpike();
checkErrorSpike();
checkLatencyAnomaly();
}
private void checkTrafficSpike() {
// 检查流量突增
// 实现流量突增检测逻辑
}
private void checkErrorSpike() {
// 检查错误率突增
// 实现错误率突增检测逻辑
}
private void checkLatencyAnomaly() {
// 检查延迟异常
// 实现延迟异常检测逻辑
}
private Map<String, Double> getRateLimitMetrics() {
// 获取限流指标（从Sentinel或自定义指标中获取）
return Collections.emptyMap();
}
private Map<String, CircuitBreakerMetrics> getCircuitBreakerMetrics() {
// 获取熔断器指标
return Collections.emptyMap();
}
private SystemLoadMetrics getSystemLoadMetrics() {
// 获取系统负载指标
return new SystemLoadMetrics();
}
private void sendAlert(String title, String message) {
// 发送告警通知
log.info("发送告警: {} - {}", title, message);
}
@Data
public static class CircuitBreakerMetrics {
private boolean open;
private double failureRate;
private long totalRequests;
private long failedRequests;
}
@Data
public static class SystemLoadMetrics {
private double systemLoad;
private double cpuUsage;
private double memoryUsage;
private long gcCount;
}
}
// 流量治理仪表板
@RestController
@RequestMapping("/traffic-dashboard")
@Slf4j
public class TrafficDashboardController {
@Autowired
private TrafficGovernanceMonitor monitor;
/**
* 获取流量治理概览
*/
@GetMapping("/overview")
public ResponseEntity<TrafficOverview> getTrafficOverview() {
TrafficOverview overview = new TrafficOverview();
// 总体流量统计
overview.setTotalQps(getTotalQps());
overview.setSuccessRate(getSuccessRate());
overview.setAvgResponseTime(getAvgResponseTime());
// 限流统计
overview.setRateLimitStats(getRateLimitStats());
// 熔断统计
overview.setCircuitBreakerStats(getCircuitBreakerStats());
// 系统负载
overview.setSystemLoad(getSystemLoad());
return ResponseEntity.ok(overview);
}
/**
* 获取资源详情
*/
@GetMapping("/resources/{resourceName}")
public ResponseEntity<ResourceDetail> getResourceDetail(@PathVariable String resourceName) {
ResourceDetail detail = new ResourceDetail();
detail.setResourceName(resourceName);
detail.setCurrentQps(getResourceQps(resourceName));
detail.setRateLimitConfig(getRateLimitConfig(resourceName));
detail.setCircuitBreakerStatus(getCircuitBreakerStatus(resourceName));
detail.setMetricsHistory(getMetricsHistory(resourceName));
return ResponseEntity.ok(detail);
}
// 内部方法实现...
private double getTotalQps() { return 0.0; }
private double getSuccessRate() { return 0.0; }
private double getAvgResponseTime() { return 0.0; }
private Object getRateLimitStats() { return null; }
private Object getCircuitBreakerStats() { return null; }
private Object getSystemLoad() { return null; }
private double getResourceQps(String resourceName) { return 0.0; }
private Object getRateLimitConfig(String resourceName) { return null; }
private Object getCircuitBreakerStatus(String resourceName) { return null; }
private Object getMetricsHistory(String resourceName) { return null; }
@Data
public static class TrafficOverview {
private double totalQps;
private double successRate;
private double avgResponseTime;
private Object rateLimitStats;
private Object circuitBreakerStats;
private Object systemLoad;
private Instant timestamp = Instant.now();
}
@Data
public static class ResourceDetail {
private String resourceName;
private double currentQps;
private Object rateLimitConfig;
private Object circuitBreakerStatus;
private Object metricsHistory;
private Instant timestamp = Instant.now();
}
}
总结
流量治理是微服务架构中确保系统稳定性的关键技术，通过本文的实战指南，我们掌握了：
核心治理能力：
- 流量控制：通过限流防止系统过载
- 熔断降级：快速失败和优雅降级机制
- 系统保护：基于系统负载的自适应保护
- 热点防护：针对热点参数的精细控制
关键技术实现：
- Sentinel注解式流控和熔断
- 网关层统一流量治理
- 自适应限流策略
- 流量染色和全链路压测
生产最佳实践：
- 建立多级防御体系
- 实施渐进式发布策略
- 建立完善的监控告警
- 定期进行容量规划和压测
流量治理不是一蹴而就的，需要根据业务特点和系统负载不断调整优化。正确的流量治理实践能够为微服务架构提供坚实的稳定性保障。
扫一扫
623
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
