【人工智能笔记】第四十二节：TF2实现VITGAN对抗生成网络，PatchEmbedding 实现

该章节介绍VITGAN对抗生成网络中，PatchEmbedding 部分的代码实现。

目录（文章发布后会补上链接）：

1. 网络结构简介
2. Mapping NetWork 实现
3. PositionalEmbedding 实现
4. MLP 实现
5. MSA多头注意力 实现
6. SLN自调制 实现
7. CoordinatesPositionalEmbedding 实现
8. ModulatedLinear 实现
9. Siren 实现
10. Generator生成器 实现
11. PatchEmbedding 实现
12. ISN 实现
13. Discriminator鉴别器 实现
14. VITGAN 实现

PatchEmbedding 简介

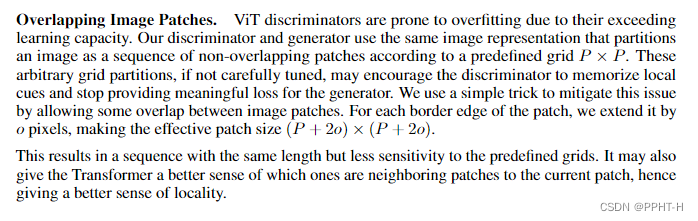

PatchEmbedding 是鉴别器的输入部分，用于将图片分割，并在边缘补上$o$宽度的重叠部分，可包含一部分位置信息。

代码实现

import tensorflow as tf

class PatchEmbedding(tf.keras.layers.Layer):
    """
    2D Image to Patch Embedding
    """

    def __init__(
        self,
        image_size=224,
        patch_size=16,
        overlapping=3, # 图像重叠部分
        emb_dim=768,
        discriminator=True,
    ):
        super().__init__()
        assert image_size % patch_size == 0
        self.image_size = image_size
        self.patch_size = patch_size
        self.overlapping = overlapping
        self.emb_dim = emb_dim
        self.discriminator = discriminator
        self.grid_size = image_size // patch_size
        self.num_patches = self.grid_size ** 2

        self.proj = tf.keras.layers.Dense(emb_dim, use_bias=False)

        self.create_indexes()

    def create_indexes(self):
        '''创建切片下标'''
        self.all_indexes = []
        for y in range(self.grid_size):
            for x in range(self.grid_size):
                now_y_start = y * self.patch_size
                now_y_end = (y+1) * self.patch_size
                now_x_start = x * self.patch_size
                now_x_end = (x+1) * self.patch_size
                # 加重叠部分，边缘则加到同一边
                if y == 0:
                    now_y_end += 2 * self.overlapping
                elif y == self.grid_size-1:
                    now_y_start -= 2 * self.overlapping
                else:
                    now_y_start -= self.overlapping
                    now_y_end += self.overlapping
                if x == 0:
                    now_x_end += 2 * self.overlapping
                elif x == self.grid_size-1:
                    now_x_start -= 2 * self.overlapping
                else:
                    now_x_start -= self.overlapping
                    now_x_end += self.overlapping
                self.all_indexes.append(
                    (now_y_start, now_y_end, now_x_start, now_x_end)
                )
        # print('all_indexes:', self.all_indexes)

    def call(self, x):
        batch = tf.shape(x)[0]
        patch_list = []
        for now_y_start, now_y_end, now_x_start, now_x_end in self.all_indexes:
            patch_x = x[:,now_y_start:now_y_end,now_x_start:now_x_end,:]
            patch_list.append(tf.reshape(patch_x,[batch,1,-1]))
        x = tf.concat(patch_list, axis=1)
        x = self.proj(x)
        return x


if __name__ == "__main__":
    layer = PatchEmbedding(
        image_size=224,
        patch_size=16,
        overlapping=3,
        embed_dim=768
    )
    # x = tf.random.uniform([2,224,224,3], dtype=tf.float32)
    x = tf.io.read_file('./test.jpg')
    x = tf.image.decode_jpeg(x, channels=3)
    x = tf.expand_dims(x, axis=0)
    x = tf.image.crop_and_resize(x, [[0,0,1,1]], [0], [224,224])
    o1 = layer(x)
    tf.print('o1:', tf.shape(o1))
    o1 = tf.reshape(o1, [1, 14, 14, 22, 22, 3])
    o1 = tf.transpose(o1, perm=[0,1,3,2,4,5])
    o1 = tf.reshape(o1, [1, 308, 308, 3])
    o1 = tf.image.encode_jpeg(tf.cast(o1[0], dtype=tf.uint8))
    tf.io.write_file('./test2.jpg', o1)

参考资料：

• 论文地址：VITGAN: Training GANs with Vision Transformers
• 源码：https://github.com/tfwcn/VITGAN-tf2
