【人工智能笔记】第四十三节：TF2实现VITGAN对抗生成网络，ISN 实现

该章节介绍VITGAN对抗生成网络中，ISN 部分的代码实现。

目录（文章发布后会补上链接）：

1. 网络结构简介
2. Mapping NetWork 实现
3. PositionalEmbedding 实现
4. MLP 实现
5. MSA多头注意力 实现
6. SLN自调制 实现
7. CoordinatesPositionalEmbedding 实现
8. ModulatedLinear 实现
9. Siren 实现
10. Generator生成器 实现
11. PatchEmbedding 实现
12. ISN 实现
13. Discriminator鉴别器 实现
14. VITGAN 实现

ISN 简介

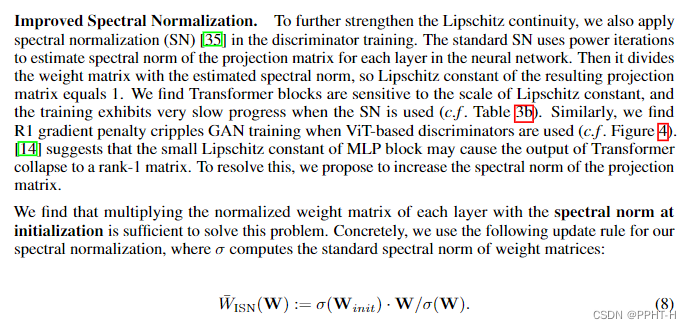

Improved Spectral Normalization. 为了进一步加强 Lipschitz 连续性，我们还在鉴别器训练中应用了谱归一化（SN）[35]。标准 SN 使用幂迭代来估计神经网络中每一层的投影矩阵的谱范数。然后将权重矩阵除以估计的谱范数，因此得到的投影矩阵的 Lipschitz 常数等于 1。我们发现 Transformer 块对 Lipschitz 常数的尺度很敏感，并且在使用 SN 时训练表现出非常缓慢的进展（c.f.表 3b)。同样，我们发现当使用基于 ViT 的鉴别器时，R1 梯度惩罚会削弱 GAN 训练（参见图 4）。 [14] 表明 MLP 块的小 Lipschitz 常数可能导致 Transformer 的输出崩溃为 rank-1 矩阵。为了解决这个问题，我们建议增加投影矩阵的光谱范数。

代码实现

import tensorflow as tf

class ISN(tf.keras.layers.Wrapper):
    """Performs spectral normalization on weights.
    This wrapper controls the Lipschitz constant of the layer by
    constraining its spectral norm, which can stabilize the training of GANs.
    See [Spectral Normalization for Generative Adversarial Networks](https://arxiv.org/abs/1802.05957).
    Wrap `tf.keras.layers.Conv2D`:
    >>> x = np.random.rand(1, 10, 10, 1)
    >>> conv2d = SpectralNormalization(tf.keras.layers.Conv2D(2, 2))
    >>> y = conv2d(x)
    >>> y.shape
    TensorShape([1, 9, 9, 2])
    Wrap `tf.keras.layers.Dense`:
    >>> x = np.random.rand(1, 10, 10, 1)
    >>> dense = SpectralNormalization(tf.keras.layers.Dense(10))
    >>> y = dense(x)
    >>> y.shape
    TensorShape([1, 10, 10, 10])
    Args:
        layer: A `tf.keras.layers.Layer` instance that
            has either `kernel` or `embeddings` attribute.
        power_iterations: `int`, the number of iterations during normalization.
    Raises:
        AssertionError: If not initialized with a `Layer` instance.
        ValueError: If initialized with negative `power_iterations`.
        AttributeError: If `layer` does not has `kernel` or `embeddings` attribute.
    """

    def __init__(self, layer: tf.keras.layers, power_iterations: int = 1, **kwargs):
        super().__init__(layer, **kwargs)
        if power_iterations <= 0:
            raise ValueError(
                "`power_iterations` should be greater than zero, got "
                "`power_iterations={}`".format(power_iterations)
            )
        self.power_iterations = power_iterations
        self._initialized = False

    def build(self, input_shape):
        """Build `Layer`"""
        super().build(input_shape)
        input_shape = tf.TensorShape(input_shape)
        self.input_spec = tf.keras.layers.InputSpec(shape=[None] + input_shape[1:])

        if hasattr(self.layer, "kernel"):
            self.w = self.layer.kernel
        elif hasattr(self.layer, "embeddings"):
            self.w = self.layer.embeddings
        else:
            raise AttributeError(
                "{} object has no attribute 'kernel' nor "
                "'embeddings'".format(type(self.layer).__name__)
            )

        self.w_shape = self.w.shape.as_list()

        self.u = self.add_weight(
            shape=(1, self.w_shape[-1]),
            initializer=tf.initializers.TruncatedNormal(stddev=0.02),
            trainable=False,
            name="sn_u",
            dtype=self.w.dtype,
        )

    def call(self, inputs, training=None):
        """Call `Layer`"""
        if training is None:
            training = tf.keras.backend.learning_phase()

        if training:
            self.normalize_weights()

        output = self.layer(inputs)
        return output

    def normalize_weights(self):
        """Generate spectral normalized weights.
        This method will update the value of `self.w` with the
        spectral normalized value, so that the layer is ready for `call()`.
        """

        w = tf.reshape(self.w, [-1, self.w_shape[-1]])
        u = self.u

        with tf.name_scope("spectral_normalize"):
            for _ in range(self.power_iterations):
                v = tf.math.l2_normalize(tf.matmul(u, w, transpose_b=True))
                u = tf.math.l2_normalize(tf.matmul(v, w))
            u = tf.stop_gradient(u)
            v = tf.stop_gradient(v)
            sigma = tf.matmul(tf.matmul(v, w), u, transpose_b=True)
            if not self._initialized:
                self.w_init_sigma = tf.constant(sigma)
                self._initialized = True
            self.u.assign(tf.cast(u, self.u.dtype))
            self.w.assign(
                tf.cast(tf.reshape(self.w_init_sigma * self.w / sigma, self.w_shape), self.w.dtype)
            )

if __name__ == "__main__":
    layer = ISN(tf.keras.layers.Dense(768, use_bias=False))
    x = tf.random.uniform([2,1,768], dtype=tf.float32)
    o1 = layer(x, training=True)
    tf.print('o1:', tf.shape(o1))
    o1 = layer(x, training=True)
    tf.print('o1:', tf.shape(o1))
    o1 = layer(x, training=False)
    tf.print('o1:', tf.shape(o1))

参考资料：

• 论文地址：VITGAN: Training GANs with Vision Transformers
• 源码：https://github.com/tfwcn/VITGAN-tf2
