RepVGG：让VGG风格的ConvNet再次伟大起来 RepVGG：让VGG风格的ConvNet再次伟大起来（RepVGG: Making VGG-style ConvNets Great Again）阅读详情

该版本基于PyTouch版本改写。

作者提出了一个简单但功能强大的卷积神经网络架构，该架构具有类似于VGG的推理时间主体，该主体仅由3x3卷积和ReLU的堆栈组成，而训练时间模型具有多分支拓扑。训练时间和推理时间架构的这种解耦是通过结构性重新参数化技术实现的，因此该模型称为RepVGG。在ImageNet上，据我们所知，RepVGG的top-1准确性达到80％以上，这是纯模型首次实现该精度。在NVIDIA 1080Ti GPU上，RepVGG模型的运行速度比ResNet-50快83％，比ResNet-101快101％，具有更高的精度，并且与诸如EfficientNet和RegNet的最新模型相比，显示出良好的精度-速度折衷。

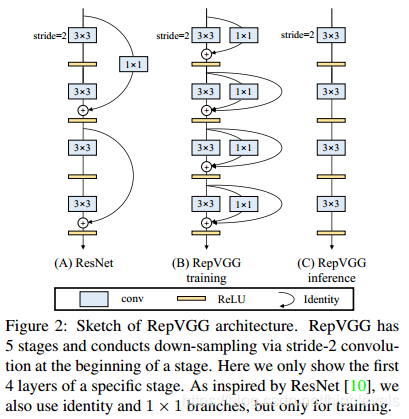

如下图，网络结构分成种，图中B结构是训练时的结构，C结构是推理时的结构。推理时按卷积原理，把3个分支的权重合并成1个卷积权重，以提高推理速度。

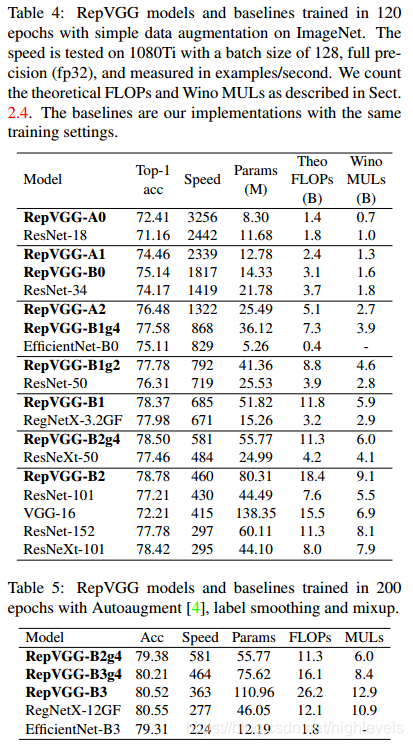

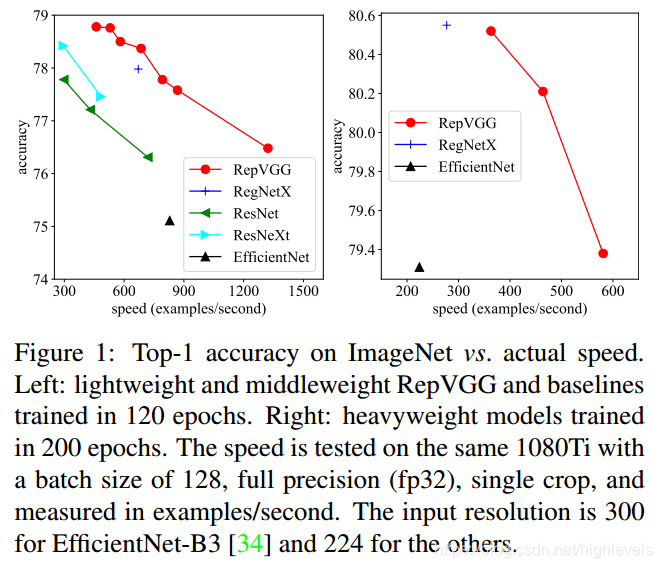

效率与精度如下：

实现代码如下，结果由于权重合并时的精度影响，输出值会有稍微的差异：

import tensorflow as tf

class ConvBn(tf.keras.layers.Layer):
  def __init__(self, filters, kernel_size, strides=1, padding='same', groups=1, **kwargs):
    super(ConvBn, self).__init__(**kwargs)
    self.conv = tf.keras.layers.Conv2D(filters, kernel_size, strides=strides, padding=padding,
                                       groups=groups, use_bias=False)
    self.bn = tf.keras.layers.BatchNormalization()

  def call(self, inputs, training):
    x = inputs
    x = self.conv(x)
    x = self.bn(x, training=training)
    return x

class RepVGGBlock(tf.keras.layers.Layer):
  def __init__(self, filters, kernel_size, strides=1, padding='same', groups=1, deploy=False, **kwargs):
    super(RepVGGBlock, self).__init__(**kwargs)
    self.filters = filters
    self.kernel_size = kernel_size
    self.strides = strides
    self.padding = padding
    self.groups = groups
    self.deploy = deploy

  def build(self, input_shape):
    self.in_channels = input_shape[-1]
    if self.deploy:
        # 部署
        self.rbr_reparam = tf.keras.layers.Conv2D(self.filters, self.kernel_size, strides=self.strides, padding=self.padding,
                                                  groups=self.groups, use_bias=True)
    else:
        # 训练
        self.rbr_identity = tf.keras.layers.BatchNormalization() if self.in_channels == self.filters and self.strides == 1 else None
        self.rbr_dense = ConvBn(self.filters, kernel_size=self.kernel_size, strides=self.strides, padding=self.padding, groups=self.groups)
        self.rbr_1x1 = ConvBn(self.filters, kernel_size=1, strides=self.strides, padding=self.padding, groups=self.groups)
        tf.print('RepVGG Block, identity = ', self.rbr_identity)
    super(RepVGGBlock, self).build(input_shape)

  def call(self, inputs, training):
    x = inputs
    if hasattr(self, 'rbr_reparam'):
      return tf.nn.relu(self.rbr_reparam(x))

    if self.rbr_identity:
      id_out = self.rbr_identity(x, training=training)
    else:
      id_out = 0

    x = tf.nn.relu(self.rbr_dense(x, training=training) + self.rbr_1x1(x, training=training) + id_out)
    return x

  def get_equivalent_kernel_bias(self):
    '''计算等价kernel与bias'''
    kernel3x3, bias3x3 = self._fuse_bn_tensor(self.rbr_dense)
    kernel1x1, bias1x1 = self._fuse_bn_tensor(self.rbr_1x1)
    kernelid, biasid = self._fuse_bn_tensor(self.rbr_identity)
    return kernel3x3 + tf.pad(kernel1x1, [[1,1],[1,1],[0,0],[0,0]]) + kernelid, bias3x3 + bias1x1 + biasid

  def _fuse_bn_tensor(self, branch):
    if branch is None:
      return 0, 0
    if isinstance(branch, ConvBn):
      kernel = branch.conv.kernel
      moving_mean = branch.bn.moving_mean
      moving_variance = branch.bn.moving_variance
      gamma = branch.bn.gamma
      beta = branch.bn.beta
      eps = branch.bn.epsilon
    else:
      assert isinstance(branch, tf.keras.layers.BatchNormalization)
      if not hasattr(self, 'id_tensor'):
        input_dim = self.in_channels // self.groups
        kernel_value = tf.zeros((3, 3, input_dim, self.in_channels), dtype=tf.float32)
        for i in range(self.in_channels):
          kernel_value = tf.tensor_scatter_nd_update(kernel_value, [[1, 1, i % input_dim, i]], [1])
        self.id_tensor = kernel_value
      kernel = self.id_tensor
      moving_mean = branch.moving_mean
      moving_variance = branch.moving_variance
      gamma = branch.gamma
      beta = branch.beta
      eps = branch.epsilon
    std = tf.math.sqrt(moving_variance + eps)
    t = tf.reshape(gamma / std, (1, 1, 1, -1))
    return kernel * t, beta - moving_mean * gamma / std

  def repvgg_convert(self):
    kernel, bias = self.get_equivalent_kernel_bias()
    return kernel, bias

class RepVGG(tf.keras.Model):
  def __init__(self, num_blocks, num_classes=1000, width_multiplier=None, override_groups_map=None, deploy=False, **kwargs):
    super(RepVGG, self).__init__(**kwargs)
    self.num_blocks = num_blocks
    self.num_classes = num_classes
    self.width_multiplier = width_multiplier
    self.override_groups_map = override_groups_map or dict()
    self.deploy = deploy

    assert len(self.width_multiplier) == 4
    assert 0 not in self.override_groups_map

    self.in_planes = min(64, int(64 * self.width_multiplier[0]))

  def build(self, input_shape):
    self.stage0 = RepVGGBlock(self.in_planes, kernel_size=3, strides=2, padding='same', deploy=self.deploy)
    self.cur_layer_idx = 1
    self.stage1 = self._make_stage(int(64 * self.width_multiplier[0]), self.num_blocks[0], stride=2)
    self.stage2 = self._make_stage(int(128 * self.width_multiplier[1]), self.num_blocks[1], stride=2)
    self.stage3 = self._make_stage(int(256 * self.width_multiplier[2]), self.num_blocks[2], stride=2)
    self.stage4 = self._make_stage(int(512 * self.width_multiplier[3]), self.num_blocks[3], stride=2)

    if self.num_classes:
      self.gap = tf.keras.layers.GlobalAveragePooling2D()
      self.dense = tf.keras.layers.Dense(self.num_classes)
    super(RepVGG, self).build(input_shape)


  def _make_stage(self, planes, num_blocks, stride):
    strides = [stride] + [1]*(num_blocks-1)
    blocks = []
    for stride in strides:
      cur_groups = self.override_groups_map.get(self.cur_layer_idx, 1)
      blocks.append(RepVGGBlock(planes, kernel_size=3,
                                strides=stride, padding='same', groups=cur_groups, deploy=self.deploy))
      self.in_planes = planes
      self.cur_layer_idx += 1
    return tf.keras.Sequential(blocks)


  def call(self, inputs, training):
    out = {}
    x = inputs
    x = self.stage0(x, training=training)
    out['stage0'] = x
    x = self.stage1(x, training=training)
    out['stage1'] = x
    x = self.stage2(x, training=training)
    out['stage2'] = x
    x = self.stage3(x, training=training)
    out['stage3'] = x
    x = self.stage4(x, training=training)
    out['stage4'] = x
    if self.num_classes:
      x = self.gap(x, training=training)
      x = self.dense(x)
      return x
    else:
      return out

  def get_all_layers(self):
    layers = {}
    for layer in self.layers:
      if isinstance(layer, tf.keras.Sequential):
        for l in layer.layers:
          layers[layer.name+'/'+l.name]=l
      else:
        layers[layer.name]=layer
    return layers

optional_groupwise_layers = [2, 4, 6, 8, 10, 12, 14, 16, 18, 20, 22, 24, 26]
g2_map = {l: 2 for l in optional_groupwise_layers}
g4_map = {l: 4 for l in optional_groupwise_layers}

def create_RepVGG_A0(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[2, 4, 14, 1], num_classes=num_classes,
                width_multiplier=[0.75, 0.75, 0.75, 2.5], override_groups_map=None, deploy=deploy)

def create_RepVGG_A1(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[2, 4, 14, 1], num_classes=num_classes,
                width_multiplier=[1, 1, 1, 2.5], override_groups_map=None, deploy=deploy)

def create_RepVGG_A2(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[2, 4, 14, 1], num_classes=num_classes,
                width_multiplier=[1.5, 1.5, 1.5, 2.75], override_groups_map=None, deploy=deploy)

def create_RepVGG_B0(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[1, 1, 1, 2.5], override_groups_map=None, deploy=deploy)

def create_RepVGG_B1(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[2, 2, 2, 4], override_groups_map=None, deploy=deploy)

def create_RepVGG_B1g2(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[2, 2, 2, 4], override_groups_map=g2_map, deploy=deploy)

def create_RepVGG_B1g4(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[2, 2, 2, 4], override_groups_map=g4_map, deploy=deploy)


def create_RepVGG_B2(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[2.5, 2.5, 2.5, 5], override_groups_map=None, deploy=deploy)

def create_RepVGG_B2g2(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[2.5, 2.5, 2.5, 5], override_groups_map=g2_map, deploy=deploy)

def create_RepVGG_B2g4(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[2.5, 2.5, 2.5, 5], override_groups_map=g4_map, deploy=deploy)


def create_RepVGG_B3(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[3, 3, 3, 5], override_groups_map=None, deploy=deploy)

def create_RepVGG_B3g2(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[3, 3, 3, 5], override_groups_map=g2_map, deploy=deploy)

def create_RepVGG_B3g4(num_classes=1000, deploy=False):
  return RepVGG(num_blocks=[4, 6, 16, 1], num_classes=num_classes,
                width_multiplier=[3, 3, 3, 5], override_groups_map=g4_map, deploy=deploy)


func_dict = {
  'RepVGG-A0': create_RepVGG_A0,
  'RepVGG-A1': create_RepVGG_A1,
  'RepVGG-A2': create_RepVGG_A2,
  'RepVGG-B0': create_RepVGG_B0,
  'RepVGG-B1': create_RepVGG_B1,
  'RepVGG-B1g2': create_RepVGG_B1g2,
  'RepVGG-B1g4': create_RepVGG_B1g4,
  'RepVGG-B2': create_RepVGG_B2,
  'RepVGG-B2g2': create_RepVGG_B2g2,
  'RepVGG-B2g4': create_RepVGG_B2g4,
  'RepVGG-B3': create_RepVGG_B3,
  'RepVGG-B3g2': create_RepVGG_B3g2,
  'RepVGG-B3g4': create_RepVGG_B3g4,
}
def get_RepVGG_func_by_name(name):
  return func_dict[name]

#   Use like this:
#   train_model = get_RepVGG_func_by_name('RepVGG-A0')(deploy=False)
#   train train_model
#   deploy_model = repvgg_convert(train_model, 'RepVGG-A0', save_path='repvgg_deploy.pth')
def repvgg_model_convert(model:RepVGG, model_name, save_path=None):
  converted_weights = {}
  for name, layer in model.get_all_layers().items():
    if hasattr(layer, 'repvgg_convert'):
      kernel, bias = layer.repvgg_convert()
      converted_weights[name + '/conv2d/kernel:0'] = kernel.numpy()
      converted_weights[name + '/conv2d/bias:0'] = bias.numpy()
    elif isinstance(layer, tf.keras.layers.Dense):
      converted_weights[name + '/kernel:0'] = layer.kernel.numpy()
      converted_weights[name + '/bias:0'] = layer.bias.numpy()
    else:
      print(name, type(layer))
  build_func = get_RepVGG_func_by_name(model_name)
  deploy_model = build_func(deploy=True)
  deploy_model.build((None, 160, 160, 3))
  trainable_variables = deploy_model.trainable_variables
  for i, var in enumerate(converted_weights.values()):
    deploy_var = trainable_variables[i]
    deploy_var.assign(var)
    tf.print('deploy param: ', deploy_var.name, deploy_var.shape, tf.math.reduce_mean(deploy_var))

  if save_path is not None:
    deploy_model.save(save_path)

  return deploy_model

def main():
  '''发布demo'''
  m = get_RepVGG_func_by_name('RepVGG-A0')(deploy=False)
  x = tf.random.uniform((1, 160, 160, 3), dtype=tf.float32)
  m.build((None, 160, 160, 3))
  m_deploy = repvgg_model_convert(m, 'RepVGG-A0')
  out1 = m(x, training=False)
  out2 = m_deploy(x, training=False)
  tf.print('out1:', out1['classes'])
  tf.print('out2:', out2['classes'])

if __name__ == '__main__':
  main()

本节内容到此结束，谢谢关注！
