【人工智能笔记】第四十一节：TF2实现VITGAN对抗生成网络，Generator生成器实现

关注

原创 2022-05-29 10:46:40 384 阅读 AI 写同款· GEO 优化 ›

TimeGAN:时间序列生成对抗网络（TimeGAN）的代码库-NeurIPS 2019 “时间序列生成对抗网络（TimeGAN）”的代码库 作者：尹成ung，丹尼尔·贾瑞特，米哈埃拉·范德沙尔参考：Jinsung Yoon，Daniel Jarrett，Mihaela van der Schaar，“时间序列生成对抗网络”，神经信息处理系统（NeurIPS），2019年。论文链接： : 联络人：该目录包含使用一个合成数据集和两个真实数据集生成合成时间序列数据的TimeGAN框架的实现。正弦数据：合成股票数据： : 能源数据：：要运行有关TimeGAN框架的培训和评估的管道，只需运行python3 -m main_timegan.py或在tutorial_timegan.ipynb中查看TimeGAN的jupyter-notebook教程。注意，任何模型体系结构都可以用作生成器和鉴别器模型，例如RNN或Transformers。代码说立即下载

网络结构图
该章节介绍VITGAN对抗生成网络中，Generator生成器部分的代码实现。

目录（文章发布后会补上链接）：

Generator生成器简介

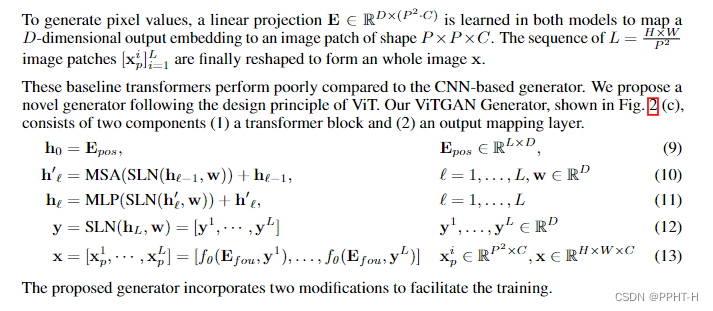

论文原文
上图是整个完整的 Generator生成器结构，由前面几章的模块组合而成。

代码实现

GeneratorEncoder代码实现

import tensorflow as tf

import sys

sys.path.append('')

from models.msa import MSA
from models.mlp import MLP
from models.sln import SLN


class GeneratorEncoderLayer(tf.keras.layers.Layer):
    def __init__(self, d_model, num_heads, dropout=0.0):
        super().__init__()
        self.d_model = d_model
        self.num_heads = num_heads
        self.sln1 = SLN(d_model)
        self.msa1 = MSA(d_model, num_heads, discriminator=False)
        self.sln2 = SLN(d_model)
        self.mlp1 = MLP(d_model, discriminator=False, dropout=dropout)

    def call(self, x, w, training):
        h = x
        x = self.sln1(h=x, w=w, training=training)
        x = self.msa1(v=x, k=x, q=x, mask=None)
        x = x + h
        h = x
        x = self.sln2(h=x, w=w, training=training)
        x = self.mlp1(x)
        x = x + h
        return x

class GeneratorEncoder(tf.keras.layers.Layer):
    def __init__(self, d_model, num_heads, num_layers, dropout=0.0):
        super().__init__()
        self.d_model = d_model
        self.num_heads = num_heads
        self.num_layers = num_layers
        self.encoder_layers = [GeneratorEncoderLayer(d_model, num_heads, dropout=dropout) for i in range(num_layers)]

    def call(self, x, w, training):
        for encoder_layer in self.encoder_layers:
            x = encoder_layer(x=x, w=w, training=training)
        return x

if __name__ == "__main__":
    # layer = EncoderLayer(256, 8)
    layer = GeneratorEncoder(256, 8, 4)
    x = tf.random.uniform([2,5,256], dtype=tf.float32)
    w = tf.random.uniform([2,5,256], dtype=tf.float32)
    o1 = layer(x, w, training=True)
    tf.print('o1:', tf.shape(o1))

Generator代码实现，不含博里叶位置编码

import tensorflow as tf
import sys

sys.path.append('')

from models.mapping_network import MappingNetwork
from models.generator_transformer_encoder import GeneratorEncoder
from models.coordinates_positional_embedding import CoordinatesPositionalEmbedding
from models.siren_test import Siren
from models.sln import SLN
from models.positional_embedding import PositionalEmbedding
from models.modulated_linear import ModulatedLinear
from models.mlp import MLP


class Generator(tf.keras.layers.Layer):
    """
    生成器
    """

    def __init__(
        self,
        image_size=224,
        patch_size=16,
        num_channels=3,
        d_model=768,
        dropout=0.0,
    ):
        super().__init__()
        self.image_size = image_size
        self.patch_size = patch_size
        self.num_channels = num_channels
        self.d_model = d_model
        self.dropout = dropout
        self.grid_size = image_size // patch_size
        self.num_patches = self.grid_size ** 2

        self.mapping_network = MappingNetwork(
            self.d_model,
            num_layers=8
        )

        # 输入位置编码
        self.patch_positional_embedding = PositionalEmbedding(
            sequence_length=self.num_patches,
            emb_dim=self.d_model,
        )

        self.generator_transformer_encoder = GeneratorEncoder(
            d_model,
            num_heads=8,
            num_layers=4,
            dropout=dropout,
        )
        self.sln1 = SLN(d_model)

        self.siren = Siren(
            hidden_dim=d_model,
            hidden_layers=2,
            out_dim=d_model,
            first_omega_0=30,
            hidden_omega_0=30,
            demodulation=True,
            outermost_linear=False
        )

    def call(self, x, training):
        batch_size = tf.shape(x)[0]
        w = self.mapping_network(x, training=training)
        # 输入位置编码
        x_pos = self.patch_positional_embedding()
        x = self.generator_transformer_encoder(x=x_pos, w=w, training=training)
        x = self.sln1(x, w, training=training)
        x = self.siren(x) # (B, L, E=P*P*C)
        x = tf.reshape(x, [batch_size, self.grid_size, self.grid_size, self.patch_size, self.patch_size, self.num_channels])
        x = tf.transpose(x, perm=[0,1,3,2,4,5])
        x = tf.reshape(x, [batch_size, self.image_size, self.image_size, self.num_channels])
        return x


if __name__ == "__main__":
    layer = Generator(
        image_size=224,
        patch_size=16,
        num_channels=3,
        d_model=768
    )
    x = tf.random.uniform([2,1,768], dtype=tf.float32)
    o1 = layer(x, training=True)
    tf.print('o1:', tf.shape(o1))
    o1 = layer(x, training=False)
    tf.print('o1:', tf.shape(o1))

Generator代码实现，包含博里叶位置编码。论文没描述该结构细节，这是一种猜测，试过无效，可能有误。

import tensorflow as tf
import sys

sys.path.append('')

from models.mapping_network import MappingNetwork
from models.generator_transformer_encoder import GeneratorEncoder
from models.coordinates_positional_embedding import CoordinatesPositionalEmbedding
from models.siren import Siren
from models.sln import SLN
from models.positional_embedding import PositionalEmbedding
from models.modulated_linear import ModulatedLinear
from models.mlp import MLP


class Generator(tf.keras.layers.Layer):
    """
    生成器
    """

    def __init__(
        self,
        image_size=224,
        patch_size=16,
        num_channels=3,
        d_model=768,
        dropout=0.0,
    ):
        super().__init__()
        self.image_size = image_size
        self.patch_size = patch_size
        self.num_channels = num_channels
        self.d_model = d_model
        self.dropout = dropout
        self.grid_size = image_size // patch_size
        self.num_patches = self.grid_size ** 2

        self.mapping_network = MappingNetwork(
            self.d_model,
            num_layers=8
        )

        # 输入位置编码
        self.patch_positional_embedding = PositionalEmbedding(
            sequence_length=self.num_patches,
            emb_dim=self.d_model,
        )

        self.generator_transformer_encoder = GeneratorEncoder(
            d_model,
            num_heads=8,
            num_layers=4,
            dropout=dropout,
        )
        self.sln1 = SLN(d_model)
        # 博里叶位置编码
        self.coordinates_positional_embedding = CoordinatesPositionalEmbedding(
            patch_size=patch_size,
            emb_dim=d_model,
            )

        self.siren = Siren(
            hidden_dim=d_model,
            hidden_layers=2,
            out_dim=num_channels,
            first_omega_0=30,
            hidden_omega_0=30,
            demodulation=True,
            outermost_linear=False
        )

        self.modulated_linear = ModulatedLinear(
            hidden_dim=d_model,
            output_dim=d_model,
            demodulation=True,
            use_bias=False,
            kernel_initializer=tf.initializers.GlorotNormal(),
        )

    def call(self, x, training):
        batch_size = tf.shape(x)[0]
        w = self.mapping_network(x, training=training)
        # 输入位置编码
        x_pos = self.patch_positional_embedding()
        x = self.generator_transformer_encoder(x=x_pos, w=w, training=training)
        x = self.sln1(x, w, training=training)
        # 博里叶位置编码
        e_fou = self.coordinates_positional_embedding(x)
        x = self.siren((e_fou, x)) # (B*L, P*P, E)
        x = tf.reshape(x, [batch_size, self.grid_size, self.grid_size, self.patch_size, self.patch_size, self.num_channels])
        x = tf.transpose(x, perm=[0,1,3,2,4,5])
        x = tf.reshape(x, [batch_size, self.image_size, self.image_size, self.num_channels])
        return x


if __name__ == "__main__":
    layer = Generator(
        image_size=224,
        patch_size=16,
        num_channels=3,
        d_model=768
    )
    x = tf.random.uniform([2,1,768], dtype=tf.float32)
    o1 = layer(x, training=True)
    tf.print('o1:', tf.shape(o1))
    o1 = layer(x, training=False)
    tf.print('o1:', tf.shape(o1))

Generator代码实现，包含博里叶位置编码。论文没描述该结构细节，这是另一种猜测，试过无效，可能有误。

import tensorflow as tf
import sys

sys.path.append('')

from models.mapping_network import MappingNetwork
from models.generator_transformer_encoder import GeneratorEncoder
from models.coordinates_positional_embedding import CoordinatesPositionalEmbedding
from models.siren import Siren
from models.sln import SLN
from models.positional_embedding import PositionalEmbedding
from models.modulated_linear import ModulatedLinear
from models.mlp import MLP


class Generator(tf.keras.layers.Layer):
    """
    生成器
    """

    def __init__(
        self,
        image_size=224,
        patch_size=16,
        num_channels=3,
        d_model=768,
        dropout=0.0,
    ):
        super().__init__()
        self.image_size = image_size
        self.patch_size = patch_size
        self.num_channels = num_channels
        self.d_model = d_model
        self.dropout = dropout
        self.grid_size = image_size // patch_size
        self.num_patches = self.grid_size ** 2

        self.mapping_network = MappingNetwork(
            self.d_model,
            num_layers=8
        )

        # 输入位置编码
        self.patch_positional_embedding = PositionalEmbedding(
            sequence_length=self.num_patches,
            emb_dim=self.d_model,
        )

        self.generator_transformer_encoder = GeneratorEncoder(
            d_model,
            num_heads=8,
            num_layers=4,
            dropout=dropout,
        )
        self.sln1 = SLN(d_model)
        # 博里叶位置编码
        self.coordinates_positional_embedding = CoordinatesPositionalEmbedding(
            patch_size=patch_size,
            emb_dim=d_model,
            )

        self.siren = Siren(
            hidden_dim=d_model,
            hidden_layers=2,
            out_dim=d_model,
            first_omega_0=30,
            hidden_omega_0=30,
            demodulation=True,
            outermost_linear=False
        )

        self.modulated_linear = ModulatedLinear(
            hidden_dim=d_model,
            output_dim=d_model,
            demodulation=True,
            use_bias=False,
            kernel_initializer=tf.initializers.GlorotNormal(),
        )
        self.mlp1 = MLP(d_model, discriminator=False, dropout=dropout)
        self.mlp2 = MLP(num_channels, discriminator=False, dropout=dropout)

    def call(self, x, training):
        batch_size = tf.shape(x)[0]
        w = self.mapping_network(x, training=training)
        # 输入位置编码
        x_pos = self.patch_positional_embedding()
        x = self.generator_transformer_encoder(x=x_pos, w=w, training=training)
        x = self.sln1(x, w, training=training)
        # 博里叶位置编码
        e_fou = self.coordinates_positional_embedding(x) # (B*L, P*P, E)
        e_fou = self.siren(e_fou) # (B*L, P*P, E)
        x = self.modulated_linear((e_fou, x)) # (B*L, P*P, E)
        x = self.mlp1(x, training=training)
        x = self.mlp2(x, training=training)
        x = tf.math.sin(x)
        x = tf.reshape(x, [batch_size, self.grid_size, self.grid_size, self.patch_size, self.patch_size, self.num_channels])
        x = tf.transpose(x, perm=[0,1,3,2,4,5])
        x = tf.reshape(x, [batch_size, self.image_size, self.image_size, self.num_channels])
        return x


if __name__ == "__main__":
    layer = Generator(
        image_size=224,
        patch_size=16,
        num_channels=3,
        d_model=768
    )
    x = tf.random.uniform([2,1,768], dtype=tf.float32)
    o1 = layer(x, training=True)
    tf.print('o1:', tf.shape(o1))
    o1 = layer(x, training=False)
    tf.print('o1:', tf.shape(o1))
