UVM-使用do系类宏发送item,sequence

将上一篇中，使用start方法发送item/sequence的过程，封装成了uvm_do系列宏。
上一篇链接：UVM-使用start发送item,sequence

需要了解的是，本篇文章的这些uvm_do系列宏，只能在sequence中使用！
例如想在test中发送sequence请使用start

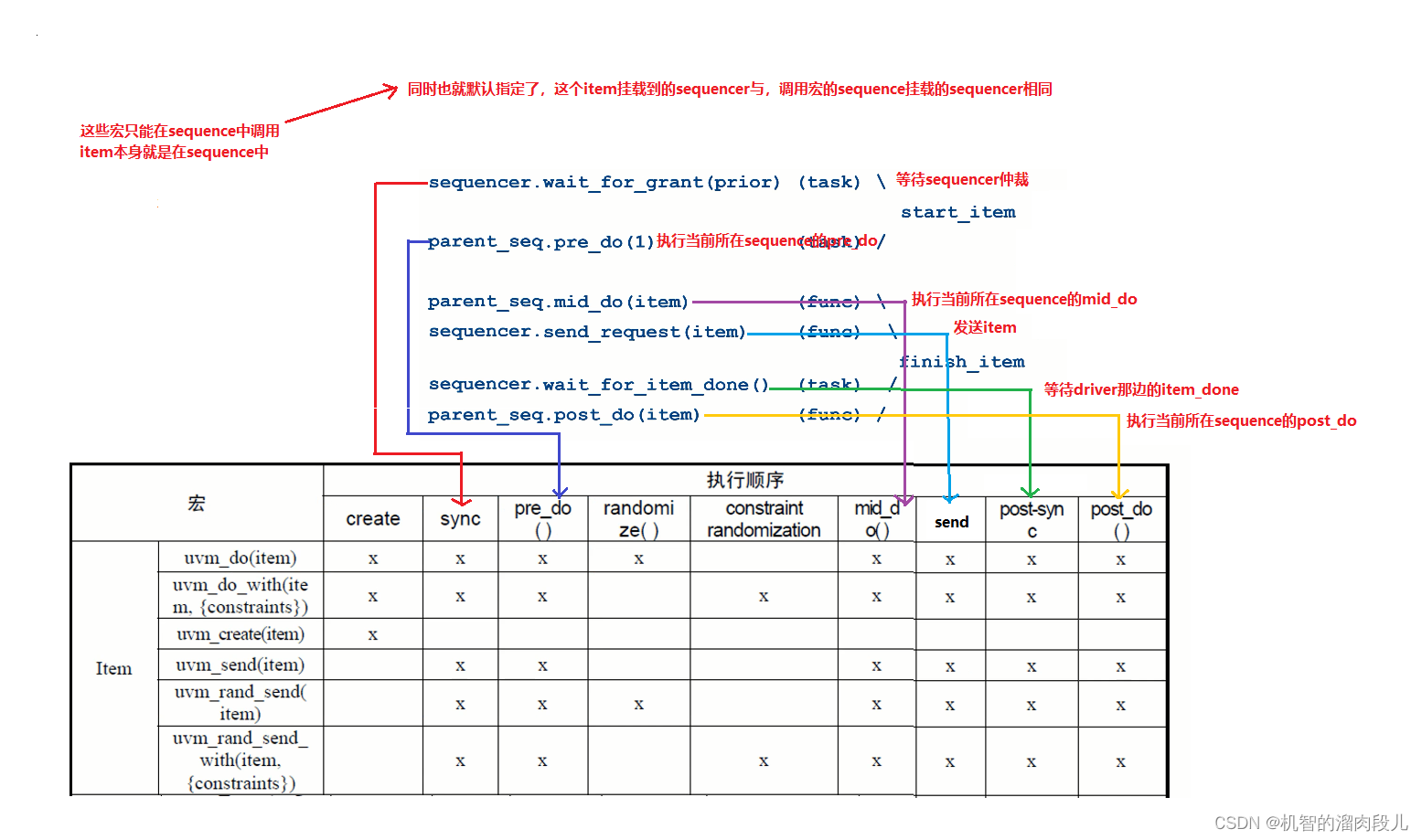

1#item do系列

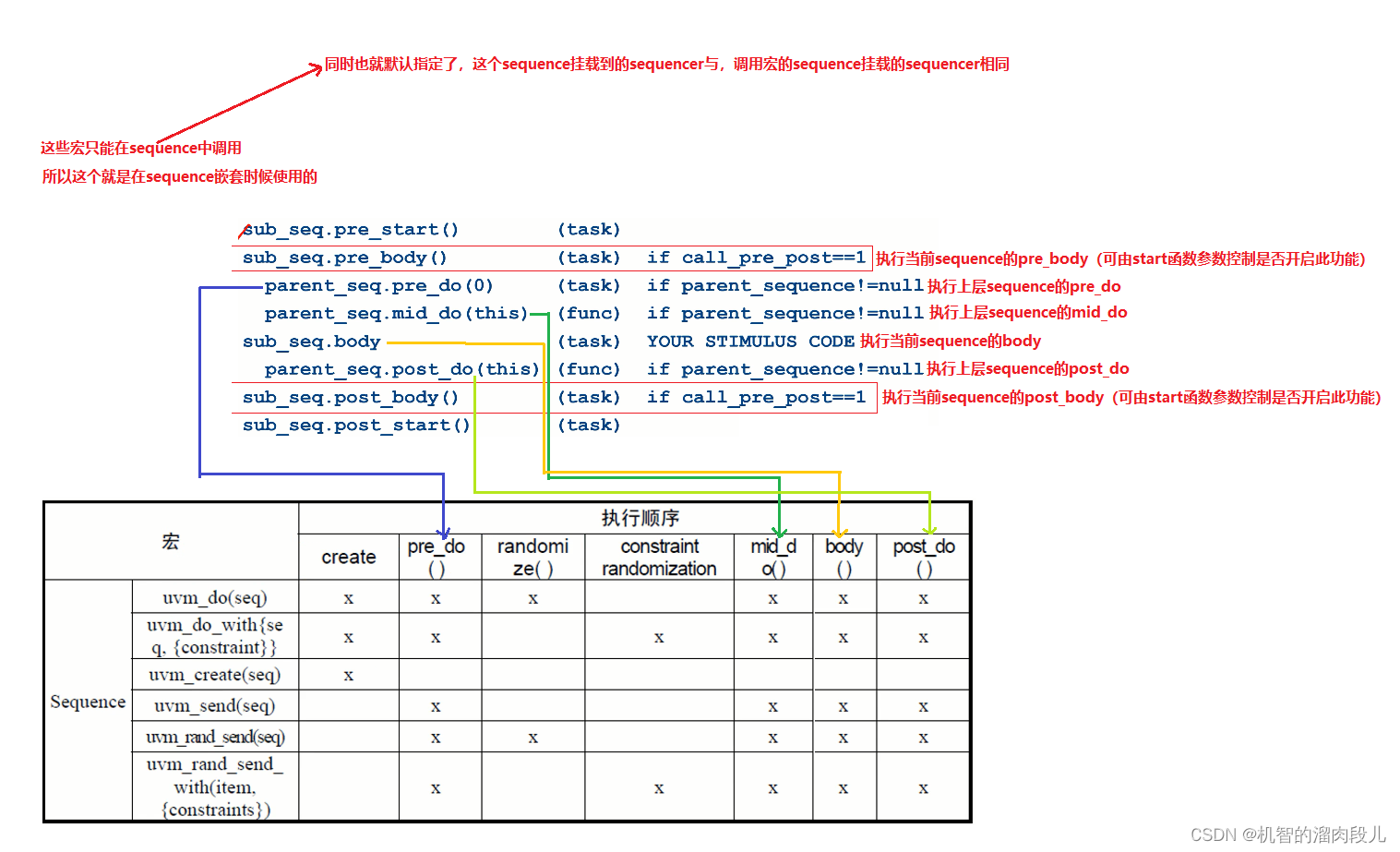

2#sequence do系列

还有一部分宏，可以设置并发sequence时候，sequencer仲裁sequence的优先级，将在下一节讲述
链接如下：UVM-sequencer的仲裁

示例

package pack1; //pack1头
	import uvm_pkg::*; //+UVM
  	`include "uvm_macros.svh"//+工厂

	class item extends uvm_sequence_item;
		rand int data_auto;
		`uvm_object_utils_begin(item)
			`uvm_field_int(data_auto,UVM_ALL_ON)
		`uvm_object_utils_end
		function new(string name = "item");
			super.new(name);
		endfunction
	endclass
//===========相比上一节，此代码只对这两个sequence做出了改动==================

	//底层sequence
	class child_seq extends uvm_sequence;
		`uvm_object_utils(child_seq)
		function new(string name = "child_seq");
			super.new(name);
		endfunction
		task body();
			item req;
			`uvm_do_with(req,{data_auto == 66;})//对item进行：实例化+随机+发送
		endtask
	endclass

	//顶层sequence
	class top_seq extends uvm_sequence;
		`uvm_object_utils(top_seq)
		function new(string name = "top_seq");
			super.new(name);
		endfunction
		task body();
			item req;
			child_seq cseq;

			`uvm_do_with(req,{data_auto == 99;})//对item进行：实例化+约束+发送

			`uvm_do(cseq)//sequence进行：实例化+发送

		endtask
	endclass
//===========================================================================


	class seqr extends uvm_sequencer;
		`uvm_component_utils(seqr)
		function new(string name = "seqr", uvm_component parent = null);
			super.new(name, parent);
		endfunction
	endclass

	class dri extends uvm_driver;
		`uvm_component_utils(dri)
		function new(string name = "dri", uvm_component parent = null);
			super.new(name, parent);
		endfunction

		task run_phase(uvm_phase phase);
			uvm_sequence_item temp ;
			item req;

			forever begin
				seq_item_port.get_next_item(temp);
				void'($cast(req,temp));
				`uvm_info("driver","driver already recive item", UVM_LOW)
				`uvm_info("data_auto",$sformatf("%d",req.data_auto), UVM_LOW)

				//只告诉完成，不发送响应(response)
				seq_item_port.item_done();

			end
		endtask

	endclass



	class env extends uvm_env;
		seqr seqr0;
		dri dri0;
		`uvm_component_utils(env)
		function new(string name="env" ,uvm_component parent = null);
			super.new(name,parent);
		endfunction
		function void build_phase(uvm_phase phase);
			seqr0 = seqr::type_id::create("seqr0",this);
			dri0 = dri::type_id::create("dri0",this);
		endfunction
		function void connect_phase(uvm_phase phase);
			dri0.seq_item_port.connect(seqr0.seq_item_export);
		endfunction

	endclass


	class test1 extends uvm_test;
		env env0;
		`uvm_component_utils(test1)
		function new(string name = "test1", uvm_component parent = null);
			super.new(name, parent);
		endfunction

		function void build_phase(uvm_phase phase);
			super.build_phase(phase);
			env0 = env::type_id::create("env0",this);
			`uvm_info("test1",$sformatf("build"), UVM_LOW)
		endfunction

		task run_phase(uvm_phase phase);
			top_seq seq0;
			phase.raise_objection(this);
			`uvm_info("test1",$sformatf("run"), UVM_LOW)

			seq0 = new();
			seq0.start(env0.seqr0);

			phase.drop_objection(this);//退出run_phase需要先落手
		endtask
	endclass

endpackage

//--------------------------------------module---------------------------------
module hardware1;
	import pack1::*;
	import uvm_pkg::*; //+UVM


	initial begin
		run_test("test1");
	end

endmodule
