本文介绍了如何在Visual Studio 2019中创建一个ASP.NET Core 3.0项目，并通过NuGet添加Fleck库来实现WebSocket通信。在HTML端，展示了用于发送和接收消息的输入框、按钮和预览区域。在控制器层，利用Fleck库设置WebSocket服务器并处理客户端连接、消息收发。这个示例展示了如何构建一个简单的上位机功能。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

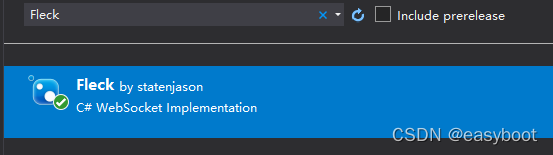

1.visual studio 2019创建一个asp.net core 3.0 的项目。在nuget中添加Fleck

2.html端代码

@{
ViewData["Title"] = "Home Page";
}

<div class="text-center">
<h1 class="display-4">Welcome</h1>
<p>Learn about <a href="https://docs.microsoft.com/aspnet/core">building Web apps with ASP.NET Core</a>.</p>

<input id="sendText" placeholder="Text to send" />
<pre id="incomming"></pre>
<button οnclick="send()">send</button>
</div>

<script type="text/javascript">
var start = function () {
var inc = document.getElementById('incomming');
var wsImpl = window.WebSocket || window.MozWebSocket;
var form = document.getElementById('sendForm');
var input = document.getElementById('sendText');

inc.innerHTML += "connecting to server ..<br/>";

// 创建新的websocket新连接端口为7181
window.ws = new wsImpl('ws://127.0.0.1:5001/');

// 当数据从服务器服务中心发送后，继续向下运行过程
ws.onmessage = function (evt) {
inc.innerHTML += evt.data + '<br/>';
};

// 当链接对象找到服务端成功对接后，提示正常打开
ws.onopen = function () {
inc.innerHTML += '.. connection open<br/>';
};

// 当链接对象未找找到服务端成功对接后，提示打开失败，别切单项关闭
ws.onclose = function () {
inc.innerHTML += '.. connection closed<br/>';
}

//form.addEventListener('submit', function (e) {
// e.preventDefault();
// var val = input.value;
// ws.send(val);
// input.value = "";
//});

}
window.onload = start;

function send() {
var input = document.getElementById('sendText');
var val = input.value;
ws.send(val);
}
</script>

3.controller层代码

using Fleck;
using Microsoft.AspNetCore.Mvc;
using Microsoft.Extensions.Logging;
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Threading.Tasks;
using Websocket.Models;

namespace Websocket.Controllers
{
    public class HomeController : Controller
    {
        private readonly ILogger<HomeController> _logger;

        public HomeController(ILogger<HomeController> logger)
        {
            CsWebsocket();
            _logger = logger;
        }

        public IActionResult Index()
        {

            return View();

        }

        public IActionResult Privacy()
        {
            return View();
        }

        [ResponseCache(Duration = 0, Location = ResponseCacheLocation.None, NoStore = true)]
        public IActionResult Error()
        {
            return View(new ErrorViewModel { RequestId = Activity.Current?.Id ?? HttpContext.TraceIdentifier });
        }

        #region 测试Websocket
        public static void CsWebsocket()
        {
            FleckLog.Level = Fleck.LogLevel.Debug;
            var allSockets = new List<IWebSocketConnection>();
            var server = new WebSocketServer("ws://127.0.0.1:5001");
            server.Start(socket =>
            {
                socket.OnOpen = () =>
                {
                    Console.WriteLine("Open!");
                    allSockets.Add(socket);
                };
                socket.OnClose = () =>
                {
                    Console.WriteLine("Close!");
                    allSockets.Remove(socket);
                };
                socket.OnMessage = message =>
                {
                    Debug.WriteLine(message);
                    Console.WriteLine(message);
                    allSockets.ForEach(s => s.Send("Echo: " + message));
                };
            });

            //var input = Console.ReadLine();
            //while (input != "exit")
            //{
            //    foreach (var socket in allSockets)
            //    {
            //        socket.Send(input);
            //    }
            //    input = Console.ReadLine();
            //}
        }
        #endregion
    }
}

4.再加入socket通讯可以实现上位机功能了
