Hopfield Net
- So far, neural networks for computation are all feedforward structures
Loopy network
- Each neuron is a perceptron with +1/-1 output
- Every neuron receives input from every other neuron
- Every neuron outputs signals to every other neuron
- At each time each neuron receives a “field” ∑j≠iwjiyj+bi\sum_{j \neq i} w_{j i} y_{j}+b_{i}∑j=iwjiyj+bi
- If the sign of the field matches its own sign, it does not respond
- If the sign of the field opposes its own sign, it “flips” to match the sign of the field
- If the sign of the field at any neuron opposes its own sign, it “flips” to match the field
- Which will change the field at other nodes
- Which may then flip… and so on…
Filp behavior
-
Let yi−y^{-}_{i}yi− be the output of the iii-th neuron just before it responds to the current field
-
Let yi+y_{i}^{+}yi+ be the output of the iii-th neuron just after it responds to the current field
-
if yi−=sign(∑j≠iwjiyj+bi)y_{i}^{-}=\operatorname{sign}\left(\sum_{j \neq i} w_{j i} y_{j}+b_{i}\right)yi−=sign(∑j=iwjiyj+bi), then yi+=−yi−y_{i}^{+} = -y_{i}^{-}yi+=−yi−
-
If the sign of the field matches its own sign, it does not flip
-
yi+(∑j≠iwjiyj+bi)−yi−(∑j≠iwjiyj+bi)=0 y_{i}^{+}\left(\sum_{j \neq i} w_{j i} y_{j}+b_{i}\right)-y_{i}^{-}\left(\sum_{j \neq i} w_{j i} y_{j}+b_{i}\right)=0 yi+⎝⎛j=i∑wjiyj+bi⎠⎞−yi−⎝⎛j=i∑wjiyj+bi⎠⎞=0
-
-
if yi−≠sign(∑j≠iwjiyj+bi)y_{i}^{-}\neq\operatorname{sign}\left(\sum_{j \neq i} w_{j i} y_{j}+b_{i}\right)yi−=sign(∑j=iwjiyj+bi), then yi+=−yi−y_{i}^{+} = -y_{i}^{-}yi+=−yi−
-
yi+(∑j≠iwjiyj+bi)−yi−(∑j≠iwjiyj+bi)=2yi+(∑j≠iwjiyj+bi) y_{i}^{+}\left(\sum_{j \neq i} w_{j i} y_{j}+b_{i}\right)-y_{i}^{-}\left(\sum_{j \neq i} w_{j i} y_{j}+b_{i}\right)=2 y_{i}^{+}\left(\sum_{j \neq i} w_{j i} y_{j}+b_{i}\right) yi+⎝⎛j=i∑wjiyj+bi⎠⎞−yi−⎝⎛j=i∑wjiyj+bi⎠⎞=2yi+⎝⎛j=i∑wjiyj+bi⎠⎞
-
This term is always positive!
-
-
Every flip of a neuron is guaranteed to locally increase yi(∑j≠iwjiyj+bi)y_{i}\left(\sum_{j \neq i} w_{j i} y_{j}+b_{i}\right)yi(∑j=iwjiyj+bi)
Globally
- Consider the following sum across all nodes
D(y1,y2,…,yN)=∑iyi(∑j≠iwjiyj+bi)=∑i,j≠iwijyiyj+∑ibiyi \begin{array}{c} D\left(y_{1}, y_{2}, \ldots, y_{N}\right)=\sum_{i} y_{i}\left(\sum_{j \neq i} w_{j i} y_{j}+b_{i}\right) \\\\ =\sum_{i, j \neq i} w_{i j} y_{i} y_{j}+\sum_{i} b_{i} y_{i} \end{array} D(y1,y2,…,yN)=∑iyi(∑j=iwjiyj+bi)=∑i,j=iwijyiyj+∑ibiyi
- Assume wii=0w_{ii} = 0wii=0
- For any unit kkk that “flips” because of the local field
ΔD(yk)=D(y1,…,yk+,…,yN)−D(y1,…,yk−,…,yN) \Delta D\left(y_{k}\right)=D\left(y_{1}, \ldots, y_{k}^{+}, \ldots, y_{N}\right)-D\left(y_{1}, \ldots, y_{k}^{-}, \ldots, y_{N}\right) ΔD(yk)=D(y1,…,yk+,…,yN)−D(y1,…,yk−,…,yN)
ΔD(yk)=(yk+−yk−)(∑j≠kwjkyj+bk) \Delta D\left(y_{k}\right)=\left(y_{k}^{+}-y_{k}^{-}\right)\left(\sum_{j \neq k} w_{j k} y_{j}+b_{k}\right) ΔD(yk)=(yk+−yk−)⎝⎛j=k∑wjkyj+bk⎠⎞
- This is always positive!
- Every flip of a unit results in an increase in DDD
Overall
- Flipping a unit will result in an increase (non-decrease) of
D=∑i,j≠iwijyiyj+∑ibiyi D=\sum_{i, j \neq i} w_{i j} y_{i} y_{j}+\sum_{i} b_{i} y_{i} D=i,j=i∑wijyiyj+i∑biyi
- DDD is bounded
Dmax=∑i,j≠i∣wij∣+∑i∣bi∣ D_{\max }=\sum_{i, j \neq i}\left|w_{i j}\right|+\sum_{i}\left|b_{i}\right| Dmax=i,j=i∑∣wij∣+i∑∣bi∣
- The minimum increment of DDD in a flip is
ΔDmin=mini,{yi,i=1.…N}2∣∑j≠iwjiyj+bi∣ \Delta D_{\min }=\min _{i,\{y_{i}, i=1 . \ldots N\}} 2|\sum_{j \neq i} w_{j i} y_{j}+b_{i}| ΔDmin=i,{yi,i=1.…N}min2∣j=i∑wjiyj+bi∣
- Any sequence of flips must converge in a finite number of steps
- Think of this as an infinite deep network where every weights at every layers are identical
- Find the maximum layer!
The Energy of a Hopfield Net
- Define the Energy of the network as

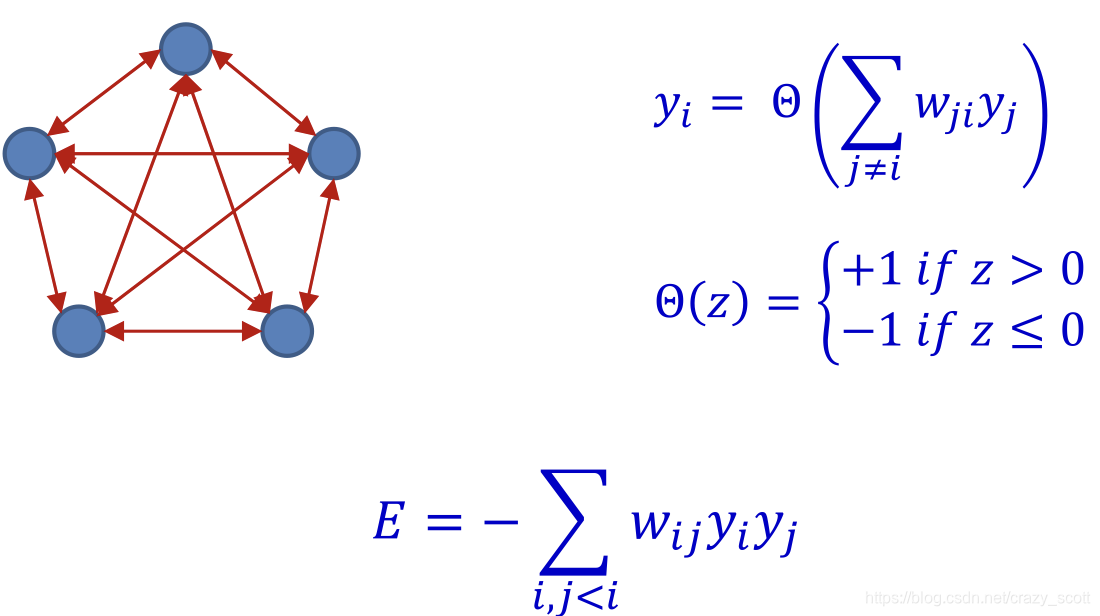

E=−∑i,j≠iwijyiyj−∑ibiyi E=-\sum_{i, j \neq i} w_{i j} y_{i} y_{j}-\sum_{i} b_{i} y_{i} E=−i,j=i∑wijyiyj−i∑biyi
-
Just the negative of DDD
-
The evolution of a Hopfield network constantly decreases its energy
-
This is analogous to the potential energy of a spin glass(Magnetic diploes)

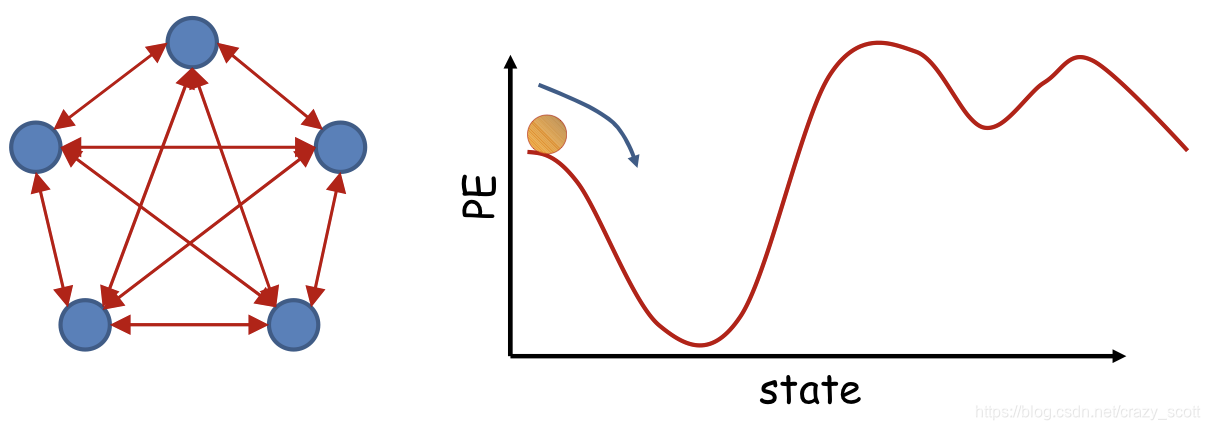

- The system will evolve until the energy hits a local minimum
-
We remove bias for better understanding
-

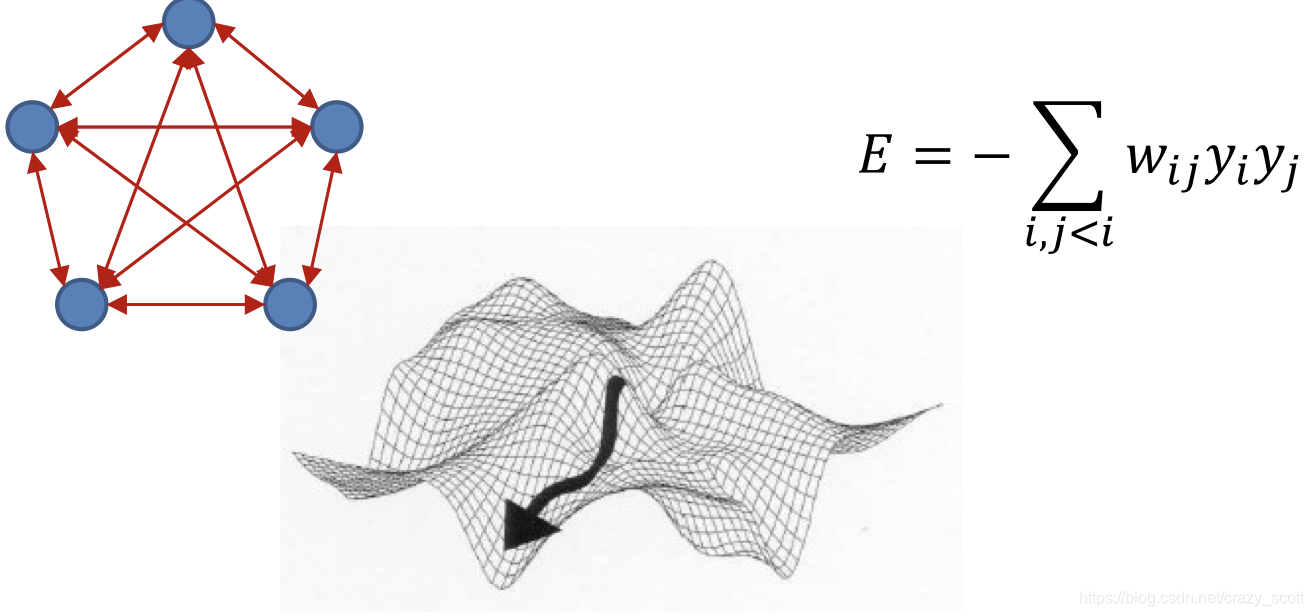

The network will evolve until it arrives at a local minimum in the energy contour
Content-addressable memory
- Each of the minima is a “stored” pattern
- If the network is initialized close to a stored pattern, it will inevitably evolve to the pattern
- This is a content addressable memory
- Recall memory content from partial or corrupt values
- Also called associative memory
- Evolve and recall pattern by content, not by location
Evolution
- The network will evolve until it arrives at a local minimum in the energy contour
- We proved that every change in the network will result in decrease in energy
- So path to energy minimum is monotonic

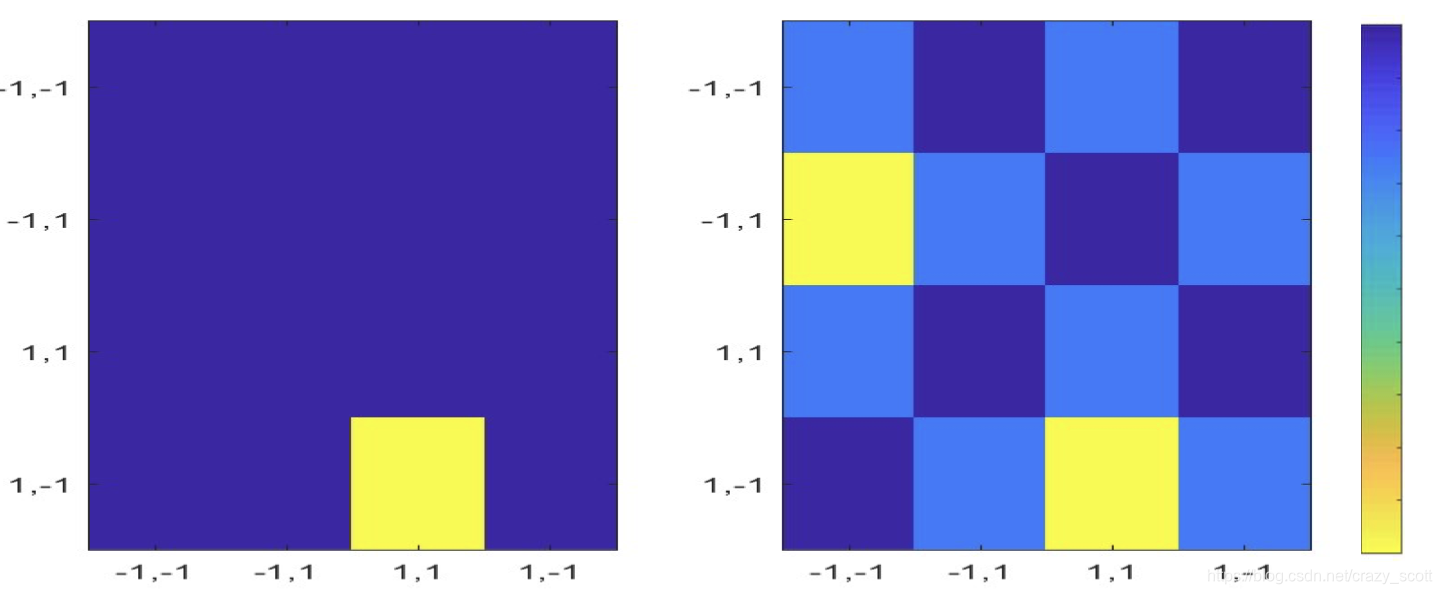

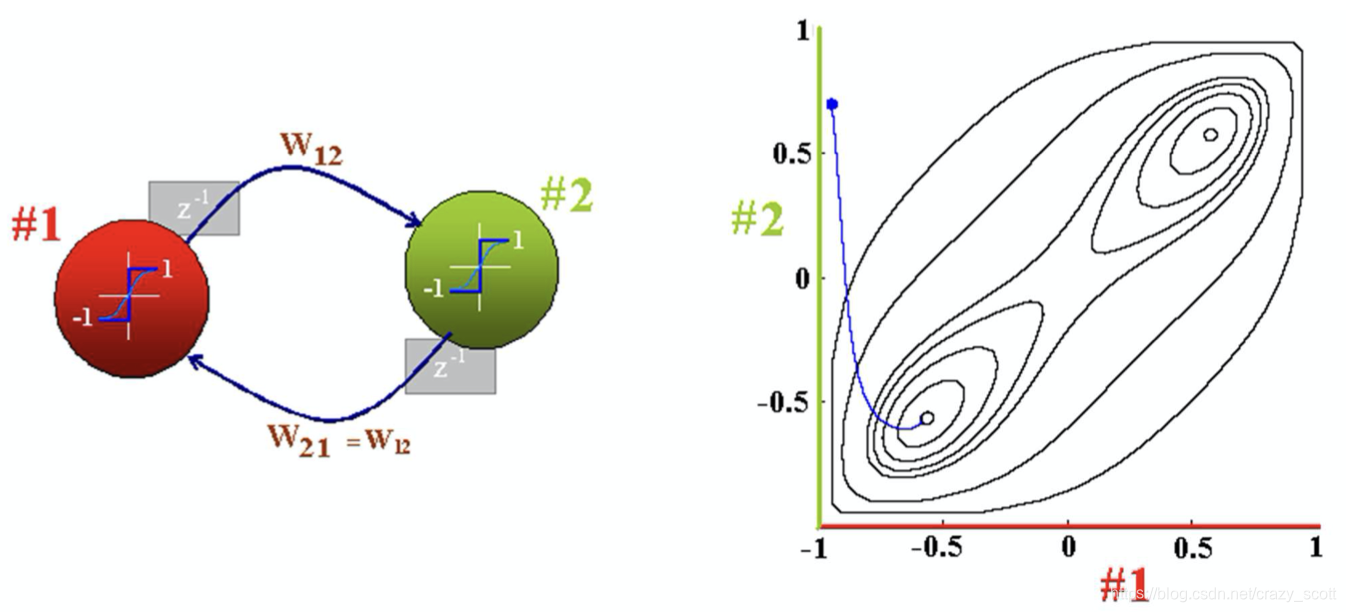

For 2-neuron net
- Symmetric
- −12yTWy=−12(−y)TW(−y)-\frac{1}{2} \mathbf{y}^{T} \mathbf{W} \mathbf{y}=-\frac{1}{2}(-\mathbf{y})^{T} \mathbf{W}(-\mathbf{y})−21yTWy=−21(−y)TW(−y)
- If y^\hat{y}y^ is a local minimum, so is −y^-\hat{y}−y^
Computational algorithm
- Very simple

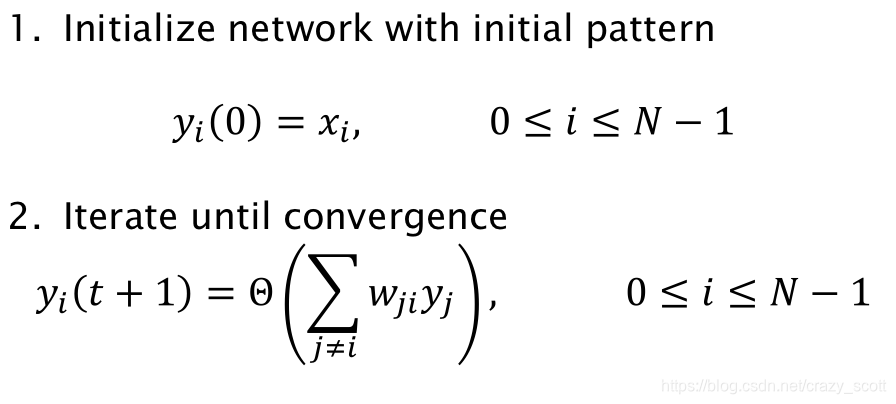

- Updates can be done sequentially, or all at once
- Convergence when it deos not chage significantly any more
E=−∑i∑j>iwjiyjyi E=-\sum_{i} \sum_{j>i} w_{j i} y_{j} y_{i} E=−i∑j>i∑wjiyjyi
Issues
Store a specific pattern
- A network can store multiple patterns
- Every stable point is a stored pattern
- So we could design the net to store multiple patterns
- Remember that every stored pattern PPP is actually two stored patterns, PPP and −P-P−P
- How could the quadrtic function have multiple minimum? (Convex function)
- Input has constrain (belong to (−1,1)(-1,1)(−1,1) )
- Hebbian learning: wji=yjyiw_{j i}=y_{j} y_{i}wji=yjyi
- Design a stationary pattern
- sign(∑j≠iwjiyj)=yi∀i\operatorname{sign}\left(\sum_{j \neq i} w_{j i} y_{j}\right)=y_{i} \quad \forall isign(∑j=iwjiyj)=yi∀i
- So
- sign(∑j≠iwjiyj)=sign(∑j≠iyjyiyj)\operatorname{sign}\left(\sum_{j \neq i} w_{j i} y_{j}\right)=\operatorname{sign}\left(\sum_{j \neq i} y_{j} y_{i} y_{j}\right)sign(∑j=iwjiyj)=sign(∑j=iyjyiyj)
- =sign(∑j≠iyj2yi)=sign(yi)=yi\quad=\operatorname{sign}\left(\sum_{j \neq i} y_{j}^{2} y_{i}\right)=\operatorname{sign}\left(y_{i}\right)=y_{i}=sign(∑j=iyj2yi)=sign(yi)=yi
- Energy
- E=−∑i∑j<iwjiyjyi=−∑i∑j<iyi2yj2=−∑i∑j<i1=−0.5N(N−1)\begin{aligned} E=&-\sum_{i} \sum_{j<i} w_{j i} y_{j} y_{i}=-\sum_{i} \sum_{j<i} y_{i}^{2} y_{j}^{2} \\\\ &=-\sum_{i} \sum_{j<i} 1=-0.5 N(N-1) \end{aligned}E=−i∑j<i∑wjiyjyi=−i∑j<i∑yi2yj2=−i∑j<i∑1=−0.5N(N−1)
- This is the lowest possible energy value for the network
- Stored pattern has lowest energy
- No matter where it begin, it will evolve into yellow pattern(lowest energy)
How many patterns can we store?
- To store more than one pattern
wji=∑yp∈{yp}yipyjp w_{j i}=\sum_{\mathbf{y}_{p} \in\left\{\mathbf{y}_{p}\right\}} y_{i}^{p} y_{j}^{p} wji=yp∈{yp}∑yipyjp
- {yP}\{y_P\}{yP} is the set of patterns to store
- Super/subscript ppp represents the specific pattern
- Hopfield: For a network of neurons can store up to ~0.15N0.15N0.15N patterns through Hebbian learning(Provided in PPT)
Orthogonal/ Non-orthogonal patterns
-
Orthogonal patterns
- Patterns are local minima (stationary and stable)
- No other local minima exist
- But patterns perfectly confusable for recall
- Patterns are local minima (stationary and stable)
-

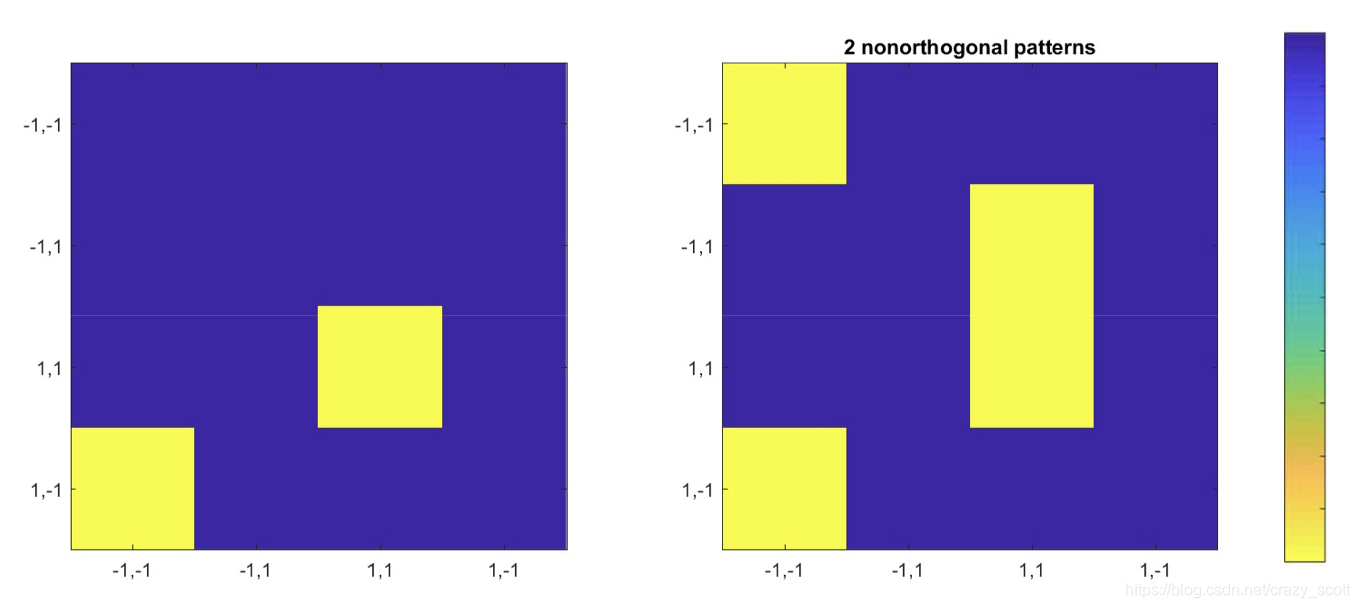

Non-orthogonal patterns
- Patterns are local minima (stationary and stable)
- No other local minima exist
- Actual wells for patterns
- Patterns may be perfectly recalled! (Note K > 0.14 N)
- No other local minima exist
- Patterns are local minima (stationary and stable)
-

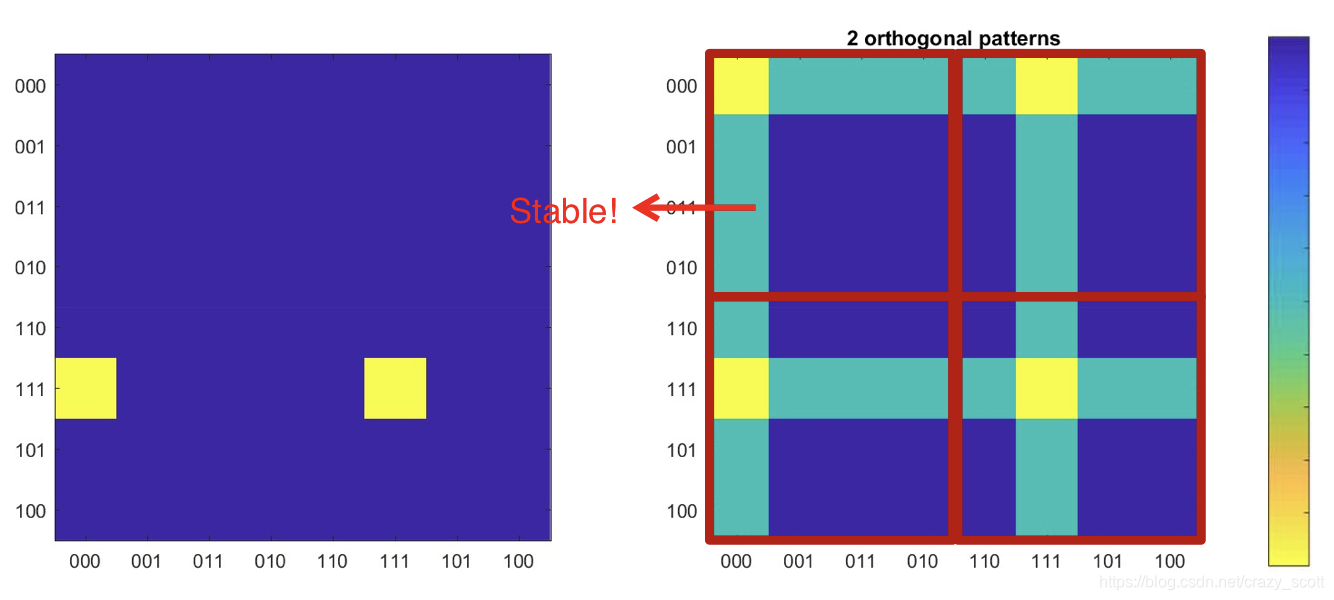

Two orthogonal 6-bit patterns
- Perfectly stationary and stable
- Several spurious “fake-memory” local minima…
Observations
-
Many “parasitic” patterns
- Undesired patterns that also become stable or attractors
-
Patterns that are non-orthogonal easier to remember
- I.e. patterns that are closer are easier to remember than patterns that are farther!!
-
Seems possible to store K > 0.14N patterns
- i.e. obtain a weight matrix W such that K > 0.14N patterns are stationary
- Possible to make more than 0.14N patterns at-least 1-bit stable
