CUDA6.0开始有"统一寻址"(Unified Memory)编程模型,可以用单个指针访问CPU和GPU内存,无须手动拷贝

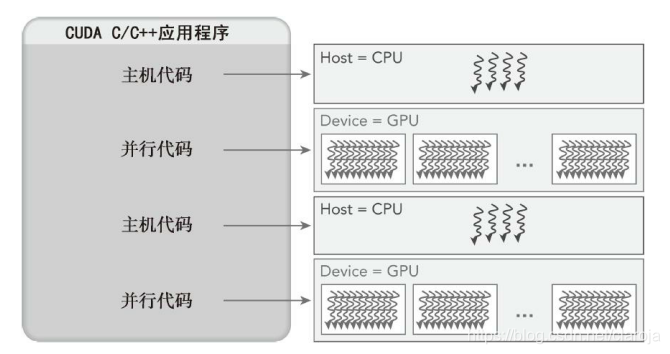

主机启动内核后,管理权立刻返回给主机(类似启动线程后,不join)

在这里插入图片描述

C函数	CUDA C函数
malloc	cudaMalloc
memcpy	cudaMemcpy
memset	cudaMemset
free	cudaFree

cudaError_t cudaMalloc(void** devPtr, size_t size)

分配线性内存,devPtr是内存指针

cudaError_t cudaMemcpy(void* dst, const void* src, size_t count,cudaMemcpyKind kind)

主机和设备之间的数据传输,从src向dst复制字节,复制方向由kind指定
kind:
cudaMemcpyHostToHost
cudaMemcpyHostToDevice
cudaMemcpyDeviceToHost
cudaMemcpyDeviceToDevice
同步方式,在cudaMemcpy函数返回及传输操作完成之前主机是阻塞的
返回错误枚举类型cudaError_t,成功返回cudaSuccess,失败返回cudaErrorMemoryAllocation

char* cudaGetErrorString(cudaError_t error)

获得报错信息,和C语言中的strerror函数类似

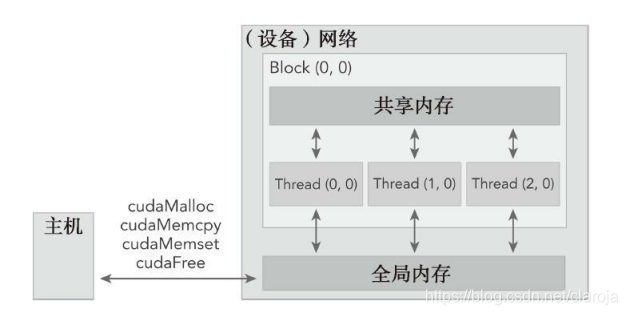

内存层次结构

在这里插入图片描述

#include <stdlib.h>
#include <time.h>

void sumArraysOnHost(float *A, float *B, float *C, const int N)//数组相加
{
    for (int idx = 0; idx < N; idx++)
    {
        C[idx] = A[idx] + B[idx];
    }
}


void initialData(float *ip, int size)//初始化数组,生成随机数
{
    time_t t;
    srand((unsigned) time(&t));//随机数发生器

    for (int i = 0; i < size; i++)
    {//rand()随机数函数返回一个int型的数,将rand()返回值的高16位变成0，低16位不变,用来控制最大值
        ip[i] = (float)(rand() & 0xFF) / 10.0f;//
    }

    return;
}

int main(int argc, char **argv)
{
    int nElem = 1024;
    size_t nBytes = nElem * sizeof(float);

    float *h_A, *h_B, *h_C;
    h_A = (float *)malloc(nBytes);
    h_B = (float *)malloc(nBytes);
    h_C = (float *)malloc(nBytes);

    initialData(h_A, nElem);
    initialData(h_B, nElem);

    sumArraysOnHost(h_A, h_B, h_C, nElem);

    free(h_A);
    free(h_B);
    free(h_C);
    return(0);
}

nvcc -Xcompiler -std=c99 sumArraysOnHost.c -o sum
-Xcompiler用于指定命令行选项是指向C编译器还是预处理器
-std=c99传递给编译器,指定编译标准
参考: https://docs.nvidia.com/cuda/cuda-compiler-driver-nvcc/index.html

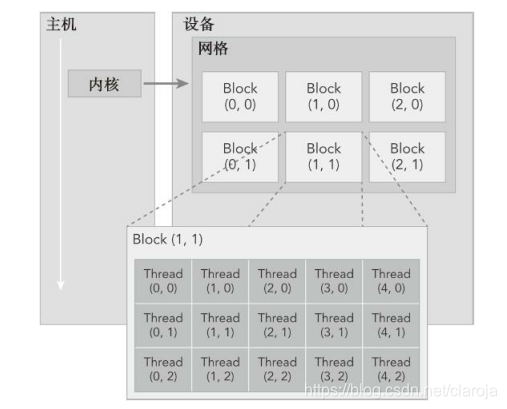

线程管理

同一grid所有线程共享相同的全局内存空间
一个grid由多个block构成,一个线程block包含一组thread
同一block内线程:1. 同步,2.共享内存;不同block不能协作

在这里插入图片描述

索引
1. 线程依靠blockIdx(block在grid里的索引)和threadIdx(block内索引),基于坐标将不同的数据分配给不同的线程
2. 坐标变量基于unint3定义的CUDA内置向量类型(blockIdx.x,blockIdx.y,blockIdx.z;threadIdx.x,threadIdx.y,threadIdx.z)
3. grid和block都可以组织为3维的,一个grid,默认是二维,一个block默认三维
4. gridDim线程格维度(每个grid中有多少个block) blockDim线程块的维度(每个block中有多少个线程)是dim3类型的变量
5. dim3类型的变量，所有未指定的元素都被初始化为1,可以通过x,y,z获得各个维度的长度(blockDim.x,blockDim.y,blockDim.z)
6. host端使用dim3定义grid和block,在device端会议unit3类型显示;既host端的dim3 对应了device端的unit(block对应blockDim,grid对应gridDim)

host和device对应

#include <cuda_runtime.h>
#include <stdio.h>
__global__ void checkIndex(void)
{
    printf("threadIdx:(%d, %d, %d)\n", threadIdx.x, threadIdx.y, threadIdx.z);//因为是1维的,所以y,z维度坐标都是0
    printf("blockIdx:(%d, %d, %d)\n", blockIdx.x, blockIdx.y, blockIdx.z);
    printf("blockDim:(%d, %d, %d)\n", blockDim.x, blockDim.y, blockDim.z);//因为是1维的,所以y,z维度都初始化为1
    printf("gridDim:(%d, %d, %d)\n", gridDim.x, gridDim.y, gridDim.z);//因为是1维的,所以y,z维度都初始化为1
}

int main(int argc, char **argv)
{
    int nElem = 6;//假设有6个数据
    dim3 block(3);//每个block有3个thread
    //C语言中除号两边都是整型时，做的求模运算，即整除，得到的是一个整数,为什么不直接Elem/block.x?
    dim3 grid((nElem + block.x - 1) / block.x);//每个grid有2个block,
    // host端检查grid和block的配置
    printf("grid.x %d grid.y %d grid.z %d\n", grid.x, grid.y, grid.z);
    printf("block.x %d block.y %d block.z %d\n", block.x, block.y, block.z);
    // device端检查grid和block的配置
    checkIndex<<<grid, block>>>();
    cudaDeviceReset();
    return(0);
}

重置grid和block

#include <cuda_runtime.h>
#include <stdio.h>

int main(int argc, char **argv)
{
    int nElem = 1024;// 总共设置1024个数据
    // block,1维,共1024个thread;grid1维,共1个block
    dim3 block (1024);
    dim3 grid  ((nElem + block.x - 1) / block.x);
    printf("grid.x %d block.x %d \n", grid.x, block.x);

    // block,1维,共512个thread;grid1维,共2个block
    block.x = 512;
    grid.x  = (nElem + block.x - 1) / block.x;
    printf("grid.x %d block.x %d \n", grid.x, block.x);

    // block,1维,共256个thread;grid1维,共4个block
    block.x = 256;
    grid.x  = (nElem + block.x - 1) / block.x;
    printf("grid.x %d block.x %d \n", grid.x, block.x);

    // block,1维,共128个thread;grid1维,共8个block
    block.x = 128;
    grid.x  = (nElem + block.x - 1) / block.x;
    printf("grid.x %d block.x %d \n", grid.x, block.x);

    cudaDeviceReset();
    return(0);
}

启动核函数

kernel_name <<< grid,block>>>(argument list); 相比c普通函数function_name(argument list)多了<<< grid,block>>>
假设有8个元素,启动2个1维块,每个块有4个thread kernel_name<<< 2, 4>>>(argument list)

在这里插入图片描述
3. kernel函数调用和host是异步的,调用后,控制权立刻返回给host,可以使用cudaError_t cuda DevicesSynchronize(void)来同步
4. 有些kernel函数是同步的,如cudaError_t cudaMemcpy(void* dst, const void* src, size_t count, cudaMemcpyKind kind),拷贝完成后,控制权才返回主机

编写核函数

限定符	调用位置	执行位置	备注
global	host	device	必须有void返回类型
device	device	device
host	host	host	可以省略

__device__和__host__可以一起使用,这样函数同时在主机和设备端进行编译
核函数限制
1)只能访问设备内存
2)必须有void返回类型
3)不支持可变数量的参数
4)不支持静态变量
5)基本都是异步
cpu:

void sumArraysOnHost(float *A, float *B, float *C, const int N){
	for (int i = 0; i < N; i++)
		C[i] = A[i] + B[i];
}

gpu:

__global__ void sumArraysOnGPU(float *A, float *B, float *C)//数组相加
{
	int i = threadIdx.x;//省略循环,通过threadIdx来
    C[i] = A[i] + B[i];
}

验证核函数

验证结果

void checkResult(float *h_C, float *gpuRef, const int N){//检验cpu和gpu的计算结果
    double epsilon = 1.0E-8;
    bool match = 1;
    for (int i = 0; i < N; i++){
        if (abs(h_C[i] - gpuRef[i]) > epsilon){//host计算数组对应位置元素值-device计算数组对应元素值
            match = 0;//更改全正确标志为0,既不会打印全部正确
            printf("Arrays do not match!\n");
            printf("host %5.2f gpu %5.2f at current %d\n", h_C[i],gpuRef[i], i);
            break;
        }
    }
    if (match) printf("Arrays match.\n\n");
    return;
}

处理错误

综合

#include <cuda_runtime.h>
#include <stdio.h>
#include <sys/time.h>

void checkResult(float *h_C, float *gpuRef, const int N){//检验cpu和gpu的计算结果
    double epsilon = 1.0E-8;
    bool match = 1;
    for (int i = 0; i < N; i++){
        if (abs(h_C[i] - gpuRef[i]) > epsilon){//host计算数组对应位置元素值-device计算数组对应元素值
            match = 0;//更改全正确标志为0,既不会打印全部正确
            printf("Arrays do not match!\n");
            printf("host %5.2f gpu %5.2f at current %d\n", h_C[i],gpuRef[i], i);
            break;
        }
    }
    if (match) printf("Arrays match.\n\n");
    return;
}


void initialData(float *ip, int size){//目的是生成随机的浮点数
    time_t t;
    srand((unsigned) time(&t));
    for (int i = 0; i < size; i++){
        ip[i] = (float)(rand() & 0xFF) / 10.0f;
    }
    return;
}

void sumArraysOnHost(float *A, float *B, float *C, const int N){
    for (int idx = 0; idx < N; idx++)
        C[idx] = A[idx] + B[idx];
}

__global__ void sumArraysOnGPU(float *A, float *B, float *C, const int N){
    int i = threadIdx.x;
    if (i < N) C[i] = A[i] + B[i];//i<N 只让小于i的核来工作
}

int main(int argc, char **argv){

    int nElem = 32;
    // malloc host memory
    size_t nBytes = nElem * sizeof(float);

    float *h_A, *h_B, *h_C, *gpuRef;
    h_A     = (float *)malloc(nBytes);//host 数组A
    h_B     = (float *)malloc(nBytes);//host 数组B
    h_C = (float *)malloc(nBytes);//host 数组C,存储h_A + h_B的结果
    gpuRef  = (float *)malloc(nBytes);//device 结果数组,从gpu中结果复制到CPU

    initialData(h_A, nElem); //初始化 host数组A,生成随机的浮点数
    initialData(h_B, nElem); //初始化 host数组B,生成随机的浮点数

    memset(h_C, 0, nBytes); //初始化 host 结果数组,全部置为0
    memset(gpuRef,  0, nBytes); //初始化 device 结果数组,全部置为0

    float *d_A, *d_B, *d_C;
    cudaMalloc((float**)&d_A, nBytes);  //初始化 device数组A 第一个参数意思是传入指针的地址,d_A本来在host内存中
    cudaMalloc((float**)&d_B, nBytes);  //初始化 device数组B 经过cudaMalloc作用后指针将指向device的内存
    cudaMalloc((float**)&d_C, nBytes);  //初始化 device数组C

    cudaMemcpy(d_A, h_A, nBytes, cudaMemcpyHostToDevice);//将host数组内容拷贝到device中
    cudaMemcpy(d_B, h_B, nBytes, cudaMemcpyHostToDevice);//将host数组内容拷贝到device中
    cudaMemcpy(d_C, gpuRef, nBytes, cudaMemcpyHostToDevice);//将host数组内容拷贝到device中

    //host配置grid和block
    dim3 block (nElem);
    dim3 grid  (1);

    sumArraysOnGPU<<<grid, block>>>(d_A, d_B, d_C, nElem);//device计算数组相加
    cudaMemcpy(gpuRef, d_C, nBytes, cudaMemcpyDeviceToHost);//将device结果拷贝到host

    sumArraysOnHost(h_A, h_B, h_C, nElem);//host数组相加
    checkResult(h_C, gpuRef, nElem);//检测结果

    // free device global memory
    cudaFree(d_A);
    cudaFree(d_B);
    cudaFree(d_C);

    // free host memory
    free(h_A);
    free(h_B);
    free(h_C);
    free(gpuRef);

    cudaDeviceReset();
    return(0);
}

计时

#include <cuda_runtime.h>
#include <stdio.h>
#include <sys/time.h>
void checkResult(float *h_C, float *gpuRef, const int N){
    double epsilon = 1.0E-8;
    bool match = 1;
    for (int i = 0; i < N; i++){
        if (abs(h_C[i] - gpuRef[i]) > epsilon){
            match = 0;
            printf("Arrays do not match!\n");
            printf("host %5.2f gpu %5.2f at current %d\n", h_C[i],
                   gpuRef[i], i);
            break;
        }
    }
    if (match) printf("Arrays match.\n\n");
    return;
}

double seconds(){
    struct timeval tp;
    struct timezone tzp;
    int i = gettimeofday(&tp, &tzp);
    return ((double)tp.tv_sec + (double)tp.tv_usec * 1.e-6);
}


void initialData(float *ip, int size){
    time_t t;
    srand((unsigned) time(&t));
    for (int i = 0; i < size; i++){
        ip[i] = (float)( rand() & 0xFF ) / 10.0f;
    }
    return;
}

void sumArraysOnHost(float *A, float *B, float *C, const int N){
    for (int idx = 0; idx < N; idx++){
        C[idx] = A[idx] + B[idx];
    }
}
__global__ void sumArraysOnGPU(float *A, float *B, float *C, const int N){
    int i = blockIdx.x * blockDim.x + threadIdx.x;
    if (i < N) C[i] = A[i] + B[i];//device的blockIdx可能会超出数组的界限
}

int main(int argc, char **argv)
{
    printf("%s Starting...\n", argv[0]);
    int nElem = 32;
    size_t nBytes = nElem * sizeof(float);

    float *h_A, *h_B, *h_C, *gpuRef;
    h_A     = (float *)malloc(nBytes);
    h_B     = (float *)malloc(nBytes);
    h_C = (float *)malloc(nBytes);
    gpuRef  = (float *)malloc(nBytes);

    double iStart, iElaps;

    // 初始化host
    iStart = seconds();
    initialData(h_A, nElem);
    initialData(h_B, nElem);
    iElaps = seconds() - iStart;
    printf("initialData Time elapsed %f sec\n", iElaps);
    memset(h_C, 0, nBytes);
    memset(gpuRef,  0, nBytes);

    // host计算
    iStart = seconds();
    sumArraysOnHost(h_A, h_B, h_C, nElem);
    iElaps = seconds() - iStart;
    printf("sumArraysOnHost Time elapsed %f sec\n", iElaps);

    // 初始化device
    float *d_A, *d_B, *d_C;
    cudaMalloc((float**)&d_A, nBytes);//(float**)可以省略,使用是为了明确传入的是指针的地址(二重指针)
    cudaMalloc((float**)&d_B, nBytes);
    cudaMalloc((float**)&d_C, nBytes);


    cudaMemcpy(d_A, h_A, nBytes, cudaMemcpyHostToDevice);
    cudaMemcpy(d_B, h_B, nBytes, cudaMemcpyHostToDevice);
    cudaMemcpy(d_C, gpuRef, nBytes, cudaMemcpyHostToDevice);


    int iLen = 512;
    dim3 block (iLen);
    dim3 grid  ((nElem + block.x - 1) / block.x);

    iStart = seconds();
    sumArraysOnGPU<<<grid, block>>>(d_A, d_B, d_C, nElem);
    cudaDeviceSynchronize();
    iElaps = seconds() - iStart;
    printf("sumArraysOnGPU <<<  %d, %d  >>>  Time elapsed %f sec\n", grid.x,
           block.x, iElaps);

    // 从device取数据
    cudaMemcpy(gpuRef, d_C, nBytes, cudaMemcpyDeviceToHost);

    // 检查结果
    checkResult(h_C, gpuRef, nElem);


    cudaFree(d_A);
    cudaFree(d_B);
    cudaFree(d_C);

    free(h_A);
    free(h_B);
    free(h_C);
    free(gpuRef);

    return(0);
}

nvprof

CUDA5.0以来,提供给了程序执行的信息
nvprof [nvprof_args] <application> [application_args]
nvprof --help
`nvprof ./sumArraysOnGPU-timer

~/code/cuda$ nvprof ./sum
./sum Starting...
Vector size 32
initialData Time elapsed 0.000004 sec
sumArraysOnHost Time elapsed 0.000000 sec
==5121== NVPROF is profiling process 5121, command: ./sum
sumArraysOnGPU <<<  1, 512  >>>  Time elapsed 0.000025 sec
Arrays match.

==5121== Profiling application: ./sum
==5121== Profiling result:
            Type  Time(%)      Time     Calls       Avg       Min       Max  Name
 GPU activities:   43.48%  1.9200us         3     640ns     576ns     768ns  [CUDA memcpy HtoD]
                   42.03%  1.8560us         1  1.8560us  1.8560us  1.8560us  sumArraysOnGPU(float*, float*, float*, int)
                   14.49%     640ns         1     640ns     640ns     640ns  [CUDA memcpy DtoH]
      API calls:   98.84%  143.30ms         3  47.768ms  3.2070us  143.29ms  cudaMalloc
                    0.72%  1.0374ms        96  10.806us     519ns  507.17us  cuDeviceGetAttribute
                    0.25%  364.98us         1  364.98us  364.98us  364.98us  cuDeviceTotalMem
                    0.08%  113.68us         1  113.68us  113.68us  113.68us  cuDeviceGetName
                    0.06%  85.675us         3  28.558us  4.0100us  75.346us  cudaFree
                    0.03%  41.697us         4  10.424us  4.4080us  24.272us  cudaMemcpy
                    0.01%  20.049us         1  20.049us  20.049us  20.049us  cudaLaunchKernel
                    0.01%  7.6710us         1  7.6710us  7.6710us  7.6710us  cuDeviceGetPCIBusId
                    0.00%  4.1670us         3  1.3890us     516ns  2.7560us  cuDeviceGetCount
                    0.00%  3.7380us         1  3.7380us  3.7380us  3.7380us  cudaDeviceSynchronize
                    0.00%  3.5770us         2  1.7880us     533ns  3.0440us  cuDeviceGet
                    0.00%  1.0310us         1  1.0310us  1.0310us  1.0310us  cuDeviceGetUuid

组织并行线程

使用block和thread建立矩阵索引

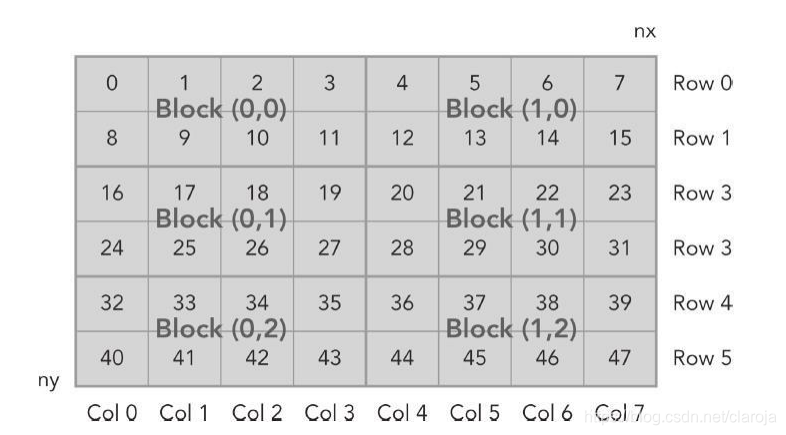

使用线性存储二维矩阵

在这里插入图片描述

#include <cuda_runtime.h>
#include <stdio.h>


void printMatrix(int *C, const int nx, const int ny)
{
    int *ic = C;
    for (int iy = 0; iy < ny; iy++){
        for (int ix = 0; ix < nx; ix++){
            printf("%3d", ic[ix]);
        }
        ic += nx;//指针移动了一行的元素距离
        printf("\n");
    }
    printf("\n");
    return;
}

__global__ void printThreadIndex(int *A, const int nx, const int ny){//二维block
	//dim3 block(4, 2);x:[0,1,2,3],y:[0,1]

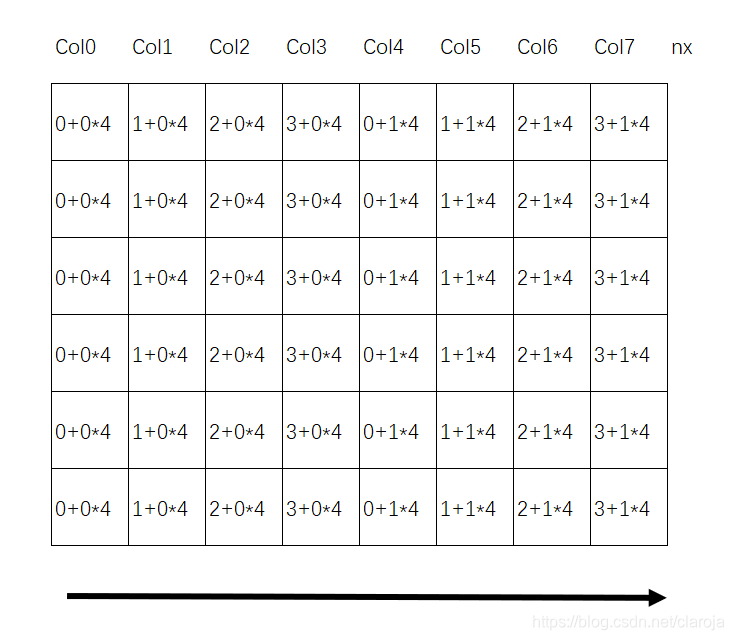

    int ix = threadIdx.x + blockIdx.x * blockDim.x;

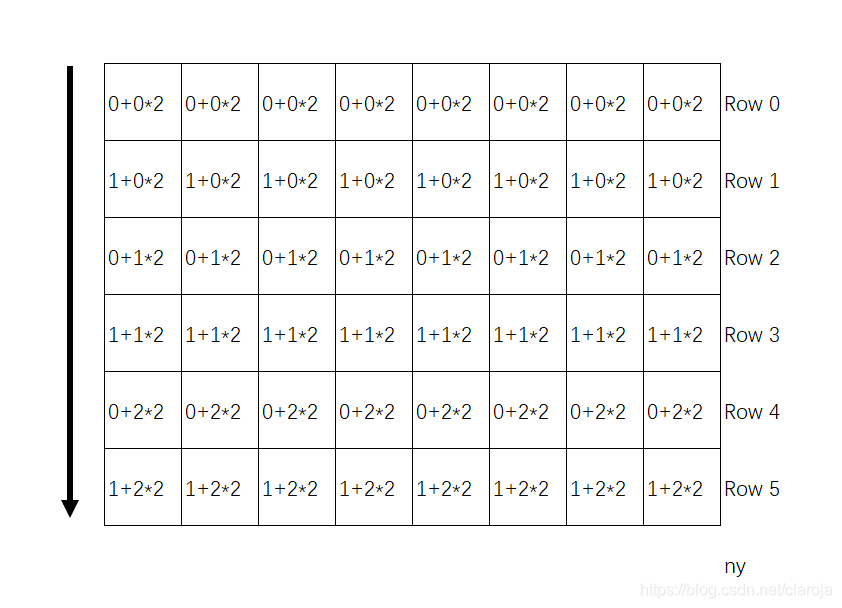

    int iy = threadIdx.y + blockIdx.y * blockDim.y;
    unsigned int idx = iy * nx + ix;
    printf("thread_id (%d,%d) block_id (%d,%d) coordinate (%d,%d) global index"
           " %2d ival %2d\n", threadIdx.x, threadIdx.y, blockIdx.x, blockIdx.y,
           ix, iy, idx, A[idx]);
}

int main(int argc, char **argv)
{
    printf("%s Starting...\n", argv[0]);

    int nx = 8; //每行8个元素
    int ny = 6; //6列
    int nxy = nx * ny; //总元素个数

    int nBytes = nxy * sizeof(float);//host端申请内存,线性内存存储矩阵
    int *h_A = (int *)malloc(nBytes);

    for (int i = 0; i < nxy; i++){//初始化矩阵
        h_A[i] = i;
    }
    printMatrix(h_A, nx, ny);

    int *d_MatA;//device申请内存
    cudaMalloc((void **)&d_MatA, nBytes);
    cudaMemcpy(d_MatA, h_A, nBytes, cudaMemcpyHostToDevice); //将host端矩阵和device端同步

    dim3 block(4, 2);
    dim3 grid((nx + block.x - 1) / block.x, (ny + block.y - 1) / block.y);//(8+4-1)/4=2,(6+2-1)/2=3
    printThreadIndex<<<grid, block>>>(d_MatA, nx, ny);//<<<6,8>>>

    cudaFree(d_MatA);
    free(h_A);
    cudaDeviceReset();

    return (0);
}

二维网格和二维块对矩阵求和

#include <cuda_runtime.h>
#include <stdio.h>

void initialData(float *ip, const int size){//初始化矩阵
    for(int i = 0; i < size; i++){
        ip[i] = (float)(rand() & 0xFF) / 10.0f;
    }
    return;
}

void sumMatrixOnHost(float *A, float *B, float *C, const int nx, const int ny){//host端矩阵加法
    float *ia = A;
    float *ib = B;
    float *ic = C;

    for (int iy = 0; iy < ny; iy++){
        for (int ix = 0; ix < nx; ix++){
            ic[ix] = ia[ix] + ib[ix];
        }
        ia += nx;//每计算一行,指针位置前进一行
        ib += nx;
        ic += nx;
    }
    return;
}


void checkResult(float *h_C, float *gpuRef, const int N){
    double epsilon = 1.0E-8;
    bool match = 1;
    for (int i = 0; i < N; i++){
        if (abs(h_C[i] - gpuRef[i]) > epsilon){
            match = 0;
            printf("host %f gpu %f\n", h_C[i], gpuRef[i]);
            break;
        }
    }
    if (match)
        printf("Arrays match.\n\n");
    else
        printf("Arrays do not match.\n\n");
}

__global__ void sumMatrixOnGPU2D(float *MatA, float *MatB, float *MatC, int nx, int ny){
    unsigned int ix = threadIdx.x + blockIdx.x * blockDim.x;//横坐标,列数
    unsigned int iy = threadIdx.y + blockIdx.y * blockDim.y;//纵坐标,行数
    unsigned int idx = iy * nx + ix;

    if (ix < nx && iy < ny)
        MatC[idx] = MatA[idx] + MatB[idx];
}

int main(int argc, char **argv)
{
    printf("%s Starting...\n", argv[0]);
    //初始化host
    int nx = 1 << 14;//矩阵列数
    int ny = 1 << 14;//矩阵行数
    int nxy = nx * ny;//总元素个数
    int nBytes = nxy * sizeof(float);

    float *h_A, *h_B, *h_C, *gpuRef;
    h_A = (float *)malloc(nBytes);
    h_B = (float *)malloc(nBytes);
    h_C = (float *)malloc(nBytes);
    gpuRef = (float *)malloc(nBytes);

    initialData(h_A, nxy);
    initialData(h_B, nxy);
    memset(h_C, 0, nBytes);
    memset(gpuRef, 0, nBytes);
    sumMatrixOnHost(h_A, h_B, h_C, nx, ny);
    //初始化device
    float *d_MatA, *d_MatB, *d_MatC;
    cudaMalloc((void **)&d_MatA, nBytes);
    cudaMalloc((void **)&d_MatB, nBytes);
    cudaMalloc((void **)&d_MatC, nBytes);
    cudaMemcpy(d_MatA, h_A, nBytes, cudaMemcpyHostToDevice);
    cudaMemcpy(d_MatB, h_B, nBytes, cudaMemcpyHostToDevice);

    int dimx = 32;
    int dimy = 32;
    dim3 block(dimx, dimy);
    dim3 grid((nx + block.x - 1) / block.x, (ny + block.y - 1) / block.y);

    sumMatrixOnGPU2D<<<grid, block>>>(d_MatA, d_MatB, d_MatC, nx, ny);
    cudaDeviceSynchronize();
    cudaMemcpy(gpuRef, d_MatC, nBytes, cudaMemcpyDeviceToHost);

    checkResult(h_C, gpuRef, nxy);
    //释放内存
    cudaFree(d_MatA);
    cudaFree(d_MatB);
    cudaFree(d_MatC);

    free(h_A);
    free(h_B);
    free(h_C);
    free(gpuRef);
    cudaDeviceReset();

    return (0);
}

使用一维网格一维块对矩阵求和

__global__ void sumMatrixOnGPU1D(float *MatA, float *MatB, float *MatC, int nx,int ny){
    unsigned int ix = threadIdx.x + blockIdx.x * blockDim.x;
    if (ix < nx )
        for (int iy = 0; iy < ny; iy++){
            int idx = iy * nx + ix;
            MatC[idx] = MatA[idx] + MatB[idx];
        }
}

dim3 block(32, 1);
dim3 grid((nx + block.x - 1) / block.x, 1);

使用二维网格和一维块对矩阵求和

__global__ void sumMatrixOnGPUMix(float *MatA, float *MatB, float *MatC, int nx,
                                  int ny)
{
    unsigned int ix = threadIdx.x + blockIdx.x * blockDim.x;
    unsigned int iy = blockIdx.y;
    unsigned int idx = iy * nx + ix;

    if (ix < nx && iy < ny)
        MatC[idx] = MatA[idx] + MatB[idx];
}

int dimx = 32;
dim3 block(dimx, 1);
dim3 grid((nx + block.x - 1) / block.x, ny);

设备管理

使用运行时API查询GPU信息

#include <cuda_runtime.h>
#include <stdio.h>

int main(int argc, char **argv){
    printf("%s Starting...\n", argv[0]);

    int deviceCount = 0;
    cudaGetDeviceCount(&deviceCount);//查看GPU数量
    printf("Detected %d CUDA Capable device(s)\n", deviceCount);


    int dev = 0, driverVersion = 0, runtimeVersion = 0;
    cudaSetDevice(dev);
    cudaDeviceProp deviceProp;
    cudaGetDeviceProperties(&deviceProp, dev);
    printf("Device %d: \"%s\"\n", dev, deviceProp.name);

    cudaDriverGetVersion(&driverVersion);
    cudaRuntimeGetVersion(&runtimeVersion);
    printf("  CUDA Driver Version / Runtime Version          %d.%d / %d.%d\n",
           driverVersion / 1000, (driverVersion % 100) / 10,
           runtimeVersion / 1000, (runtimeVersion % 100) / 10);
    printf("  CUDA Capability Major/Minor version number:    %d.%d\n",
           deviceProp.major, deviceProp.minor);
    printf("  Total amount of global memory:                 %.2f GBytes (%llu "
           "bytes)\n", (float)deviceProp.totalGlobalMem / pow(1024.0, 3),
           (unsigned long long)deviceProp.totalGlobalMem);
    printf("  GPU Clock rate:                                %.0f MHz (%0.2f "
           "GHz)\n", deviceProp.clockRate * 1e-3f,
           deviceProp.clockRate * 1e-6f);
    printf("  Memory Clock rate:                             %.0f Mhz\n",
           deviceProp.memoryClockRate * 1e-3f);
    printf("  Memory Bus Width:                              %d-bit\n",
           deviceProp.memoryBusWidth);

    if (deviceProp.l2CacheSize)
    {
        printf("  L2 Cache Size:                                 %d bytes\n",
               deviceProp.l2CacheSize);
    }

    printf("  Max Texture Dimension Size (x,y,z)             1D=(%d), "
           "2D=(%d,%d), 3D=(%d,%d,%d)\n", deviceProp.maxTexture1D,
           deviceProp.maxTexture2D[0], deviceProp.maxTexture2D[1],
           deviceProp.maxTexture3D[0], deviceProp.maxTexture3D[1],
           deviceProp.maxTexture3D[2]);
    printf("  Max Layered Texture Size (dim) x layers        1D=(%d) x %d, "
           "2D=(%d,%d) x %d\n", deviceProp.maxTexture1DLayered[0],
           deviceProp.maxTexture1DLayered[1], deviceProp.maxTexture2DLayered[0],
           deviceProp.maxTexture2DLayered[1],
           deviceProp.maxTexture2DLayered[2]);
    printf("  Total amount of constant memory:               %lu bytes\n",
           deviceProp.totalConstMem);
    printf("  Total amount of shared memory per block:       %lu bytes\n",
           deviceProp.sharedMemPerBlock);
    printf("  Total number of registers available per block: %d\n",
           deviceProp.regsPerBlock);
    printf("  Warp size:                                     %d\n",
           deviceProp.warpSize);
    printf("  Maximum number of threads per multiprocessor:  %d\n",
           deviceProp.maxThreadsPerMultiProcessor);
    printf("  Maximum number of threads per block:           %d\n",
           deviceProp.maxThreadsPerBlock);
    printf("  Maximum sizes of each dimension of a block:    %d x %d x %d\n",
           deviceProp.maxThreadsDim[0],
           deviceProp.maxThreadsDim[1],
           deviceProp.maxThreadsDim[2]);
    printf("  Maximum sizes of each dimension of a grid:     %d x %d x %d\n",
           deviceProp.maxGridSize[0],
           deviceProp.maxGridSize[1],
           deviceProp.maxGridSize[2]);
    printf("  Maximum memory pitch:                          %lu bytes\n",
           deviceProp.memPitch);
    exit(EXIT_SUCCESS);
}

确定最优gpu

int numDevices = 0;
cudaGetDeviceCount(&numDevices);
if(numDevices > 1){
    int maxMultiprocessors = 0, maxDevice = 0;
    for(int device=0; device<numDevices; device++){
		cudaDeviceProp props;
		cudaGetDeviceProperties(&props, device);
		if (maxMultiprocessors < props.multipProcessorCount){
			maxMultiprocessors = props.multiProcessorCount;
			maxDevice = device;
		}
	}
}

使用nvidia-smi查询GPU信息

nvida-smi -L
nvidia-smi -q -i -0
nvidia-smi -q -i 0 -d MEMORY | tail -n 5
nvidia-smi -q -i 0 -d UTILIZATION | tail -n 4

运行时设置设备

有N个GPU的系统,nvidia-smi从0到N-1来记录设备,使用环境变量CUDA_VISIBLE_DEVICES来设置

CUDA C编程权威指南 第二章 CUDA编程模型

内存层次结构

线程管理

启动核函数

编写核函数

验证核函数

处理错误

综合

计时

nvprof

组织并行线程

使用block和thread建立矩阵索引

二维网格和二维块对矩阵求和

使用一维网格一维块对矩阵求和

使用二维网格和一维块对矩阵求和

设备管理

使用运行时API查询GPU信息

确定最优gpu

使用nvidia-smi查询GPU信息

运行时设置设备

CUDA C编程权威指南第二章 CUDA编程模型
