立创官方镜像编译

官方镜像编译参考：https://lceda001.feishu.cn/wiki/Da5owUV4dipiqUkZycbcxckinvc

使用官方镜像前需要准备的步骤：

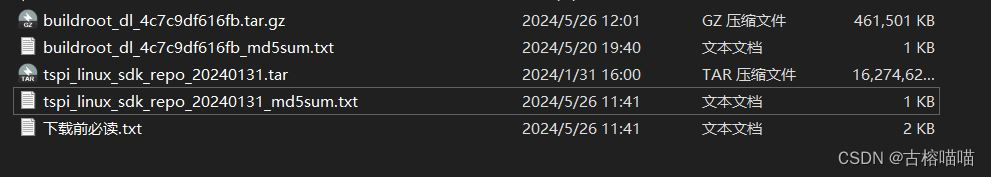

立创镜像文件下载完成后出现以下四个文件，将两个压缩文件复制到ubuntu22.04虚拟机中，解压

文件解压后会发现在当前文件夹下没有任何文件，这是因为解压得到的是一个名为.repo的文件，默认是隐藏的，执行：.repo/repo/repo sync -l -j88 会将文件同步出来。

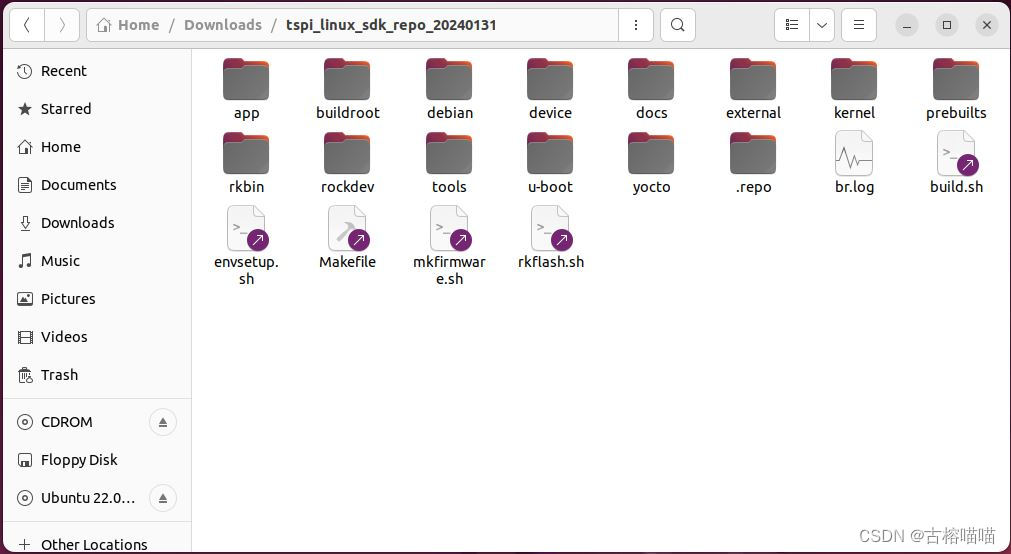

而后将buildroot_dl_4c7c9df616fb文件夹中的buildroot复制到tspi_linux_sdk_repo_20240131文件夹中，而后进入tspi_linux_sdk_repo_20240131文件夹内。

全编译执行

sudo ./build.sh all

单编译执行kernel

sudo ./build.sh kernel

其中build.sh文件里的内容如下：

#!/bin/bash

export LC_ALL=C
export LD_LIBRARY_PATH=
unset RK_CFG_TOOLCHAIN

err_handler() {
	ret=$?
	[ "$ret" -eq 0 ] && return

	echo "ERROR: Running ${FUNCNAME[1]} failed!"
	echo "ERROR: exit code $ret from line ${BASH_LINENO[0]}:"
	echo "    $BASH_COMMAND"
	exit $ret
}
trap 'err_handler' ERR
set -eE

function finish_build(){
	echo "Running ${FUNCNAME[1]} succeeded."
	cd $TOP_DIR
}

function check_config(){
	unset missing
	for var in $@; do
		eval [ \$$var ] && continue

		missing="$missing $var"
	done

	[ -z "$missing" ] && return 0

	echo "Skipping ${FUNCNAME[1]} for missing configs: $missing."
	return 1
}

function choose_target_board()
{
	echo
	echo "You're building on Linux"
	echo "Lunch menu...pick a combo:"
	echo ""

	echo "0. default BoardConfig.mk"
	echo ${RK_TARGET_BOARD_ARRAY[@]} | xargs -n 1 | sed "=" | sed "N;s/\n/. /"

	local INDEX
	read -p "Which would you like? [0]: " INDEX
	INDEX=$((${INDEX:-0} - 1))

	if echo $INDEX | grep -vq [^0-9]; then
		RK_BUILD_TARGET_BOARD="${RK_TARGET_BOARD_ARRAY[$INDEX]}"
	else
		echo "Lunching for Default BoardConfig.mk boards..."
		RK_BUILD_TARGET_BOARD=BoardConfig.mk
	fi
}

function build_select_board()
{
	RK_TARGET_BOARD_ARRAY=( $(cd ${TARGET_PRODUCT_DIR}/; ls BoardConfig*.mk | sort) )

	RK_TARGET_BOARD_ARRAY_LEN=${#RK_TARGET_BOARD_ARRAY[@]}
	if [ $RK_TARGET_BOARD_ARRAY_LEN -eq 0 ]; then
		echo "No available Board Config"
		return
	fi

	choose_target_board

	ln -rfs $TARGET_PRODUCT_DIR/$RK_BUILD_TARGET_BOARD device/rockchip/.BoardConfig.mk
	echo "switching to board: `realpath $BOARD_CONFIG`"
}

function unset_board_config_all()
{
	local tmp_file=`mktemp`
	grep -oh "^export.*RK_.*=" `find device -name "Board*.mk"` > $tmp_file
	source $tmp_file
	rm -f $tmp_file
}

CMD=`realpath $0`
COMMON_DIR=`dirname $CMD`
TOP_DIR=$(realpath $COMMON_DIR/../../..)
cd $TOP_DIR

BOARD_CONFIG=$TOP_DIR/device/rockchip/.BoardConfig.mk
TARGET_PRODUCT="$TOP_DIR/device/rockchip/.target_product"
TARGET_PRODUCT_DIR=$(realpath ${TARGET_PRODUCT})

if [ ! -L "$BOARD_CONFIG" -a  "$1" != "lunch" ]; then
	build_select_board
fi
unset_board_config_all
[ -L "$BOARD_CONFIG" ] && source $BOARD_CONFIG

function prebuild_uboot()
{
	UBOOT_COMPILE_COMMANDS="\
			${RK_TRUST_INI_CONFIG:+../rkbin/RKTRUST/$RK_TRUST_INI_CONFIG} \
			${RK_SPL_INI_CONFIG:+../rkbin/RKBOOT/$RK_SPL_INI_CONFIG} \
			${RK_UBOOT_SIZE_CONFIG:+--sz-uboot $RK_UBOOT_SIZE_CONFIG} \
			${RK_TRUST_SIZE_CONFIG:+--sz-trust $RK_TRUST_SIZE_CONFIG}"
	UBOOT_COMPILE_COMMANDS="$(echo $UBOOT_COMPILE_COMMANDS)"

	if [ "$RK_LOADER_UPDATE_SPL" = "true" ]; then
		UBOOT_COMPILE_COMMANDS="--spl-new $UBOOT_COMPILE_COMMANDS"
		UBOOT_COMPILE_COMMANDS="$(echo $UBOOT_COMPILE_COMMANDS)"
	fi

	if [ "$RK_RAMDISK_SECURITY_BOOTUP" = "true" ];then
		UBOOT_COMPILE_COMMANDS=" \
			$UBOOT_COMPILE_COMMANDS \
			${RK_ROLLBACK_INDEX_BOOT:+--rollback-index-boot $RK_ROLLBACK_INDEX_BOOT} \
			${RK_ROLLBACK_INDEX_UBOOT:+--rollback-index-uboot $RK_ROLLBACK_INDEX_UBOOT} "
	fi
}

function prebuild_security_uboot()
{
	local mode=$1

	if [ "$RK_RAMDISK_SECURITY_BOOTUP" = "true" ];then
		if [ "$RK_SECURITY_OTP_DEBUG" != "true" ]; then
			UBOOT_COMPILE_COMMANDS="$UBOOT_COMPILE_COMMANDS --burn-key-hash"
		fi

		case "${mode:-normal}" in
			uboot)
				;;
			boot)
				UBOOT_COMPILE_COMMANDS=" \
					--boot_img $TOP_DIR/u-boot/boot.img \
					$UBOOT_COMPILE_COMMANDS "
				;;
			recovery)
				UBOOT_COMPILE_COMMANDS=" \
					--recovery_img $TOP_DIR/u-boot/recovery.img
					$UBOOT_COMPILE_COMMANDS "
				;;
			*)
				UBOOT_COMPILE_COMMANDS=" \
					--boot_img $TOP_DIR/u-boot/boot.img \
					$UBOOT_COMPILE_COMMANDS "
				test -z "${RK_PACKAGE_FILE_AB}" && \
					UBOOT_COMPILE_COMMANDS="$UBOOT_COMPILE_COMMANDS --recovery_img $TOP_DIR/u-boot/recovery.img"
				;;
		esac

		UBOOT_COMPILE_COMMANDS="$(echo $UBOOT_COMPILE_COMMANDS)"
	fi
}

function usagekernel()
{
	check_config RK_KERNEL_DTS RK_KERNEL_DEFCONFIG || return 0

	echo "cd kernel"
	echo "make ARCH=$RK_ARCH $RK_KERNEL_DEFCONFIG $RK_KERNEL_DEFCONFIG_FRAGMENT"
	echo "make ARCH=$RK_ARCH $RK_KERNEL_DTS.img -j$RK_JOBS"
}

function usageuboot()
{
	check_config RK_UBOOT_DEFCONFIG || return 0
	prebuild_uboot
	prebuild_security_uboot $1

	cd u-boot
	echo "cd u-boot"
	if [ -n "$RK_UBOOT_DEFCONFIG_FRAGMENT" ]; then
		if [ -f "configs/${RK_UBOOT_DEFCONFIG}_defconfig" ]; then
			echo "make ${RK_UBOOT_DEFCONFIG}_defconfig $RK_UBOOT_DEFCONFIG_FRAGMENT"
		else
			echo "make ${RK_UBOOT_DEFCONFIG}.config $RK_UBOOT_DEFCONFIG_FRAGMENT"
		fi
		echo "./make.sh $UBOOT_COMPILE_COMMANDS"
	else
		echo "./make.sh $RK_UBOOT_DEFCONFIG $UBOOT_COMPILE_COMMANDS"
	fi

	if [ "$RK_IDBLOCK_UPDATE_SPL" = "true" ]; then
		echo "./make.sh --idblock --spl"
	fi

	finish_build
}

function usagerootfs()
{
	check_config RK_ROOTFS_IMG || return 0

	if [ "${RK_CFG_BUILDROOT}x" != "x" ];then
		echo "source envsetup.sh $RK_CFG_BUILDROOT"
	else
		if [ "${RK_CFG_RAMBOOT}x" != "x" ];then
			echo "source envsetup.sh $RK_CFG_RAMBOOT"
		else
			echo "Not found config buildroot. Please Check !!!"
		fi
	fi

	case "${RK_ROOTFS_SYSTEM:-buildroot}" in
		yocto)
			;;
		debian)
			;;
		*)
			echo "make"
			;;
	esac
}

function usagerecovery()
{
	check_config RK_CFG_RECOVERY || return 0

	echo "source envsetup.sh $RK_CFG_RECOVERY"
	echo "$COMMON_DIR/mk-ramdisk.sh recovery.img $RK_CFG_RECOVERY"
}

function usageramboot()
{
	check_config RK_CFG_RAMBOOT || return 0

	echo "source envsetup.sh $RK_CFG_RAMBOOT"
	echo "$COMMON_DIR/mk-ramdisk.sh ramboot.img $RK_CFG_RAMBOOT"
}

function usagemodules()
{
	check_config RK_KERNEL_DEFCONFIG || return 0

	echo "cd kernel"
	echo "make ARCH=$RK_ARCH $RK_KERNEL_DEFCONFIG"
	echo "make ARCH=$RK_ARCH modules -j$RK_JOBS"
}

function usagesecurity()
{
	case "$1" in
		uboot) usageboot $1;;
		boot)
			usageramboot;
			echo "cp buildroot/output/$RK_CFG_RAMBOOT/images/ramboot.img u-boot/boot.img"
			usageuboot $1;;
		recovery)
			usagerecovery;
			echo "cp buildroot/output/$RK_CFG_RECOVERY/images/recovery.img u-boot/recovery.img"
			usageuboot $1;;
		rootfs)
			usagerootfs;
			usagesecurity boot;;
		*);;
	esac
}

function usagesecurity_uboot()
{
	usageuboot uboot
}

function usagesecurity_boot()
{
	usagesecurity boot
}

function usagesecurity_recovery()
{
	usagesecurity recovery
}

function usagesecurity_rootfs()
{
	usagesecurity rootfs
}

function usage()
{
	echo "Usage: build.sh [OPTIONS]"
	echo "Available options:"
	echo "BoardConfig*.mk    -switch to specified board config"
	echo "lunch              -list current SDK boards and switch to specified board config"
	echo "uboot              -build uboot"
	echo "uefi		 -build uefi"
	echo "spl                -build spl"
	echo "loader             -build loader"
	echo "kernel             -build kernel"
	echo "modules            -build kernel modules"
	echo "toolchain          -build toolchain"
	echo "rootfs             -build default rootfs, curr
