序列连续的序列检测（牛客网）

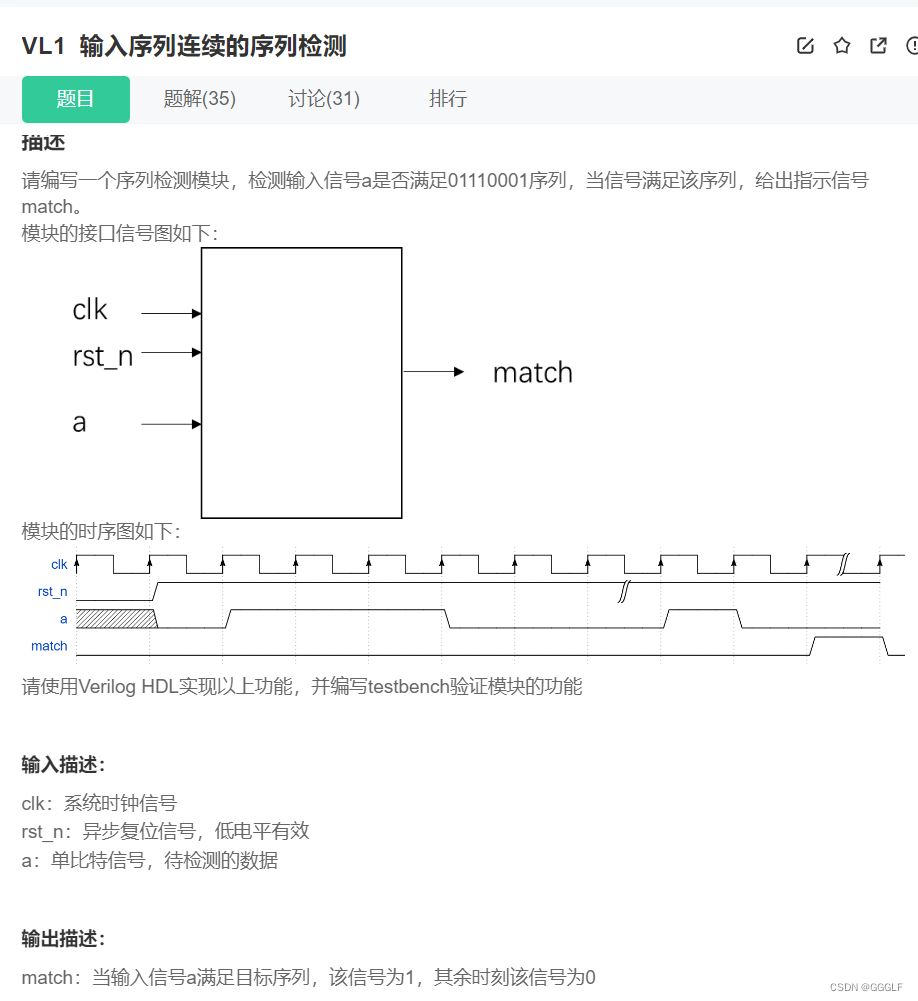

题目如下：

方法一：状态机的方法（注意match为时序逻辑，落后一个时钟周期）

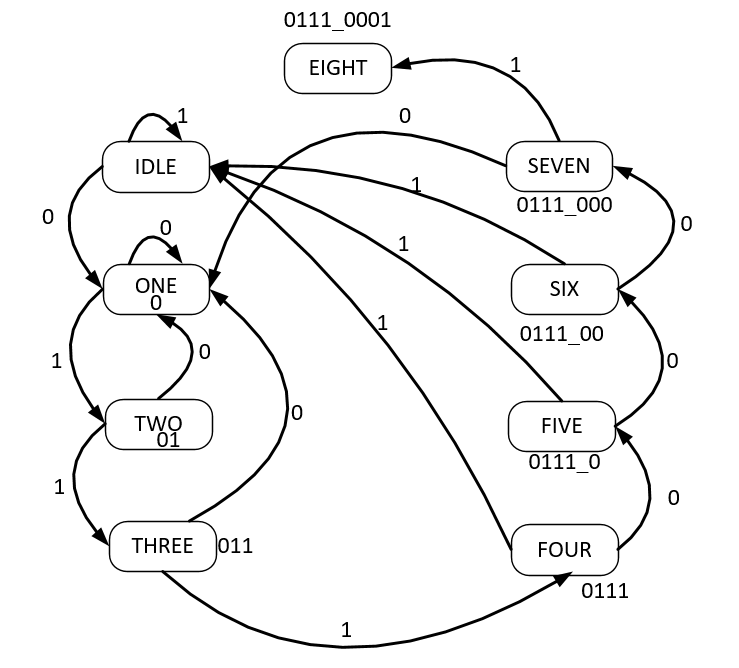

状态的转换如下图所示：



代码如下：

注意：match是reg型变量，赋值时需要用时序逻辑进行赋值，或者将其改为wire型变量，然后用assign进行赋值。

`timescale 1ns/1ns
module sequence_detect(
	input clk,
	input rst_n,
	input a,
	output reg match
	);
	reg [3:0]state,next_state;
    wire    match_reg;

	parameter	IDLE	=4'd0,
				ONE		=4'd1,
				TWO		=4'd2,
				THREE	=4'd3,
				FOUR	=4'd4,
				FIVE	=4'd5,
				SIX		=4'd6,
				SEVEN	=4'd7,
				EIGHT	=4'd8;

always@(posedge clk or negedge rst_n)
	if(rst_n==1'b0)
		state<=IDLE;
	else
		state<=next_state;

    always@(*)
    case(state)
		IDLE   :next_state<=a?IDLE:ONE;
		ONE	   :next_state<=a?TWO:ONE;
		TWO	   :next_state<=a?THREE:ONE;
		THREE  :next_state<=a?FOUR:ONE;
		FOUR   :next_state<=a?IDLE:FIVE;
		FIVE   :next_state<=a?IDLE:SIX;
		SIX	   :next_state<=a?IDLE:SEVEN;
		SEVEN  :next_state<=a?EIGHT:ONE;
		default:next_state<=IDLE;
	endcase

assign	match_reg=(state==EIGHT);

always@(posedge clk or negedge rst_n)
	if(rst_n==1'b0)
        match<=1'b0;
     else
        match<=match_reg;

endmodule

 方法二：移位寄存器的方法

一种非常简单，节约代码的方法。

`timescale 1ns/1ns
module sequence_detect(
	input clk,
	input rst_n,
	input a,
	output reg match
	);

    reg [7:0] din;

    always @(posedge clk or negedge rst_n) begin
        if(~rst_n)
            din <= 8'd0;
        else
            din <= {din[6:0],a};
    end

    always @(posedge clk or negedge rst_n) begin
        if(~rst_n)
            match <= 1'b0;
        else if(din == 8'b0111_0001)
            match <= 1'b1;
        else
            match <= 1'b0;
    end


endmodule
