【Elasticsearch】索引状态管理（ISM）实战（万字长文）

1.ISM vs ILM 核心区别 🎯

我们首先了解一下 ISM（Index State Management）和 ILM（Index Lifecycle Management）的区别。

特性	ISM（OpenDistro）	ILM（Elasticsearch）
来源	AWS OpenDistro（开源）	Elastic 官方（商业功能）
许可证	Apache 2.0（免费）	Elastic License（付费）
存储位置	.opendistro-ism-config 索引	.ilm-history 等系统索引
API 端点	_opendistro/_ism/	_ilm/
7.x 版本	✅ 包含在 OpenDistro 中	⚠️ 基础版功能有限

2.正确的 ISM 策略配置 📝

2.1 创建 ISM 策略

DELETE _opendistro/_ism/policies/log-ism-policy

PUT _opendistro/_ism/policies/log-ism-policy
{
  "policy": {
    "description": "该策略用于创建日志类索引，包含滚动和删除",
    "default_state": "hot",
    "states": [
      {
        "name": "hot",
        "actions": [
          {
            "rollover": {
              "min_doc_count": 10,
              "min_size": "1mb",
              "min_index_age": "10m"
            }
          }
        ],
        "transitions": [
          {
            "state_name": "delete",
            "conditions": {
              "min_index_age": "1h"
            }
          }
        ]
      },
      {
        "name": "delete",
        "actions": [
          {
            "delete": {}
          }
        ]
      }
    ],
    "ism_template": {
      "index_patterns": ["test-*"],
      "priority": 100
    }
  }
}

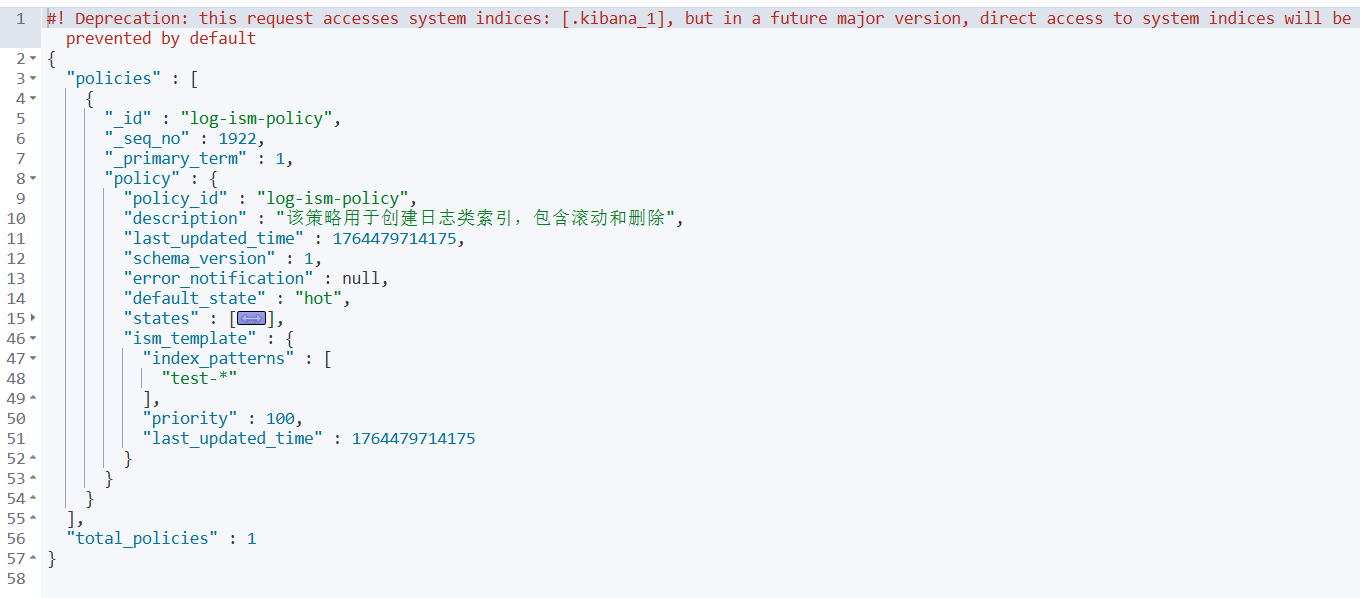

检查策略是否创建成功。

GET _opendistro/_ism/policies/

只要满足 任意一个 条件就会触发滚动：

• min_doc_count: 10 - 索引中的主分片文档总数达到 10 个时，触发滚动。
• min_size: "1mb" - 索引的主分片总存储大小达到 1MB 时，触发滚动。
• min_index_age: "10m" - 索引创建时间达到 10 分钟时，触发滚动。

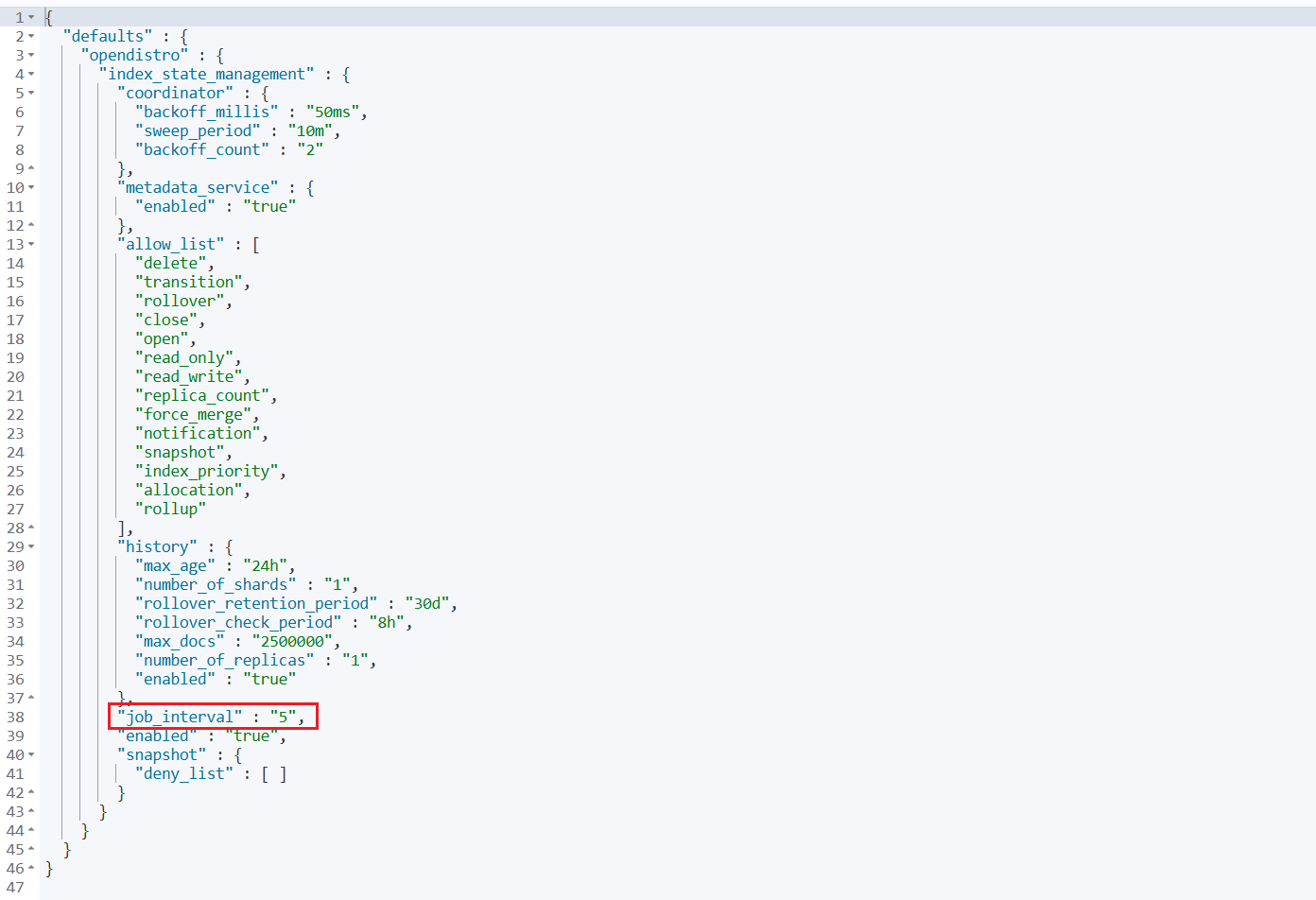

🚀 注意：ISM 默认检查间隔 5 分钟。

GET _cluster/settings?include_defaults=true&filter_path=*.opendistro.index_state_management*

2.2 创建索引模板（关联 ISM）

DELETE _index_template/log-template

PUT _index_template/log-template
{
  "index_patterns": ["test-*"],
  "priority": 1,
  "template": {
    "settings": {
      "number_of_shards": 3,
      "number_of_replicas": 1,
      "refresh_interval": "15s",
      "index.opendistro.index_state_management.policy_id": "log-ism-policy",
      "index.opendistro.index_state_management.rollover_alias": "log-index"
    },
    "mappings": {
      "properties": {
        "timestamp": {
          "type": "date",
          "format": "yyyy-MM-dd HH:mm:ss||epoch_millis"
        },
        "log_level": {
          "type": "keyword"
        },
        "message": {
          "type": "text",
          "analyzer": "ik_max_word",
          "search_analyzer": "ik_smart",
          "fielddata": true
        },
        "user_id": {
          "type": "long"
        },
        "ip_address": {
          "type": "ip"
        },
        "response_time": {
          "type": "float"
        },
        "status_code": {
          "type": "integer"
        },
        "is_success": {
          "type": "boolean"
        },
        "tags": {
          "type": "keyword"
        },
        "request_body": {
          "type": "text",
          "index": false
        },
        "geo_location": {
          "type": "geo_point"
        },
        "request_count": {
          "type": "integer",
          "doc_values": true
        },
        "metadata": {
          "type": "object",
          "enabled": true
        },
        "create_time": {
          "type": "date"
        }
      }
    }
  },
  "_meta": {
    "description": "新版日志索引模板，用于 test-* 模式索引",
    "version": "1.0"
  }
}

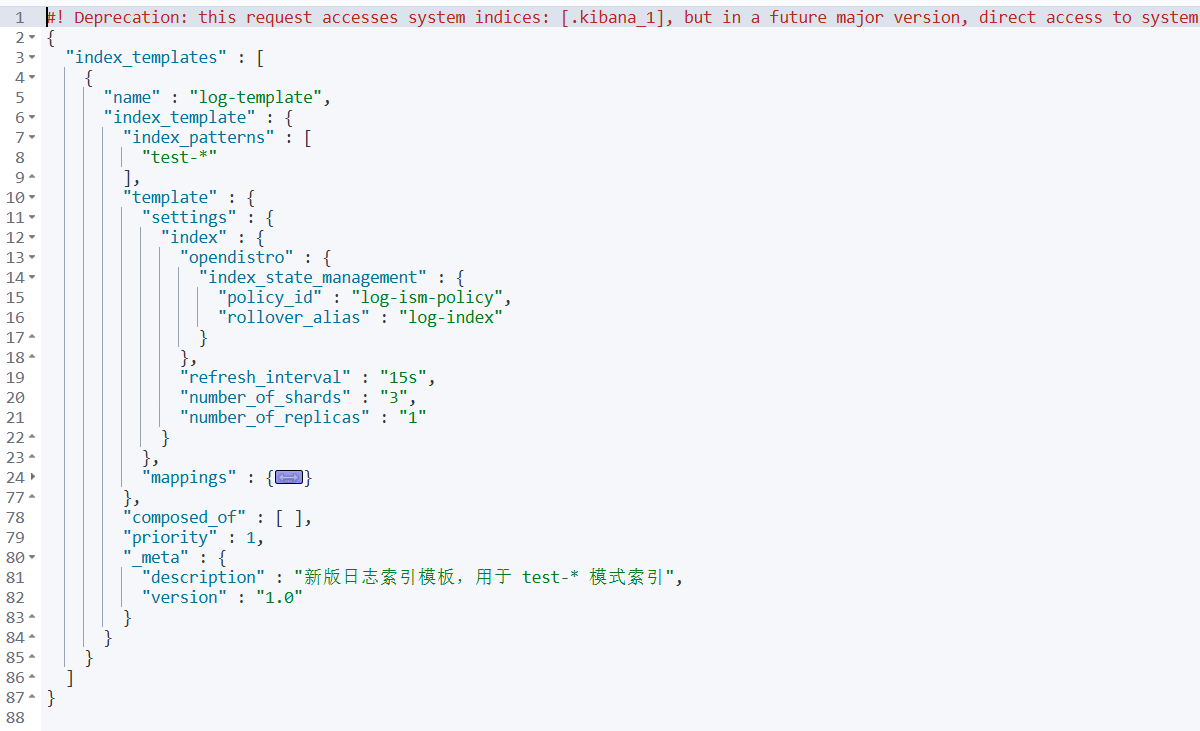

查看索引模板是否创建成功。

GET _index_template

2.3 创建初始索引

创建索引，指定为别名 log-index 的写入索引。

PUT /test-000001
{
  "aliases": {
    "log-index": {
      "is_write_index": true
    }
  }
}

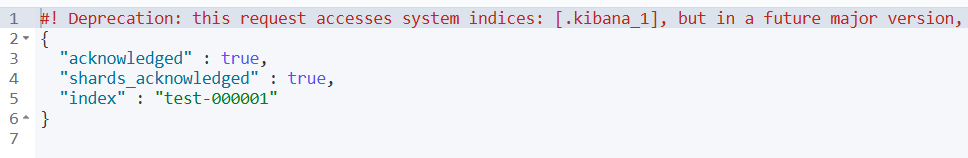

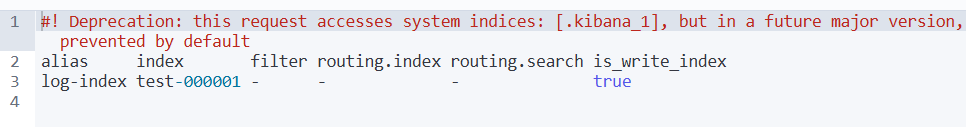

查看是否创建成功。

GET /_cat/aliases/log-index?v

2.4 测试

2.4.1 写入数据

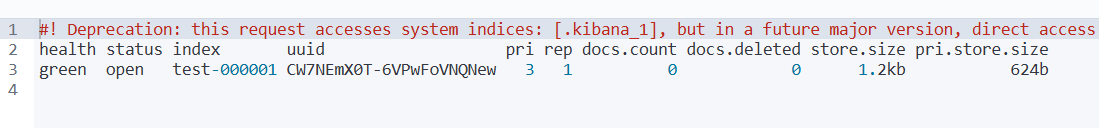

写入数据之前，索引文档数为 0。

GET /_cat/indices/log-index?v

往别名 log-index 中写入 10 条数据。

POST /log-index/_bulk
{"index":{}}
{"timestamp":"2024-06-15 08:30:25","log_level":"INFO","message":"用户张三登录系统成功","user_id":1001,"ip_address":"192.168.1.100","response_time":45.2,"status_code":200,"is_success":true,"tags":["login","success"],"request_body":"username=zhangsan&password=***","geo_location":{"lat":39.9042,"lon":116.4074},"request_count":1,"metadata":{"browser":"Chrome","version":"120.0"},"create_time":"2024-06-15T08:30:25Z"}
{"index":{}}
{"timestamp":"2024-06-15 08:32:10","log_level":"ERROR","message":"数据库连接超时，请检查网络配置","user_id":1002,"ip_address":"10.0.0.55","response_time":1500.5,"status_code":500,"is_success":false,"tags":["database","timeout","critical"],"request_body":"query=SELECT * FROM users","geo_location":{"lat":31.2304,"lon":121.4737},"request_count":3,"metadata":{"service":"user-service","thread_id":"thread-25"},"create_time":"2024-06-15T08:32:10Z"}
{"index":{}}
{"timestamp":"2024-06-15 08:35:42","log_level":"WARN","message":"内存使用率超过80%阈值","user_id":null,"ip_address":"172.16.10.20","response_time":0.5,"status_code":200,"is_success":true,"tags":["monitoring","memory"],"request_body":"","geo_location":{"lat":23.1291,"lon":113.2644},"request_count":1,"metadata":{"hostname":"server-01","memory_usage":82},"create_time":"2024-06-15T08:35:42Z"}
{"index":{}}
{"timestamp":"2024-06-15 08:40:15","log_level":"INFO","message":"订单ID 20240615001 支付成功，金额299.00元","user_id":1003,"ip_address":"192.168.1.150","response_time":120.3,"status_code":200,"is_success":true,"tags":["order","payment"],"request_body":"order_id=20240615001&amount=299.00","geo_location":{"lat":30.2741,"lon":120.1551},"request_count":1,"metadata":{"payment_gateway":"alipay","transaction_id":"txn_123456"},"create_time":"2024-06-15T08:40:15Z"}
{"index":{}}
{"timestamp":"2024-06-15 08:45:30","log_level":"DEBUG","message":"开始处理API请求 /api/v1/users/list","user_id":1004,"ip_address":"203.0.113.10","response_time":15.7,"status_code":200,"is_success":true,"tags":["api","debug"],"request_body":"page=1&size=20","geo_location":{"lat":22.3193,"lon":114.1694},"request_count":5,"metadata":{"endpoint":"/api/v1/users/list","method":"GET"},"create_time":"2024-06-15T08:45:30Z"}
{"index":{}}
{"timestamp":"2024-06-15 08:50:22","log_level":"ERROR","message":"文件上传失败：文件大小超过限制","user_id":1005,"ip_address":"192.168.1.200","response_time":320.8,"status_code":413,"is_success":false,"tags":["upload","file_size","error"],"request_body":"file=report.pdf","geo_location":{"lat":34.3416,"lon":108.9398},"request_count":2,"metadata":{"file_name":"report.pdf","file_size":"15MB","max_size":"10MB"},"create_time":"2024-06-15T08:50:22Z"}
{"index":{}}
{"timestamp":"2024-06-15 08:55:47","log_level":"INFO","message":"缓存刷新完成，共清理 1250 个过期条目","user_id":null,"ip_address":"10.0.1.100","response_time":45.0,"status_code":200,"is_success":true,"tags":["cache","cleanup"],"request_body":"action=refresh_cache","geo_location":{"lat":29.4316,"lon":106.9123},"request_count":1,"metadata":{"cache_type":"redis","cleaned_count":1250},"create_time":"2024-06-15T08:55:47Z"}
{"index":{}}
{"timestamp":"2024-06-15 09:00:12","log_level":"WARN","message":"API响应时间较慢，当前平均响应时间 850ms","user_id":null,"ip_address":"172.17.20.30","response_time":850.0,"status_code":200,"is_success":true,"tags":["performance","slow"],"request_body":"","geo_location":{"lat":36.0611,"lon":120.3783},"request_count":100,"metadata":{"avg_response_time":850,"threshold":500},"create_time":"2024-06-15T09:00:12Z"}
{"index":{}}
{"timestamp":"2024-06-15 09:05:33","log_level":"INFO","message":"用户李四修改个人资料信息","user_id":1006,"ip_address":"203.0.113.45","response_time":78.9,"status_code":200,"is_success":true,"tags":["profile","update"],"request_body":"name=李四&email=lisi@example.com","geo_location":{"lat":38.0428,"lon":114.5149},"request_count":1,"metadata":{"updated_fields":["name","email"]},"create_time":"2024-06-15T09:05:33Z"}
{"index":{}}
{"timestamp":"2024-06-15 09:10:18","log_level":"ERROR","message":"第三方服务调用失败：支付网关无响应","user_id":1007,"ip_address":"192.168.2.100","response_time":3000.2,"status_code":503,"is_success":false,"tags":["external_service","payment","timeout"],"request_body":"payment_data=encrypted","geo_location":{"lat":45.758,"lon":126.642},"request_count":3,"metadata":{"service_name":"payment-gateway","timeout_ms":5000},"create_time":"2024-06-15T09:10:18Z"}

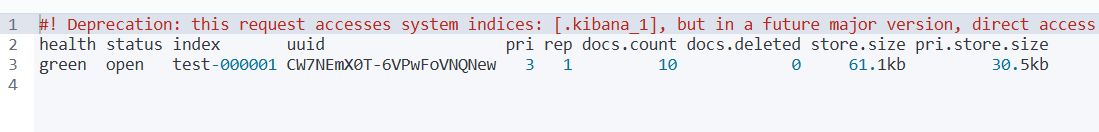

可以看到 10 条数据已经被写入到索引 test-000001 中。

2.4.2 过程状态分析

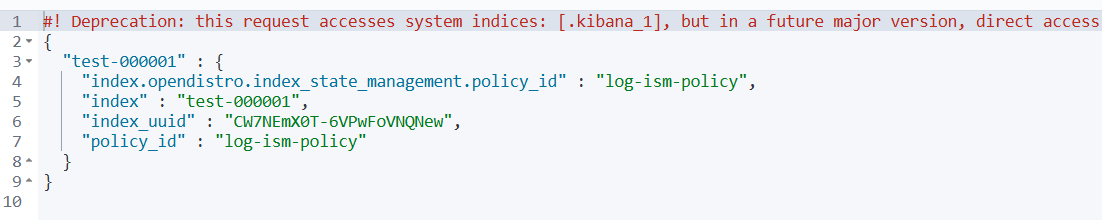

查看指定索引 test-000001 的 ISM 策略执行详情和状态。

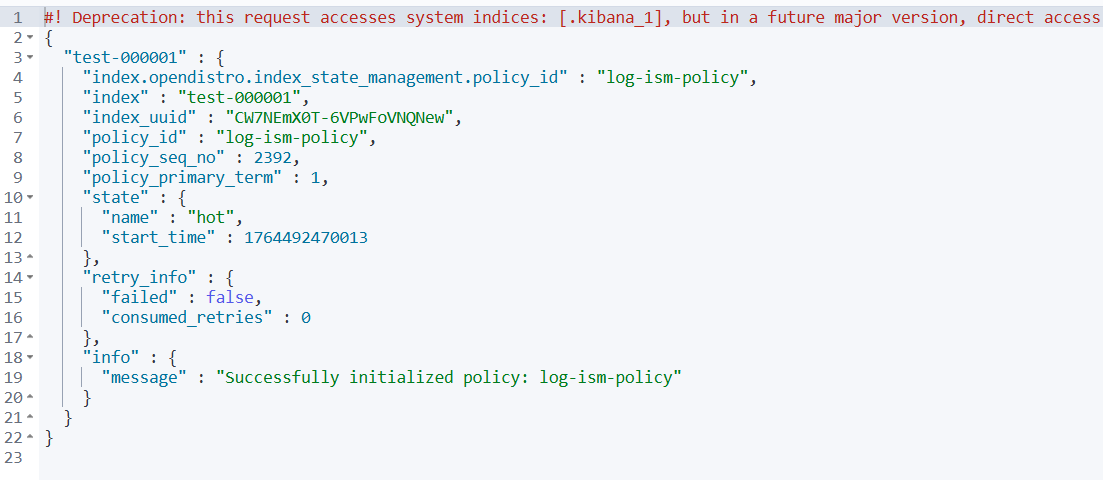

GET _opendistro/_ism/explain/test-000001

• 信息："successfully initialized policy: log-ism-policy"

• 发生了什么：
  • 索引 test-000001 创建后，ISM 检测到它匹配策略模式 test-*
  • ISM 成功将 log-ism-policy 策略应用到该索引
  • 索引进入默认状态 hot

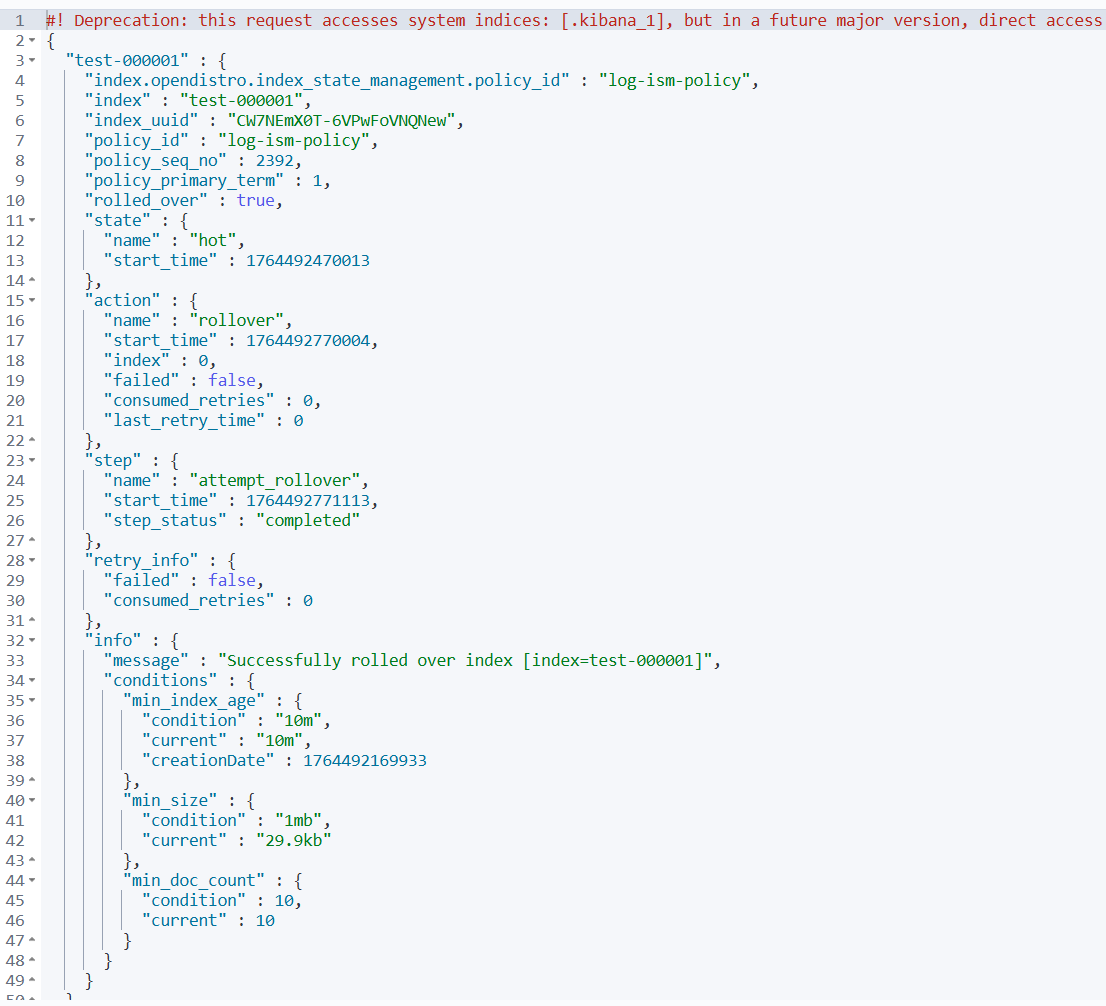

• 信息："Successfully rolled over index [index=test-000001]"

• 发生了什么：
  • 索引满足了滚动条件（文档数 ≥ 10，或 大小 ≥ 1MB，或 年龄 ≥ 10分钟）
  • ISM 执行了滚动操作，创建了新索引 test-000002
  • log-index 别名从 test-000001 切换到 test-000002

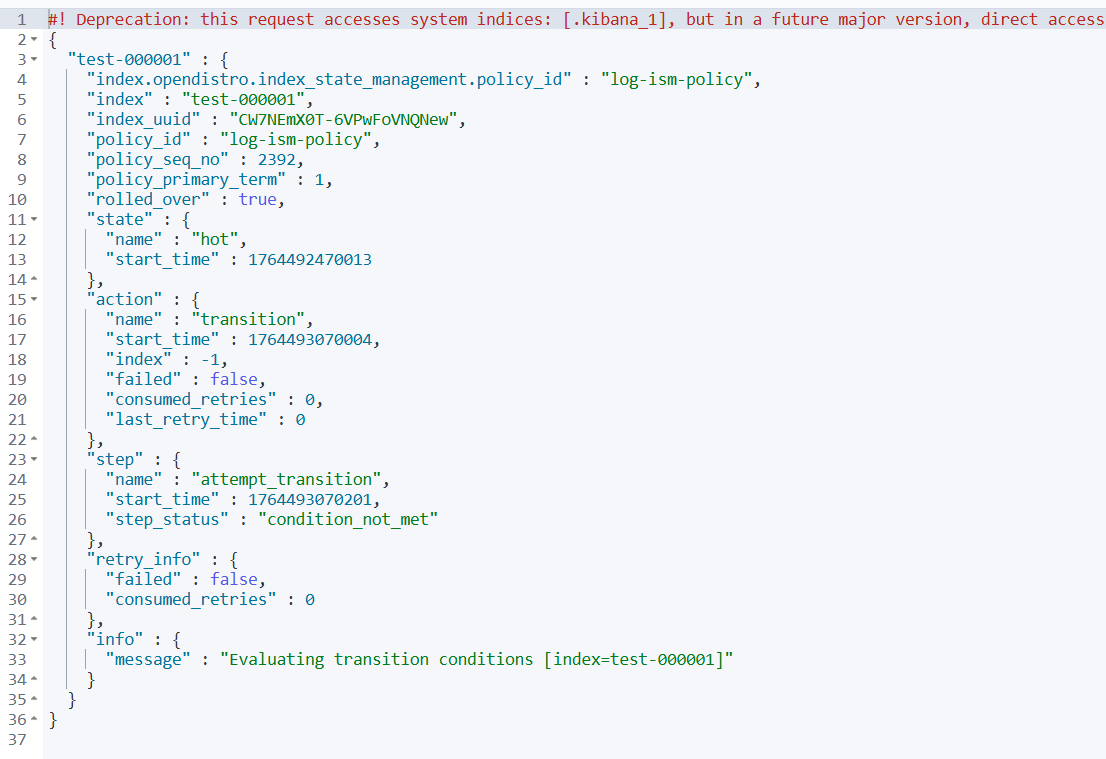

• 信息："Evaluating transition conditions [index=test-000001]"
• 发生了什么：
  • ISM 正在检查 test-000001 是否符合从 hot 状态转换到 delete 状态的条件
  • 根据您的策略，条件是：min_index_age: "1h"（索引创建1小时后删除）
• 此时状态：
  • test-000001 仍在 hot 状态
  • ISM 在检查是否满足 min_index_age: "1h" 条件

会定期检查相应的滚动条件是否满足。

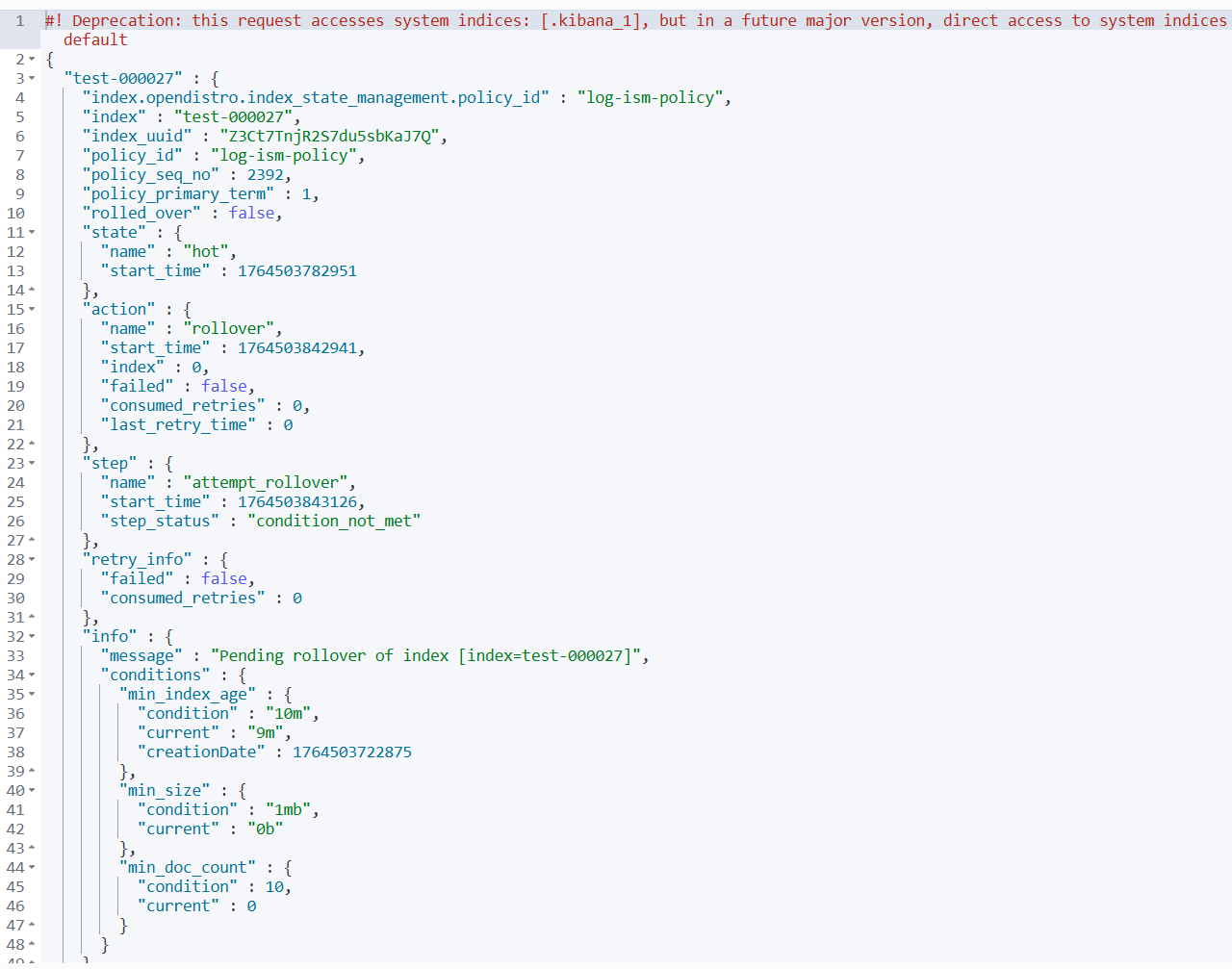

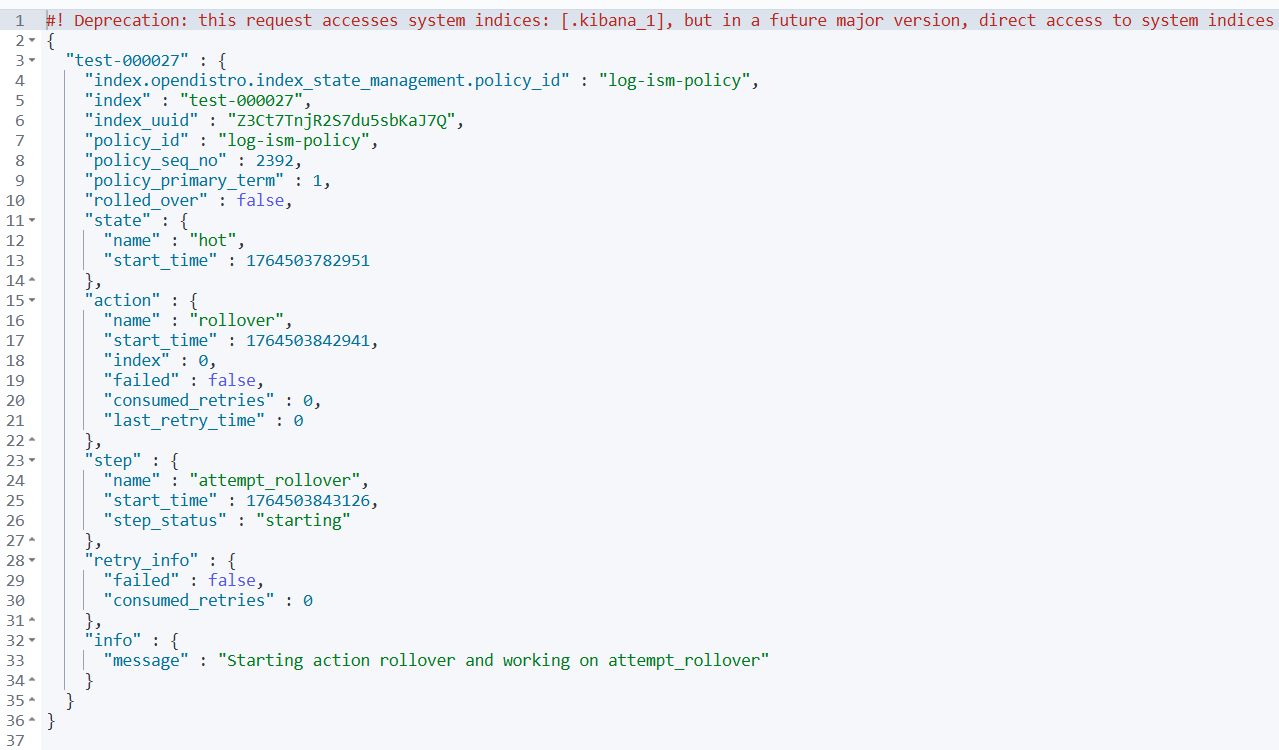

• "Pending rollover of index [index=test-000033]"
  • 关注点：滚动操作（rollover action）
  • 阶段：准备创建新索引
  • 动作：rollover
• "Evaluating transition conditions [index=test-000033]"
  • 关注点：状态转换（state transition）
  • 阶段：检查是否应该切换到下一个状态
  • 动作：状态机转换

方面	Pending Rollover	Evaluating Transition
操作类型	滚动操作	状态转换
触发条件	滚动条件满足	转换条件满足
执行动作	创建新索引+切换别名	切换到新状态
在策略中的位置	actions 数组中	transitions 数组中

1️⃣ 场景 1：滚动优先触发

状态: hot
↓
滚动条件满足 → "Pending rollover" → 执行滚动 → 索引仍在 hot 状态
↓
转换条件满足 → "Evaluating transition" → 切换到 delete 状态

2️⃣ 场景 2：转换优先触发

状态: hot
↓
转换条件满足 → "Evaluating transition" → 切换到 delete 状态
↓
（滚动操作可能不会执行，因为已离开 hot 状态）

这两个是 独立但可能同时发生 的过程，分别对应策略中的 actions 和 transitions 配置。

2.4.3 结果观察

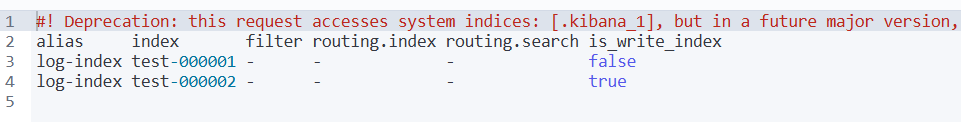

触发策略的滚动条件后，新生成了索引 test-000002，并被指定为了写入索引。

GET /_cat/aliases/log-index?v

• test-000001 的状态：
  • ✅ 策略已应用
  • ✅ 滚动已完成（现在是只读索引）
  • ⏳ 等待删除（还在检查是否达到 1 小时的生命周期）
• test-000002 的状态：
  • ✅ 新的写入索引
  • 🔄 正在应用相同的策略循环
• 完整的状态流程

  创建索引 → 应用策略 → 进入hot状态 → 满足条件滚动 → 创建新索引 → 评估转换条件 → 满足条件删除


此时，再往别名 log-index 写入 20 条数据。

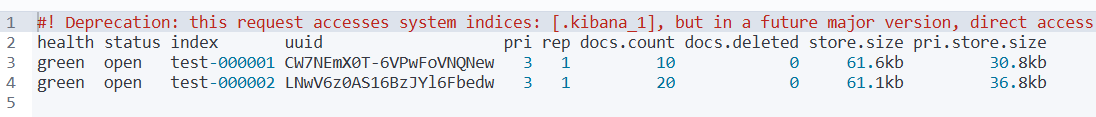

GET /_cat/indices/log-index?v

一段时间后，查看索引 test-000002 的 ISM 策略执行详情和状态。

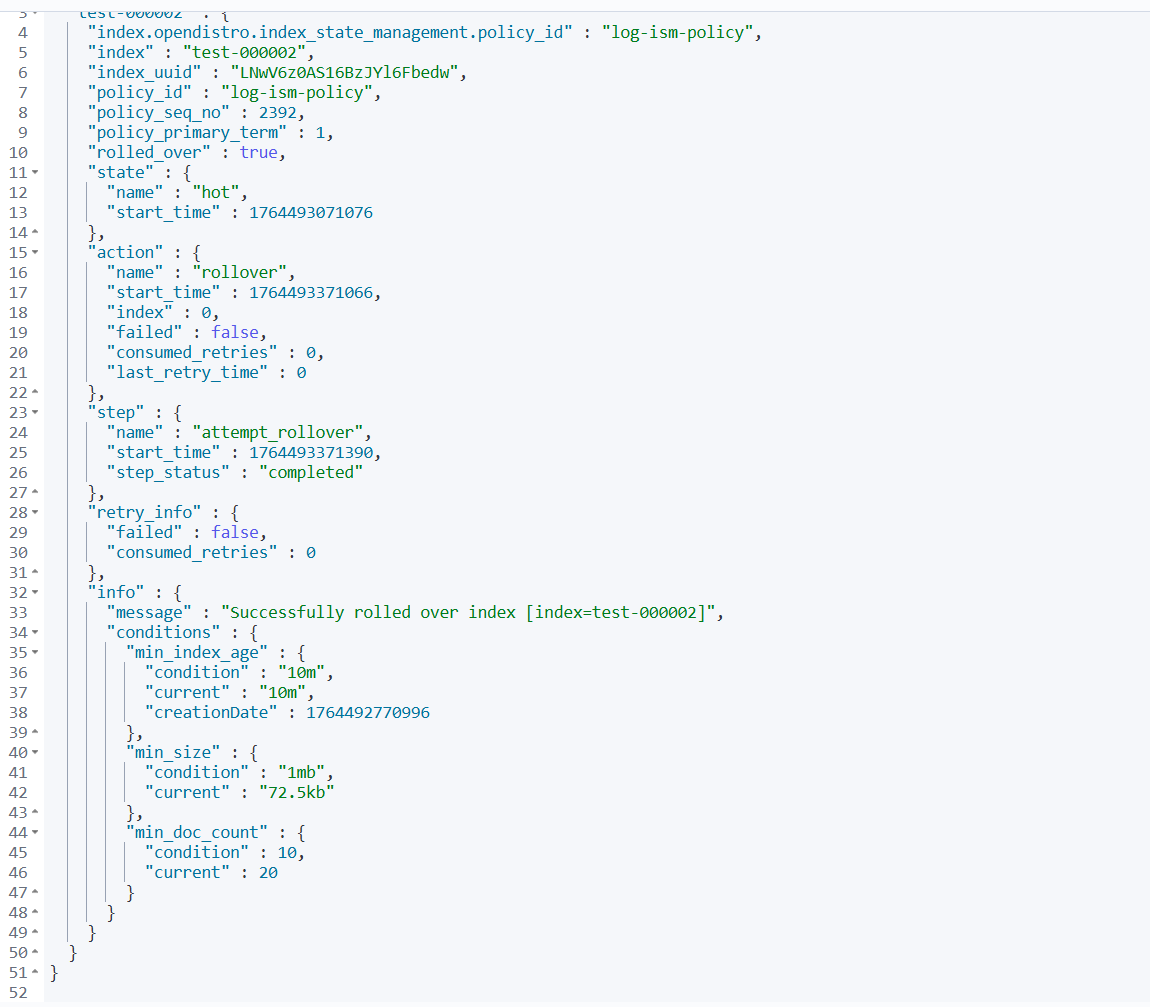

GET _opendistro/_ism/explain/test-000002

可以看到 ISM 滚动操作已经成功执行完成！

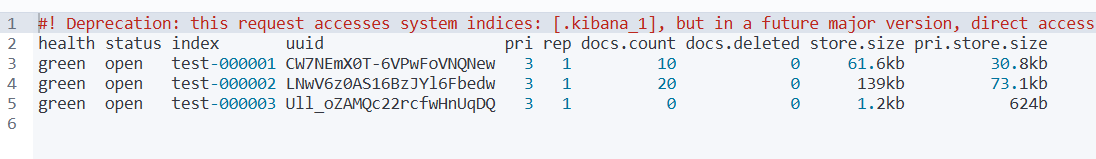

新生成了索引 test-000003，并被指定为了写入索引。

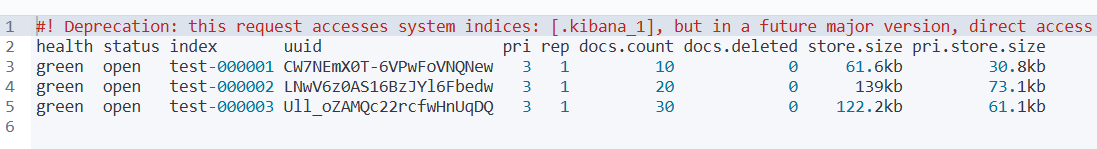

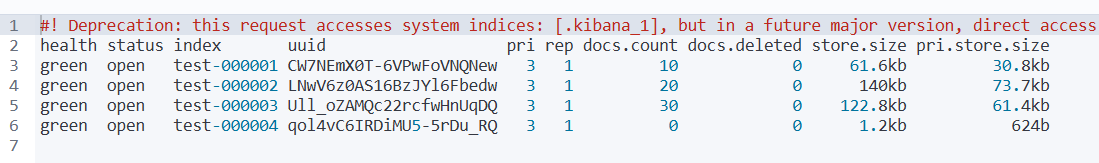

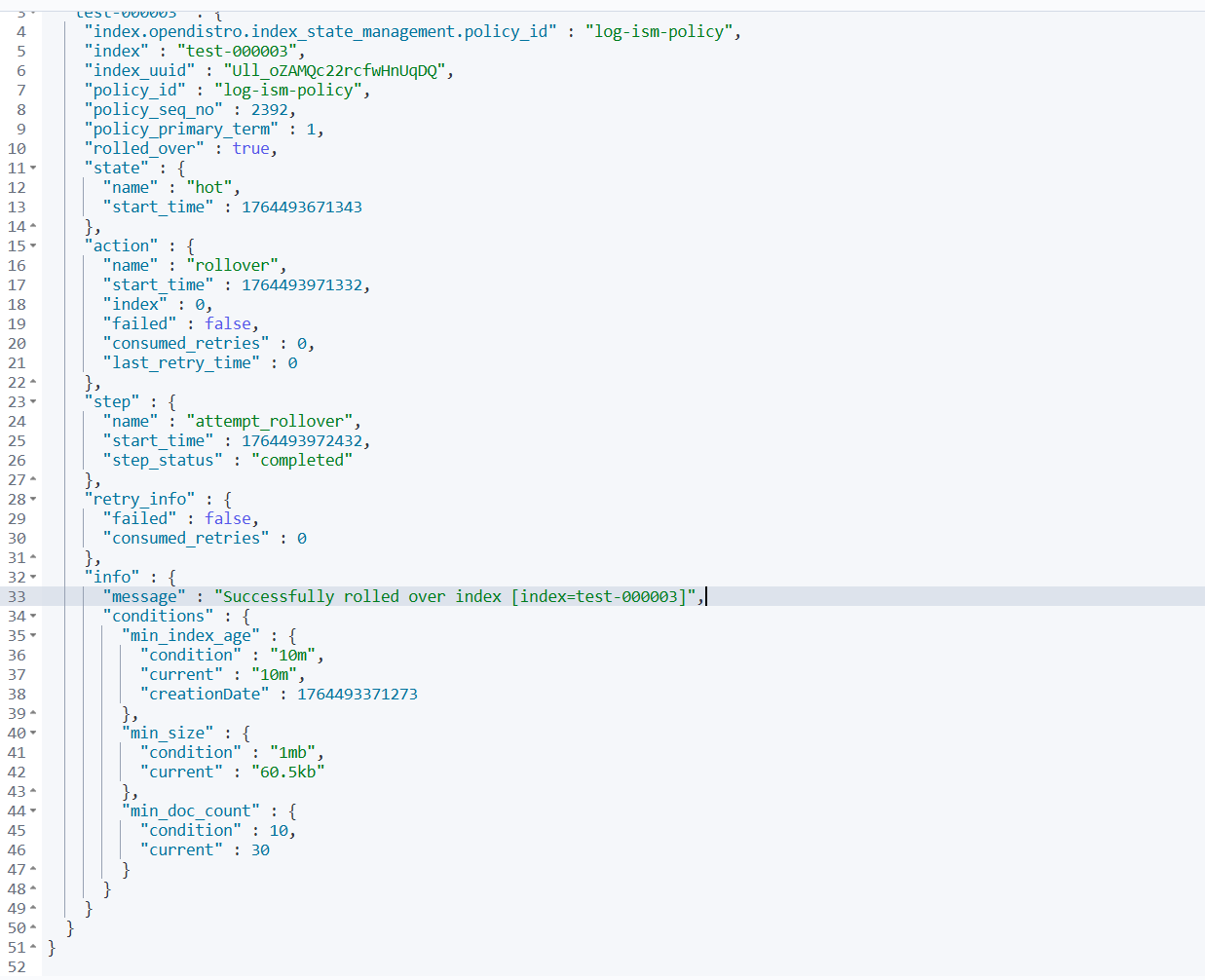

继续往索引 test-000003 写入 30 条数据。

2.5 错误排查

2.5.1 别名冲突

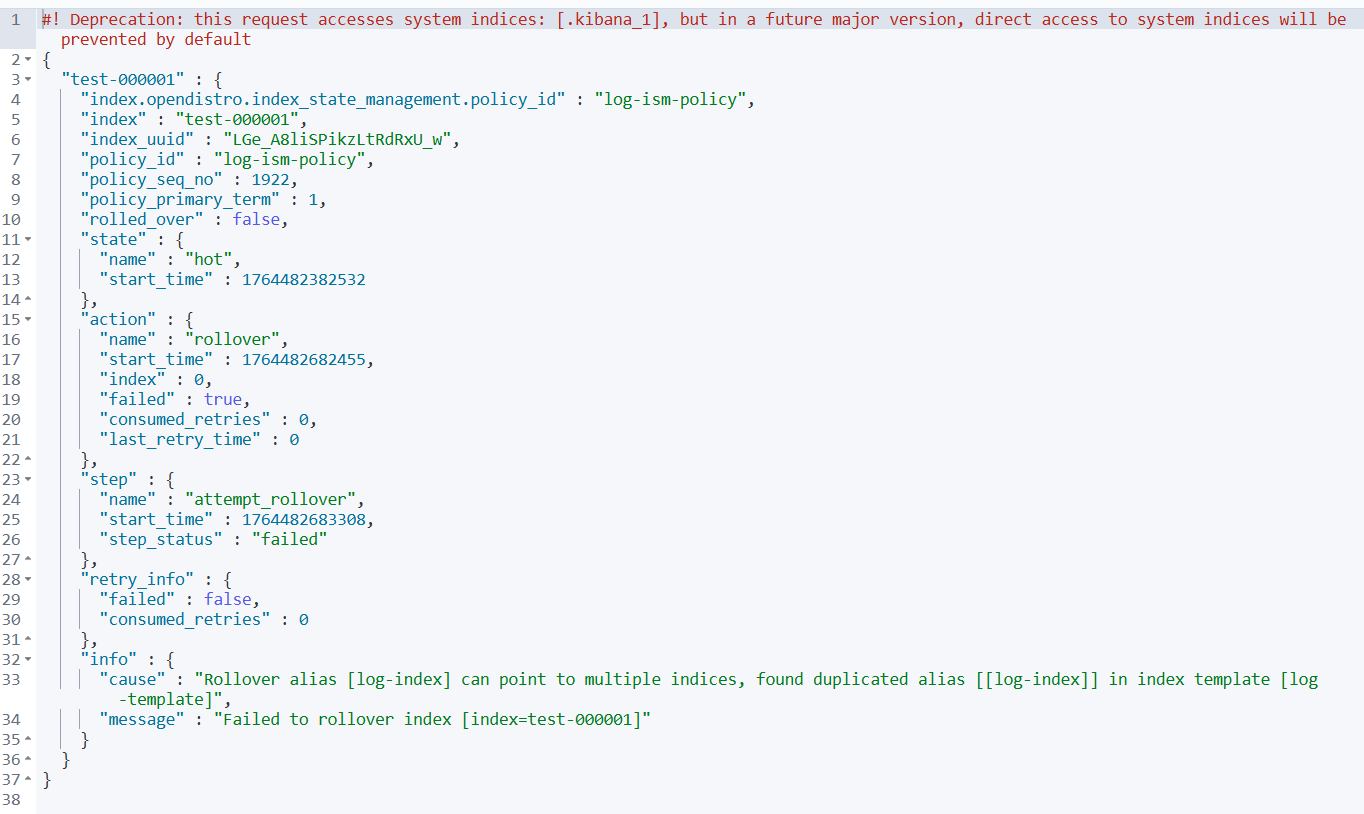

这个错误很明确了！问题是别名冲突。ISM 在尝试滚动时发现 log-index 别名指向了多个索引，这是由于索引模板中的别名配置导致的。

模板中配置了：

"aliases": {
  "log-index": {}
}

这导致每个新创建的 test-* 索引都会自动获得 log-index 别名，但滚动操作要求写入别名只能指向一个索引。

更新模板，移除了 aliases 配置。

2.5.2 策略重试

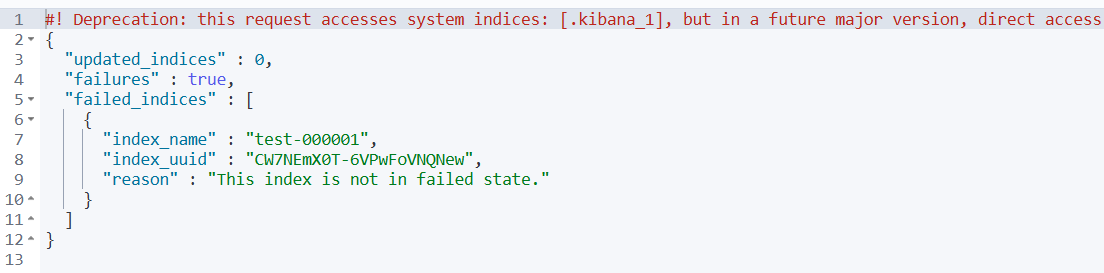

手动重试执行指定索引的 ISM 策略。

POST _opendistro/_ism/retry/test-000001

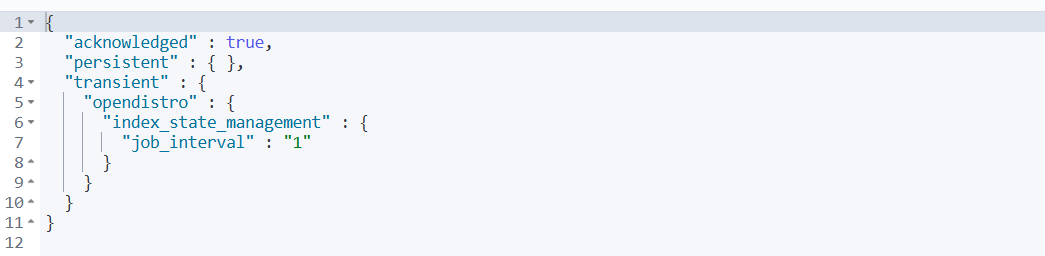

2.5.3 减少 ISM 检查间隔（测试用）

• 临时设置为 1 分钟（测试后记得恢复）

PUT _cluster/settings
{
  "transient": {
    "opendistro.index_state_management.job_interval": "1"
  }
}

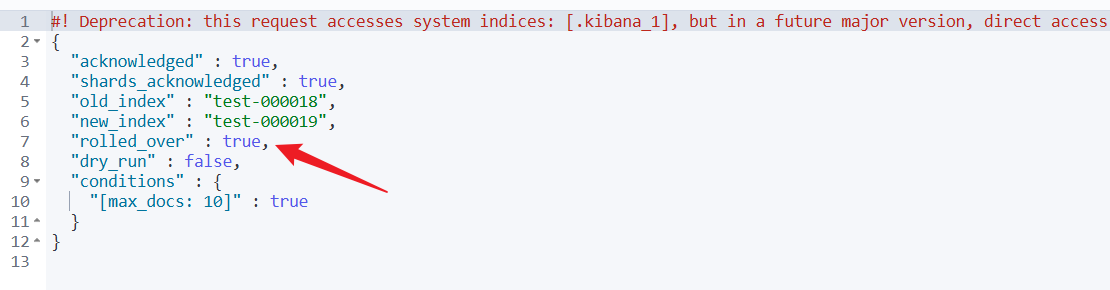

2.5.4 使用手动滚动进行关键操作

POST log-index/_rollover
{
  "conditions": {
    "max_docs": 10
  }
}

ISM / ILM 参数	手动滚动参数	实际含义
min_doc_count: 10	max_docs: 10	文档数 ≥ 10 时滚动
min_size: "1mb"	max_size: "1mb"	大小 ≥ 1MB 时滚动
min_index_age: "10m"	max_age: "10m"	年龄 ≥ 10分钟 时滚动

为什么没有统一？ Elasticsearch 团队可能因为以下原因保持了这种不一致：

1. 向后兼容：手动滚动 API 已被广泛使用，修改会破坏现有代码
2. 上下文差异：
   • 手动滚动：从 “限制” 角度思考（这个索引最多能有多大）
   • ISM / ILM：从 “触发条件” 角度思考（什么条件会触发操作）

3.ISM 状态机概念 🔄

{
  "policy": {
    "default_state": "hot",     // 初始状态
    "states": [                 // 状态列表
      {
        "name": "hot",          // 状态名称
        "actions": [            // 在该状态执行的动作
          {
            "rollover": {       // 滚动动作
              "min_index_age": "30d",
              "min_size": "50gb"
            }
          }
        ],
        "transitions": [        // 状态转换条件
          {
            "state_name": "delete",      // 目标状态
            "conditions": {              // 转换条件
              "min_index_age": "90d"     // 索引创建后90天
            }
          }
        ]
      }
    ]
  }
}

4.更复杂的 ISM 策略示例 🎪

包含完整生命周期的策略。

PUT _opendistro/_ism/policies/complete-log-policy
{
  "policy": {
    "description": "完整的日志索引生命周期管理",
    "default_state": "hot",
    "states": [
      {
        "name": "hot",
        "actions": [
          {
            "rollover": {
              "min_index_age": "1d",
              "min_doc_count": 1000000,
              "min_size": "10gb"
            }
          }
        ],
        "transitions": [
          {
            "state_name": "warm",
            "conditions": {
              "min_index_age": "7d"
            }
          }
        ]
      },
      {
        "name": "warm",
        "actions": [
          {
            "replica_count": {
              "number_of_replicas": 1
            }
          },
          {
            "force_merge": {
              "max_num_segments": 1
            }
          }
        ],
        "transitions": [
          {
            "state_name": "cold",
            "conditions": {
              "min_index_age": "30d"
            }
          }
        ]
      },
      {
        "name": "cold",
        "actions": [
          {
            "read_only": {}
          },
          {
            "replica_count": {
              "number_of_replicas": 0
            }
          }
        ],
        "transitions": [
          {
            "state_name": "delete",
            "conditions": {
              "min_index_age": "90d"
            }
          }
        ]
      },
      {
        "name": "delete",
        "actions": [
          {
            "delete": {}
          }
        ]
      }
    ]
  }
}

4.ISM 管理命令 🔍

• 查看所有策略

GET _opendistro/_ism/policies/

• 查看策略详情

GET _opendistro/_ism/policies/log-ism-policy

• 查看索引的 ISM 状态

GET _opendistro/_ism/explain/test-000001

• 手动执行策略

POST _opendistro/_ism/retry/test-000001

• 删除策略

DELETE _opendistro/_ism/policies/log-ism-policy

5.解决策略冲突 ⚠️

如果您遇到 version_conflict_engine_exception，说明策略已存在：

方案 1️⃣：使用新名称

PUT _opendistro/_ism/policies/log-ism-policy-v2
{
  "policy": {
    // 您的策略配置
  }
}

方案 2️⃣：先删除再创建

DELETE _opendistro/_ism/policies/10min_rollover_policy

PUT _opendistro/_ism/policies/log-ism-policy
{
  "policy": {
    // 您的策略配置
  }
}

方案 3️⃣：更新现有策略（需要序列号）

// 先获取策略详情，包含_seq_no和_primary_term
GET _opendistro/_ism/policies/10min_rollover_policy

// 然后使用获取到的序列号更新
PUT _opendistro/_ism/policies/10min_rollover_policy?if_seq_no=1&if_primary_term=1
{
  "policy": {
    // 更新后的配置
  }
}

6.重要提醒 💡

• ISM 是 OpenDistro 组件：确保您的 Elasticsearch 安装了 OpenDistro ISM 插件。
• 策略名称唯一：每个策略名称必须唯一。
• 自动应用：通过 ism_template 或索引设置自动关联策略。
• 监控执行：使用 _opendistro/_ism/explain 监控策略执行状态。
