本文详细描述了华为系列交换机（SW1、SW2、SW3）的VLAN配置，包括VLAN批量创建、端口类型设置以及R1路由器与SW1之间的连接配置，涉及IP地址分配、子接口配置和DHCP服务。

题目

步骤：
配置vlan

SW1：
[Huawei]sys sw1
[sw1]vlan batch 2 3 4 5 6
[sw1]int g0/0/3
[sw1-GigabitEthernet0/0/3]port link-type access
[sw1-GigabitEthernet0/0/3]port default vlan 2
[sw1-GigabitEthernet0/0/3]int g0/0/4
[sw1-GigabitEthernet0/0/4]port hybrid pvid vlan 3
[sw1-GigabitEthernet0/0/4]port hybrid untagged vlan 2 3 4 5 6
[sw1-GigabitEthernet0/0/4]int g0/0/2
[sw1-GigabitEthernet0/0/2]port link-type trunk
[sw1-GigabitEthernet0/0/2]port trunk allow-pass vlan 2 3 4 5 6
[sw1]interface g0/0/1
[sw1-GigabitEthernet0/0/1]port hybrid untagged 3 4 5 6
[sw1-GigabitEthernet0/0/1]port hybrid untagged vlan 3 4 5 6
[sw1-GigabitEthernet0/0/1]port hybrid tagged vlan 2

SW2：
<Huawei>system-view
Enter system view, return user view with Ctrl+Z.
[Huawei]sys sw2
[sw2]vlan batch 2 3 4 5
[sw2]int g0/0/3
[sw2-GigabitEthernet0/0/3]port link-type access
[sw2-GigabitEthernet0/0/3]port default vlan 2
[sw2-GigabitEthernet0/0/3]int g0/0/4
[sw2-GigabitEthernet0/0/4]port hybrid pvid vlan 4
[sw2-GigabitEthernet0/0/4]port hybrid untagged vlan 2 3 4 5
[sw2-GigabitEthernet0/0/4]int g0/0/1
[sw2-GigabitEthernet0/0/1]port link-type trunk
[sw2-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 3 4 5 6
[sw2-GigabitEthernet0/0/1]int g0/0/2
[sw2-GigabitEthernet0/0/2]port link-type t
[sw2-GigabitEthernet0/0/2]port link-type trunk
[sw2-GigabitEthernet0/0/2]port trunk allow-pass vlan 2 3 4 5 6

SW3：
<Huawei>sys
[Huawei]sys sw3
[sw3]vlan batch 2 3 4 5 6
[sw3]int g0/0/2
[sw3-GigabitEthernet0/0/2]port hybrid pvid vlan 5
[sw3-GigabitEthernet0/0/2]port hybrid untagged vlan 2 3 4 5
[sw3-GigabitEthernet0/0/2]int g0/0/3
[sw3-GigabitEthernet0/0/3]port hybrid pvid vlan 6
[sw3-GigabitEthernet0/0/3]port hybrid untagged vlan 2 3 6
[sw3-GigabitEthernet0/0/3]int g0/0/1
[sw3-GigabitEthernet0/0/1]port link-type trunk
[sw3-GigabitEthernet0/0/1]port trunk allow-pass vlan 2 3 4 5 6

R1与sw1之间的配置
R1：
<Huawei>sys
[Huawei]sys r1
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]ip add 192.168.2.1 24
[r1-GigabitEthernet0/0/0]int g0/0/0.1
[r1-GigabitEthernet0/0/0.1]ip add 192.168.1.1 24
[r1-GigabitEthernet0/0/0.1]dot1q termination vid 2
[r1-GigabitEthernet0/0/0.1]arp broadcast enable
[r1-GigabitEthernet0/0/0.1]q
[r1]dhcp enable
[r1]ip pool a
[r1-ip-pool-a]network 192.168.1.0 mask 24
[r1-ip-pool-a]gateway-list 192.168.1.1
[r1-ip-pool-a]q
[r1]ip pool b
[r1-ip-pool-b]network 192.168.2.0 mask 24
[r1-ip-pool-b]gateway-list 192.168.2.1
[r1-ip-pool-b]q
[r1]int g0/0/0
[r1-GigabitEthernet0/0/0]dhcp select global
[r1-GigabitEthernet0/0/0]int g0/0/0.1
[r1-GigabitEthernet0/0/0.1]dhcp select global

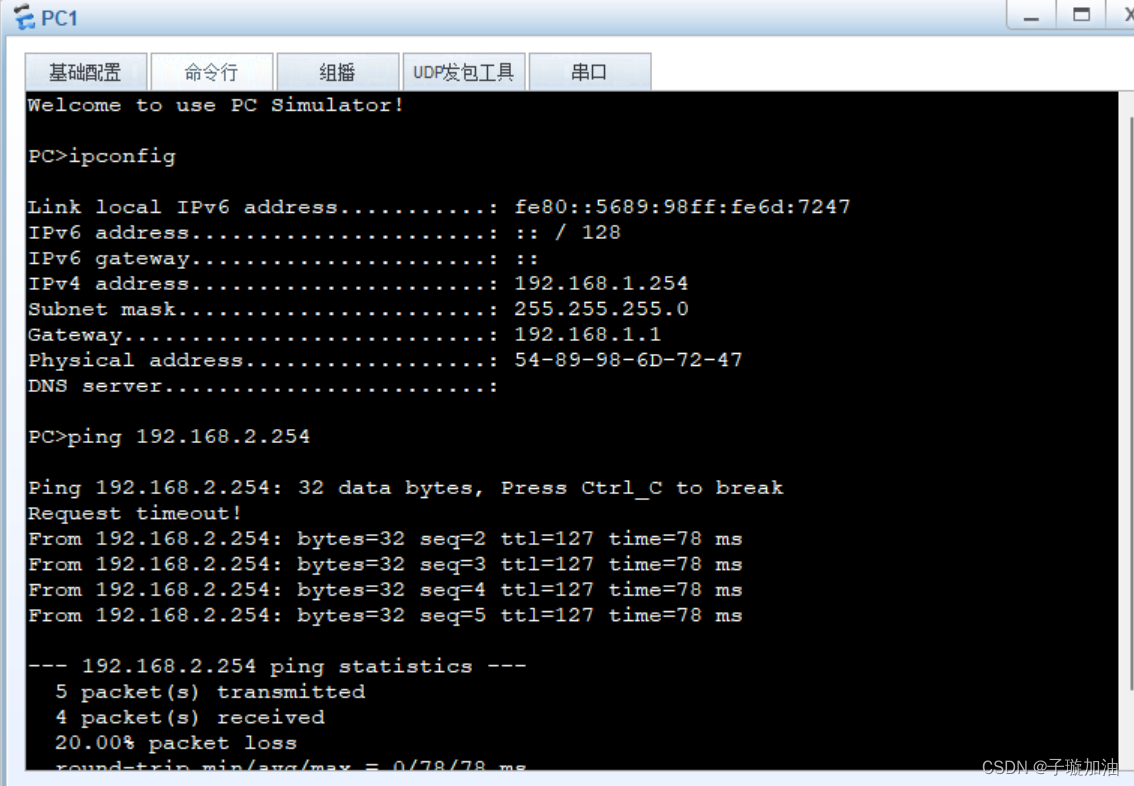

测试
