FP8格式理解解析

官方说明文档

2209.05433v2.pdf (arxiv.org)https://arxiv.org/pdf/2209.05433v2.pdf

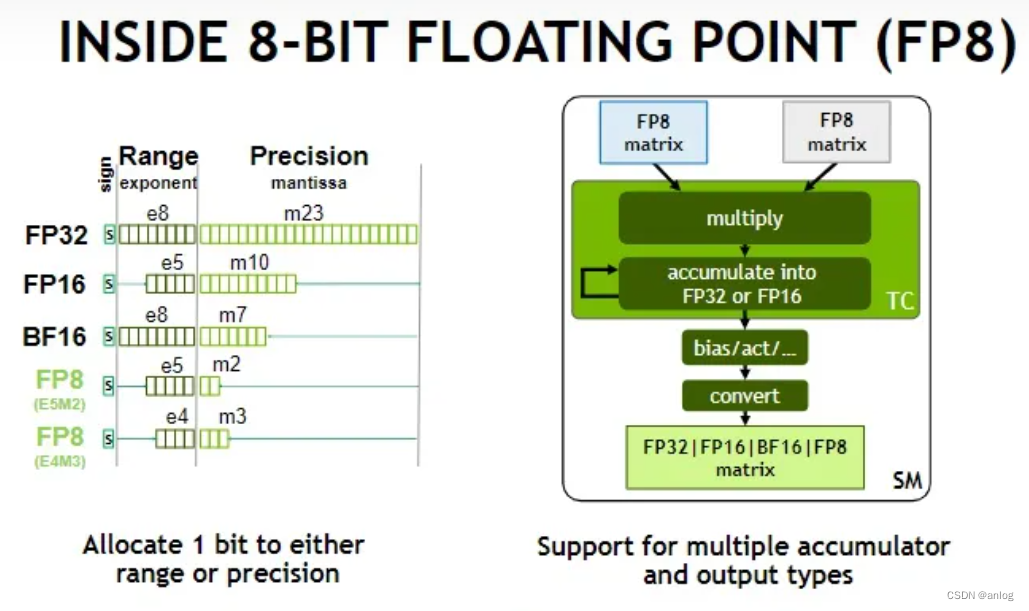

与常用浮点数对比

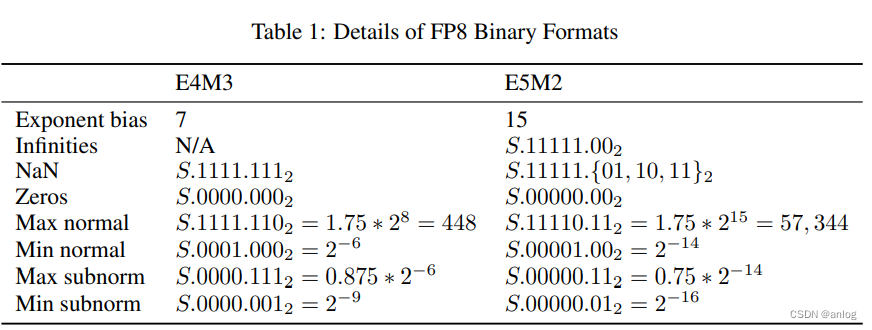

FP8 Binary Interchange Format FP8 consists of two encodings - E4M3 and E5M2, where the name explicitly states the number of exponent (E) and mantissa (M) bits. We use the common term "mantissa" as a synonym for IEEE 754 standard’s trailing significand field (i.e. bits not including the implied leading 1 bit for normal floating point numbers). The recommended use of FP8 encodings is E4M3 for weight and activation tensors, and E5M2 for gradient tensors. While some networks can train with just the E4M3 or the E5M2 type, there are networks that require both types (or must maintain many fewer tensors in FP8). This is consistent with findings in [20, 16], where inference and forward pass of training use a variant of E4M3, gradients in the backward pass of training use a variant of E5M2. FP8 encoding details are specified in Table 1. We use the S.E.M notation to describe binary encodings in the table, where S is the sign bit, E is the exponent field (either 4 or 5 bits containing biased exponent), M is either a 3- or a 2-bit mantissa. Values with a 2 in the subscript are binary, otherwise they are decimal

 Design of these FP8 format followed the principle of staying consistent with IEEE-754 conventions, deviating only if a significant benefit is expected for DL application accuracy. Consequently, the E5M2 format follows the IEEE 754 conventions for exponent and special values and can be viewed as IEEE half precision with fewer mantissa bits (similar to how bfloat16 and TF32 can be viewed as IEEE single precision with fewer bits). This allows for straightforward conversion between E5M2 and IEEE FP16 formats. By contrast, the dynamic range of E4M3 is extended by reclaiming most of the bit patterns used for special values because in this case the greater range achieved is much more useful than supporting multiple encodings for the special values.
