利用tensorflow object detection API 训练MASK-RCNN (一)

目前支持mask-rcnn的框架很多,网上也有很多训练该网络的教程,例如tensorflow+keras训练mask-rcnn进行实例分割训练,但是其横撑的.h5模型比较难通过opencv自带的接口调用.查阅资料发现,opencv4.0版本之后,dnn模块提供的接口能够接入mask-rcnn的模型(pb格式).

小记下利用tensorflow object detection API自带的训练mask-rcnn的接口训练自己的数据过程.以备不时之需.

1.下载tensorflow model 源码

object detection API 是存放在tensorflow/model 路径下的,地址:https://github.com/tensorflow/models

git clone https://github.com/tensorflow/models.git

2.安装API

  详见 https://blog.youkuaiyun.com/c20081052/article/details/81698216

3.数据采集

实例分割的数据标注比较麻烦,我这边推荐的是用labelme软件进行数据标注,打标软件的安装和使用可以借鉴下方博客 https://blog.youkuaiyun.com/u011574296/article/details/79740633/

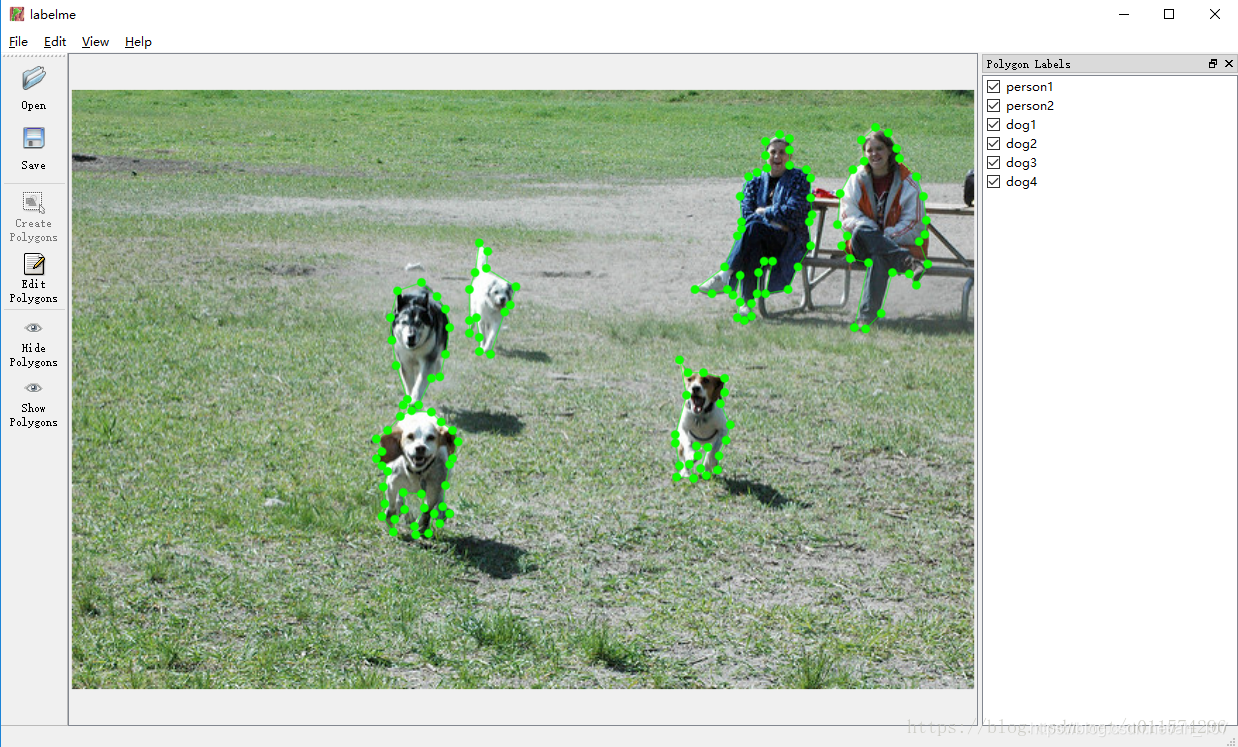

值得注意的是,训练实例分割的数据同一类的标签也要有所区分,例如画面中4只狗2个人,对应的标签分别为dog1,dog2,dog3,dog4,person1,person2(如果不区分开,则训练的时候模型会认为同一类的不同个体都是同一个,无法区分个体)

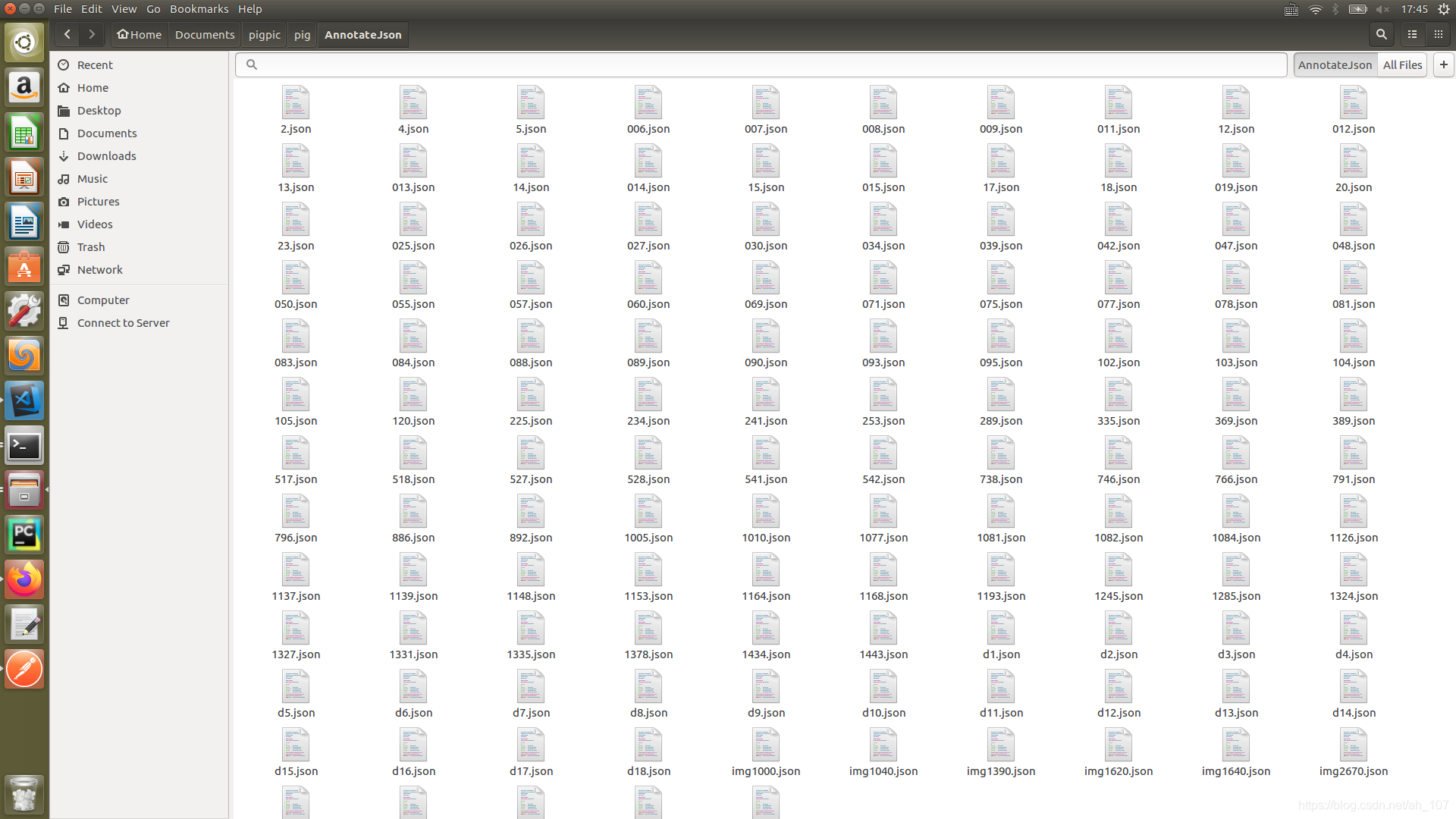

标注完,会发现在存储路径下生成了标注文件(json文件)

4. 数据转换

API提供的接口接受的数据是tfrecord格式的,我们需要将json格式的数据转化为tfrecord格式.

create_tf_record.py 代码如下

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
Created on Sun Aug 26 10:57:09 2018

@author: shirhe-lyh
"""

"""Convert raw dataset to TFRecord for object_detection.

Please note that this tool only applies to labelme's annotations(json file).

Example usage:
    python3 create_tf_record.py \
        --images_dir=your absolute path to read images.
        --annotations_json_dir=your path to annotaion json files.
        --label_map_path=your path to label_map.pbtxt
        --output_path=your path to write .record.
"""

import cv2
import glob
import hashlib
import io
import json
import numpy as np
import os
import PIL.Image
import tensorflow as tf

import read_pbtxt_file


flags = tf.app.flags

flags.DEFINE_string('images_dir', None, 'Path to images directory.')
flags.DEFINE_string('annotations_json_dir', 'datasets/annotations',
                    'Path to annotations directory.')
flags.DEFINE_string('label_map_path', None, 'Path to label map proto.')
flags.DEFINE_string('output_path', None, 'Path to the output tfrecord.')

FLAGS = flags.FLAGS


def int64_feature(value):
    return tf.train.Feature(int64_list=tf.train.Int64List(value=[value]))


def int64_list_feature(value):
    return tf.train.Feature(int64_list=tf.train.Int64List(value=value))


def bytes_feature(value):
    return tf.train.Feature(bytes_list=tf.train.BytesList(value=[value]))


def bytes_list_feature(value):
    return tf.train.Feature(bytes_list=tf.train.BytesList(value=value))


def float_list_feature(value):
    return tf.train.Feature(float_list=tf.train.FloatList(value=value))


def create_tf_example(annotation_dict, label_map_dict=None):
    """Converts image and annotations to a tf.Example proto.

    Args:
        annotation_dict: A dictionary containing the following keys:
            ['height', 'width', 'filename', 'sha256_key', 'encoded_jpg',
             'format', 'xmins', 'xmaxs', 'ymins', 'ymaxs', 'masks',
             'class_names'].
        label_map_dict: A dictionary maping class_names to indices.

    Returns:
        example: The converted tf.Example.

    Raises:
        ValueError: If label_map_dict is None or is not containing a class_name.
    """
    if annotation_dict is None:
        return None
    if label_map_dict is None:
        raise ValueError('`label_map_dict` is None')

    height = annotation_dict.get('height', None)
    width = annotation_dict.get('width', None)
    filename = annotation_dict.get('filename', None)
    sha256_key = annotation_dict.get('sha256_key', None)
    encoded_jpg = annotation_dict.get('encoded_jpg', None)
    image_format = annotation_dict.get('format', None)
    xmins = annotation_dict.get('xmins', None)
    xmaxs = annotation_dict.get('xmaxs', None)
    ymins = annotation_dict.get('ymins', None)
    ymaxs = annotation_dict.get('ymaxs', None)
    masks = annotation_dict.get('masks', None)
    class_names = annotation_dict.get('class_names', None)

    labels = []
    for class_name in class_names:
        label = label_map_dict.get(class_name, 'None')
        if label is None:
            raise ValueError('`label_map_dict` is not containing {}.'.format(
                class_name))
        labels.append(label)

    encoded_masks = []
    for mask in masks:
        pil_image = PIL.Image.fromarray(mask.astype(np.uint8))
        output_io = io.BytesIO()
        pil_image.save(output_io, format='PNG')
        encoded_masks.append(output_io.getvalue())

    feature_dict = {
        'image/height': int64_feature(height),
        'image/width': int64_feature(width),
        'image/filename': bytes_feature(filename.encode('utf8')),
        'image/source_id': bytes_feature(filename.encode('utf8')),
        'image/key/sha256': bytes_feature(sha256_key.encode('utf8')),
        'image/encoded': bytes_feature(encoded_jpg),
        'image/format': bytes_feature(image_format.encode('utf8')),
        'image/object/bbox/xmin': float_list_feature(xmins),
        'image/object/bbox/xmax': float_list_feature(xmaxs),
        'image/object/bbox/ymin': float_list_feature(ymins),
        'image/object/bbox/ymax': float_list_feature(ymaxs),
        'image/object/mask': bytes_list_feature(encoded_masks),
        'image/object/class/label': int64_list_feature(labels)}
    example = tf.train.Example(features=tf.train.Features(
        feature=feature_dict))
    return example


def _get_annotation_dict(images_dir, annotation_json_path):
    """Get boundingboxes and masks.

    Args:
        images_dir: Path to images directory.
        annotation_json_path: Path to annotated json file corresponding to
            the image. The json file annotated by labelme with keys:
                ['lineColor', 'imageData', 'fillColor', 'imagePath', 'shapes',
                 'flags'].

    Returns:
        annotation_dict: A dictionary containing the following keys:
            ['height', 'width', 'filename', 'sha256_key', 'encoded_jpg',
             'format', 'xmins', 'xmaxs', 'ymins', 'ymaxs', 'masks',
             'class_names'].
#
#    Raises:
#        ValueError: If images_dir or annotation_json_path is not exist.
    """
#    if not os.path.exists(images_dir):
#        raise ValueError('`images_dir` is not exist.')
#
#    if not os.path.exists(annotation_json_path):
#        raise ValueError('`annotation_json_path` is not exist.')

    if (not os.path.exists(images_dir) or
        not os.path.exists(annotation_json_path)):
        return None

    with open(annotation_json_path, 'r') as f:
        json_text = json.load(f)
    shapes = json_text.get('shapes', None)
    if shapes is None:
        return None
    image_relative_path = json_text.get('imagePath', None)
    if image_relative_path is None:
        return None
    image_name = image_relative_path.split('/')[-1]
    image_path = os.path.join(images_dir, image_name)
    image_format = image_name.split('.')[-1].replace('jpg', 'jpeg')
    if not os.path.exists(image_path):
        return None

    with tf.gfile.GFile(image_path, 'rb') as fid:
        encoded_jpg = fid.read()
    image = cv2.imread(image_path)
    height = image.shape[0]
    width = image.shape[1]
    key = hashlib.sha256(encoded_jpg).hexdigest()

    xmins = []
    xmaxs = []
    ymins = []
    ymaxs = []
    masks = []
    class_names = []
    hole_polygons = []
    for mark in shapes:
        class_name = mark.get('label')
        class_names.append(class_name)
        polygon = mark.get('points')
        polygon = np.array(polygon)
        if class_name == 'hole':
            hole_polygons.append(polygon)
        else:
            mask = np.zeros(image.shape[:2])
            cv2.fillPoly(mask, [polygon], 1)
            masks.append(mask)

            # Boundingbox
            x = polygon[:, 0]
            y = polygon[:, 1]
            xmin = np.min(x)
            xmax = np.max(x)
            ymin = np.min(y)
            ymax = np.max(y)
            xmins.append(float(xmin) / width)
            xmaxs.append(float(xmax) / width)
            ymins.append(float(ymin) / height)
            ymaxs.append(float(ymax) / height)
    # Remove holes in mask
    for mask in masks:
        mask = cv2.fillPoly(mask, hole_polygons, 0)

    annotation_dict = {'height': height,
                       'width': width,
                       'filename': image_name,
                       'sha256_key': key,
                       'encoded_jpg': encoded_jpg,
                       'format': image_format,
                       'xmins': xmins,
                       'xmaxs': xmaxs,
                       'ymins': ymins,
                       'ymaxs': ymaxs,
                       'masks': masks,
                       'class_names': class_names}
    return annotation_dict


def main(_):
    if not os.path.exists(FLAGS.images_dir):
        raise ValueError('`images_dir` is not exist.')
    if not os.path.exists(FLAGS.annotations_json_dir):
        raise ValueError('`annotations_json_dir` is not exist.')
    if not os.path.exists(FLAGS.label_map_path):
        raise ValueError('`label_map_path` is not exist.')

    label_map = read_pbtxt_file.get_label_map_dict(FLAGS.label_map_path)

    writer = tf.python_io.TFRecordWriter(FLAGS.output_path)

    num_annotations_skiped = 0
    annotations_json_path = os.path.join(FLAGS.annotations_json_dir, '*.json')
    for i, annotation_file in enumerate(glob.glob(annotations_json_path)):
        if i % 100 == 0:
            print('On image %d', i)

        annotation_dict = _get_annotation_dict(
            FLAGS.images_dir, annotation_file)
        if annotation_dict is None:
            num_annotations_skiped += 1
            continue
        tf_example = create_tf_example(annotation_dict, label_map)
        writer.write(tf_example.SerializeToString())

    print('Successfully created TFRecord to {}.'.format(FLAGS.output_path))


if __name__ == '__main__':
    tf.app.run()


然后在同级文件目录下创建 read_pbtxt_file.py

#!/usr/bin/env python3
# -*- coding: utf-8 -*-
"""
Created on Sun Aug 26 13:42:50 2018

@author: shirhe-lyh
"""

"""A tool to read .pbtxt file.

See Details at:
    TensorFlow models/research/object_detetion/protos/string_int_label_pb2.py
    TensorFlow models/research/object_detection/utils/label_map_util.py
"""

import tensorflow as tf

from google.protobuf import text_format

import string_int_label_map_pb2


def load_pbtxt_file(path):
    """Read .pbtxt file.

    Args:
        path: Path to StringIntLabelMap proto text file (.pbtxt file).

    Returns:
        A StringIntLabelMapProto.

    Raises:
        ValueError: If path is not exist.
    """
    if not tf.gfile.Exists(path):
        raise ValueError('`path` is not exist.')

    with tf.gfile.GFile(path, 'r') as fid:
        pbtxt_string = fid.read()
        pbtxt = string_int_label_map_pb2.StringIntLabelMap()
        try:
            text_format.Merge(pbtxt_string, pbtxt)
        except text_format.ParseError:
            pbtxt.ParseFromString(pbtxt_string)
    return pbtxt


def get_label_map_dict(path):
    """Reads a .pbtxt file and returns a dictionary.

    Args:
        path: Path to StringIntLabelMap proto text file.

    Returns:
        A dictionary mapping class names to indices.
    """
    pbtxt = load_pbtxt_file(path)

    result_dict = {}
    for item in pbtxt.item:
        result_dict[item.name] = item.id
    return result_dict


创建文件string_int_label_map_pb2.py

# Generated by the protocol buffer compiler.  DO NOT EDIT!
# source: object_detection/protos/string_int_label_map.proto

import sys
_b=sys.version_info[0]<3 and (lambda x:x) or (lambda x:x.encode('latin1'))
from google.protobuf import descriptor as _descriptor
from google.protobuf import message as _message
from google.protobuf import reflection as _reflection
from google.protobuf import symbol_database as _symbol_database
# @@protoc_insertion_point(imports)

_sym_db = _symbol_database.Default()




DESCRIPTOR = _descriptor.FileDescriptor(
  name='object_detection/protos/string_int_label_map.proto',
  package='object_detection.protos',
  syntax='proto2',
  serialized_options=None,
  serialized_pb=_b('\n2object_detection/protos/string_int_label_map.proto\x12\x17object_detection.protos\"G\n\x15StringIntLabelMapItem\x12\x0c\n\x04name\x18\x01 \x01(\t\x12\n\n\x02id\x18\x02 \x01(\x05\x12\x14\n\x0c\x64isplay_name\x18\x03 \x01(\t\"Q\n\x11StringIntLabelMap\x12<\n\x04item\x18\x01 \x03(\x0b\x32..object_detection.protos.StringIntLabelMapItem')
)




_STRINGINTLABELMAPITEM = _descriptor.Descriptor(
  name='StringIntLabelMapItem',
  full_name='object_detection.protos.StringIntLabelMapItem',
  filename=None,
  file=DESCRIPTOR,
  containing_type=None,
  fields=[
    _descriptor.FieldDescriptor(
      name='name', full_name='object_detection.protos.StringIntLabelMapItem.name', index=0,
      number=1, type=9, cpp_type=9, label=1,
      has_default_value=False, default_value=_b("").decode('utf-8'),
      message_type=None, enum_type=None, containing_type=None,
      is_extension=False, extension_scope=None,
      serialized_options=None, file=DESCRIPTOR),
    _descriptor.FieldDescriptor(
      name='id', full_name='object_detection.protos.StringIntLabelMapItem.id', index=1,
      number=2, type=5, cpp_type=1, label=1,
      has_default_value=False, default_value=0,
      message_type=None, enum_type=None, containing_type=None,
      is_extension=False, extension_scope=None,
      serialized_options=None, file=DESCRIPTOR),
    _descriptor.FieldDescriptor(
      name='display_name', full_name='object_detection.protos.StringIntLabelMapItem.display_name', index=2,
      number=3, type=9, cpp_type=9, label=1,
      has_default_value=False, default_value=_b("").decode('utf-8'),
      message_type=None, enum_type=None, containing_type=None,
      is_extension=False, extension_scope=None,
      serialized_options=None, file=DESCRIPTOR),
  ],
  extensions=[
  ],
  nested_types=[],
  enum_types=[
  ],
  serialized_options=None,
  is_extendable=False,
  syntax='proto2',
  extension_ranges=[],
  oneofs=[
  ],
  serialized_start=79,
  serialized_end=150,
)


_STRINGINTLABELMAP = _descriptor.Descriptor(
  name='StringIntLabelMap',
  full_name='object_detection.protos.StringIntLabelMap',
  filename=None,
  file=DESCRIPTOR,
  containing_type=None,
  fields=[
    _descriptor.FieldDescriptor(
      name='item', full_name='object_detection.protos.StringIntLabelMap.item', index=0,
      number=1, type=11, cpp_type=10, label=3,
      has_default_value=False, default_value=[],
      message_type=None, enum_type=None, containing_type=None,
      is_extension=False, extension_scope=None,
      serialized_options=None, file=DESCRIPTOR),
  ],
  extensions=[
  ],
  nested_types=[],
  enum_types=[
  ],
  serialized_options=None,
  is_extendable=False,
  syntax='proto2',
  extension_ranges=[],
  oneofs=[
  ],
  serialized_start=152,
  serialized_end=233,
)

_STRINGINTLABELMAP.fields_by_name['item'].message_type = _STRINGINTLABELMAPITEM
DESCRIPTOR.message_types_by_name['StringIntLabelMapItem'] = _STRINGINTLABELMAPITEM
DESCRIPTOR.message_types_by_name['StringIntLabelMap'] = _STRINGINTLABELMAP
_sym_db.RegisterFileDescriptor(DESCRIPTOR)

StringIntLabelMapItem = _reflection.GeneratedProtocolMessageType('StringIntLabelMapItem', (_message.Message,), dict(
  DESCRIPTOR = _STRINGINTLABELMAPITEM,
  __module__ = 'object_detection.protos.string_int_label_map_pb2'
  # @@protoc_insertion_point(class_scope:object_detection.protos.StringIntLabelMapItem)
  ))
_sym_db.RegisterMessage(StringIntLabelMapItem)

StringIntLabelMap = _reflection.GeneratedProtocolMessageType('StringIntLabelMap', (_message.Message,), dict(
  DESCRIPTOR = _STRINGINTLABELMAP,
  __module__ = 'object_detection.protos.string_int_label_map_pb2'
  # @@protoc_insertion_point(class_scope:object_detection.protos.StringIntLabelMap)
  ))
_sym_db.RegisterMessage(StringIntLabelMap)


# @@protoc_insertion_point(module_scope)

执行下方命令行 可获得tfrecord数据格式的文件

python3 create_tf_record.py  \
--images_dir=./datasets/images \#存放的训练数据图片文件夹路径
--annotations_json_dir=./datasets/annotations \#存放的训练标注数据的文件夹
--label_map_path=./training/Abyssinian_label_map.pbtxt \#训练数据的标签文件路径
--output_path=./test.record #生成的tfrecord数据文件

其中训练数据的标签文件(我的工程中是Abyssinian_label_map.pbtxt)

item {
    id: 1
    name: 'Abyssinian'
}
item {
    id: 2
    name: 'cat'
}
item {
    id: 3
    name: 'dog'
}

标签类别数和名称都可以根据实际项目更改.

至此你可以将标注的数据转化为tfrecord格式.

准备好train.record 和val.record就可以开始下一步啦!

后续见下文!
