使用LLaMA-Factory微调训练Qwen2-VL-7B与视觉大模型数据集制作流程

0 相关资料

b站视频：

01 视觉大模型数据集制作流程 qwen2-vl：https://www.bilibili.com/video/BV1opPueXEix/

02 使用LLaMA-Factory微调训练Qwen2-VL-7B-环境安装-模型下载：https://www.bilibili.com/video/BV1DjPheTEsF/

03 使用LLaMA-Factory微调训练Qwen2-VL-7B-数据集：https://www.bilibili.com/video/BV1DjPheTE7e/

04 使用LLaMA-Factory微调训练Qwen2-VL-7B-模型测试：https://www.bilibili.com/video/BV1Q5PheBEAk/

05 使用LLaMA-Factory微调训练Qwen2-VL-7B-模型训练前准备：https://www.bilibili.com/video/BV1D5PheBEGB/

06 使用LLaMA-Factory微调训练Qwen2-VL-7B-模型训练：https://www.bilibili.com/video/BV1Q5PheBENS/

07 使用LLaMA-Factory微调训练Qwen2-VL-7B-模型训练导出与样例测试：https://www.bilibili.com/video/BV1D5PheBEKc/

08 使用LLaMA-Factory微调训练Qwen2-VL-7B-Qwen安装与模型测试：https://www.bilibili.com/video/BV1TkP8ehEMs/

09 使用LLaMA-Factory微调训练Qwen2-VL-7B-Qwen安装与模型测试：https://www.bilibili.com/video/BV1KkP8ehE37/

10 使用LLaMA-Factory微调训练Qwen2-VL-7B-Qwen测试结果：https://www.bilibili.com/video/BV1FRP8epEhW/

---

github: https://github.com/Whiffe/via2yolo/tree/main/BNU/LLM

---

LLaMA-Factory微调qwen2-VL(无sudo)_：https://ljw030710.github.io/2024/12/13/LLaMA-Factory%E5%BE%AE%E8%B0%83qwen2-VL-%E6%97%A0sudo/

【项目实战】通过LLaMaFactory+Qwen2-VL-2B微调一个多模态医疗大模型：https://developer.aliyun.com/article/1643200

使用llama-factory框架下的QWEN2-VL-2B-Instruct跑通图像指令数据集（学习记录）https://blog.youkuaiyun.com/2301_80247435/article/details/143678295

1 LLaMA-Factory环境安装

在AutoDL上进行快速部署

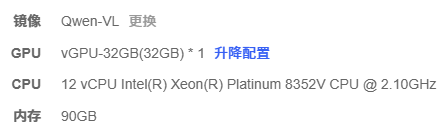

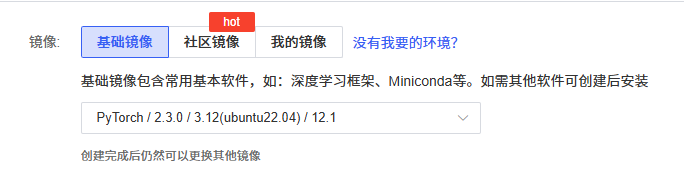

基础镜像选择

基础环境

LLaMA-Factory 安装

source /etc/network_turbo

git clone https://github.com/hiyouga/LLaMA-Factory.git

cd LLaMA-Factory

pip install -e ".[torch,metrics]"

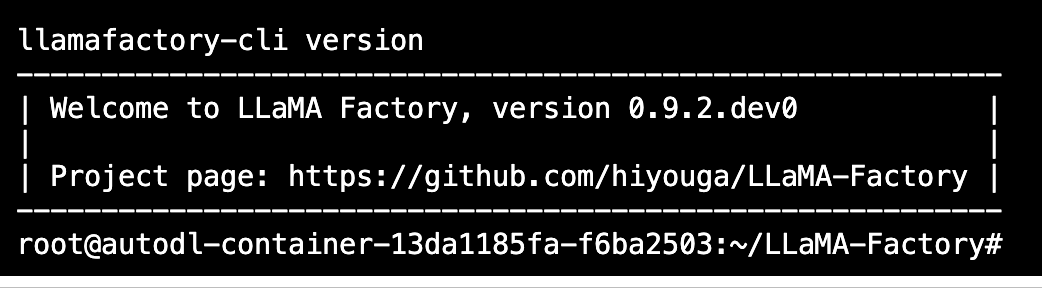

# 检查环境是否安装成功。

llamafactory-cli version

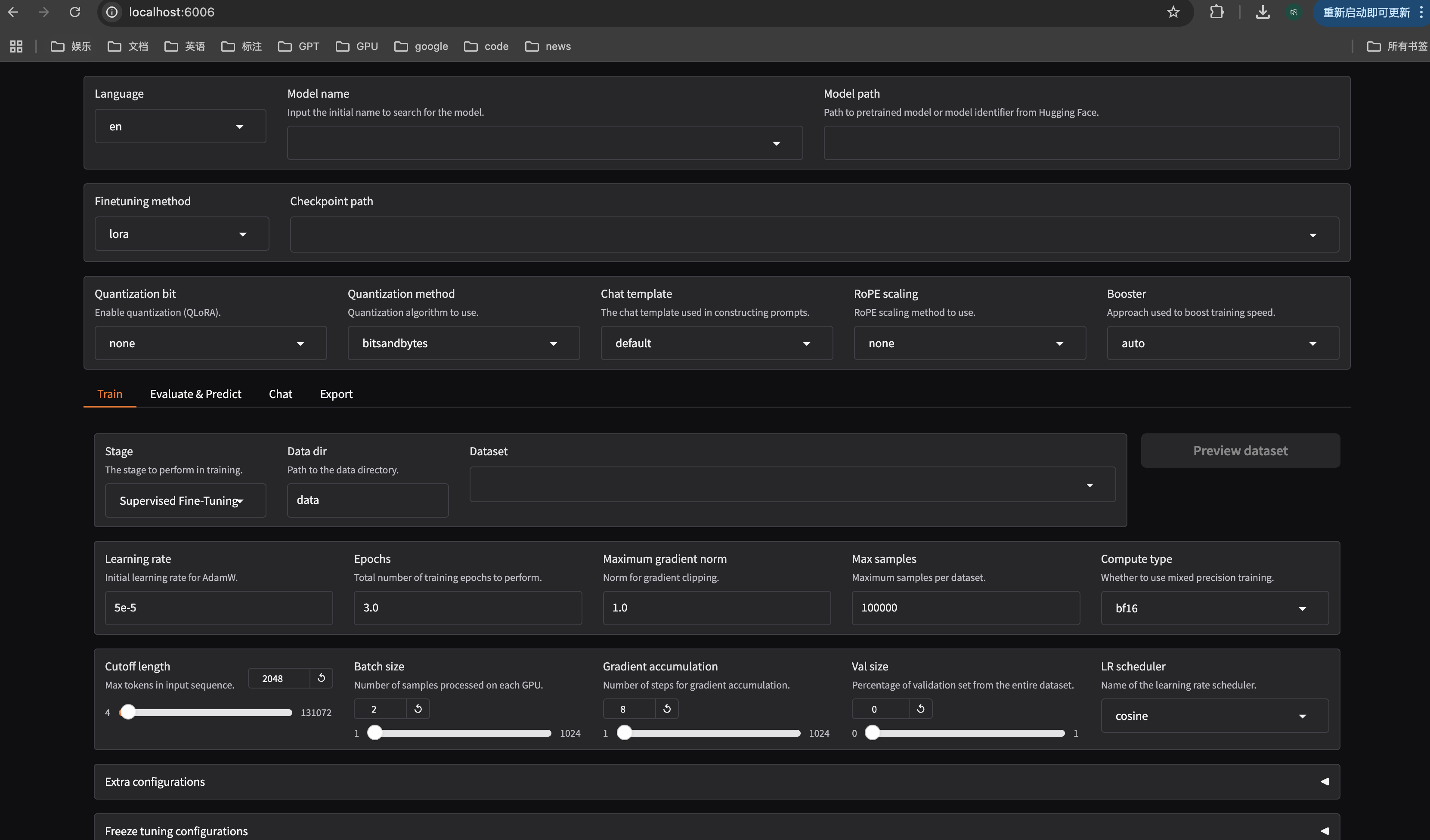

启动WebUI界面，我修改端口号为6006，因为AutoDL用的这个端口号

GRADIO_SERVER_PORT=6006  llamafactory-cli webui

2 模型下载

模型地址

https://www.modelscope.cn/Qwen/Qwen2-VL-7B-Instruct

source /etc/network_turbo
pip install modelscope

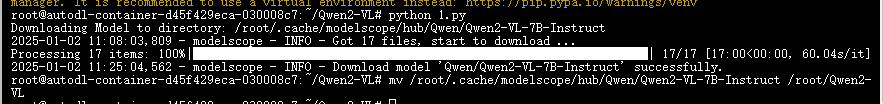

采用SDK方式下载

from modelscope import snapshot_download

# 指定模型的下载路径
cache_dir = '/root/autodl-tmp/'
# 调用 snapshot_download 函数下载模型
model_dir = snapshot_download('Qwen/Qwen2-VL-7B-Instruct', cache_dir=cache_dir)

print(f"模型已下载到: {model_dir}")

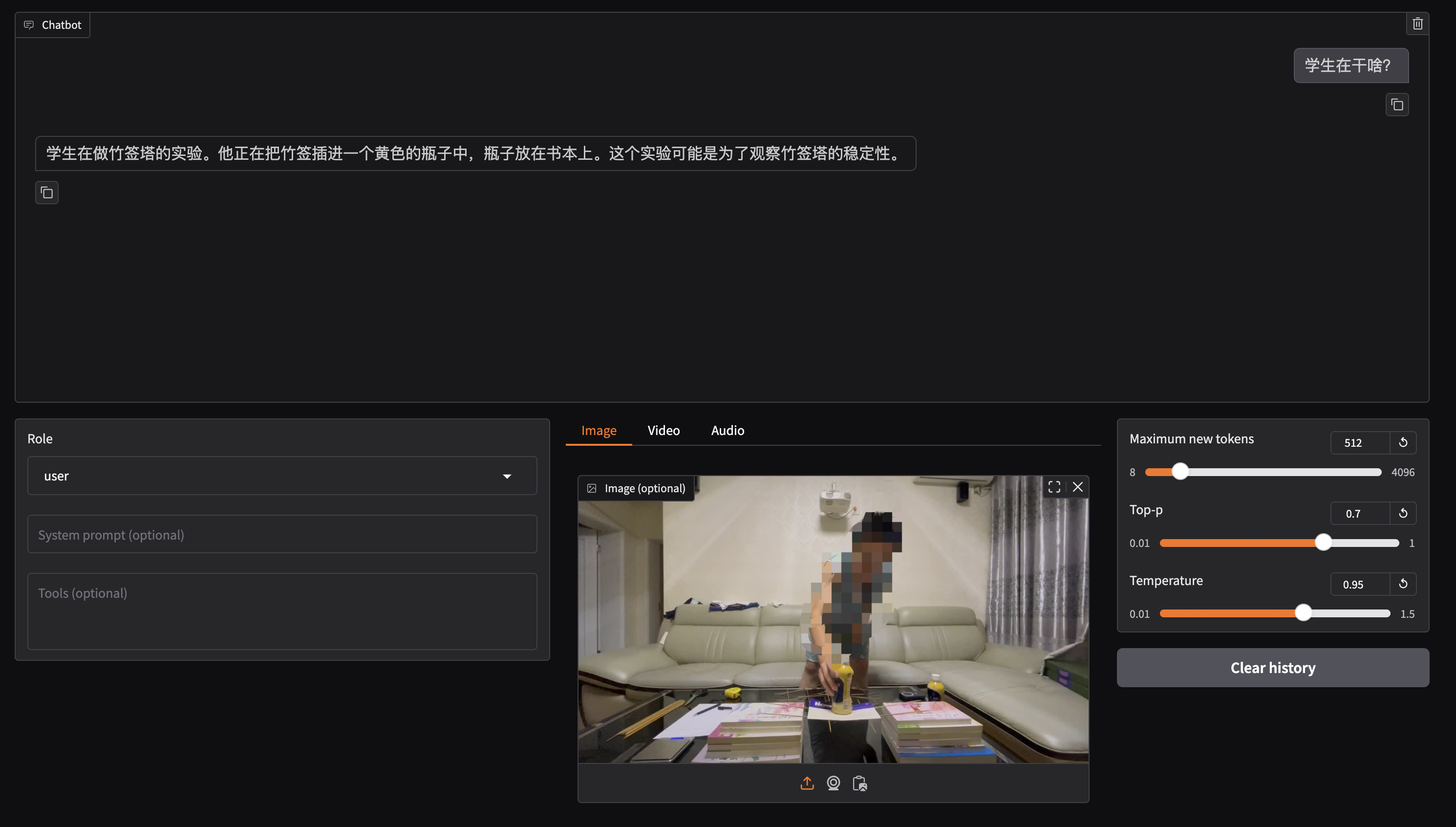

3 模型测试

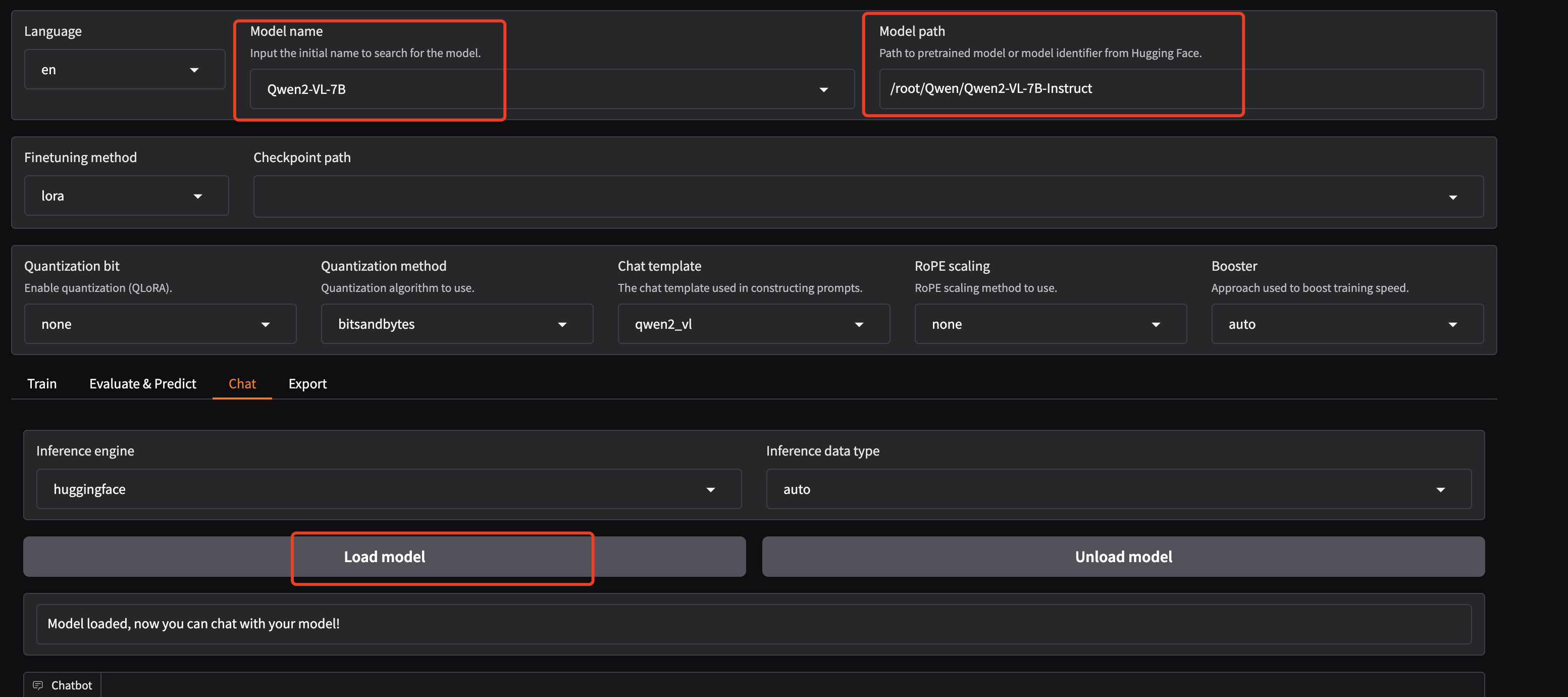

测试当前模型

4 视觉大模型数据集制作流程

训练数据集的制作流程代码与视频：
https://github.com/Whiffe/via2yolo/tree/main/BNU/LLM/Dataset

视频：https://www.bilibili.com/video/BV1opPueXEix/

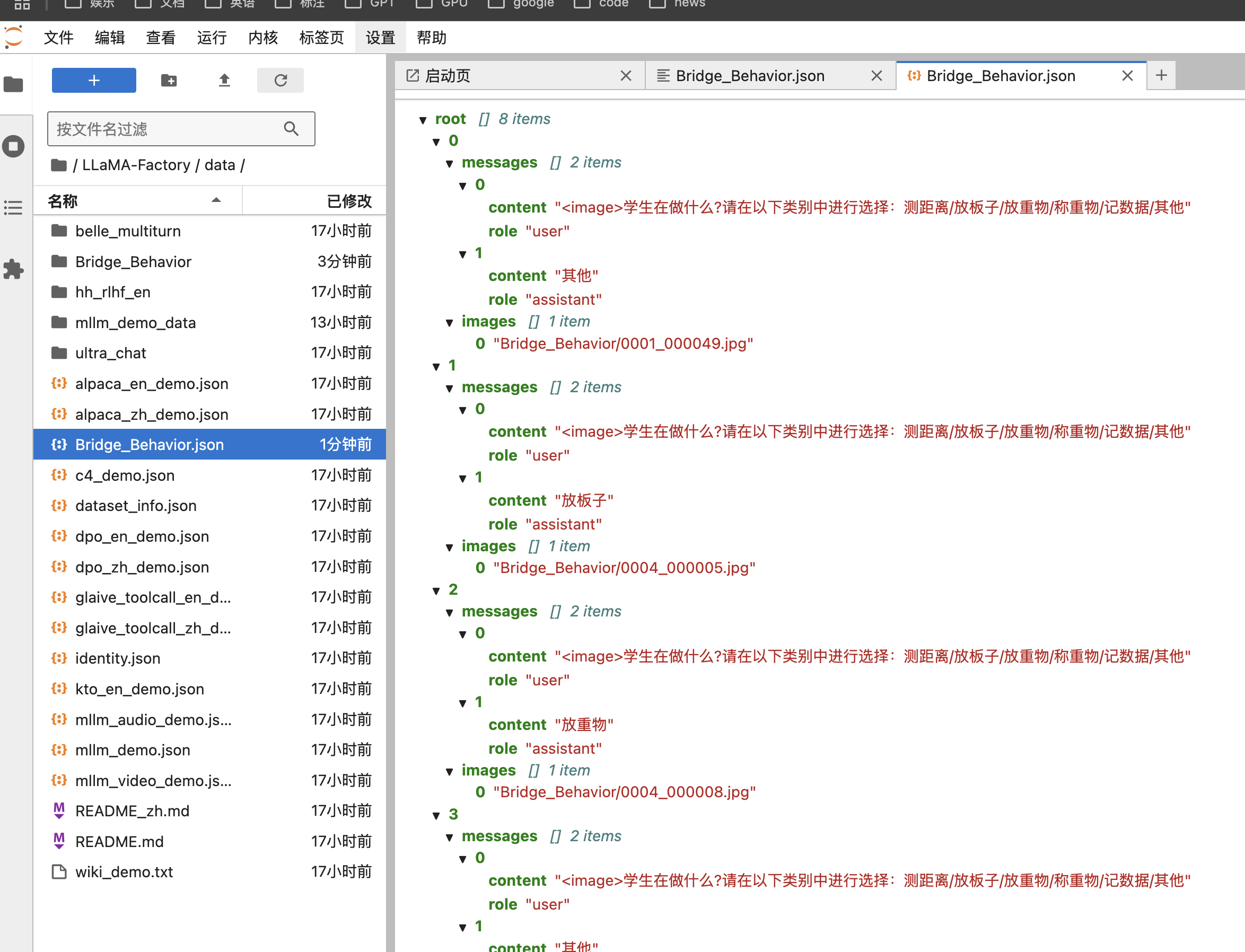

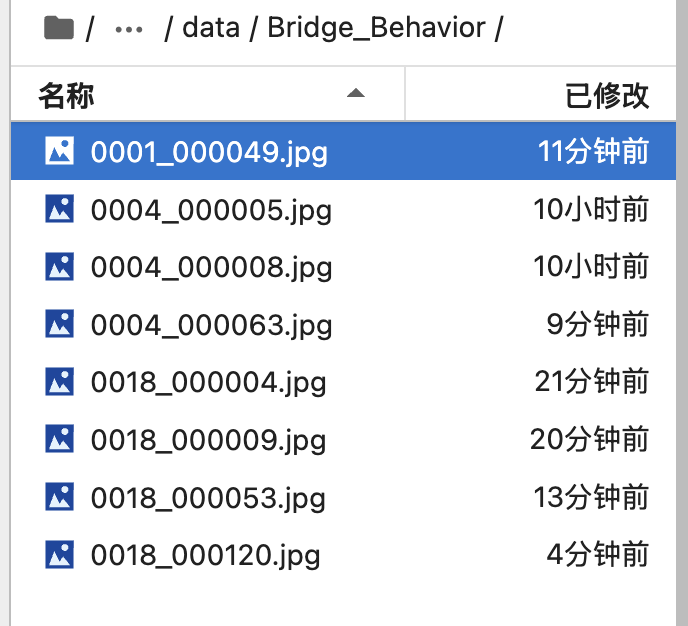

训练数据集

[
  {
    "messages": [
      {
        "content": "<image>学生在做什么?请在以下类别中进行选择：测距离/放板子/放重物/称重物/记数据/其他",
        "role": "user"
      },
      {
        "content": "其他",
        "role": "assistant"
      }
    ],
    "images": [
      "Bridge_Behavior/0001_000049.jpg"
    ]
  },
  {
    "messages": [
      {
        "content": "<image>学生在做什么?请在以下类别中进行选择：测距离/放板子/放重物/称重物/记数据/其他",
        "role": "user"
      },
      {
        "content": "放板子",
        "role": "assistant"
      }
    ],
    "images": [
      "Bridge_Behavior/0004_000005.jpg"
    ]
  },
  {
    "messages": [
      {
        "content": "<image>学生在做什么?请在以下类别中进行选择：测距离/放板子/放重物/称重物/记数据/其他",
        "role": "user"
      },
      {
        "content": "放重物",
        "role": "assistant"
      }
    ],
    "images": [
      "Bridge_Behavior/0004_000008.jpg"
    ]
  },
  {
    "messages": [
      {
        "content": "<image>学生在做什么?请在以下类别中进行选择：测距离/放板子/放重物/称重物/记数据/其他",
        "role": "user"
      },
      {
        "content": "其他",
        "role": "assistant"
      }
    ],
    "images": [
      "Bridge_Behavior/0004_000063.jpg"
    ]
  },
  {
    "messages": [
      {
        "content": "<image>学生在做什么?请在以下类别中进行选择：测距离/放板子/放重物/称重物/记数据/其他",
        "role": "user"
      },
      {
        "content": "测距离",
        "role": "assistant"
      }
    ],
    "images": [
      "Bridge_Behavior/0018_000004.jpg"
    ]
  },
  {
    "messages": [
      {
        "content": "<image>学生在做什么?请在以下类别中进行选择：测距离/放板子/放重物/称重物/记数据/其他",
        "role": "user"
      },
      {
        "content": "记数据",
        "role": "assistant"
      }
    ],
    "images": [
      "Bridge_Behavior/0018_000009.jpg"
    ]
  },
  {
    "messages": [
      {
        "content": "<image>学生在做什么?请在以下类别中进行选择：测距离/放板子/放重物/称重物/记数据/其他",
        "role": "user"
      },
      {
        "content": "放重物",
        "role": "assistant"
      }
    ],
    "images": [
      "Bridge_Behavior/0018_000053.jpg"
    ]
  },
  {
    "messages": [
      {
        "content": "<image>学生在做什么?请在以下类别中进行选择：测距离/放板子/放重物/称重物/记数据/其他",
        "role": "user"
      },
      {
        "content": "其他",
        "role": "assistant"
      }
    ],
    "images": [
      "Bridge_Behavior/0018_000120.jpg"
    ]
  }
]

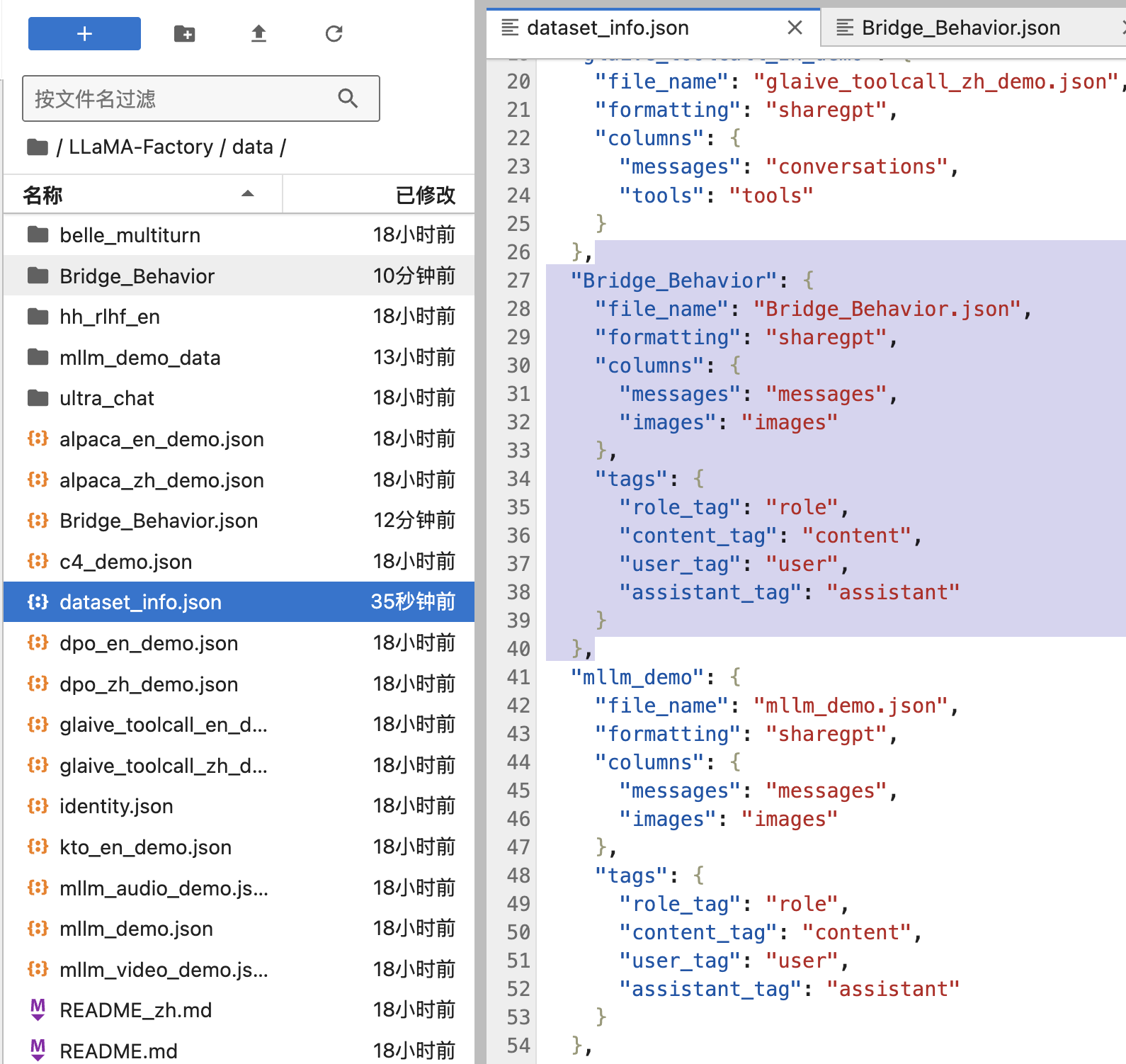

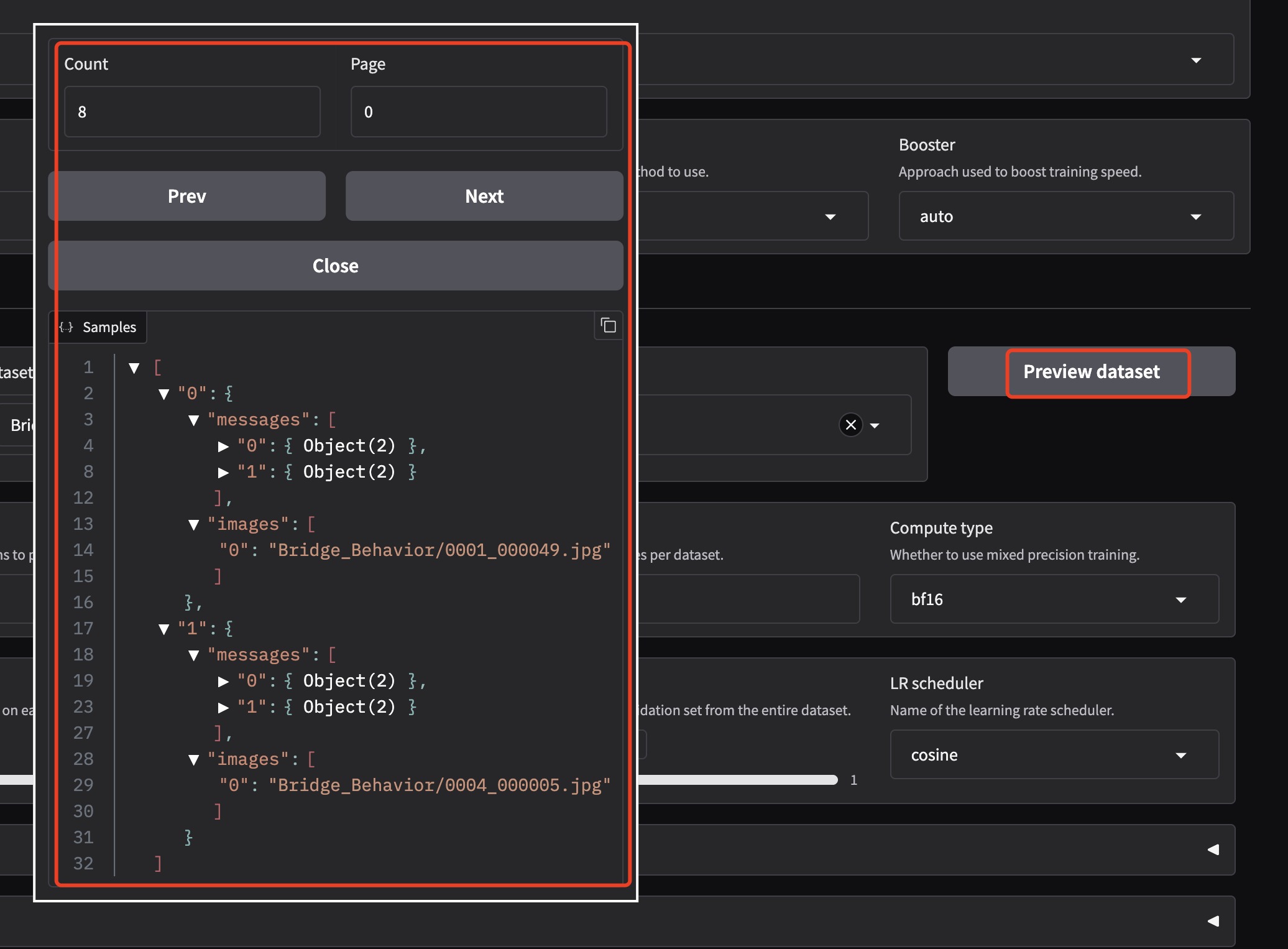

修改LLaMA-Factory/data/dataset_info.json文件
添加如下内容：

  "Bridge_Behavior": {
    "file_name": "Bridge_Behavior.json",
    "formatting": "sharegpt",
    "columns": {
      "messages": "messages",
      "images": "images"
    },
    "tags": {
      "role_tag": "role",
      "content_tag": "content",
      "user_tag": "user",
      "assistant_tag": "assistant"
    }
  },

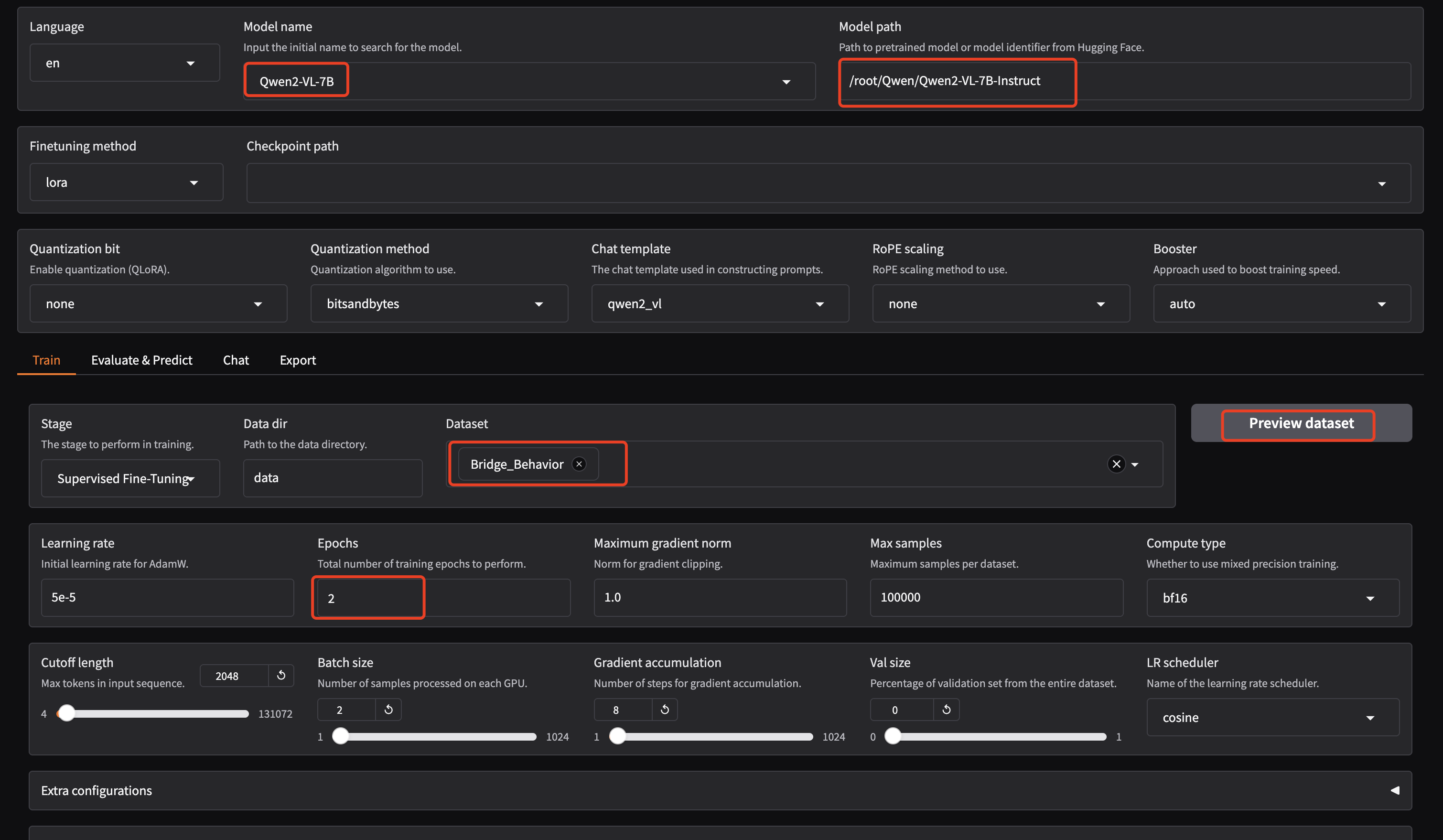

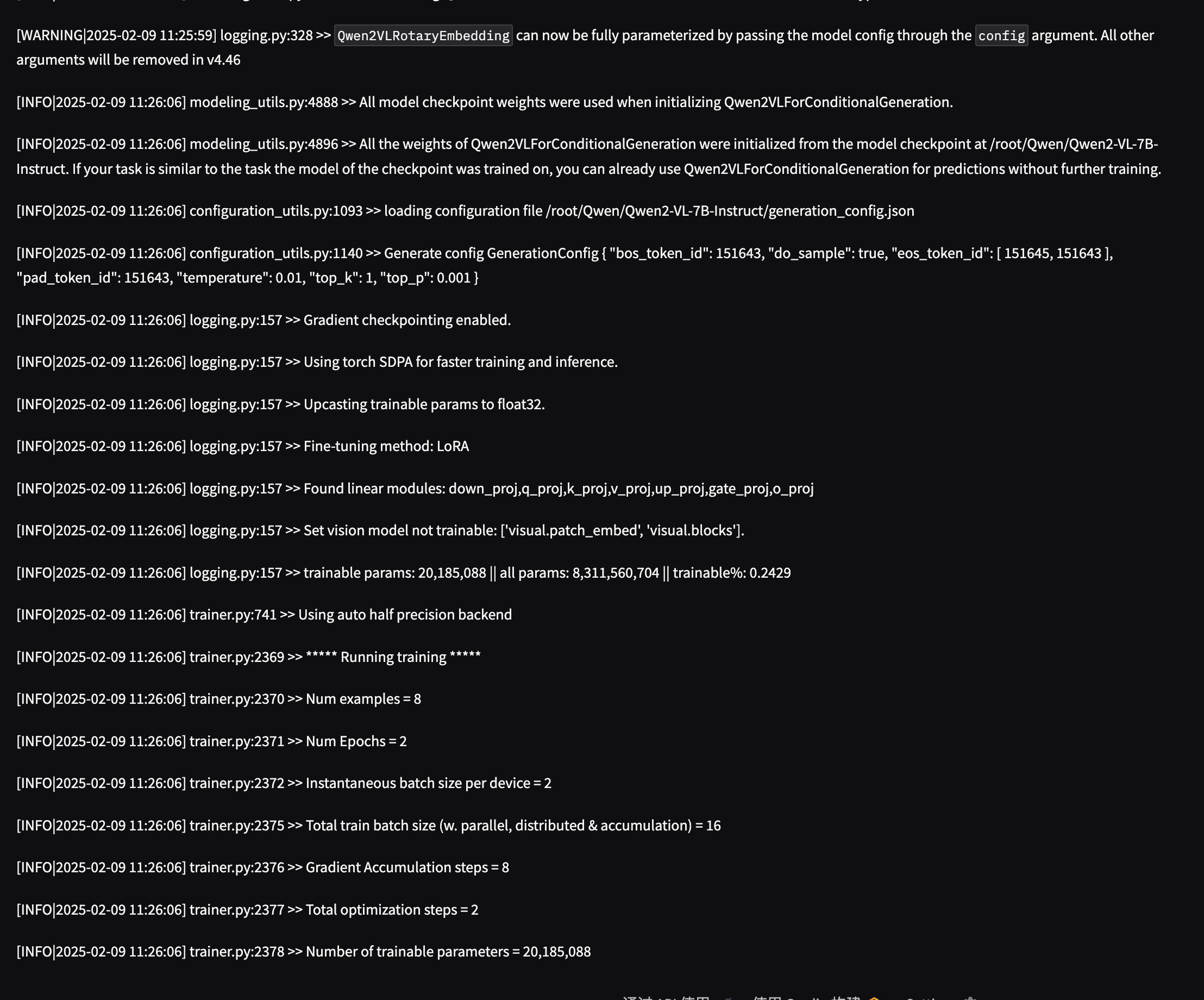

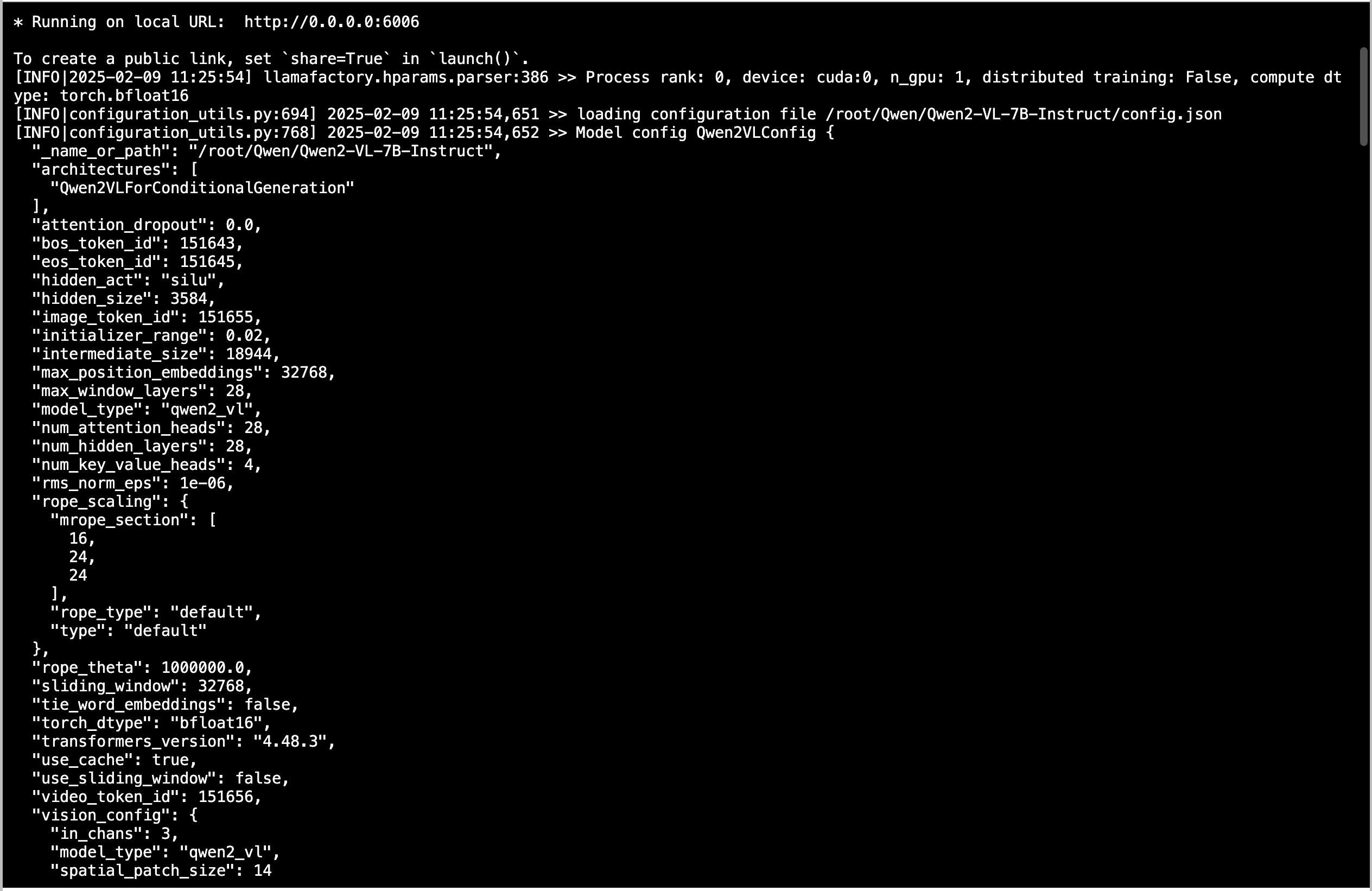

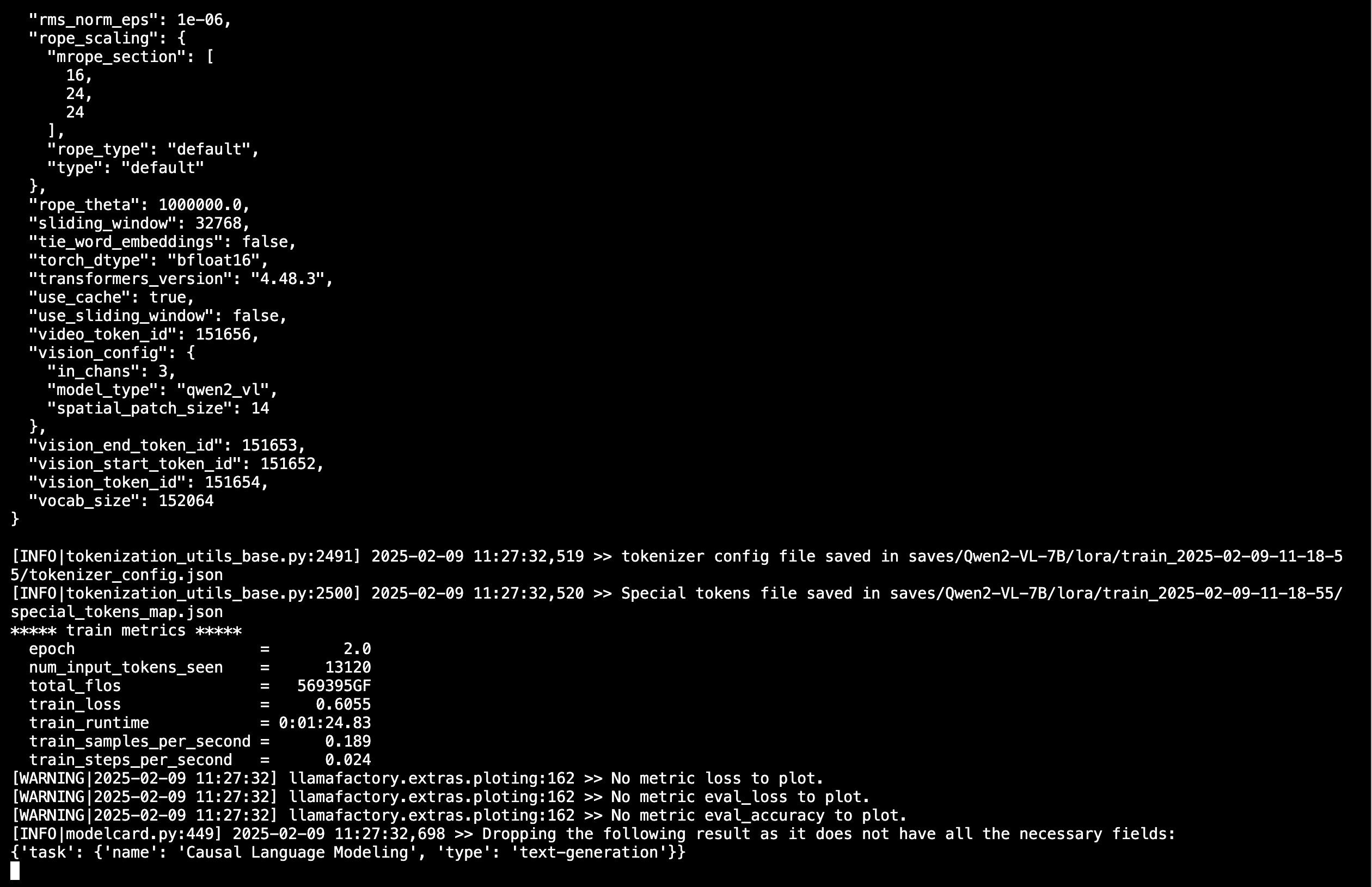

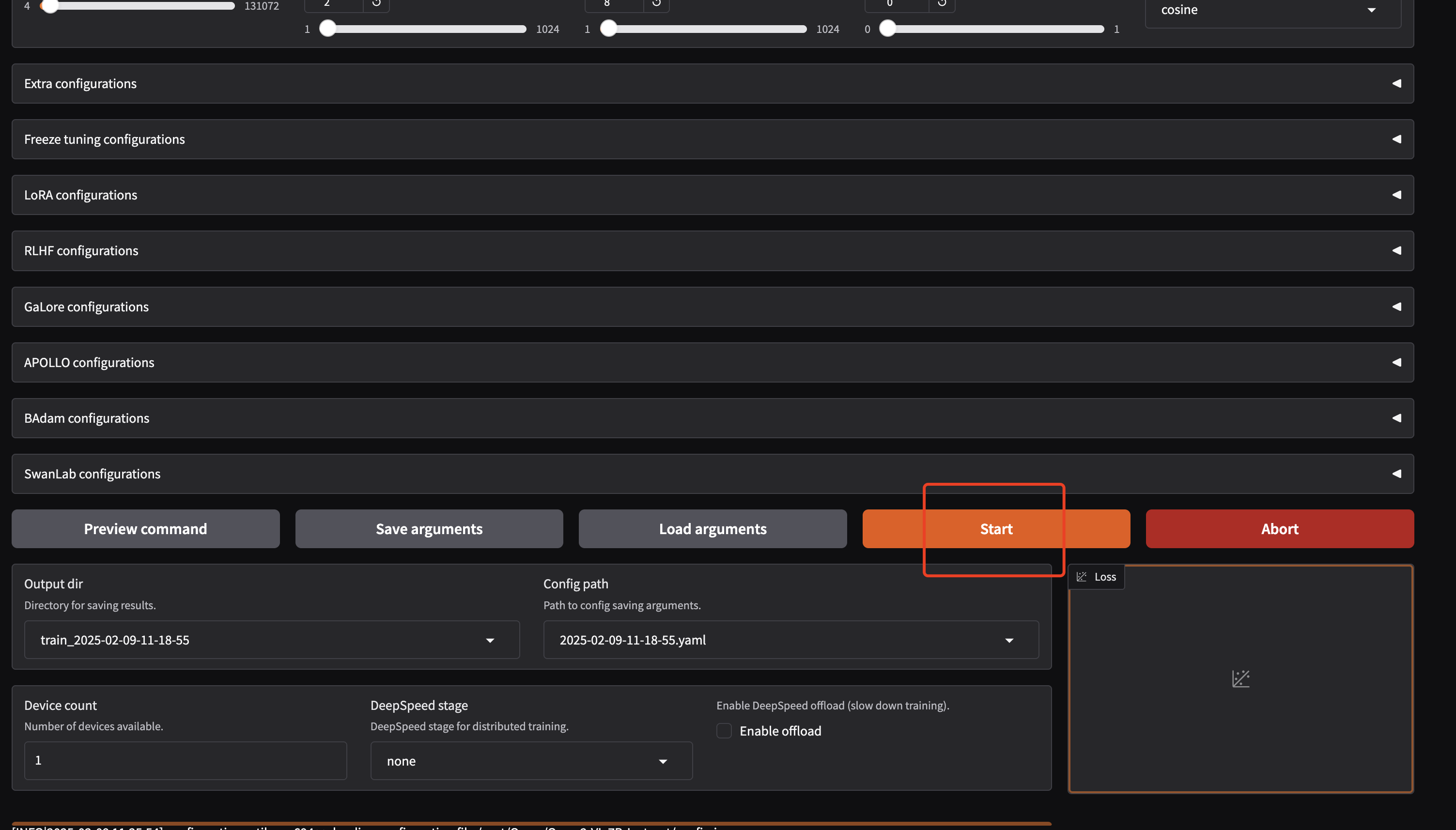

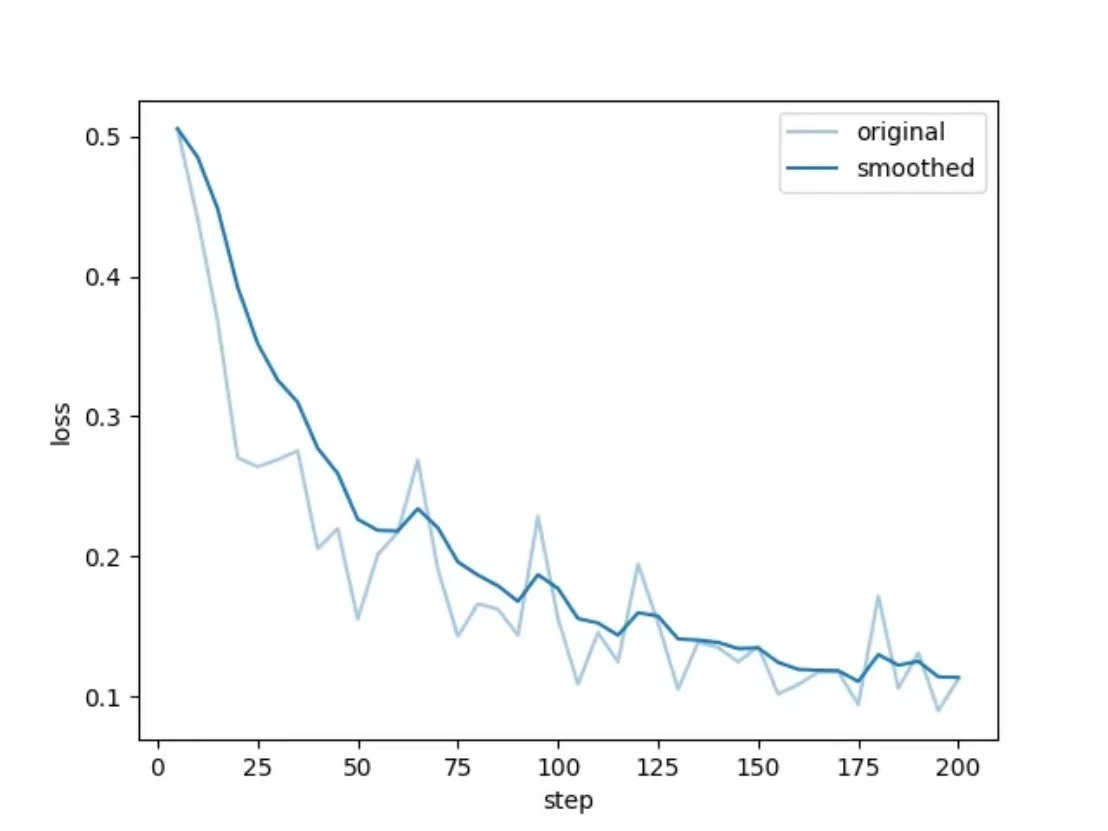

5 训练与评估模型

启动WebUI界面，我修改端口号为6006，因为AutoDL用的这个端口号

GRADIO_SERVER_PORT=6006  llamafactory-cli webui

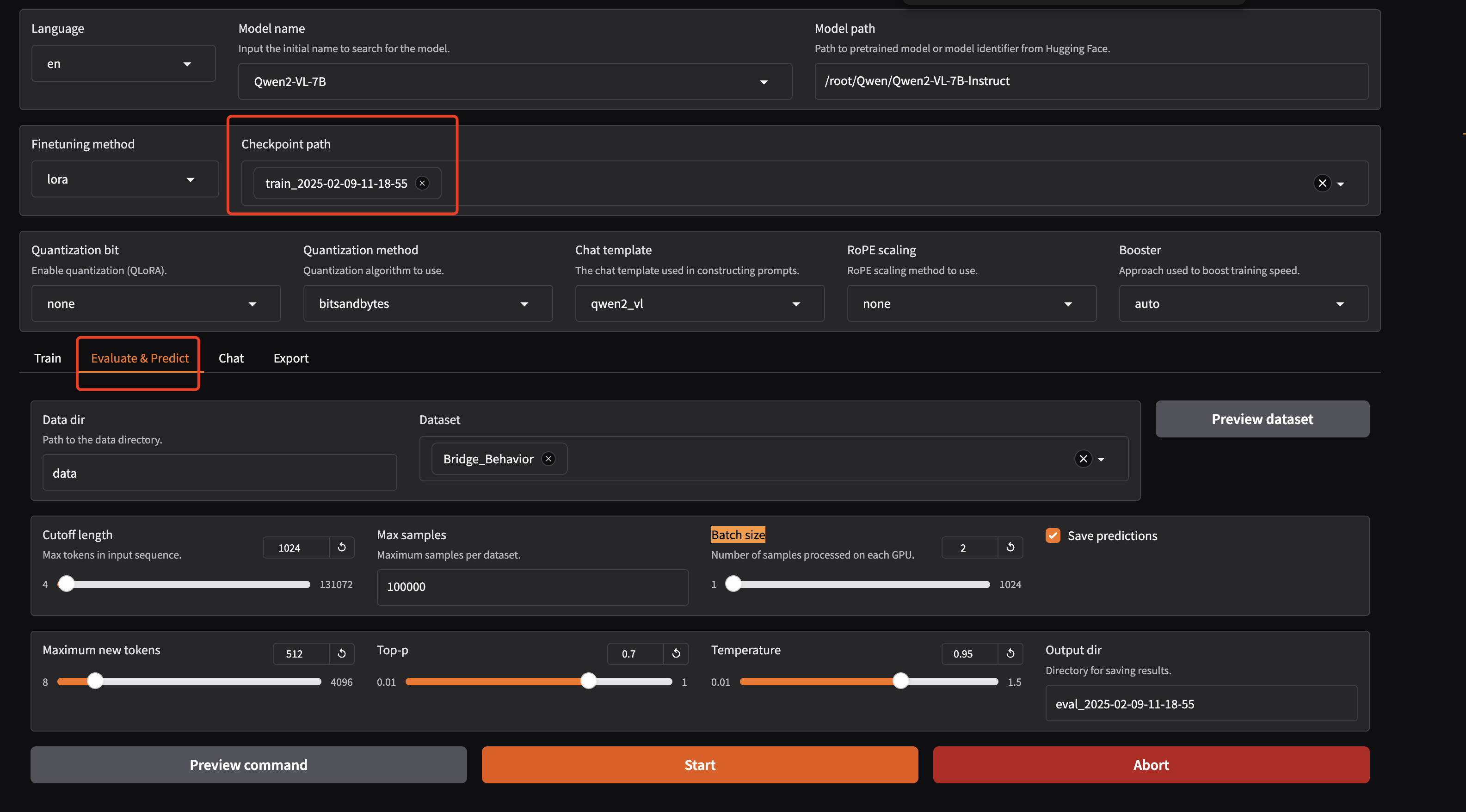

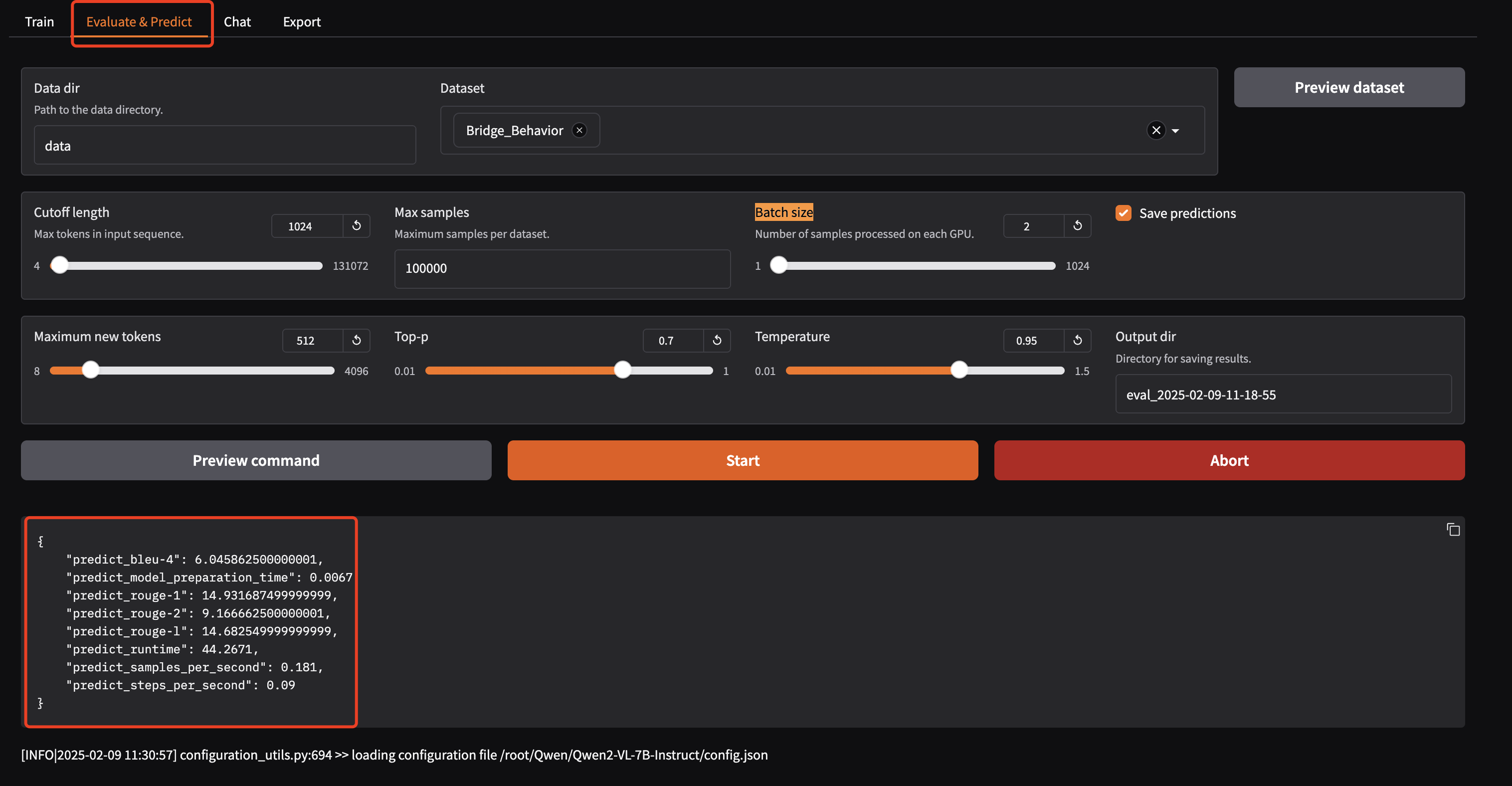

评估

6 在Qwen上使用LLaMA-Factory框架训练的模型

具体步骤看：09 使用LLaMA-Factory微调训练Qwen2-VL-7B-Qwen安装与模型测试：https://www.bilibili.com/video/BV1KkP8ehE37/

6.1 Qwen安装

https://github.com/QwenLM/Qwen2-VL

source /etc/network_turbo
git clone https://github.com/QwenLM/Qwen2-VL
cd Qwen2-VL
pip install qwen-vl-utils[decord]
pip install transformers
pip install 'accelerate>=0.26.0'

6.2 评估

https://github.com/Whiffe/via2yolo/tree/main/BNU/LLM/Evaluate

QwenModel.py

import torch
from transformers import Qwen2VLForConditionalGeneration, AutoProcessor
from qwen_vl_utils import process_vision_info

# 函数1：加载模型
def load_model(model_path="/root/Qwen/Qwen2-VL-7B-Instruct"):
    """
    加载 Qwen2-VL 模型和处理器。
    :param model_path: 模型路径
    :return: 加载好的模型和处理器
    """
    model = Qwen2VLForConditionalGeneration.from_pretrained(
        model_path, torch_dtype="auto", device_map="auto"
    )
    processor = AutoProcessor.from_pretrained(model_path)
    return model, processor


# 函数2：模型推理
def get_model_output(prompt, image_path, model, processor):
    """
    使用加载好的模型和处理器进行推理。
    :param prompt: 提示文本
    :param image_path: 图片路径
    :param model: 加载好的模型
    :param processor: 加载好的处理器
    :return: 模型生成的输出文本
    """
    # 准备输入消息
    messages = [
        {
            "role": "user",
            "content": [
                {"type": "image", "image": image_path},
                {"type": "text", "text": prompt},
            ],
        }
    ]

    # 准备模型输入
    text = processor.apply_chat_template(
        messages, tokenize=False, add_generation_prompt=True
    )
    image_inputs, video_inputs = process_vision_info(messages)
    inputs = processor(
        text=[text],
        images=image_inputs,
        videos=video_inputs,
        padding=True,
        return_tensors="pt",
    )
    inputs = inputs.to("cuda")

    # 生成输出
    generated_ids = model.generate(**inputs, max_new_tokens=128)
    generated_ids_trimmed = [
        out_ids[len(in_ids):] for in_ids, out_ids in zip(inputs.input_ids, generated_ids)
    ]
    output_text = processor.batch_decode(
        generated_ids_trimmed, skip_special_tokens=True, clean_up_tokenization_spaces=False
    )[0]

    return output_text

evaluate_behavior.py

根据文件夹分类来评估

from QwenModel import load_model, get_model_output
from qwen_vl_utils import process_vision_info
import argparse
from tqdm import tqdm
import os
import pandas as pd
from sklearn.metrics import precision_score, recall_score, f1_score

def argparser():
    parser = argparse.ArgumentParser()
    parser.add_argument('--prompt', default='./prompt/bridge_behavior.txt', type=str)
    parser.add_argument('--dataset', default='./experimental_Bridge/', type=str)
    parser.add_argument('--output', default='./output/result.txt', type=str)
    parser.add_argument('--model_path', default="/root/Qwen/Qwen2-VL-7B-Instruct-2", type=str)
    return parser.parse_args()

def process():
    configs = argparser()

    # 加载模型
    model, processor = load_model(configs.model_path)

    def read_txt(txt_path):
        with open(txt_path, "r") as f:
            return f.read()

    prompt = read_txt(configs.prompt)
    # 初始化变量
    all_true_labels = []  # 存储所有真实标签
    all_predicted_labels = []  # 存储所有预测标签

    # 获取所有子目录
    subdirs = [d for d in os.listdir(configs.dataset) if os.path.isdir(os.path.join(configs.dataset, d))]

    # 遍历每个子目录
    for subdir in tqdm(subdirs, desc="Processing subdirectories"):
        subdir_path = os.path.join(configs.dataset, subdir)
        excel_file = f"{subdir}_behavior.xlsx"  # 构造Excel文件名
        excel_path = os.path.join(subdir_path, excel_file)

        # 检查Excel文件是否存在
        if not os.path.exists(excel_path):
            print(f"Skipping {subdir} due to missing {excel_file}")
            continue

        # 读取Excel文件
        data = pd.read_excel(excel_path, header=None)

        # 遍历Excel文件中的每一行
        for _, row in data.iterrows():
            image_name = row[0]
            if not isinstance(image_name, str):
                continue  # Skip invalid entries
            image_path = os.path.join(subdir_path, f"{image_name}.jpg")
            if not os.path.exists(image_path):
                continue  # Skip if the image doesn't exist

            # 提取真实标签
            label_mapping = {0: "测距离", 1: "放板子", 2: "放重物", 3: "称重物", 4: "记数据"}
            ground_truth = []
            for i in range(1, len(row)):
                if pd.notna(row[i]) and row[i] in label_mapping:
                    ground_truth.append(label_mapping[row[i]])

            # 获取模型输出
            result = get_model_output(prompt, image_path, model, processor)
            output_text = result.strip()

            # Process output
            predicted_labels = {output_text.strip()}  # 模型输出为单个标签
            true_labels = set(ground_truth)

            # 处理 true_labels 为空的情况
            if len(true_labels) == 0:
                # 如果 true_labels 为空，认为预测标签是正确的
                true_labels = {'其他'}

            # Debugging output
            print("image_path:", image_path)
            print("predicted_labels:", predicted_labels)
            print("true_labels:", true_labels)

            # 将当前样本的真实标签和预测标签添加到汇总列表中
            all_true_labels.append(true_labels)
            all_predicted_labels.append(predicted_labels)

    # 计算总体指标
    # 将标签转换为多标签格式
    all_labels = set([label for sublist in all_true_labels for label in sublist] +
                     [label for sublist in all_predicted_labels for label in sublist])
    label_to_index = {label: idx for idx, label in enumerate(all_labels)}

    y_true = [[1 if label in true_labels or len(true_labels) == 0 else 0 for label in all_labels] for true_labels in all_true_labels]
    y_pred = [[1 if label in pred_labels else 0 for label in all_labels] for pred_labels in all_predicted_labels]

    print("----Overall Metrics--------")
    overall_precision = precision_score(y_true, y_pred, average="micro")
    overall_recall = recall_score(y_true, y_pred, average="micro")
    overall_f1 = f1_score(y_true, y_pred, average="micro")
    print(f"Overall Precision: {overall_precision}")
    print(f"Overall Recall: {overall_recall}")
    print(f"Overall F1 Score: {overall_f1}")

if __name__ == "__main__":
    process()

evaluate_behavior_json.py

根据json来找文件夹图片来评估

'''
python evaluate_behavior_json.py \
    --prompt ./SCB5_LLM/prompt.txt \
    --json_file SCB5_LLM_test.json \
    --model_path /root/autodl-tmp/Qwen/Qwen2-VL-7B-Instruct-F
'''

from QwenModel import load_model, get_model_output
from qwen_vl_utils import process_vision_info
import argparse
from tqdm import tqdm
import os
import json
from sklearn.metrics import precision_score, recall_score, f1_score

def argparser():
    parser = argparse.ArgumentParser()
    parser.add_argument('--prompt', default='./prompt/bridge_behavior.txt', type=str)
    parser.add_argument('--json_file', default='./SCB5_LLM_test.json', type=str)
    parser.add_argument('--model_path', default="/root/Qwen/Qwen2-VL-7B-Instruct-2", type=str)
    return parser.parse_args()

def process():
    configs = argparser()

    # 加载模型
    model, processor = load_model(configs.model_path)

    def read_txt(txt_path):
        with open(txt_path, "r") as f:
            return f.read()

    prompt = read_txt(configs.prompt)
    # 初始化变量
    all_true_labels = []  # 存储所有真实标签
    all_predicted_labels = []  # 存储所有预测标签

    # 读取 JSON 文件
    with open(configs.json_file, 'r') as f:
        data = json.load(f)

    # 遍历 JSON 数据中的每个条目
    for entry in tqdm(data, desc="Processing JSON entries"):
        # 提取真实标签
        true_label = entry["messages"][-1]["content"]

        # 提取图片路径
        image_path = entry["images"][0]

        # 获取模型输出
        result = get_model_output(prompt, image_path, model, processor)
        output_text = result.strip()

        # 处理输出
        predicted_label = output_text.strip()
        # print("答案  预测")
        print(true_label,predicted_label)
        # 将当前样本的真实标签和预测标签添加到汇总列表中
        all_true_labels.append(true_label)
        all_predicted_labels.append(predicted_label)

    # 计算总体指标
    label_to_index = {label: idx for idx, label in enumerate(set(all_true_labels + all_predicted_labels))}

    y_true = [label_to_index[label] for label in all_true_labels]
    y_pred = [label_to_index[label] for label in all_predicted_labels]

    print("----Overall Metrics--------")
    overall_precision = precision_score(y_true, y_pred, average="weighted")
    overall_recall = recall_score(y_true, y_pred, average="weighted")
    overall_f1 = f1_score(y_true, y_pred, average="weighted")
    print(f"Overall Precision: {overall_precision}")
    print(f"Overall Recall: {overall_recall}")
    print(f"Overall F1 Score: {overall_f1}")

if __name__ == "__main__":
    process()
