【slowfast 使用自训练的faster rcnn权重检测人】

前言

对于人密集的地方，人在图片或者视频中的像素比较小，遮挡比较严重的场景，我们往往需要重新训练自己的faster rcnn权重，怎么训练自己的faster rcnn权重，我在之前的博客写的有：【detectron2 faster rcnn 训练自己的数据集】，这篇博客要讲的是，怎么使用把训练好的faster rcnn权重用在slowfast中。

使用slowfast检测自己的视频，也可以参考我之前写的博客：
【SlowFast复现】SlowFast Networks for Video Recognition复现代码 使用自己的视频进行demo检测

一，添加自己训练的权重

我们在【detectron2 faster rcnn 训练自己的数据集】中训练的权重model_final_b275ba.pkl位于：
MODEL_ZOO.md
其属于faster rcnn的R50-FPN 1x

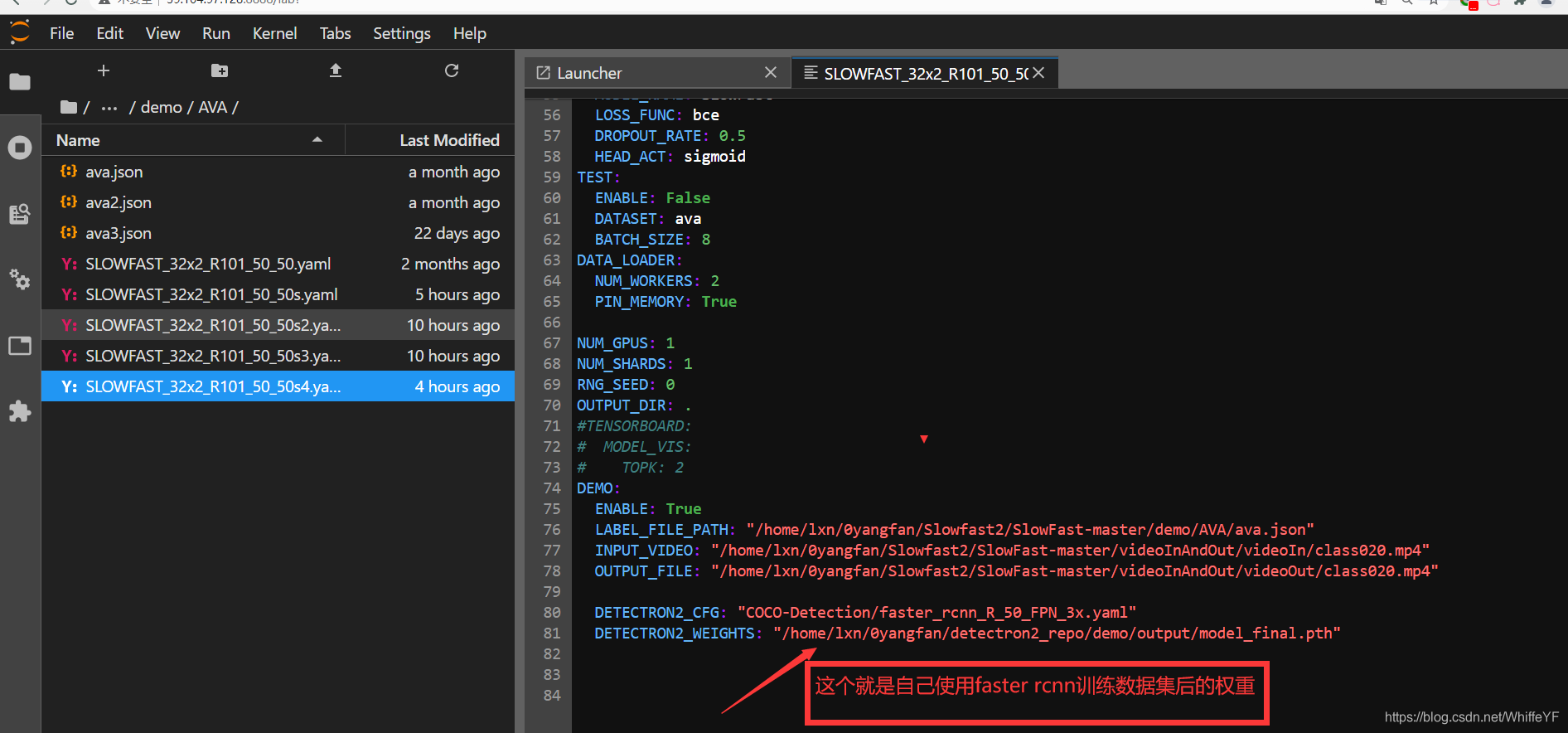

在/SlowFast-master/demo/AVA/SLOWFAST_32x2_R101_50_50s4.yaml中

代码如下：

#这个是80个类别的视频检测demo，但是使用的detectron2 faster rcnn权重是自己训练的
TRAIN:
  ENABLE: False
  DATASET: ava
  BATCH_SIZE: 16
  EVAL_PERIOD: 1
  CHECKPOINT_PERIOD: 1
  AUTO_RESUME: True
  CHECKPOINT_FILE_PATH: '/home/lxn/0yangfan/Slowfast2/SlowFast-master/configs/AVA/c2/SLOWFAST_32x2_R101_50_50.pkl'  #path to pretrain model
  CHECKPOINT_TYPE: pytorch
DATA:
  NUM_FRAMES: 32
  SAMPLING_RATE: 2
  TRAIN_JITTER_SCALES: [256, 320]
  TRAIN_CROP_SIZE: 224
  TEST_CROP_SIZE: 256
  INPUT_CHANNEL_NUM: [3, 3]
DETECTION:
  ENABLE: True
  ALIGNED: False
AVA:
  BGR: False
  DETECTION_SCORE_THRESH: 0.8
  TEST_PREDICT_BOX_LISTS: ["person_box_67091280_iou90/ava_detection_val_boxes_and_labels.csv"]
SLOWFAST:
  ALPHA: 4
  BETA_INV: 8
  FUSION_CONV_CHANNEL_RATIO: 2
  FUSION_KERNEL_SZ: 5
RESNET:
  ZERO_INIT_FINAL_BN: True
  WIDTH_PER_GROUP: 64
  NUM_GROUPS: 1
  DEPTH: 101
  TRANS_FUNC: bottleneck_transform
  STRIDE_1X1: False
  NUM_BLOCK_TEMP_KERNEL: [[3, 3], [4, 4], [6, 6], [3, 3]]
  SPATIAL_DILATIONS: [[1, 1], [1, 1], [1, 1], [2, 2]]
  SPATIAL_STRIDES: [[1, 1], [2, 2], [2, 2], [1, 1]]
NONLOCAL:
  LOCATION: [[[], []], [[], []], [[6, 13, 20], []], [[], []]]
  GROUP: [[1, 1], [1, 1], [1, 1], [1, 1]]
  INSTANTIATION: dot_product
  POOL: [[[2, 2, 2], [2, 2, 2]], [[2, 2, 2], [2, 2, 2]], [[2, 2, 2], [2, 2, 2]], [[2, 2, 2], [2, 2, 2]]]
BN:
  USE_PRECISE_STATS: False
  NUM_BATCHES_PRECISE: 200
SOLVER:
  MOMENTUM: 0.9
  WEIGHT_DECAY: 1e-7
  OPTIMIZING_METHOD: sgd
MODEL:
  NUM_CLASSES: 80
  ARCH: slowfast
  MODEL_NAME: SlowFast
  LOSS_FUNC: bce
  DROPOUT_RATE: 0.5
  HEAD_ACT: sigmoid
TEST:
  ENABLE: False
  DATASET: ava
  BATCH_SIZE: 8
DATA_LOADER:
  NUM_WORKERS: 2
  PIN_MEMORY: True

NUM_GPUS: 1
NUM_SHARDS: 1
RNG_SEED: 0
OUTPUT_DIR: .
#TENSORBOARD:
#  MODEL_VIS:
#    TOPK: 2
DEMO:
  ENABLE: True
  LABEL_FILE_PATH: "/home/lxn/0yangfan/Slowfast2/SlowFast-master/demo/AVA/ava.json"
  INPUT_VIDEO: "/home/lxn/0yangfan/Slowfast2/SlowFast-master/videoInAndOut/videoIn/class020.mp4"
  OUTPUT_FILE: "/home/lxn/0yangfan/Slowfast2/SlowFast-master/videoInAndOut/videoOut/class020.mp4"

  DETECTRON2_CFG: "COCO-Detection/faster_rcnn_R_50_FPN_3x.yaml"
  DETECTRON2_WEIGHTS: "/home/lxn/0yangfan/detectron2_repo/demo/output/model_final.pth"


二，修改predictor.py

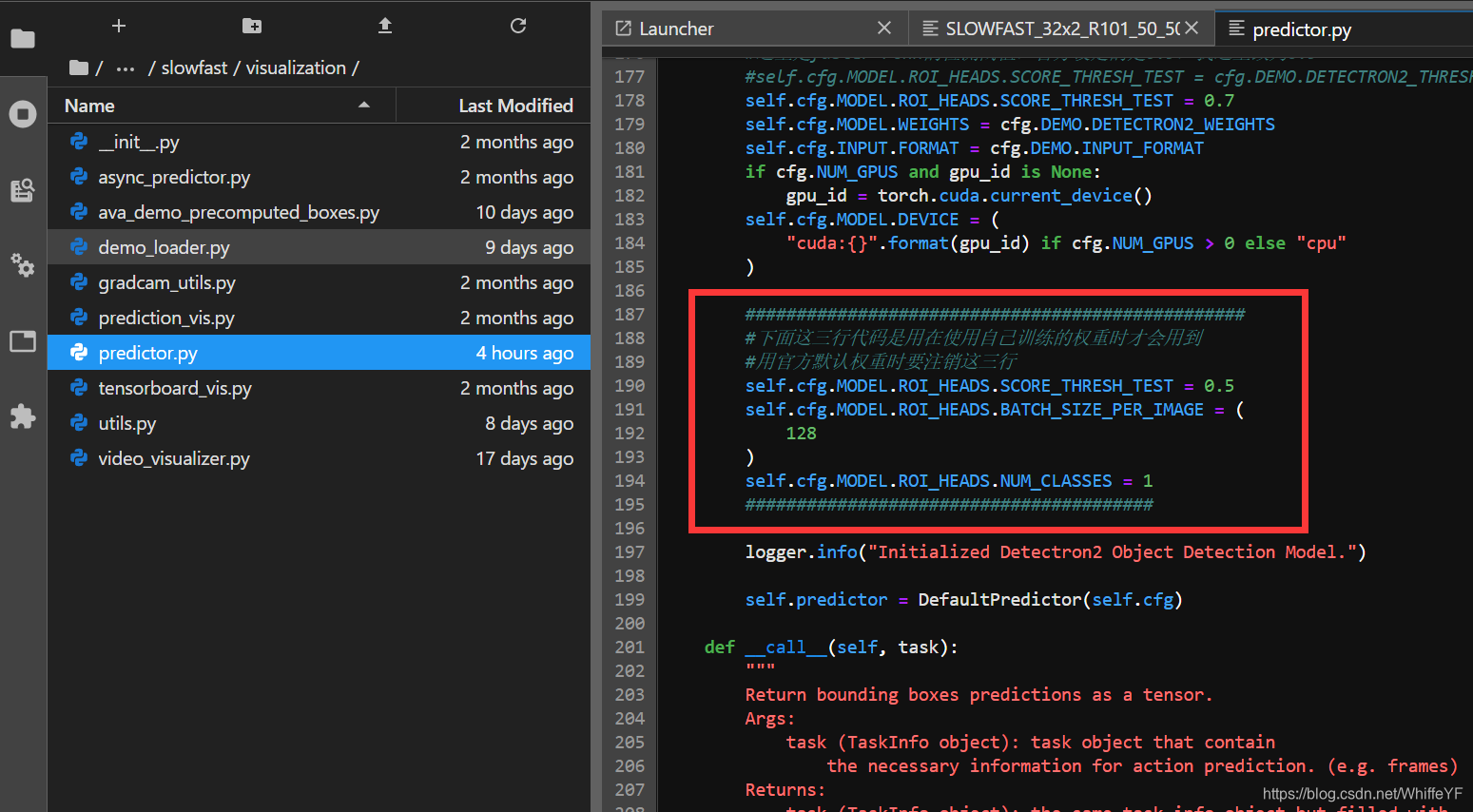

这里需要添加一部分代码在：/SlowFast-master/slowfast/visualization/predictor.py中：

        #################################################
        #下面这三行代码是用在使用自己训练的权重时才会用到
        #用官方默认权重时要注销这三行
        self.cfg.MODEL.ROI_HEADS.SCORE_THRESH_TEST = 0.5
        self.cfg.MODEL.ROI_HEADS.BATCH_SIZE_PER_IMAGE = (
            128
        )
        self.cfg.MODEL.ROI_HEADS.NUM_CLASSES = 1
        ########################################

完整代码如下：

#!/usr/bin/env python3
# Copyright (c) Facebook, Inc. and its affiliates. All Rights Reserved.

import queue
import cv2
import torch
from detectron2 import model_zoo
from detectron2.config import get_cfg
from detectron2.engine import DefaultPredictor

import slowfast.utils.checkpoint as cu
from slowfast.datasets import cv2_transform
from slowfast.models import build_model
from slowfast.utils import logging
from slowfast.visualization.utils import process_cv2_inputs

logger = logging.get_logger(__name__)


class Predictor:
    """
    Action Predictor for action recognition.
    """

    def __init__(self, cfg, gpu_id=None):
        """
        Args:
            cfg (CfgNode): configs. Details can be found in
                slowfast/config/defaults.py
            gpu_id (Optional[int]): GPU id.
        """
        if cfg.NUM_GPUS:
            self.gpu_id = (
                torch.cuda.current_device() if gpu_id is None else gpu_id
            )

        # Build the video model and print model statistics.
        self.model = build_model(cfg, gpu_id=gpu_id)
        self.model.eval()
        self.cfg = cfg

        if cfg.DETECTION.ENABLE:
            self.object_detector = Detectron2Predictor(cfg, gpu_id=self.gpu_id)

        logger.info("Start loading model weights.")
        cu.load_test_checkpoint(cfg, self.model)
        logger.info("Finish loading model weights")

    def __call__(self, task):
        """
        Returns the prediction results for the current task.
        Args:
            task (TaskInfo object): task object that contain
                the necessary information for action prediction. (e.g. frames, boxes)
        Returns:
            task (TaskInfo object): the same task info object but filled with
                prediction values (a tensor) and the corresponding boxes for
                action detection task.
        """
        if self.cfg.DETECTION.ENABLE:
            task = self.object_detector(task)

        frames, bboxes = task.frames, task.bboxes
        if bboxes is not None:
            bboxes = cv2_transform.scale_boxes(
                self.cfg.DATA.TEST_CROP_SIZE,
                bboxes,
                task.img_height,
                task.img_width,
            )
        if self.cfg.DEMO.INPUT_FORMAT == "BGR":
            frames = [
                cv2.cvtColor(frame, cv2.COLOR_BGR2RGB) for frame in frames
            ]

        frames = [
            cv2_transform.scale(self.cfg.DATA.TEST_CROP_SIZE, frame)
            for frame in frames
        ]
        inputs = process_cv2_inputs(frames, self.cfg)
        if bboxes is not None:
            index_pad = torch.full(
                size=(bboxes.shape[0], 1),
                fill_value=float(0),
                device=bboxes.device,
            )

            # Pad frame index for each box.
            bboxes = torch.cat([index_pad, bboxes], axis=1)
        if self.cfg.NUM_GPUS > 0:
            # Transfer the data to the current GPU device.
            if isinstance(inputs, (list,)):
                for i in range(len(inputs)):
                    inputs[i] = inputs[i].cuda(
                        device=torch.device(self.gpu_id), non_blocking=True
                    )
            else:
                inputs = inputs.cuda(
                    device=torch.device(self.gpu_id), non_blocking=True
                )
        if self.cfg.DETECTION.ENABLE and not bboxes.shape[0]:
            preds = torch.tensor([])
        else:
            preds = self.model(inputs, bboxes)

        if self.cfg.NUM_GPUS:
            preds = preds.cpu()
            if bboxes is not None:
                bboxes = bboxes.detach().cpu()

        preds = preds.detach()
        task.add_action_preds(preds)
        if bboxes is not None:
            task.add_bboxes(bboxes[:, 1:])

        return task


class ActionPredictor:
    """
    Synchronous Action Prediction and Visualization pipeline with AsyncVis.
    """

    def __init__(self, cfg, async_vis=None, gpu_id=None):
        """
        Args:
            cfg (CfgNode): configs. Details can be found in
                slowfast/config/defaults.py
            async_vis (AsyncVis object): asynchronous visualizer.
            gpu_id (Optional[int]): GPU id.
        """
        self.predictor = Predictor(cfg=cfg, gpu_id=gpu_id)
        self.async_vis = async_vis

    def put(self, task):
        """
        Make prediction and put the results in `async_vis` task queue.
        Args:
            task (TaskInfo object): task object that contain
                the necessary information for action prediction. (e.g. frames, boxes)
        """
        task = self.predictor(task)
        self.async_vis.get_indices_ls.append(task.id)
        self.async_vis.put(task)

    def get(self):
        """
        Get the visualized clips if any.
        """
        try:
            task = self.async_vis.get()
        except (queue.Empty, IndexError):
            raise IndexError("Results are not available yet.")

        return task


class Detectron2Predictor:
    """
    Wrapper around Detectron2 to return the required predicted bounding boxes
    as a ndarray.
    """

    def __init__(self, cfg, gpu_id=None):
        """
        Args:
            cfg (CfgNode): configs. Details can be found in
                slowfast/config/defaults.py
            gpu_id (Optional[int]): GPU id.
        """

        self.cfg = get_cfg()
        self.cfg.merge_from_file(
            model_zoo.get_config_file(cfg.DEMO.DETECTRON2_CFG)
        )
        #这里是faster rcnn的检测阈值，官方设定的是0.9，我这里改为0.9
        #self.cfg.MODEL.ROI_HEADS.SCORE_THRESH_TEST = cfg.DEMO.DETECTRON2_THRESH
        self.cfg.MODEL.ROI_HEADS.SCORE_THRESH_TEST = 0.7
        self.cfg.MODEL.WEIGHTS = cfg.DEMO.DETECTRON2_WEIGHTS
        self.cfg.INPUT.FORMAT = cfg.DEMO.INPUT_FORMAT
        if cfg.NUM_GPUS and gpu_id is None:
            gpu_id = torch.cuda.current_device()
        self.cfg.MODEL.DEVICE = (
            "cuda:{}".format(gpu_id) if cfg.NUM_GPUS > 0 else "cpu"
        )

        #################################################
        #下面这三行代码是用在使用自己训练的权重时才会用到
        #用官方默认权重时要注销这三行
        self.cfg.MODEL.ROI_HEADS.SCORE_THRESH_TEST = 0.5
        self.cfg.MODEL.ROI_HEADS.BATCH_SIZE_PER_IMAGE = (
            128
        )
        self.cfg.MODEL.ROI_HEADS.NUM_CLASSES = 1
        ########################################

        logger.info("Initialized Detectron2 Object Detection Model.")

        self.predictor = DefaultPredictor(self.cfg)

    def __call__(self, task):
        """
        Return bounding boxes predictions as a tensor.
        Args:
            task (TaskInfo object): task object that contain
                the necessary information for action prediction. (e.g. frames)
        Returns:
            task (TaskInfo object): the same task info object but filled with
                prediction values (a tensor) and the corresponding boxes for
                action detection task.
        """
        middle_frame = task.frames[len(task.frames) // 2]
        outputs = self.predictor(middle_frame)
        # Get only human instances
        mask = outputs["instances"].pred_classes == 0
        #print("\n\n-------outputs--------")
        #print(outputs["instances"])
        #print("---------outputs------\n\n")
        pred_boxes = outputs["instances"].pred_boxes.tensor[mask]
        task.add_bboxes(pred_boxes)

        return task

三，运行

在：/SlowFast-master/目录下运行：

python tools/run_net.py --cfg demo/AVA/SLOWFAST_32x2_R101_50_50s4.yaml

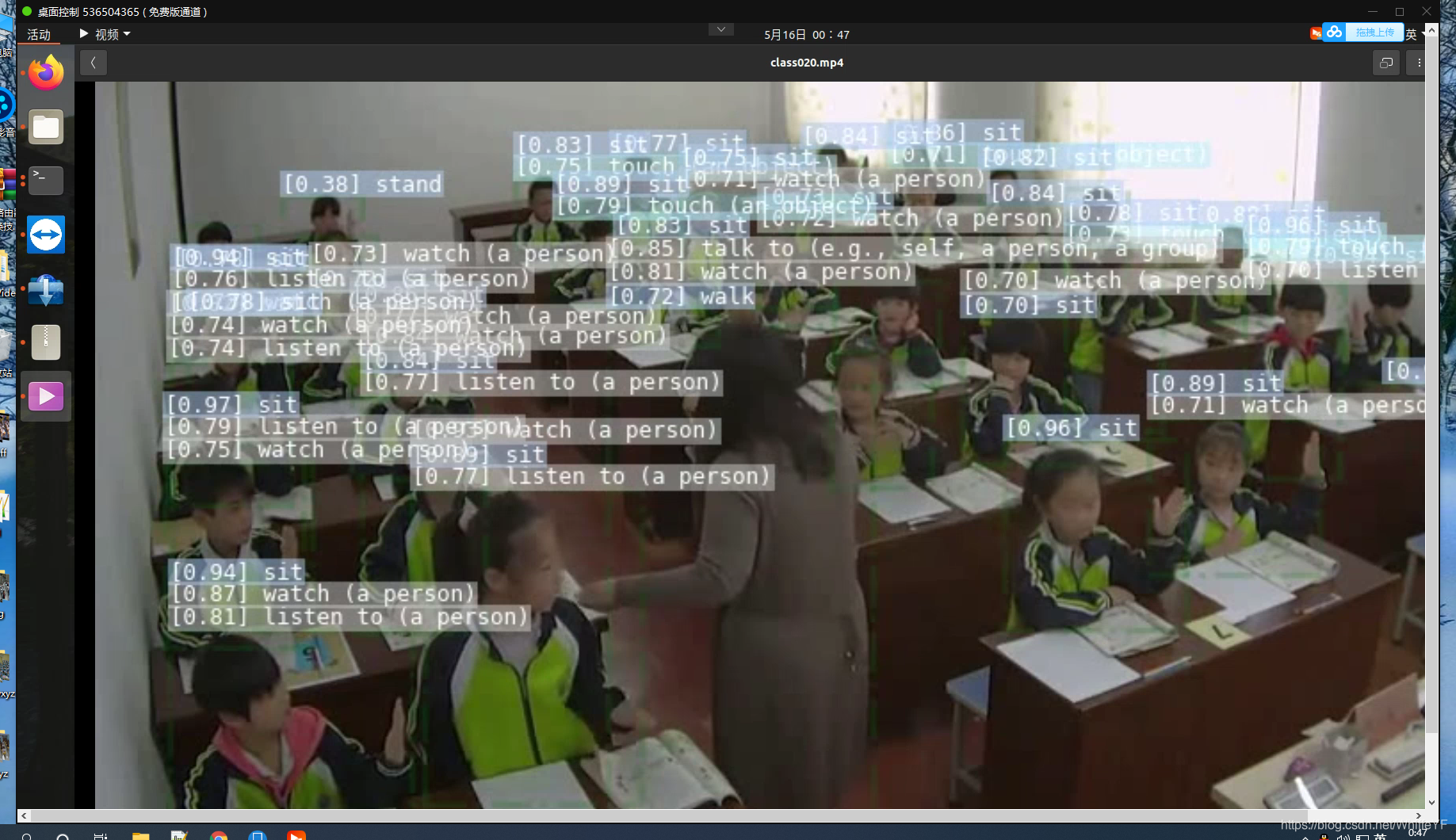

结果：
