【电路笔记 TMS320C6***DSP】C6748EDMA 初始化函数 EDMA3Init(0x01C00000, 0)；的实现细节

C6748的EDMA3 初始化：EDMA3Init(0x01C00000, 0);

EDMA3Init(0x01C00000, 0)：配置EDMA3控制器的基本参数，如控制寄存器、通道使能等。

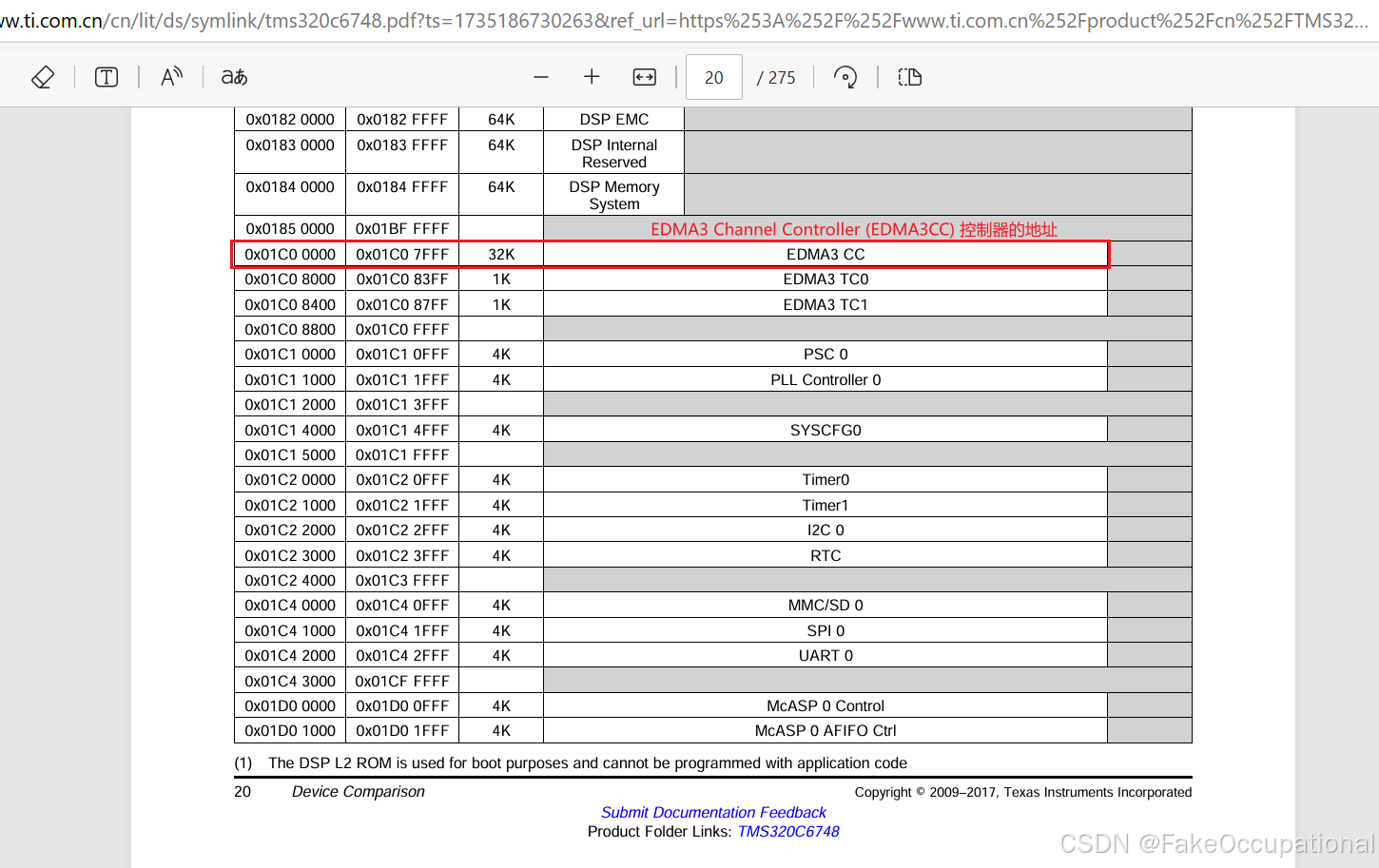

如下如0x01C00000为EDMA3控制器的基地址，用于访问其内部寄存器

EDMA3Init函数

// https://e2echina.ti.com/support/processors/f/processors-forum/185720/c6654-edma-ipr
/**
 * \file  edma.c
 *
 * \brief This file contains device abstraction layer APIs for the EDMA device.
 *        There are APIs here to enable the EDMA instance, set the required
 *        configurations for communication, transmit or receive data.
 */

/*  Copyright (C) 2011 Texas Instruments Incorporated - http://www.ti.com/
 *  ALL RIGHTS RESERVED. */


/* Driver APIs */
#include "edma.h"

#include "hw_types.h"
#include "hw_edma3cc.h"
#include <c6x.h>

/****************************************************************************/
/*                         GLOBAL VARIABLES                                 */
/****************************************************************************/
unsigned int regionId;

/****************************************************************************/
/*                     API FUNCTION DEFINITIONS                             */
/****************************************************************************/

/**
 *  \brief   EDMA3 Initialization
 *
 *  This function initializes the EDMA3 Driver
 *  Clears the error specific registers (EMCR/EMCRh, QEMCR, CCERRCLR) &
 *  initialize the Queue Number Registers
 *
 *  \param  baseAdd                  Memory address of the EDMA instance used.\n
 *								     EDMA3控制器的基地址，用于访问其内部寄存器
 *
 *  \param  queNum                   Event Queue Number to which the channel
 *                                   will be mapped (valid only for the
 *                                   Master Channel (DMA/QDMA) request).\n
 *                                   事件队列编号，指定哪个队列将用于映射通道（仅对主通道有效）。
 *
 *  \return None
 *
 *  \note   The regionId is the shadow region(0 or 1) used and the,
 *          Event Queue used is either (0 or 1). There are only four shadow
 *          regions and only two event Queues
 */
void EDMA3Init(unsigned int baseAdd,
           unsigned int queNum)
{
    unsigned int count = 0;
    unsigned int i = 0;

#ifdef _TMS320C6X
    /* For DSP, regionId is assigned here and used globally in the driver */
    regionId = (unsigned int)1u;
#else
    /* FOR ARM, regionId is assigned here and used globally in the driver   */
    regionId = (unsigned int)1u;
#endif

    /* Clear the Event miss Registers 清除了所有与错误相关的寄存器（如事件丢失寄存器和中央控制器错误寄存器），设置为值0xFFFFFFFFu*/
    HWREG(baseAdd + EDMA3CC_EMCR) = EDMA3_SET_ALL_BITS;// #define EDMA3CC_EMCR                 (0x308)
    HWREG(baseAdd + EDMA3CC_EMCRH) = EDMA3_SET_ALL_BITS;// #define EDMA3CC_EMCRH                (0x30C)

    HWREG(baseAdd + EDMA3CC_QEMCR) = EDMA3_SET_ALL_BITS;// #define EDMA3CC_QEMR                 (0x310)

    /* Clear CCERR register                                                 */
    HWREG(baseAdd + EDMA3CC_CCERRCLR) = EDMA3_SET_ALL_BITS;

    /* FOR TYPE EDMA*/
    /* Enable the DMA (0 - 64) channels in the DRAE and DRAEH register
     其中 regionId = 1u;
       #define EDMA3CC_DRAE(n)              (0x340 + (n * 8))
       #define EDMA3CC_DRAEH(n)             (0x344 + (n * 8))
    */
    HWREG(baseAdd + EDMA3CC_DRAE(regionId)) = EDMA3_SET_ALL_BITS;
    HWREG(baseAdd + EDMA3CC_DRAEH(regionId)) = EDMA3_SET_ALL_BITS;


    /*AM335X版本特有配置*/
    if((EDMA_REVID_AM335X == EDMAVersionGet()))
    {
         for(i = 0; i < 64; i++)
         {
              /* All events are one to one mapped with the channels */
              HWREG(baseAdd + EDMA3CC_DCHMAP(i)) = i << 5;
         }

    }
    /* Initialize the DMA Queue Number Registers 初始化DMA队列编号寄存器
     #define EDMA3CC_DMAQNUM(n)           (0x240 + ((n) * 4))
    */
    for (count = 0;count < SOC_EDMA3_NUM_DMACH; count++)
    {   // 遍历所有DMA通道，设置它们对应的队列编号为queNum
         HWREG(baseAdd + EDMA3CC_DMAQNUM(count >> 3u)) &=
                                                    EDMA3CC_DMAQNUM_CLR(count);
         HWREG(baseAdd + EDMA3CC_DMAQNUM(count >> 3u)) |=
                                                    EDMA3CC_DMAQNUM_SET(count,queNum);
    }

    /* FOR TYPE QDMA */
    /* Enable the DMA (0 - 64) channels in the DRAE register  启用QDMA通道并初始化队列编号寄存器（仅适用于QDMA）*/
    HWREG(baseAdd + EDMA3CC_QRAE(regionId)) = EDMA3_SET_ALL_BITS;

    /* Initialize the QDMA Queue Number Registers                           */
    for (count = 0;count < SOC_EDMA3_NUM_QDMACH; count++)
    {
        HWREG(baseAdd + EDMA3CC_QDMAQNUM) &= EDMA3CC_QDMAQNUM_CLR(count);
        HWREG(baseAdd + EDMA3CC_QDMAQNUM) |=
                       EDMA3CC_QDMAQNUM_SET(count,queNum);
    }
    /*
    * QDMA（Queue-based Direct Memory Access，基于队列的直接内存访问）是一种高级DMA（Direct Memory Access）技术，它扩展了传统DMA的功能，提供* 了更高的灵活性和效率。
    */
}

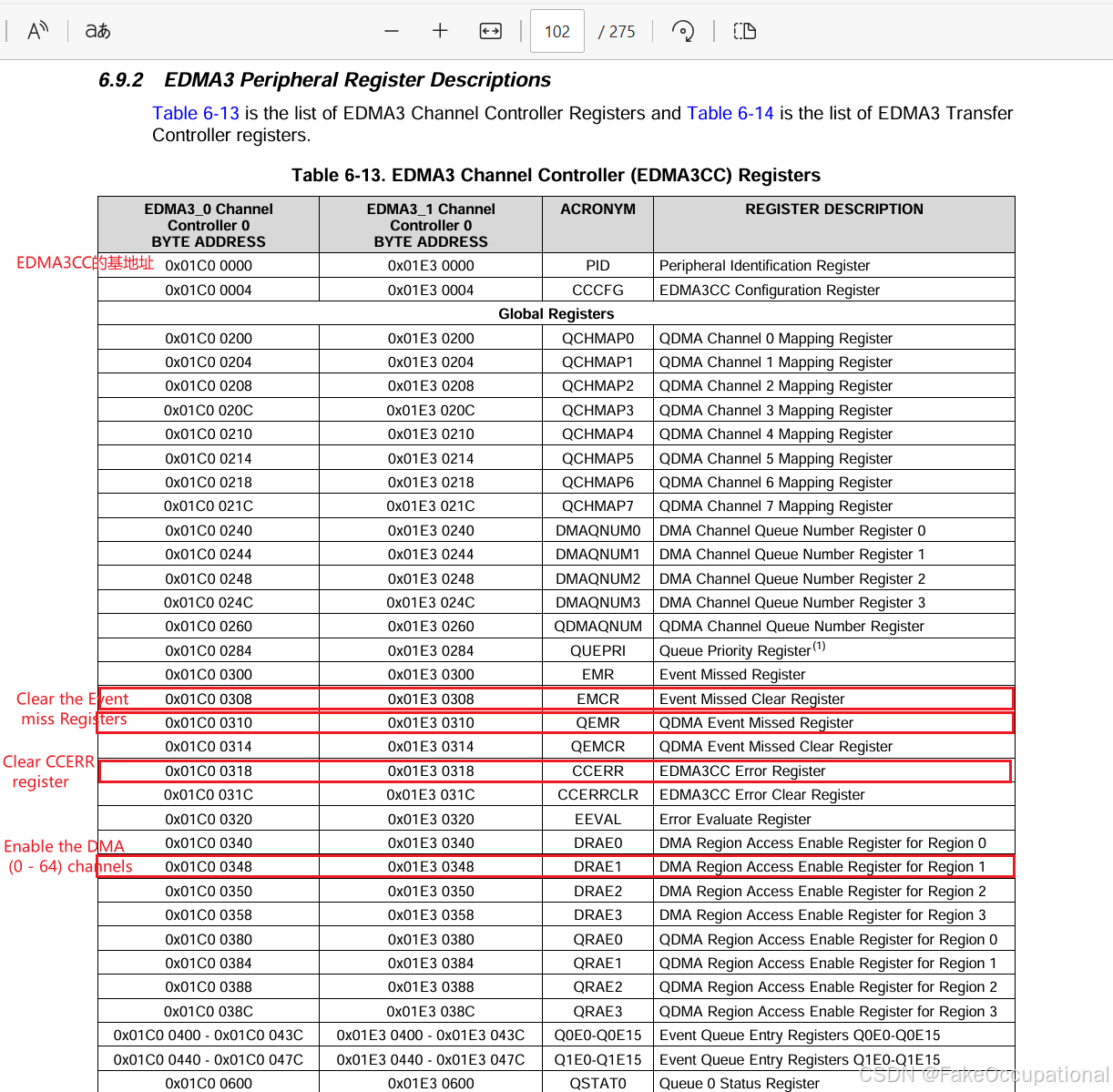

以上代码中不同的注释部分设置了对应的寄存器值：

在这里插入图片描述

HWREG

//*****************************************************************************
//
// Macros for hardware access, both direct and via the bit-band region.
//
//*****************************************************************************
#define HWREG(x)                                                              \
        (*((volatile unsigned int *)(x)))

EDMA3CC_DMAQNUM 初始化DMA队列编号寄存器

#define EDMA3CC_DMAQNUM(n)           (0x240 + ((n) * 4))
#define SOC_EDMA3_NUM_DMACH                 32
#define SOC_EDMA3_NUM_QDMACH                8
# baseAdd  0x01C00000

for (count = 0;count < SOC_EDMA3_NUM_DMACH; count++)
{   // 遍历所有DMA通道，设置它们对应的队列编号为queNum
     HWREG(baseAdd + EDMA3CC_DMAQNUM(count >> 3u)) = ……
}
// count >> 3u：这个操作将 count 右移3位，相当于 count / 8。因为每个 DMAQNUM 寄存器管理8个通道。

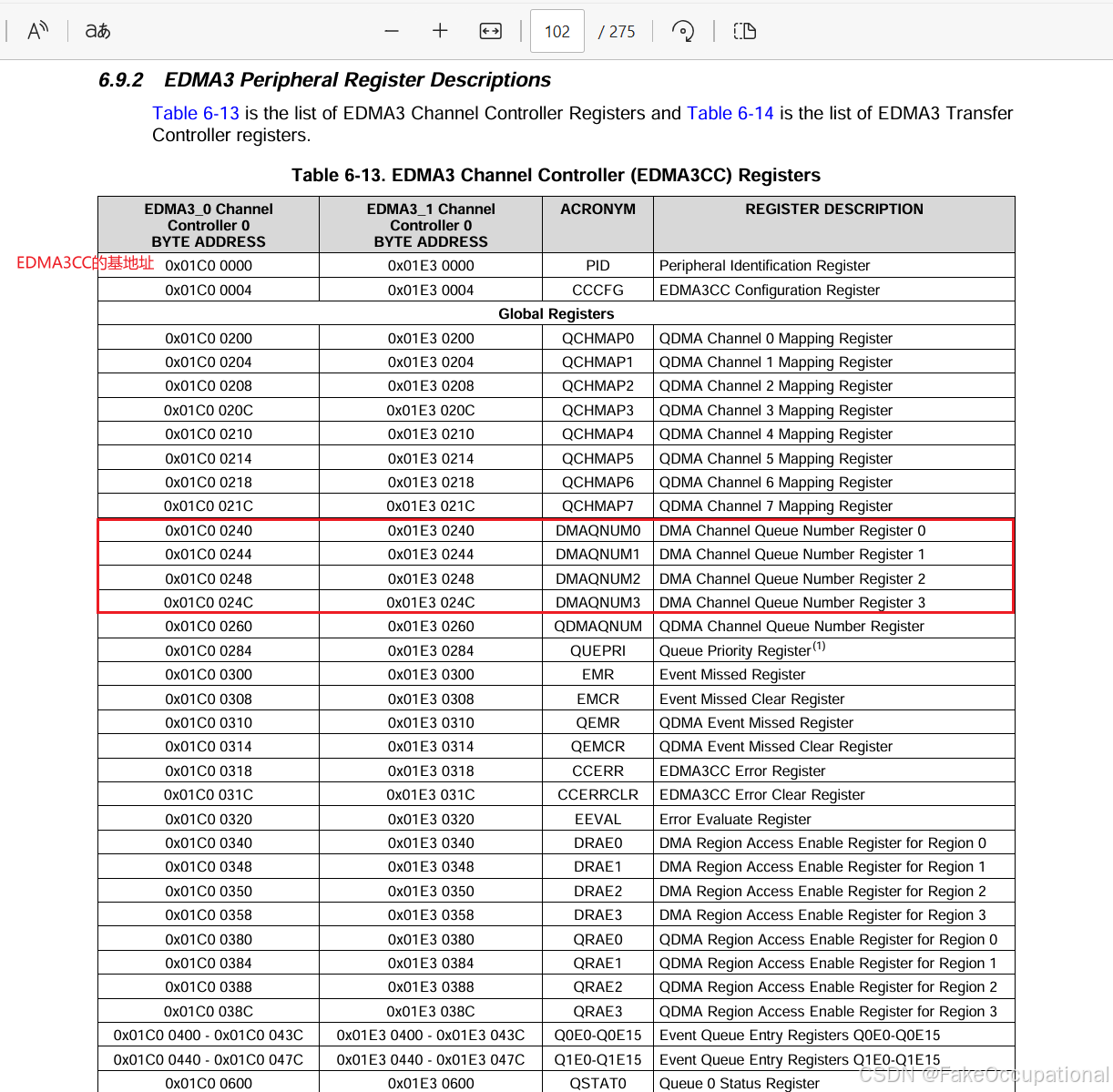

根据宏定义和代码片段，我们可以计算出每个 count 值对应的地址。

`count`	`count >> 3u`	`EDMA3CC_DMAQNUM(count >> 3u)`	`address` (hex)
0	0	0x240	0x01C00240
1	0	0x240	0x01C00240
2	0	0x240	0x01C00240
3	0	0x240	0x01C00240
4	0	0x240	0x01C00240
5	0	0x240	0x01C00240
6	0	0x240	0x01C00240
7	0	0x240	0x01C00240
8	1	0x244	0x01C00244
9	1	0x244	0x01C00244
10	1	0x244	0x01C00244
11	1	0x244	0x01C00244
12	1	0x244	0x01C00244
13	1	0x244	0x01C00244
14	1	0x244	0x01C00244
15	1	0x244	0x01C00244
16	2	0x248	0x01C00248
17	2	0x248	0x01C00248
18	2	0x248	0x01C00248
19	2	0x248	0x01C00248
20	2	0x248	0x01C00248
21	2	0x248	0x01C00248
22	2	0x248	0x01C00248
23	2	0x248	0x01C00248
24	3	0x24C	0x01C0024C
25	3	0x24C	0x01C0024C
26	3	0x24C	0x01C0024C
27	3	0x24C	0x01C0024C
28	3	0x24C	0x01C0024C
29	3	0x24C	0x01C0024C
30	3	0x24C	0x01C0024C
31	3	0x24C	0x01C0024C

在这里插入图片描述

EDMA3CC_QDMAQNUM_CLR

EDMA3CC_DMAQNUM_CLR(chNum) 宏定义提供了一种简便的方法来生成一个掩码，用于清除指定DMA通道的队列编号。通过这种方式，可以在不影响其他通道的情况下精确地修改单个通道的配置。

/** DMAQNUM bits Clear */
#define EDMA3CC_DMAQNUM_CLR(chNum)            ( ~ (0x7u << (((chNum) % 8u) \
                                                                      * 4u)))

EDMA3CC_DMAQNUM_SET进行类似的赋值处理：

/** DMAQNUM bits Set */
#define EDMA3CC_DMAQNUM_SET(chNum,queNum)     ((0x7u & (queNum)) << \
                                                       (((chNum) % 8u) * 4u))
