状态模式的住店案例实战

状态模式可以有效的替换充满在程序中的 if else 语句：将不同条件下的行为封装在一个类里面，再给这些类一个统一的父类来约束他们。来看一下状态模式的角色组成：

1) 使用环境（Context）角色：客户程序是通过它来满足自己的需求。它定义了客户程序需要的接口；并且维护一个具体状态角色的实例，这个实例来决定当前的状态。

2) 状态（State）角色：定义一个接口以封装与使用环境角色的一个特定状态相关的行为。

3) 具体状态（Concrete State）角色：实现状态角色定义的接口。

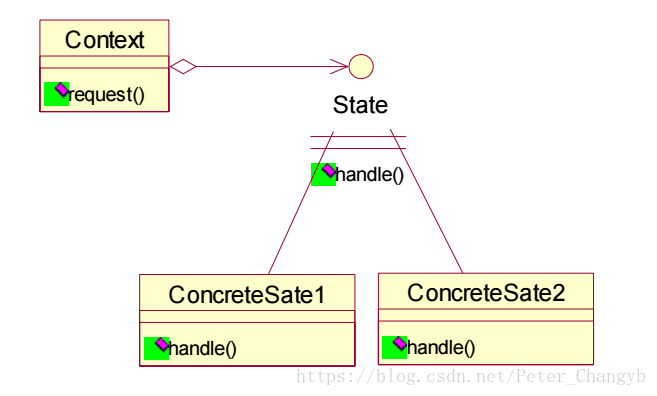

类图如下，结构非常简单也与策略模式非常相似。

测试类，新开房3间，并设置状态

package com.cloud;

public class Test {
	public static void main(String[] args) {
		 //有3间房
        Room[] rooms = new Room[2];
        //初始化
        for(int i = 0 ; i < rooms.length ; i++){
            rooms[i] = new Room();
        }
        //第一间房
        rooms[0].bookRoom();    //预订
        rooms[0].checkInRoom();   //入住
        rooms[0].bookRoom();    //预订
        System.out.println(rooms[0]);
        System.out.println("---------------------------");

        //第二间房
        rooms[1].checkInRoom();
        rooms[1].bookRoom();
        rooms[1].checkOutRoom();
        rooms[1].bookRoom();
        System.out.println(rooms[1]);
	}
}

房间类定义如下

package com.cloud;

public class Room {
	/*
     * 房间的三个状态
     */
    State freeTimeState;    //空闲状态
    State checkInState;     //入住状态
    State bookedState;      //预订状态

    State state ;

    public Room(){
        freeTimeState = new FreeTimeState(this);
        checkInState = new CheckInState(this);
        bookedState = new BookedState(this);

        state = freeTimeState ;  //初始状态为空闲
    }

    /**
     * @desc 预订房间
     * @return void
     */
    public void bookRoom(){
        state.bookRoom();
    }

    /**
     * @desc 退订房间
     * @return void
     */
    public void unsubscribeRoom(){
        state.unsubscribeRoom();
    }

    /**
     * @desc 入住
     * @return void
     */
    public void checkInRoom(){
        state.checkInRoom();
    }

    /**
     * @desc 退房
     * @return void
     */
    public void checkOutRoom(){
        state.checkOutRoom();
    }

    public String toString(){
        return "该房间的状态是:"+getState().getClass().getName();
    }

    /*
     * getter和setter方法
     */

    public State getFreeTimeState() {
        return freeTimeState;
    }

    public void setFreeTimeState(State freeTimeState) {
        this.freeTimeState = freeTimeState;
    }

    public State getCheckInState() {
        return checkInState;
    }

    public void setCheckInState(State checkInState) {
        this.checkInState = checkInState;
    }

    public State getBookedState() {
        return bookedState;
    }

    public void setBookedState(State bookedState) {
        this.bookedState = bookedState;
    }

    public State getState() {
        return state;
    }

    public void setState(State state) {
        this.state = state;
    }

}

状态类定义如下

package com.cloud;

	public interface State {
	    /**
	     * @desc 预订房间
	     * @return void
	     */
	    public void bookRoom();

	    /**
	     * @desc 退订房间
	     * @return void
	     */
	    public void unsubscribeRoom();

	    /**
	     * @desc 入住
	     * @return void
	     */
	    public void checkInRoom();

	    /**
	     * @desc 退房
	     * @return void
	     */
	    public void checkOutRoom();

	}


其他三个状态类如下

package com.cloud;

/**
 * @project: design_state
 * @author changyaobin
 * @date 2017-8-24
 * @Description: 入住状态房间只能退房
 */
public class BookedState implements State{
	  Room hotelManagement;

	    public BookedState(Room hotelManagement) {
	        this.hotelManagement = hotelManagement;
	    }

	    public void bookRoom() {
	        System.out.println("该房间已近给预定了...");
	    }

	    public void checkInRoom() {
	        System.out.println("入住成功...");
	        hotelManagement.setState(hotelManagement.getCheckInState());         //状态变成入住
	    }

	    public void checkOutRoom() {
	        //不需要做操作
	    }

	    public void unsubscribeRoom() {
	        System.out.println("退订成功,欢迎下次光临...");
	        hotelManagement.setState(hotelManagement.getFreeTimeState());   //变成空闲状态
	    }
}

public class CheckInState implements State {
    Room hotelManagement;
    public CheckInState(Room hotelManagement) {
        this.hotelManagement = hotelManagement;
    }

    public void bookRoom() {
        System.out.println("该房间已经入住了...");
    }

    public void checkInRoom() {
        System.out.println("该房间已经入住了...");
    }

    public void checkOutRoom() {
        System.out.println("退房成功....");
        hotelManagement.setState(hotelManagement.getFreeTimeState());     //状态变成空闲
    }

    public void unsubscribeRoom() {
        //不需要做操作
    }

}
	public class FreeTimeState implements State {

	    Room hotelManagement;

	    public FreeTimeState(Room room){
	        this.hotelManagement = room;
	    }

	    public void bookRoom() {
	        System.out.println("您已经成功预订了...");
	        hotelManagement.setState(hotelManagement.getBookedState());   //状态变成已经预订
	    }
	    public void checkInRoom() {
	        System.out.println("您已经成功入住了...");
	        hotelManagement.setState(hotelManagement.getCheckInState());   //状态变成已经入住
	    }

	    public void checkOutRoom() {
	        //不需要做操作
	    }

	    public void unsubscribeRoom() {
	        //不需要做操作
	    }

	}
