固定簇半径的分簇协议HEED matlab代码

最新推荐文章于 2023-05-04 07:08:14 发布

原创最新推荐文章于 2023-05-04 07:08:14 发布 · 76 阅读

0 ·

CC 4.0 BY-SA版权

文章标签：

#matlab #开发语言

文章目录

一、理论基础
二、分簇过程
三、MATLAB程序实现
四、参考文献

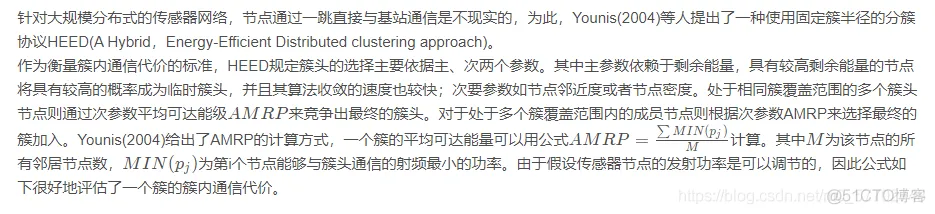

固定簇半径的分簇协议HEED matlab代码_代码

二、分簇过程

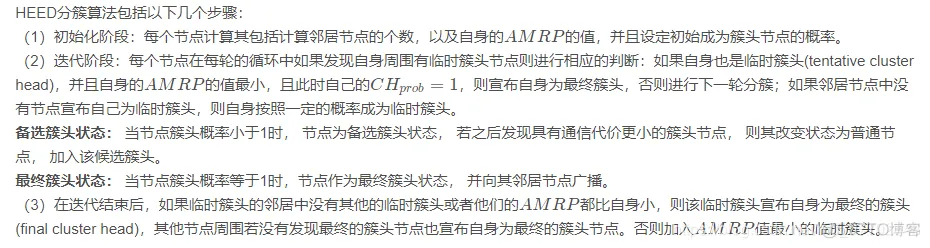

固定簇半径的分簇协议HEED matlab代码_代码_02

三、MATLAB程序实现

%% 清空环境变量
clear;
clc;
% 传感器节点区域100×100
xm = 100;
ym = 100;
% 基站坐标
sink.x = 0.5*xm;
sink.y = 0.5*ym;
% 节点总数100
NodeNums = 100;
% 节点成为簇头的初始概率和概率阈值
Cprob = 0.05;
pmin = 0.04;
packetLength = 4000;      % 数据包长度
ctrPacketLength = 100;    % 控制包长度
% 初始能量(最大能量) 0.3J
Eo = 0.3;
% 发送能耗RTX = 接收能耗ERX = 50nJ/bit
ETX=50*10^(-9);
ERX=50*10^(-9);
% 发射放大器类型
Efs=10*10^(-12);
Emp=0.0013*10^(-12);
% 数据聚合能量
EDA=5*10^(-9);
% 最大轮数
rmax = 5;
% the time of round
Tr=20;
distanceBroad = sqrt(Tr^2+Tr^2);
% 临界距离
do = sqrt(Efs/Emp);
% 节点类型
NON_CH = 0;         % 普通节点
TENT_CH = 1;        % 临时簇头
FINAL_CH = 2;       % 最终簇头

figure(1);
%% 传感器节点的随机分布
for i = 1:NodeNums
    Node(i).xd = rand(1,1)*xm;
    Node(i).yd = rand(1,1)*ym;
    Node(i).RE = Eo;                  % 节点能量
    Node(i).NumNbr = 0;               % 邻居节点数
    Node(i).AMRP = Node(i).NumNbr;    % 平均可达能级
    Node(i).CH = 0;                   % 簇头
    Node(i).role = NON_CH;            % 节点角色
    plot(Node(i).xd, Node(i).yd, 'o', sink.x, sink.y, '*r');
    hold on;
    title 'Wireless Sensor Network';
    xlabel 'X-coordinates';
    ylabel 'Y-coordinates';
    legend('节点', '基站');
end
hold off;
%% 计算每个节点的邻居节点集
for i = 1:NodeNums
    count = 0;  % 计数器：用于统计每个节点的邻居节点总数
    for j = 1:NodeNums
        if j ~= i
            dist = sqrt((Node(i).xd-Node(j).xd).^2 + (Node(i).yd-Node(j).yd).^2);   % 节点i与节点j距离的平方
            if dist < distanceBroad  % 如果此距离小于广播半径，则可认为j是i的邻居节点
                count = count +1;
                Node(i).Nbr(count) = j; % j是i的一个邻居节点
            end
        end
        if j == NodeNums % 说明循环到了最后一个节点
            Node(i).NumNbr = count;     % 节点i的邻居节点个数count
        end
    end
end

%% 分簇阶段
for r = 1:rmax
%     % 死亡节点总数
%     dead = 0;
%     % 计算节点死亡数目
%     for i = 1:NodeNums
%         if Node(i).RE <= 0  % 统计节点死亡数目
%             dead = dead + 1;
%         end
%     end
%     if dead == NodeNums  % 节点全部死亡退出循环
%         break;
%     end
    s = 0;
    % 第一步：初始化
    for i = 1:NodeNums
        Node(i).RE = Eo;
        Node(i).CHprob = max(Cprob*(Node(i).RE/Eo), pmin);
        Node(i).AMRP = Node(i).NumNbr;    % 平均可达能级
        Node(i).CH = 0;
        Node(i).role = NON_CH;                     % 节点角色
        Node(i).stop = 1;
        s = s + Node(i).stop;
    end
    % 第二步：迭代，直至节点概率为1或节点死亡(能量耗尽)
    while s ~= 0
        s = 0;
        for i = 1:NodeNums
            Node(i).CHprob = max(Cprob*(Node(i).RE/Eo), pmin);
        end
        for i = 1:NodeNums
            if Node(i).RE > 0 && Node(i).CHprob <= 1
                flag0 = 0;
                flag1 = 0;
                for j = 1:Node(i).NumNbr
                    neighbor = Node(i).Nbr(j);
                    if Node(neighbor).role == TENT_CH
                        flag0 = 1;
                        if Node(i).AMRP > Node(neighbor).AMRP
                            flag1 = 1;
                        end
                    end
                end
                % 自身是临时簇头
                if Node(i).role == TENT_CH
                    if flag0 == 1 && flag1 == 0  % 周围有临时簇头且自身的AMRP值最小
                        if Node(i).CHprob == 1      % 概率为1
                            Node(i).CH = -1;
                            Node(i).RE = Node(i).RE-(ETX*ctrPacketLength+Efs*ctrPacketLength*distanceBroad^2);
                            % 邻居节点接收消息
                            for j = 1:Node(i).NumNbr
                                neighbor = Node(i).Nbr(j);
                                Node(neighbor).RE = Node(neighbor).RE-ERX*ctrPacketLength;
                            end
                        end
                    end
                end
                % 邻居节点无临时簇头
                if flag0 == 0
                    if rand <= Node(i).CHprob
                        Node(i).role = TENT_CH;
                        Node(i).RE = Node(i).RE-(ETX*ctrPacketLength+Efs*ctrPacketLength*distanceBroad^2);
                        % 邻居节点接收消息
                        for j = 1:Node(i).NumNbr
                            neighbor = Node(i).Nbr(j);
                            Node(neighbor).RE = Node(neighbor).RE-ERX*ctrPacketLength;
                        end
                    end
                end
                % 备选簇头状态
                if Node(i).CHprob < 1
                    Node(i).role = TENT_CH;
                    Node(i).RE = Node(i).RE-(ETX*ctrPacketLength+Efs*ctrPacketLength*distanceBroad^2);
                    x = Node(i).AMRP;
                    for j = 1:Node(i).NumNbr
                        neighbor = Node(i).Nbr(j);
                        Node(neighbor).RE = Node(neighbor).RE-ERX*ctrPacketLength;
                        if Node(neighbor).role ~= NON_CH    % 簇头节点
                            if Node(i).AMRP > Node(neighbor).AMRP   % AMRP值更小
                                Node(i).role = NON_CH;      % 改为普通节点
                                Node(i).CH = neighbor;       % 加入该候选簇头
                                Node(i).AMRP = Node(neighbor).AMRP;
                            end
                        end
                    end
                    Node(i).AMRP = x;
                else    % 最终簇头状态
                    Node(i).role = FINAL_CH;
                    Node(i).CH = -1;
                    Node(i).RE = Node(i).RE-(ETX*ctrPacketLength+Efs*ctrPacketLength*distanceBroad^2);
                    for j = 1:Node(i).NumNbr
                        neighbor = Node(i).Nbr(j);
                        Node(neighbor).RE = Node(neighbor).RE-ERX*ctrPacketLength;
                    end
                end
            else
                Node(i).stop = 0;
            end
            s = s+Node(i).stop;
            Node(i).CHprob = min(Node(i).CHprob * 2, 1);
        end
    end
    %% 第三，处理孤儿节点
    for i = 1:NodeNums
        if Node(i).RE > 0
            if Node(i).role ~= FINAL_CH
                flag = 0;
                for j = 1:Node(i).NumNbr
                    neighbor = Node(i).Nbr(j);
                    if Node(neighbor).role ~= NON_CH    % 簇头节点
                        flag = 1;
                        y = Node(i).AMRP;
                        if Node(i).AMRP > Node(neighbor).AMRP   % AMRP值更小
                            Node(i).role = NON_CH;      % 改为普通节点
                            Node(i).CH = neighbor;       % 加入该候选簇头
                            Node(i).AMRP = Node(neighbor).AMRP;
                        end
                    end
                end
                if flag == 0
                    Node(i).CH = -1;
                    Node(i).role = FINAL_CH;
                else
                    Node(i).AMRP = y;
                end
            end
        end
    end
    figure(r+1)
    %% 画出分簇图
    for i = 1:NodeNums
        if Node(i).role ~= NON_CH
            plot(Node(i).xd, Node(i).yd, '*'); % 簇头节点以*标记
            hold on
            text(Node(i).xd, Node(i).yd, num2str(i));
        else
            plot(Node(i).xd, Node(i).yd, 'o');   %普通节点以o标记
            text(Node(i).xd, Node(i).yd, num2str(i));
            hold on
            plot([Node(Node(i).CH).xd; Node(i).xd], [Node(Node(i).CH).yd; Node(i).yd]);  % 将节点与簇头连起来，即加入簇头集合
            hold on
        end
    end
end

1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
12.
13.
14.
15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
29.
30.
31.
32.
33.
34.
35.
36.
37.
38.
39.
40.
41.
42.
43.
44.
45.
46.
47.
48.
49.
50.
51.
52.
53.
54.
55.
56.
57.
58.
59.
60.
61.
62.
63.
64.
65.
66.
67.
68.
69.
70.
71.
72.
73.
74.
75.
76.
77.
78.
79.
80.
81.
82.
83.
84.
85.
86.
87.
88.
89.
90.
91.
92.
93.
94.
95.
96.
97.
98.
99.
100.
101.
102.
103.
104.
105.
106.
107.
108.
109.
110.
111.
112.
113.
114.
115.
116.
117.
118.
119.
120.
121.
122.
123.
124.
125.
126.
127.
128.
129.
130.
131.
132.
133.
134.
135.
136.
137.
138.
139.
140.
141.
142.
143.
144.
145.
146.
147.
148.
149.
150.
151.
152.
153.
154.
155.
156.
157.
158.
159.
160.
161.
162.
163.
164.
165.
166.
167.
168.
169.
170.
171.
172.
173.
174.
175.
176.
177.
178.
179.
180.
181.
182.
183.
184.
185.
186.
187.
188.
189.
190.
191.
192.
193.
194.
195.
196.
197.
198.
199.
200.
201.
202.
203.
204.
205.
206.
207.
208.
209.
210.
211.
212.
213.
214.
215.
216.
217.

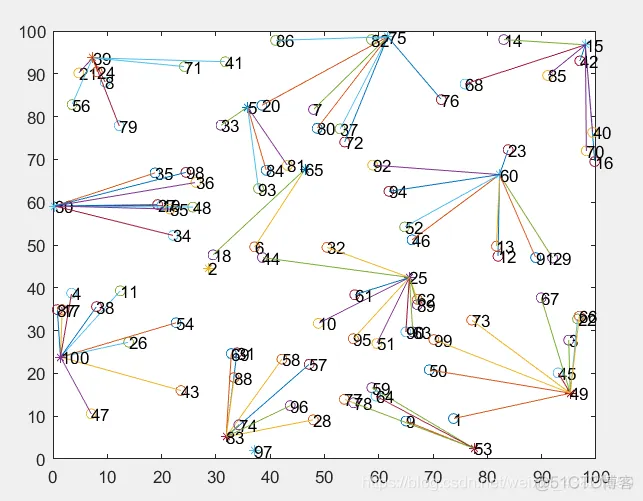

其中一个分簇如图所示：固定簇半径的分簇协议HEED matlab代码_代码_03

HEED分簇图

四、参考文献

[1] Younis O , Fahmy S . HEED: A Hybrid, Energy-Efficient, Distributed Clustering Approach for Ad Hoc Sensor Networks[J]. IEEE Transactions on Mobile Computing, 2004, 3(4):366-379.
