一、简介

** FSK信号的解调原理**
FSK信号的解调也有非相干和相干两种，FSK信号可以看作是用两个频率源交替传输得到的，所以FSK的接收机由两个并联的ASK接收机组成。

(1)相干解调
相干解调是利用乘法器，输入一路与载频相干的参考信号与载频相乘，通过低通滤波，滤除高频信号，即得原始信号，FSK经过带通滤波之后，可以看作是两路ASK信号，相干检测器组成的原理如下所示：【数字信号调制】基于二进制数字频率调制(2FSK)matlab源码_*FSK

二、源代码

clear all
close all
i=10;%基带信号码元数
j=5000;
a=round(rand(1,i));%产生随机序列
t=linspace(0,5,j);
f1=10;%载波1频率
f2=5;%载波2频率
fm=i/5;%基带信号频率
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%产生基带信号
st1=t;
for n=1:10
    if a(n)<1;
        for m=j/i*(n-1)+1:j/i*n
            st1(m)=0;
        end
    else
        for m=j/i*(n-1)+1:j/i*n
            st1(m)=1;
        end
    end
end
st2=t;
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%基带信号求反
for n=1:j;
    if st1(n)>=1;
        st2(n)=0;
    else
        st2(n)=1;
    end
end;
figure(1);
subplot(511);
plot(t,st1);
title('基带信号');
axis([0,5,-1,2]);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%载波信号
s1=cos(2*pi*f1*t)
s2=cos(2*pi*f2*t)
subplot(512),plot(s1);
title('载波信号1');
subplot(513),plot(s2);
title('载波信号2');
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%调制
F1=st1.*s1;%加入载波1
F2=st2.*s2;%加入载波2
fsk=F1+F2;
subplot(514);
plot(t,fsk);
title('2FSK信号')%键控法产生的信号在相邻码元之间相位不一定连续
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%相干解调
st1=fsk.*s1;%与载波1相乘
[f,sf1] = T2F(t,st1);%通过低通滤波器
[t,st1] = lpf(f,sf1,2*fm);
st2=fsk.*s2;%与载波2相乘
[f,sf2] = T2F(t,st2);%通过低通滤波器
[t,st2] = lpf(f,sf2,2*fm);
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%抽样判决

           %脚本文件F2T.m定义了函数F2T，计算信号的反傅立叶变换。
function [t,st]=F2T(f,sf)
%This function calculate the time signal using ifft function for the input
%signal's spectrum
 df = f(2)-f(1);
Fmx = ( f(end)-f(1) +df);
dt = 1/Fmx;
N = length(sf);
T = dt*N;
%t=-T/2:dt:T/2-dt;
t = 0:dt:T-dt;
sff = fftshift(sf);
st = Fmx*ifft(sff);
function [t,st]=lpf(f,sf,B)
%This function filter an input data using a lowpass filter
%Inputs: f:  frequency samples
% sf: input data spectrum samples
% B:  lowpass's bandwidth with a rectangle lowpass
%Outputs:  t: time samples
% st: output data's time samples
df = f(2)-f(1);
T = 1/df;
hf = zeros(1,length(f));%全零矩阵
bf = [-floor( B/df ): floor( B/df )] + floor( length(f)/2 );
hf(bf)=1;
yf=hf.*sf;
[t,st]=F2T(f,yf);
st = real(st);
  • 1.
  • 2.
  • 3.
  • 4.
  • 5.
  • 6.
  • 7.
  • 8.
  • 9.
  • 10.
  • 11.
  • 12.
  • 13.
  • 14.
  • 15.
  • 16.
  • 17.
  • 18.
  • 19.
  • 20.
  • 21.
  • 22.
  • 23.
  • 24.
  • 25.
  • 26.
  • 27.
  • 28.
  • 29.
  • 30.
  • 31.
  • 32.
  • 33.
  • 34.
  • 35.
  • 36.
  • 37.
  • 38.
  • 39.
  • 40.
  • 41.
  • 42.
  • 43.
  • 44.
  • 45.
  • 46.
  • 47.
  • 48.
  • 49.
  • 50.
  • 51.
  • 52.
  • 53.
  • 54.
  • 55.
  • 56.
  • 57.
  • 58.
  • 59.
  • 60.
  • 61.
  • 62.
  • 63.
  • 64.
  • 65.
  • 66.
  • 67.
  • 68.
  • 69.
  • 70.
  • 71.
  • 72.
  • 73.
  • 74.
  • 75.
  • 76.
  • 77.
  • 78.
  • 79.
  • 80.
  • 81.
  • 82.
  • 83.
  • 84.
  • 85.
  • 86.
  • 87.

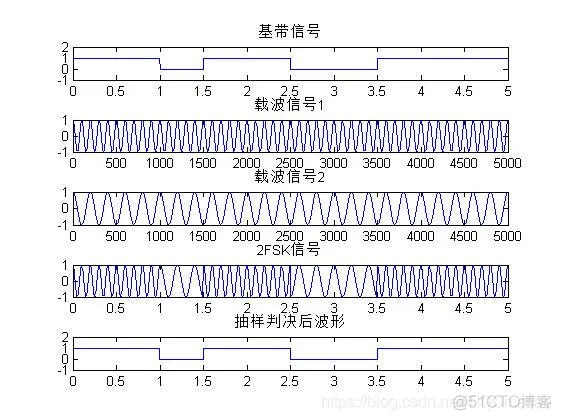

三、运行结果

【数字信号调制】基于二进制数字频率调制(2FSK)matlab源码_*FSK_02
