一、简介

两维情况下radon变换大致可以这样理解：一个平面内沿不同的直线(直线与原点的距离为d，方向角为alfa)对f(x，y)做线积分，得到的像F(d,alfa)就是函数f的Radon变换。也就是说，平面(d，alfa)的每个点的像函数值对应了原始函数的某个线积分值。一个更直观的理解是，假设你的手指被一个很强的平行光源透射，你迎着光源看到的手指图像就是手指的光衰减系数的三维Radon变换(小小的推广)在给定方向(两个角坐标)的时候的值。

二、源代码

function varargout = Radon_trans(varargin)
% RADON_TRANS M-file for Radon_trans.fig
%      RADON_TRANS, by itself, creates a new RADON_TRANS or raises the existing
%      singleton*.
%
%      H = RADON_TRANS returns the handle to a new RADON_TRANS or the handle to
%      the existing singleton*.
%
%      RADON_TRANS('CALLBACK',hObject,eventData,handles,...) calls the local
%      function named CALLBACK in RADON_TRANS.M with the given input arguments.
%
%      RADON_TRANS('Property','Value',...) creates a new RADON_TRANS or raises the
%      existing singleton*.  Starting from the left, property value pairs are
%      applied to the GUI before Radon_trans_OpeningFunction gets called.  An
%      unrecognized property name or invalid value makes property application
%      stop.  All inputs are passed to Radon_trans_OpeningFcn via varargin.
%
%      *See GUI Options on GUIDE's Tools menu.  Choose "GUI allows only one
%      instance to run (singleton)".
%
% See also: GUIDE, GUIDATA, GUIHANDLES

% Edit the above text to modify the response to help Radon_trans

% Last Modified by GUIDE v2.5 12-Jun-2009 20:15:52

% Begin initialization code - DO NOT EDIT
gui_Singleton = 1;
gui_State = struct('gui_Name',       mfilename, ...
                   'gui_Singleton',  gui_Singleton, ...
                   'gui_OpeningFcn', @Radon_trans_OpeningFcn, ...
                   'gui_OutputFcn',  @Radon_trans_OutputFcn, ...
                   'gui_LayoutFcn',  [] , ...
                   'gui_Callback',   []);
if nargin & isstr(varargin{1})
    gui_State.gui_Callback = str2func(varargin{1});
end

if nargout
    [varargout{1:nargout}] = gui_mainfcn(gui_State, varargin{:});
else
    gui_mainfcn(gui_State, varargin{:});
end
% End initialization code - DO NOT EDIT


% --- Executes just before Radon_trans is made visible.
function Radon_trans_OpeningFcn(hObject, eventdata, handles, varargin)
% This function has no output args, see OutputFcn.
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
% varargin   command line arguments to Radon_trans (see VARARGIN)

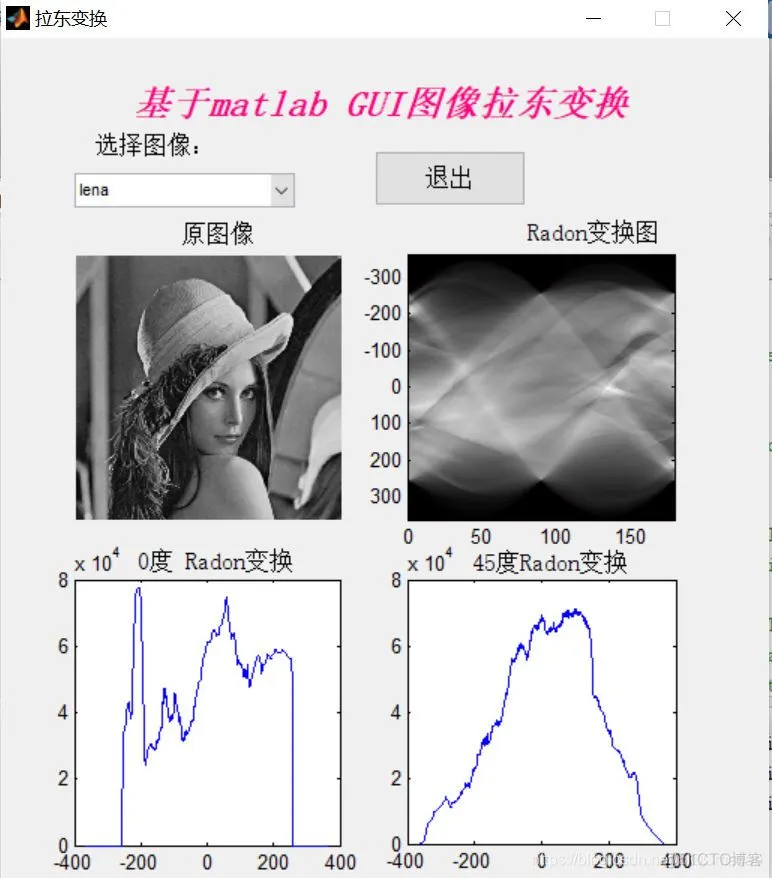

axes(handles.axes1);
img=imread('lena.bmp');
imshow(img);
axes(handles.axes2);
theta=0:180;
[R,xp]=radon(img,theta);
imagesc(theta,xp,R);
axes(handles.axes3);
[R,xp]=radon(img,[0 45]);
plot(xp,R(:,1));
axes(handles.axes4);
[R,xp]=radon(img,[0 45]);
plot(xp,R(:,2));
% Choose default command line output for Radon_trans
handles.output = hObject;

% Update handles structure
guidata(hObject, handles);

% UIWAIT makes Radon_trans wait for user response (see UIRESUME)
% uiwait(handles.figure1);


% --- Outputs from this function are returned to the command line.
function varargout = Radon_trans_OutputFcn(hObject, eventdata, handles)
% varargout  cell array for returning output args (see VARARGOUT);
% hObject    handle to figure
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Get default command line output from handles structure
varargout{1} = handles.output;


% --- Executes during object creation, after setting all properties.
function popupmenu1_CreateFcn(hObject, eventdata, handles)
% hObject    handle to popupmenu1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    empty - handles not created until after all CreateFcns called

% Hint: popupmenu controls usually have a white background on Windows.
%       See ISPC and COMPUTER.
if ispc
    set(hObject,'BackgroundColor','white');
else
    set(hObject,'BackgroundColor',get(0,'defaultUicontrolBackgroundColor'));
end


% --- Executes on selection change in popupmenu1.
function popupmenu1_Callback(hObject, eventdata, handles)
% hObject    handle to popupmenu1 (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)

% Hints: contents = get(hObject,'String') returns popupmenu1 contents as cell array
%        contents{get(hObject,'Value')} returns selected item from popupmenu1
val=get(hObject,'value');
str=get(hObject,'string');
switch str{val};
    case 'lena'
        lena = [];
        lena = imread('lena.bmp');
        img = lena;
    case 'cameraman'
        cameraman=[];
        cameraman=imread('cameraman.tif');
        img=cameraman;
    case 'Saturn',
        saturn = [];
        load imdemos saturn
        img = saturn;
    case 'Tire',
        tire = [];
        load imdemos tire
        img = tire;
    case 'Pout',
        pout = [];
        load imdemos pout
        img = pout;
    case 'Trees',
        trees = [];
        load imdemos trees
        img = trees;
    case 'Quarter',
        quarter = [];
        load imdemos quarter
        img = quarter;
    case 'Circuit',
        circuit = [];
        load imdemos circuit
        img = circuit;
    case 'Rice',
        rice = [];
        load imdemos rice
        img = rice;
    case 'Fingerprint'
        fingerprint = [];
        fingerprint = imread('fingerprint.jpg');
        img = fingerprint;
    case 'Licenceplate'
        licenceplate = [];
        licenceplate = imread('licenceplate.jpg');
        img = licenceplate;
    case 'Haze'
        haze = [];
        haze = imread('haze.jpg');
        img = haze;
    case 'Cloudy'
        cloudy = [];
        cloudy = imread('cloudy.tif');
        img = cloudy;

end
axes(handles.axes1);
imshow(img);
axes(handles.axes2);
theta=0:180;
[R,xp]=radon(img,theta);
imagesc(theta,xp,R);
axes(handles.axes3);
[R,xp]=radon(img,[0 45]);
plot(xp,R(:,1));
axes(handles.axes4);
[R,xp]=radon(img,[0 45]);
plot(xp,R(:,2));


% --- Executes on button press in close_button.
function close_button_Callback(hObject, eventdata, handles)
% hObject    handle to close_button (see GCBO)
% eventdata  reserved - to be defined in a future version of MATLAB
% handles    structure with handles and user data (see GUIDATA)
close(Radon_trans);
