ESP8266WIFI AP模式驱动SG90舵机，以及处理SG90旋转只能旋转90度或者只能旋转设定角度一半的问题。

安装arduino流程参考文档：

控制舵机参考文档：

舵机只能旋转一半角度问题处理方案：

完整代码：

#include <Servo.h>
#include <Arduino.h>
#include "ESP8266WiFi.h"
#include "ESP8266WebServer.h"

Servo myservo;
ESP8266WebServer server(80);

void handleRoot() {
    String html = "<!DOCTYPE html>\n"
    "<html lang=\"en\">\n"
    "<head>\n"
    "<meta charset=\"UTF-8\">\n"
    "<style>\n"
    "body {\n"
    "  display: flex;\n"
    "  flex-direction: column;\n"
    "  justify-content: center;\n"
    "  align-items: center;\n"
    "  height: 100vh;\n"
    "  margin: 0;\n"
    "  font-family: Arial, sans-serif;\n"
    "}\n"
    "\n"
    ".button-container {\n"
    "  text-align: center;\n"
    "  width: 100%;\n"
    "  max-width: 300px;\n" /* 可选：限制按钮容器的最大宽度 */
    "}\n"
    "\n"
    ".button {\n"
    "  display: block;\n" /* 将按钮设置为块级元素，以便它们竖向排列 */
    "  padding: 10px 20px;\n"
    "  font-size: 16px;\n"
    "  font-weight: bold;\n"
    "  text-align: center;\n"
    "  text-decoration: none;\n"
    "  color: #fff;\n"
    "  background-color: #007BFF;\n"
    "  border: none;\n"
    "  border-radius: 5px;\n"
    "  cursor: pointer;\n"
    "  margin: 10px 0; \n"
    "}\n"
    "\n"
    ".button:hover {\n"
    "  background-color: #0056b3;\n"
    "}\n"
    "\n"
    ".button:active {\n"
    "  background-color: #004085;\n"
    "}\n"
    "</style>\n"
    "</head>\n"
    "<body>\n"
    "<div class=\"button-container\">\n"
    "<h2>WIFI控制开关</h2>\n"
    "<a href=\"/on\" class=\"button\">旋转到180度</a>\n"
    "<a href=\"/off\" class=\"button\">旋转到0度</a>\n"
    "<a href=\"/fw\" class=\"button\">旋转到90度</a>\n"
    "<a href=\"/xh\" class=\"button\">0-90-180</a>\n"
    "</div>\n"
    "</body>\n"
    "</html>\n";
    server.send(200, "text/html", html);
}

void handleOn() {
    myservo.write(180); // 旋转到180度
    server.sendHeader("Location", "/");
    server.send(303);
}

void handleOff() {
    myservo.write(0); // 旋转到0度
    server.sendHeader("Location", "/");
    server.send(303);
}

void handleFw() {
    myservo.write(90); // 旋转到90度
    server.sendHeader("Location", "/");
    server.send(303);
}

void handleXh() {
    myservo.write(0);
    delay(3000);
    myservo.write(90);
    delay(3000);
    myservo.write(180);
    server.sendHeader("Location", "/");
    server.send(303);
}

void setup() {
  Serial.begin(115200); //设置波特率
  myservo.attach(D4,500,2500);
  //myservo.attach(D4);  //定义引脚
  myservo.write(90); // 初始位置
  WiFi.mode(WIFI_AP);  //设置WiFi模式
  WiFi.softAP("sgwifi", "12345678");  //设置名称，密码


  server.begin();  //开启服务
  server.on("/", handleRoot);
  server.on("/on", handleOn);
  server.on("/off", handleOff);
  server.on("/fw", handleFw);
  server.on("/xh", handleXh);
}


void loop() {
  server.handleClient();
}

最后附上几个安装包：

ESP8266部分包

提取码：C21A

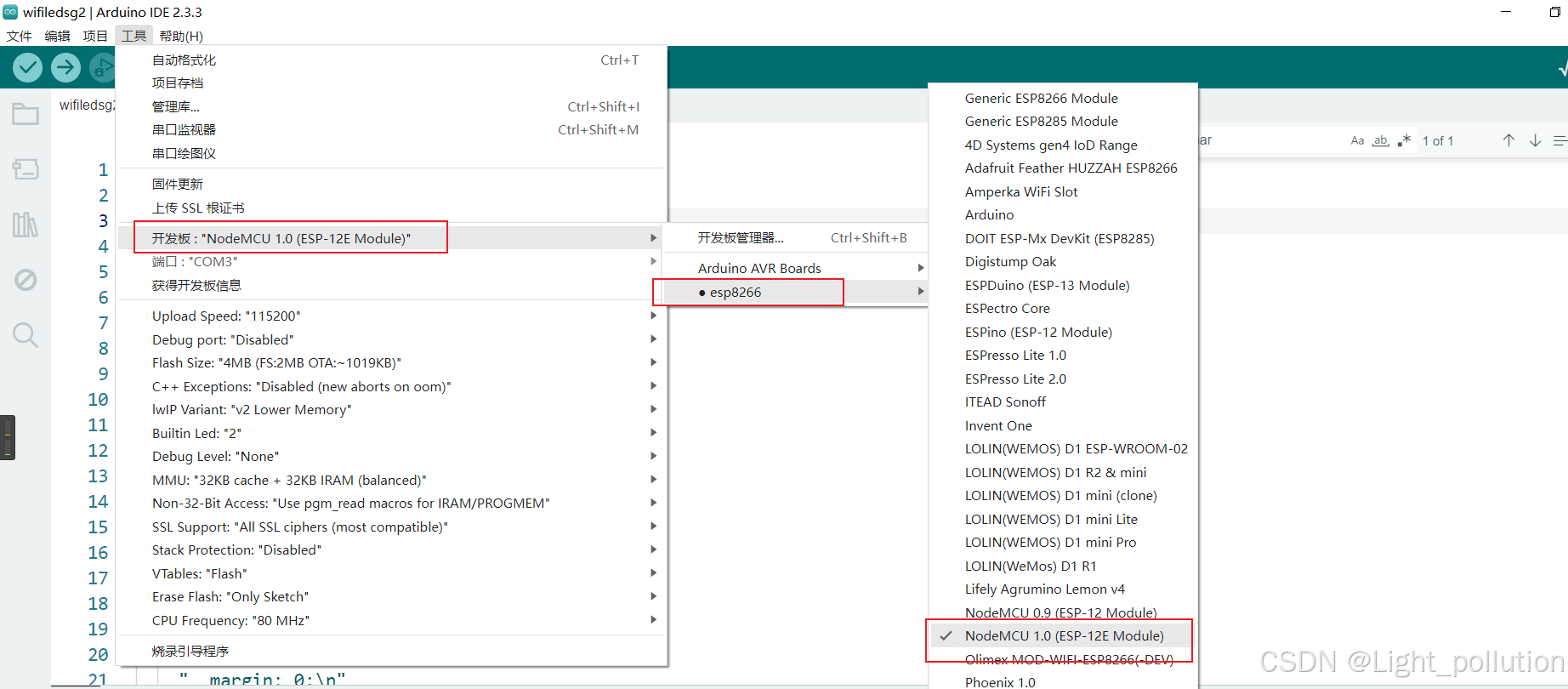

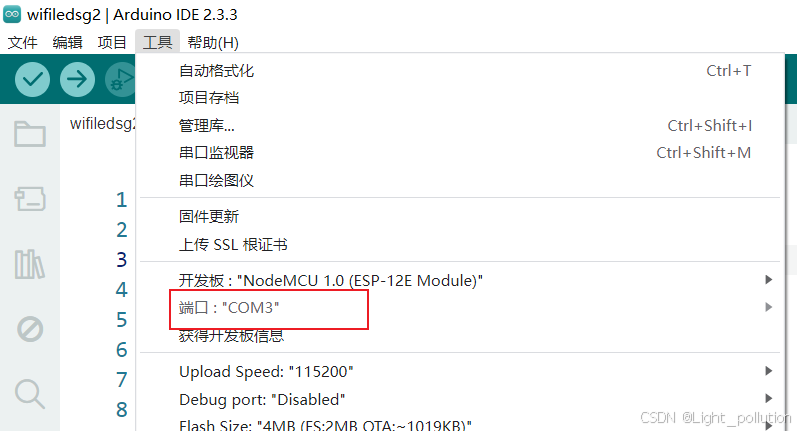

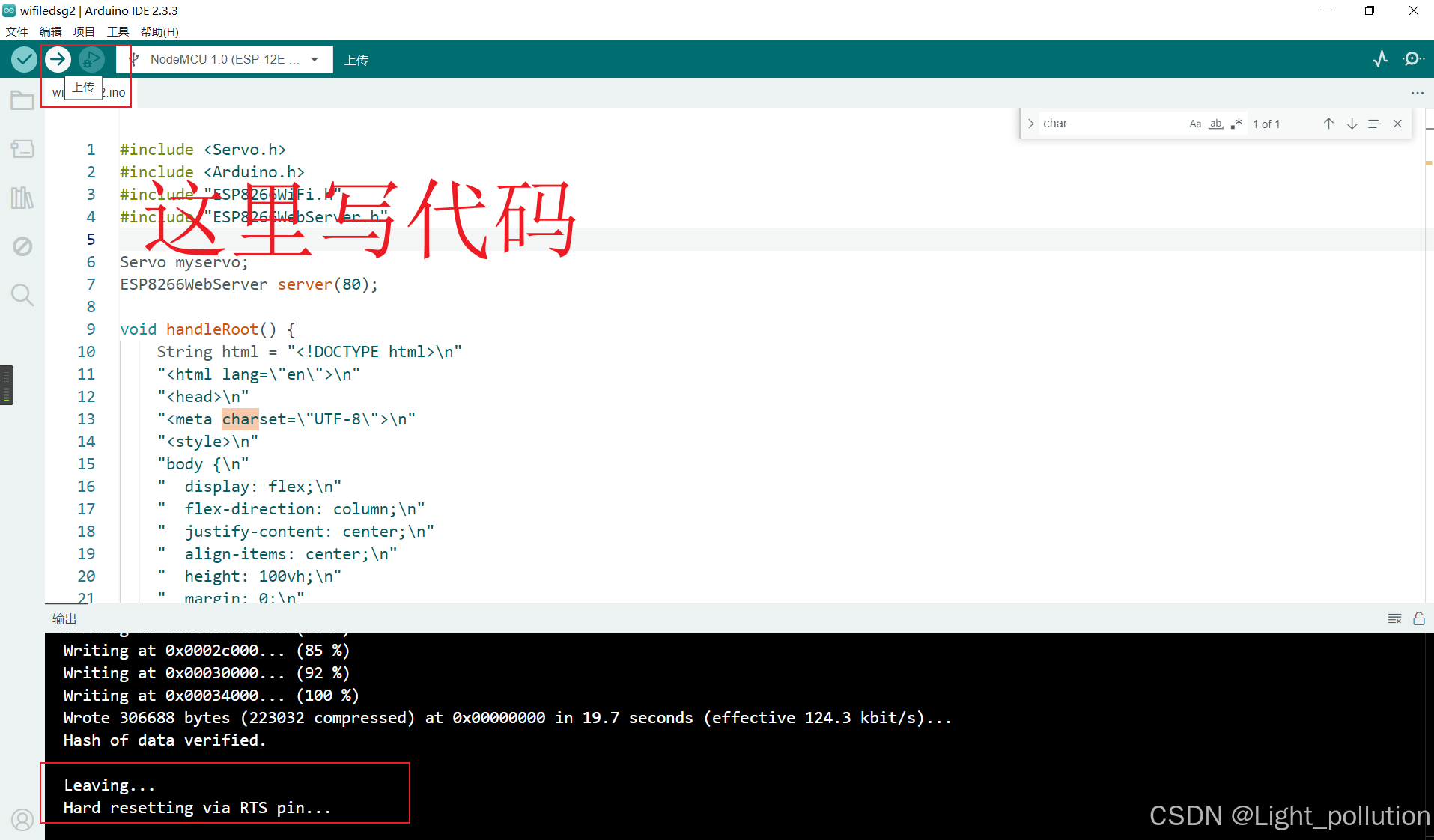

简要安装流程：

1、安装arduino-ide_2.3.3_Windows_64bit.exe，一路默认即可。

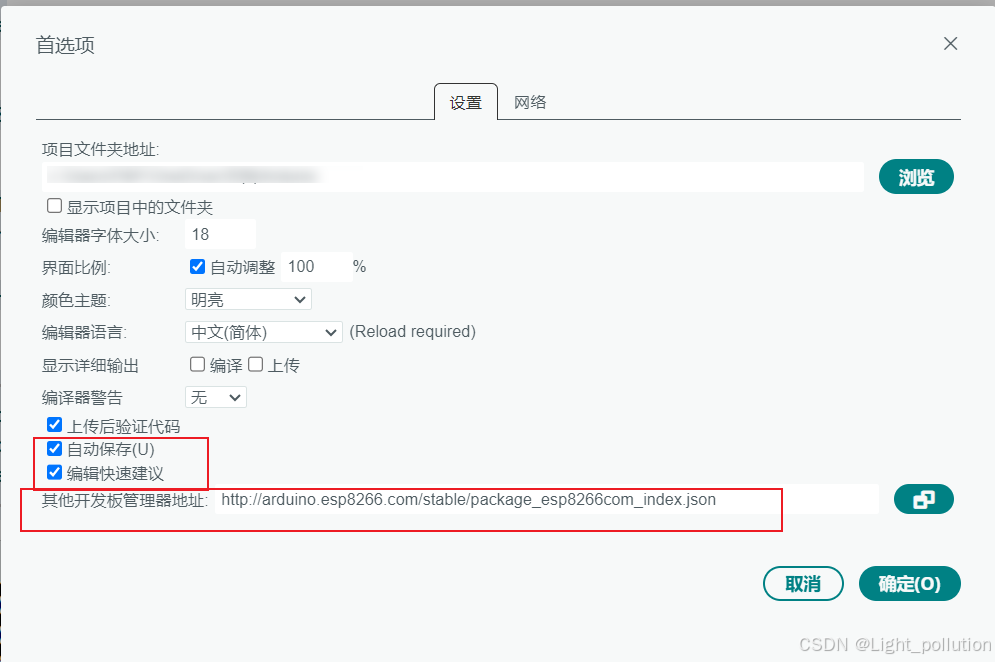

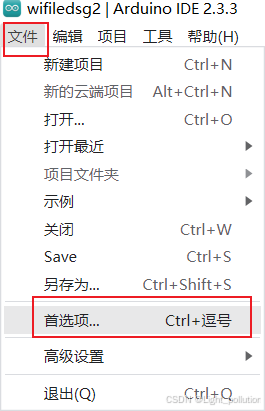

2、修改arduino的语言等红框信息http://arduino.esp8266.com/stable/package_esp8266com_index.json
