如何安装nuget

打开vs2015
点击菜单栏中的"工具"->"扩展与更新"，选择nuget包管理器进行安装。
参考网址：https://docs.microsoft.com/zh-cn/nuget/what-is-nuget

https://www.cnblogs.com/ShaYeBlog/p/5552893.html

如何利用nuget安装opengl

打开vs2015,创建一个“空项目”。

这里需要注意的一点：如果创建的项目为win32项目则会报错，具体的错误为

针对该问题目前尚未由较好的解决方法。

点击“文件”->“新建”->"项目"->“Visual C++”->"空项目"->“为项目命名”->“完成”

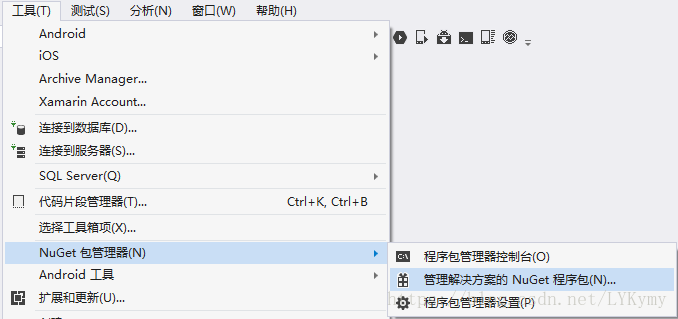

方案一：点击“工具”->"Nuget包管理器"->"管理解决方案的NuGet程序包"

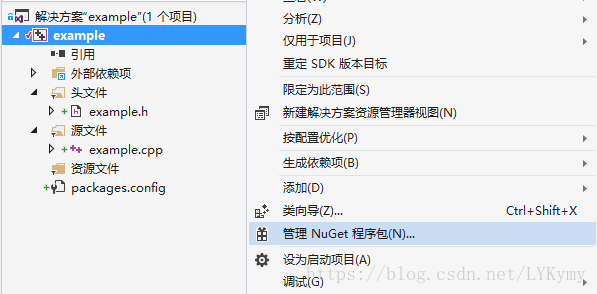

方案二：鼠标右键点击项目->"管理nuget程序包"

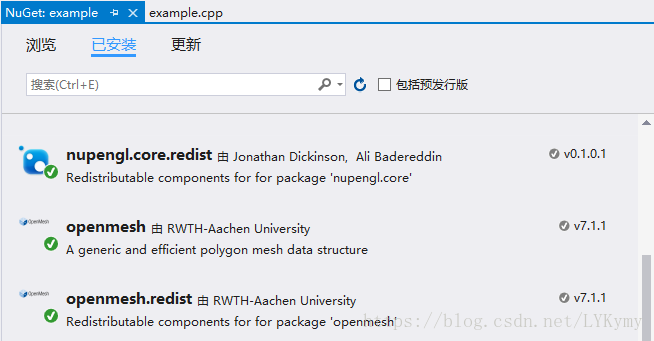

在打开的界面搜索“openmesh”。
尝试运行实例代码

/* ========================================================================= *
*                                                                           *
*                               OpenMesh                                    *
*           Copyright (c) 2001-2015, RWTH-Aachen University                 *
*           Department of Computer Graphics and Multimedia                  *
*                          All rights reserved.                             *
*                            www.openmesh.org                               *
*                                                                           *
*---------------------------------------------------------------------------*
* This file is part of OpenMesh.                                            *
*---------------------------------------------------------------------------*
*                                                                           *
* Redistribution and use in source and binary forms, with or without        *
* modification, are permitted provided that the following conditions        *
* are met:                                                                  *
*                                                                           *
* 1. Redistributions of source code must retain the above copyright notice, *
*    this list of conditions and the following disclaimer.                  *
*                                                                           *
* 2. Redistributions in binary form must reproduce the above copyright      *
*    notice, this list of conditions and the following disclaimer in the    *
*    documentation and/or other materials provided with the distribution.   *
*                                                                           *
* 3. Neither the name of the copyright holder nor the names of its          *
*    contributors may be used to endorse or promote products derived from   *
*    this software without specific prior written permission.               *
*                                                                           *
* THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS       *
* "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED *
* TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A           *
* PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT HOLDER *
* OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL,  *
* EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO,       *
* PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR        *
* PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF    *
* LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING      *
* NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS        *
* SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.              *
*                                                                           *
* ========================================================================= */
/*===========================================================================*\
*                                                                           *
*   $Revision$                                                         *
*   $Date$                   *
*                                                                           *
\*===========================================================================*/
#include <iostream>
// -------------------- OpenMesh
#include <OpenMesh/Core/IO/MeshIO.hh>
#include <OpenMesh/Core/Mesh/PolyMesh_ArrayKernelT.hh>
// ----------------------------------------------------------------------------
typedef OpenMesh::PolyMesh_ArrayKernelT<>  MyMesh;
// ----------------------------------------------------------------------------
// Build a simple cube and write it to std::cout

int main()
{
    MyMesh mesh;
    // generate vertices
    MyMesh::VertexHandle vhandle[8];
    vhandle[0] = mesh.add_vertex(MyMesh::Point(-1, -1, 1));
    vhandle[1] = mesh.add_vertex(MyMesh::Point(1, -1, 1));
    vhandle[2] = mesh.add_vertex(MyMesh::Point(1, 1, 1));
    vhandle[3] = mesh.add_vertex(MyMesh::Point(-1, 1, 1));
    vhandle[4] = mesh.add_vertex(MyMesh::Point(-1, -1, -1));
    vhandle[5] = mesh.add_vertex(MyMesh::Point(1, -1, -1));
    vhandle[6] = mesh.add_vertex(MyMesh::Point(1, 1, -1));
    vhandle[7] = mesh.add_vertex(MyMesh::Point(-1, 1, -1));
    // generate (quadrilateral) faces
    std::vector<MyMesh::VertexHandle>  face_vhandles;
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[0]);
    face_vhandles.push_back(vhandle[1]);
    face_vhandles.push_back(vhandle[2]);
    face_vhandles.push_back(vhandle[3]);
    mesh.add_face(face_vhandles);

    face_vhandles.clear();
    face_vhandles.push_back(vhandle[7]);
    face_vhandles.push_back(vhandle[6]);
    face_vhandles.push_back(vhandle[5]);
    face_vhandles.push_back(vhandle[4]);
    mesh.add_face(face_vhandles);
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[1]);
    face_vhandles.push_back(vhandle[0]);
    face_vhandles.push_back(vhandle[4]);
    face_vhandles.push_back(vhandle[5]);
    mesh.add_face(face_vhandles);
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[2]);
    face_vhandles.push_back(vhandle[1]);
    face_vhandles.push_back(vhandle[5]);
    face_vhandles.push_back(vhandle[6]);
    mesh.add_face(face_vhandles);
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[3]);
    face_vhandles.push_back(vhandle[2]);
    face_vhandles.push_back(vhandle[6]);
    face_vhandles.push_back(vhandle[7]);
    mesh.add_face(face_vhandles);
    face_vhandles.clear();
    face_vhandles.push_back(vhandle[0]);
    face_vhandles.push_back(vhandle[3]);
    face_vhandles.push_back(vhandle[7]);
    face_vhandles.push_back(vhandle[4]);
    mesh.add_face(face_vhandles);
    // write mesh to output.obj
    try
    {
        if (!OpenMesh::IO::write_mesh(mesh, "output.off"))
        {
            std::cerr << "Cannot write mesh to file 'output.off'" << std::endl;
            return 1;
        }
    }
    catch (std::exception& x)
    {
        std::cerr << x.what() << std::endl;
        return 1;
    }
    return 0;
}

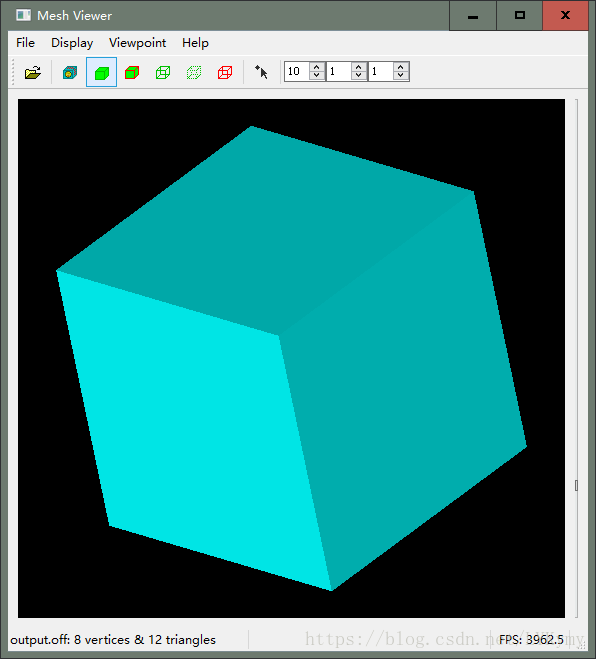

利用meshView查看输出的output.off文件。meshView无需安装，下载完后即可使用。
