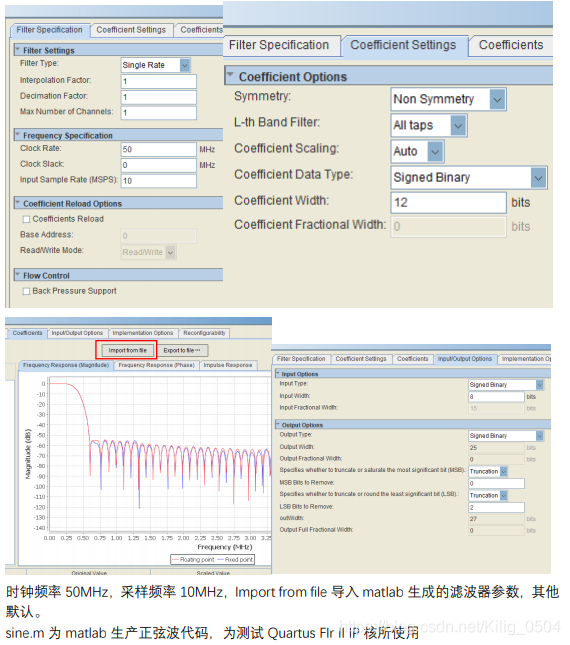

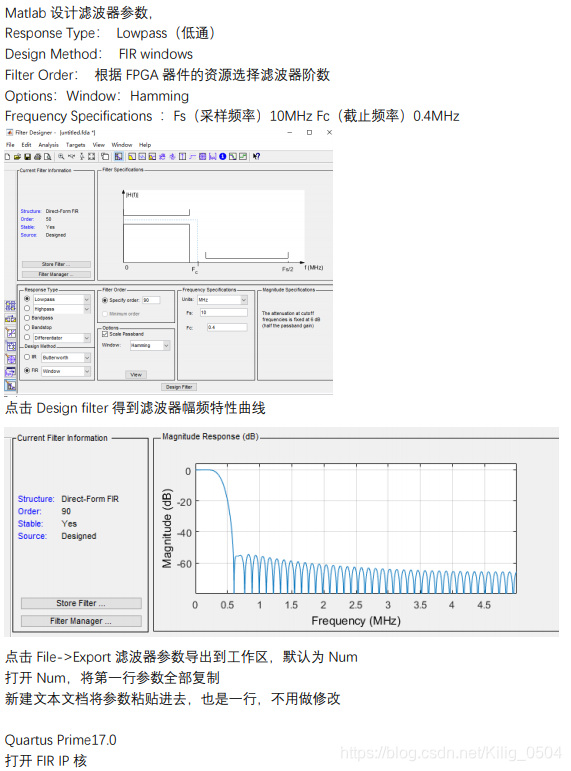

Quartus FIRII IP核仿真

N=2^8;  %N为采样点数
s_p=0:255;%正弦波一个周期的采样点数
sin_data=sin(2*pi*s_p/N);  %200KHz
sin_data1=sin(8*pi*s_p/N); %800KHz
fix_p_sin_data=fix(sin_data*127);
fix_p_sin_data1=fix(sin_data1*127);
fix_p_sin_data2=fix((fix_p_sin_data1+fix_p_sin_data)/2);
for i=1:N
    if fix_p_sin_data(i)<0
        fix_p_sin_data(i)=N+fix_p_sin_data(i)
    else
        fix_p_sin_data(i)=fix_p_sin_data(i);
    end
end
for i=1:N
    if fix_p_sin_data2(i)<0
        fix_p_sin_data2(i)=N+fix_p_sin_data2(i)
    else
        fix_p_sin_data2(i)=fix_p_sin_data2(i);
    end
end%下面是mif文件固定格式，不可更改

fid=fopen('800+200KHz.mif','w+');
fprintf(fid,'WIDTH=8;\n');
fprintf(fid,'DEPTH=256;\n');
fprintf(fid,'ADDRESS_RADIX=UNS;\n');
fprintf(fid,'DATA_RADIX=UNS;\n');
fprintf(fid,'CONTENT BEGIN \n');
for i=1:N
fprintf(fid,'%d:%d; \n',i-1,fix_p_sin_data(i));
end
fprintf(fid,'END; \n');
fclose(fid);

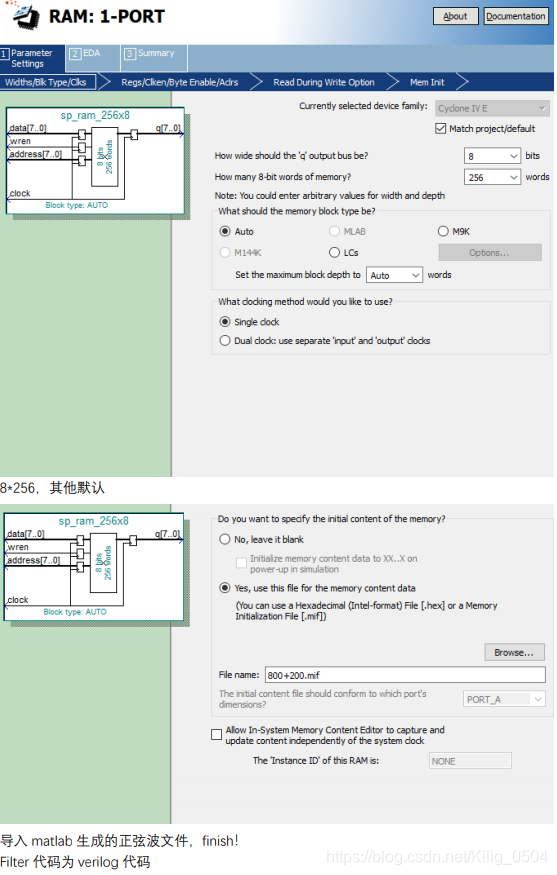

打开IP核RAM:1-PORT配置界面

顶层代码

/******************************/
//Project Name : FilterTest
//Email		   :
//Create Time	: 2021/03/16 15:12
//Editor       : Liu
//Version		: Rev1.0.0

/***********************************************/
`timescale 1 ns/ 1 ps
module filter(
	input	wire			sclk,   //50MHz
	input	wire			rst_n,  //复位低有效
	output	wire	    [15:0]	lpf_data//滤波输出数据
);

//DDS例化
wire [7:0]	dds_data;
sinx	 dds_inst(
	.sclk		(sclk),
	.rst_n		(rst_n),
	.o_wave		(dds_data)
);

//FIR例化
fir_IP	fir_IP_inst(
	.sclk		(sclk),
	.rst_n		(rst_n),
	.dds_data	(dds_data),
	.lpf_data	(lpf_data)
);

endmodule

dds输出波形数据

module sinx(
    input rst_n,
    input sclk,
    output  signed [7:0] o_wave
    );

reg [7:0] addr1;
always @(posedge sclk or negedge rst_n)
	if(!rst_n)begin
		addr1 <= 1'd0;
		end
	else begin
		addr1 <= addr1 + 2'b1;
		end


sp_ram_256x8 sp_ram_256x8_inst(
	.address(addr1),
	.clock(sclk),
	.data(8'd8),
	.wren(1'b0),
	.q(o_wave)
);


endmodule

FIR信号模块
时钟周期为50MHz，将时钟周期五倍分频得到10MHz采样率即为之前所设采样率，需对应。cnt，fs_pulse两个信号修改采样频率

module fir_IP(
	input	wire		sclk,
	input	wire			rst_n,
	input	wire		[7:0]	dds_data,
	output reg		[15:0]	lpf_data
);

reg		[5:0]	cnt;
reg				fs_pulse;//10MHz的脉冲
always @ (posedge sclk or negedge rst_n)
begin
	if(!rst_n)
		cnt <= 6'd0;
	else if(cnt == 6'd4)
		cnt <= 6'd0;
	else
		cnt <= cnt + 1'b1;
end
always @ (posedge sclk or negedge rst_n)
begin
	if(!rst_n)
		fs_pulse <= 1'b0;
	else if(cnt == 6'd4)
		fs_pulse <= 1'b1;
	else
		fs_pulse <= 1'b0;
end

//FIR IP核例化
wire	[24:0]	lpf_datar;
wire			lpf_valid;
wire	[1:0]	lpf_error;
FirII	 FirII_inst(
	.clk			(sclk),		//IP核内部工作时钟
	.reset_n		(rst_n),	//复位，低有效
	.ast_sink_data		(dds_data),	//输入数据
	.ast_sink_valid		(fs_pulse),	//采样脉冲
	.ast_sink_error		(2'd0),		//输入错误，使其无效
	.ast_source_data	(lpf_datar),	//输出数据
	.ast_source_valid	(lpf_valid),	//输出有效
	.ast_source_error	(lpf_error)	//输出错误
);
always @ (posedge sclk or negedge rst_n)
begin
	if(!rst_n)
		lpf_data <= 24'b0;
	else if(fs_pulse == 1'b1)
		lpf_data <= {lpf_datar[24],lpf_datar[19:5]};//在valid信号有效的时候才输出数据
end

endmodule

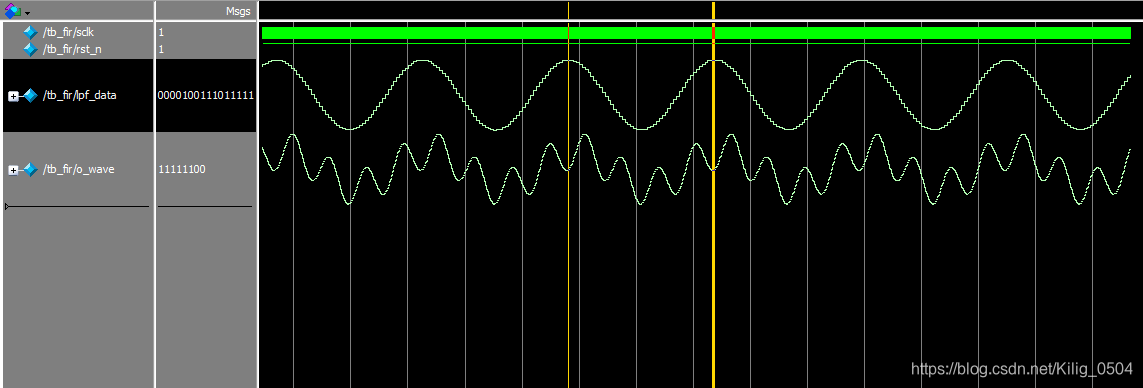

testbench

`timescale 1ns/1ns
module tb_fir();
reg		        sclk,rst_n;
wire	    [15:0]	lpf_data;
wire 		 [7:0] o_wave;
initial begin
	sclk = 0;
	rst_n = 0;
	#100
	rst_n = 1;
end

always #10 sclk <= ~sclk;

//例化顶层模块
filter fir_top_inst(
	.sclk		(sclk),
	.rst_n		(rst_n),
	.lpf_data	(lpf_data)
);

sinx	 dds_inst(
	.sclk		(sclk),
	.rst_n		(rst_n),
	.o_wave		(o_wave)
);
endmodule
