keil5(MDK)美化文本编辑区

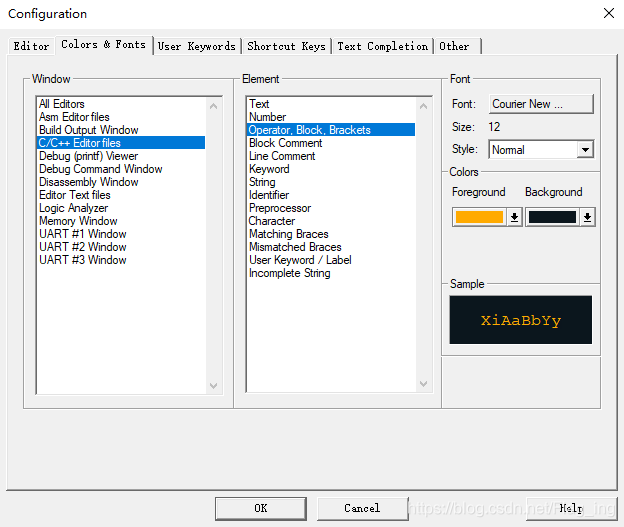

1、常规的改法：在MDK菜单栏中选择 编辑->配置->Color & Fonts，如下界面：

可以在以上界面配置对应的选项更改代码编辑区数字（number）、关键字（keyword）、字符串（string）等的颜色。最终设置的结果会保存在MDK的安装位置的UV4文件夹下名为global.prop的文件中。

2、如果想省事，可以直接找现成的配置文件来直接替换UV4文件夹下的global.prop文件，可以用记事本打开该文件，复制下面我的配置到global.prop文件中：

# properties for all file types
indent.automatic=1
virtual.space=0
view.whitespace=0
view.endofline=0
code.page=936
caretline.visible=1
highlight.matchingbraces=1
print.syntax.coloring=1
use.tab.color=1
create.backup.files=0
auto.load.ext.modfiles=0
save.prj.before.dbg=0
save.files.before.dbg=0
function.scanner.project=1
function.scanner.files=1
function.scanner.modules=1

# properties for c/cpp files
syntax.colouring.cpp=1
use.tab.cpp=0
tabsize.cpp=3
line.margin.visible.cpp=1
fold.cpp=1
monospaced.font.cpp=1

# properties for asm files
syntax.colouring.asm=1
use.tab.asm=0
tabsize.asm=4
line.margin.visible.asm=1
monospaced.font.asm=1

# properties for other files
use.tabs=0
tabsize=4
line.margin.visible.txt=0
monospaced.font.txt=1

# setting for code completion and syntax check
cc.autolist=1
cc.highlightsyntax=1
cc.showparameters=1
cc.triggerlist=1
cc.triggernumchars=3
cc.enter.as.fillup=0

# autosave for editor files
autosave=0
autosave.interval=5

# vertical edge at right margin
edge.mode=0
edge.column=80


# Specification for text selection and caret line
selection.fore=#000000
selection.back=#86C7F7
caret.fore=#FFFFFF
caret.back=#400000

# Color for vertical edge
edge.colour=#00FF00

# C/C++ Editor files
template.cpp="#define","#define |";"#if","#if |\r\n\r\n#endif";\\
    "#include","#include ";"Header","// Header:\r\n// File Name: |\r\n// Author:\r\n// Date:\r\n";\\
    "continue","continue;";"do","do\r\n{\r\n\t// TODO: enter the block content here\r\n\t\r\n\t|\r\n} while ();\r\n";\\
    "enum","enum |\r\n{\r\n\t\r\n};\r\n";"for","for(|;;)\r\n{\r\n}";\\
    "fpointer_type","typedef int (* |F)();\r\n";"function","void function(|)\r\n{\r\n\r\n}\r\n";\\
    "if","if (|)";"ifelse","if (|)\r\n{\r\n}\r\nelse\r\n{\r\n}";\\
    "struct","struct | \r\n{\r\n\r\n};\r\n";"switch","switch (|)\r\n{\r\n\tcase:\r\n\t\tbreak;\r\n\tcase:\r\n\t\tbreak;\r\n\tdefault:\r\n\t\tbreak;\r\n}";\\
    "void","void | ();\r\n";"while","while (|)\r\n{\r\n}";\\

font.monospace.cpp=Courier New
style.cpp.32=font:Courier New,size:12,fore:#F8F8F8,back:#0B161D
style.cpp.4=font:Courier New,size:12,fore:#FF3A83,back:#0B161D
style.cpp.10=font:Courier New,size:12,fore:#FFAA00,back:#0B161D
style.cpp.1=font:Courier New,size:12,fore:#00FF00,back:#0B161D
style.cpp.2=font:Courier New,size:12,fore:#1E9AE0,back:#0B161D
style.cpp.5=font:Courier New,size:12,fore:#FFAA00,back:#0B161D,bold
style.cpp.6=font:Courier New,size:12,fore:#55E439,back:#0B161D
style.cpp.11=font:Courier New,size:12,fore:#F8F8F8,back:#0B161D
style.cpp.9=font:Courier New,size:12,fore:#FFAA00,back:#0B161D
style.cpp.7=font:Courier New,size:12,fore:#55E439,back:#0B161D
style.cpp.34=font:Courier New,size:12,fore:#500000,back:#20FFFF
style.cpp.35=font:Courier New,size:12,fore:#FF0000,back:#FFFFFF
style.cpp.16=font:Courier New,size:12,fore:#B00040,back:#0B161D
style.cpp.12=font:Courier New,size:12,fore:#000000,back:#E0C0E0


# Asm Editor files
font.monospace.asm=Courier New
style.asm.32=font:Courier New,size:16,fore:#F8F8F8,back:#0B161D
style.asm.1=font:Courier New,size:16,fore:#1E9AE0,back:#0B161D
style.asm.2=font:Courier New,size:16,fore:#FF3A83,back:#0B161D
style.asm.3=font:Courier New,size:16,fore:#FFAA00,back:#0B161D
style.asm.4=font:Courier New,size:16,fore:#FFAA00,back:#0B161D
style.asm.5=font:Courier New,size:16,fore:#F8F8F8,back:#0B161D
style.asm.6=font:Courier New,size:16,fore:#FFAA00,back:#0B161D
style.asm.7=font:Courier New,size:16,fore:#0000FF,back:#0B161D
style.asm.9=font:Courier New,size:16,fore:#FFAA00,back:#0B161D
style.asm.10=font:Courier New,size:16,fore:#FFAA00,back:#0B161D
style.asm.11=font:Courier New,size:16,fore:#007F00,back:#0B161D
style.asm.12=font:Courier New,size:16,fore:#55E439,back:#0B161D
style.asm.8=font:Courier New,size:16,fore:#FFAA00,back:#0B161D


# Editor Text files
font.monospace.txt=Courier New
style.txt.32=font:Courier New,size:14,fore:#FFFFFF,back:#000000

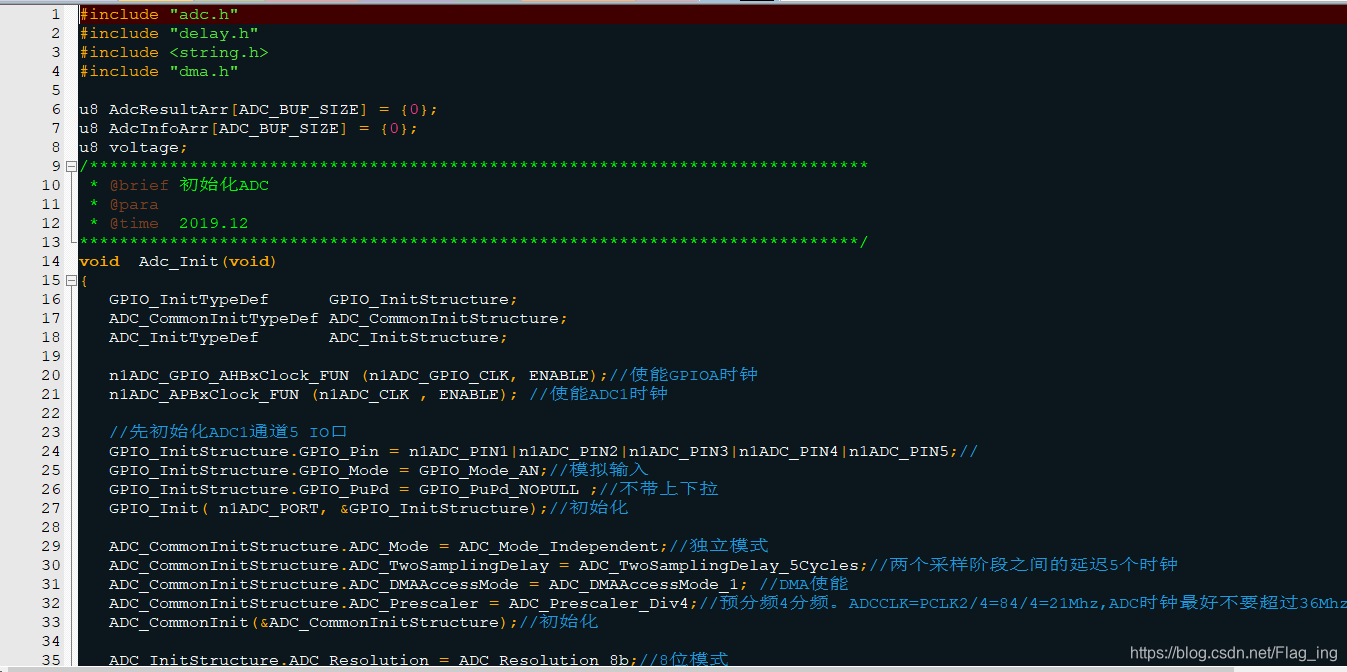

在重新打开MDK，就会显示以下的效果：

另外，如上图所示，自定义关键字u8的颜色并没有凸显其关键字的属性，我们可以在编辑->配置->User Keywords->C/C++ Editor files中添加用户关键字，点击OK，效果如下：
