前置知识

综述

png是由多个chunk组成，每个chunk保存了该png文件的某项信息。

其中数据部分被称作IDAT，里面存有png文件的图像信息。为了减小数据量，该块使用LZ77的衍生算法Deflate算法进行压缩，并使用zlib头进行包裹。

大致结构为：zlib头+deflate头+数据+校验码

被压缩压缩数据部分按照如下方式进行存储。
先存储长度数组，这个数组用于生成一颗霍夫曼树。
用生成的霍夫曼树对接下来的数据进行解码，获得长度码表和距离码表。
最后用长度码表和距离码表对数据进行恢复。

由于找不到合适图片且时间有限，该版本代码只适用于8bit带调色板并使用动态霍夫曼编码且IDAT仅有一块的PNG文件。

本次实验使用的文件如下：
实验用文件

过程

获取文件信息

声明所需要的信息。

struct fileHeader
{
    unsigned char head[8];
    void GetHead(ifstream& in) { in.read((char*)head, 8); }
};
struct iHDR
{
    unsigned int width, height;
    unsigned char bit_depth, color_type, compression_method, filter_method, interlace_method;
    void GetIHDR(unsigned char* buffer);
    void Print();
};
struct chunks
{
    unsigned int length;
    char type[4];
    string s_type = "";
    unsigned char* data;
    unsigned char CRC[4];
    chunks();
    void GetChunk(ifstream& in);
};

添加如下实现：

#include "header.h"

void iHDR::Print()
{
    cout << "width: " << (int)width << " height: " << height << endl;
    cout << "bit depth: " << (int)bit_depth << endl;
    cout << "color type: " << (int)color_type << endl;
    cout << "compression method: " << (int)compression_method << endl;
    cout << "interlace method : " << (int)interlace_method << endl;
}
void iHDR::GetIHDR(unsigned char* buffer)
{
    for (int i = 0; i < 4; ++i) { width = (width << 8) + buffer[i]; }
    for (int i = 0; i < 4; ++i) { height = (height << 8) + buffer[i + 4]; }
    int pos = 8;
    for (auto i : { &bit_depth, &color_type, &compression_method, &filter_method, &interlace_method })
        *i = buffer[pos++];
}
chunks::chunks()
{
    length = 0;
    memset(type, 0, sizeof(type));
    data = nullptr;
    s_type = "";
    memset(CRC, 0, sizeof(CRC));
}
void chunks::GetChunk(ifstream& in)
{
    unsigned char* buffer = new unsigned char[4];
    in.read((char*)buffer, 4);
    for (int i = 0; i < 4; ++i) { length = (length << 8) + buffer[i]; }
    in.read(type, 4);
    if (length != 0)
    {
        data = new unsigned char[length];
        in.read((char*)data, length);
    }
    in.read((char*)CRC, 4);
    for (auto i : type) s_type += (int)i;
    return;
}

运行如下代码：

int main()
{
    ifstream in(in_path, ios::binary);
    if (!in.is_open())
    {
        cout << in_path << " open failed." << endl;
        exit(1);
    }
    fileHeader file_header;
    file_header.GetHead(in);
    int pos = 0;
    while(true)
    {
        chunks tmp;
        tmp.GetChunk(in);
        chunks_vector.push_back(tmp);
        mp[tmp.s_type].push_back(pos++);
        if (tmp.s_type == "IEND") break;
    }

    for (auto &i : mp)
    {
        cout << i.first << ": ";
        for (auto& j : i.second)
            cout << j << " ";
        cout << endl;
    }
    int position = mp["IHDR"][0];
    iHDR ihdr; ihdr.GetIHDR(chunks_vector[position].data);
    cout << endl;  ihdr.Print();
}

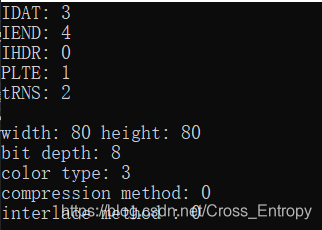

结果如下:
在这里插入图片描述
可以看到该png文件所拥有的数据块以及基本信息。
具体如下：

名称取值
Width80
Height80
Bit depth8位
ColorType3，带有调色板
Compression method0 ，deflate压缩算法
Filter method0，即滤波方法 0
Interlace method0，非隔行扫描

获取调色板信息

添加定义：

struct pLTE
{
    int r, g, b;
    static pLTE* GetPLTE(unsigned char* buffer, iHDR ihdr);
};

进行实现：

pLTE* pLTE::GetPLTE(unsigned char* buffer, iHDR ihdr)
{
    int plte_size = 1 << ihdr.bit_depth;
    pLTE* plte = new pLTE[plte_size];
    int pos = 0;
    for (int i = 0; i < plte_size; ++i)
    {
        for (auto j : { &plte[i].r, &plte[i].g, &plte[i].b })
            *j = buffer[pos++];
    }
    return plte;
}

继续添加如下代码获取调色板信息：

    position = mp["PLTE"][0];
    pLTE* plte = pLTE::GetPLTE(chunks_vector[position].data, ihdr);

对IDAT数据块进行解码

编写位处理工具

由于PNG文件的数据部分并不按照字节为单位而是以bit为单位进行信息的存储，所以需要编写一个为处理工具来对这些数据进行解码。
添加如下声明：

class dataReader
{
private:
    unsigned char* buffer;
    unsigned int bit_pos, byte_pos, pos_in_byte, length;
public:
    dataReader();
    void GetData(ifstream& in);
    void GetData(unsigned char* in_buffer, int length);
    unsigned int ReadNextBit();
    unsigned int ReadBits(int n);
    unsigned int ReadBitsR(int n);
    unsigned int ReadBytes(int n);
    void ReadBytes(unsigned char* buffer, int length);
    void GetPos();
};

进行实现：

#include "header.h"

void dataReader::GetPos()
{
    cout << "Byte pos: " << byte_pos << endl;
    cout << "Bit pos: " << bit_pos << endl;
    cout << "Pos in Byte: " << pos_in_byte << endl;
    cout << "total length: " << length << endl;
}
dataReader::dataReader()
{
    buffer = nullptr;
    bit_pos = byte_pos = pos_in_byte = length = 0;
}

void dataReader::GetData(ifstream& in)
{
    in.seekg(0, ios::end);
    length = in.tellg();
    in.seekg(0, ios::beg);
    buffer = new unsigned char[length];
    in.read((char*)buffer, length);
}
void dataReader::GetData( unsigned char* in_buffer, int length )
{
    buffer = in_buffer;
    this->length = length;
}

unsigned int dataReader::ReadNextBit()
{
    if (byte_pos >= length)
    {
        cout << "Out of boundary." << endl;
        exit(1);
    }
    unsigned int ans = 0;
    ans = (buffer[byte_pos] & (1 << pos_in_byte)) >> pos_in_byte;
    bit_pos++; pos_in_byte++;
    if (pos_in_byte == 8)
    {
        pos_in_byte = 0;
        byte_pos++;
    }
    return ans;
}
unsigned int dataReader::ReadBits(int n)
{
    unsigned int ans = 0;
    for (int i = 0; i < n; ++i)
        ans = ans | (ReadNextBit() << i);
    return ans;
}
unsigned int dataReader::ReadBitsR(int n)
{
    unsigned int ans = 0;
    for (int i = 0; i < n; ++i)
        ans = (ans << 1) | ReadNextBit();
    return ans;
}
unsigned int dataReader::ReadBytes(int n)
{
    unsigned int ans = 0;
    for (int i = 0; i < n; ++i)
    {
        ans = (ans << 8) | ReadBits(8);
    }
    return ans;
}
void dataReader::ReadBytes(unsigned char* buffer, int length)
{
    for (int i = 0; i < length; ++i)
        buffer[i] = this->buffer[byte_pos++];
}

解码zlib和Defalte格式的文件头

为了方便，将二者合在一起进行处理。
添加如下定义：

struct IDATheader
{
    unsigned int CM, CINFO, FCHECK, FDICT, FLEVEL, DICTCHECK, CHECKSUM;
    unsigned int BFINAL, BTYPE;
    unsigned int LEN, NLEN;
    unsigned int NLIT, NDIST, NCLEN;
    void GetZlibHeader(dataReader& data_reader);
    void GetDeflateHeader(dataReader& data_reader);
    void Print();
};

进行实现:

void IDATheader::GetZlibHeader(dataReader &data_reader)
{
    CM = data_reader.ReadBits(4);
    CINFO = data_reader.ReadBits(4);
    FCHECK = data_reader.ReadBits(5);
    FDICT = data_reader.ReadBits(1);
    FLEVEL = data_reader.ReadBits(2);
    if (FDICT) DICTCHECK = data_reader.ReadBytes(4);

}
void IDATheader::GetDeflateHeader(dataReader& data_reader)
{
    BFINAL = data_reader.ReadNextBit();
    BTYPE = data_reader.ReadBits(2);
    switch (BTYPE)
    {
    case 0:
        break;
    case 1:
        break;
    case 2:
    {
        NLIT = data_reader.ReadBits(5) + 257;
        NDIST = data_reader.ReadBits(5) + 1;
        NCLEN = data_reader.ReadBits(4) + 4;
        break;
    }
    }
}
void IDATheader::Print()
{
    cout << "CM: " << CM << endl;
    cout << "CINFO: " << CINFO << endl;
    cout << "FDICT: " << FDICT << endl;
    cout << "BIFNAL: " << BFINAL << endl;
    cout << "BTYPE: " << BTYPE << endl;
    cout << "NLIt: " << NLIT << endl;
    cout << "NDIST: " << NDIST << endl;
    cout << "NCLEN: " << NCLEN << endl;
}

主程序中添加如下代码：

    IDATheader idat_header;
    position = mp["IDAT"][0];
    data_reader.GetData(chunks_vector[position].data, chunks_vector[position].length);
    idat_header.GetZlibHeader(data_reader); idat_header.GetDeflateHeader(data_reader);
    idat_header.Print();

可以获得IDAT数据块的信息：
在这里插入图片描述

构建霍夫曼树

添加声明：

class huffmanTree
{
private:
    int value;
    huffmanTree* left, * right;
public:
    huffmanTree() { value = -1; left = right = nullptr; }
    void Update(int index, unsigned int codes, unsigned int len);
    void Build(vector< unsigned int > codes, vector<unsigned int> length);
    int Decode();
    void Print(string s = "");
};

进行实现：

huffmanTree::huffmanTree() { value = -1; left = right = nullptr; }
void huffmanTree::Update(int index, unsigned int codes, unsigned int len)
{
    if (len == 0)
    {
        value = index;
        left = right = nullptr;
        return;
    }

    if (codes & (1u << (len - 1)))
    {
        if (nullptr == right)
            right = new huffmanTree;
        right->Update(index, codes, len - 1);
    }
    else
    {
        if (nullptr == left)
            left = new huffmanTree;
        left->Update(index, codes, len - 1);
    }
}
void huffmanTree::Build(vector< unsigned int > codes, vector<unsigned int> length)
{
    int len = codes.size();
    for (int i = 0; i < len; ++i) if (length[i]) Update(i, codes[i], length[i]);
}
int huffmanTree::Decode()
{
    if (value != -1) return value;
    auto sym = data_reader.ReadNextBit();
    if (sym) right->Decode();
    else left->Decode();
}
void huffmanTree::Print(string s)
{
    if (value != -1)
    {
        cout << value << "\t" << s << endl;
        return;
    }
    if (nullptr != right)
        right->Print(s + '1');
    if (nullptr != left)
        left->Print(s + '0');
}

获取霍夫曼码表

添加如下函数声明：

vector< unsigned int > GetCodes(vector<unsigned int> length);
vector< unsigned int > DecodeLength(int num);
void GetCodeLengthAphabet(int NCLEN);
void GetOherAlphabet(int NLIT, int NDIST);

定义三个霍夫曼表：

huffmanTree code_len_alphabet, len_alphabet, dis_alphabet;

进行实现：

vector< unsigned int > GetCodes(vector<unsigned int> length)
{
    int len = length.size();
    vector< unsigned int > frequent(len), next_code(len), codes(len);
    for (auto i : length) if (i) frequent[i] ++;
    for (int i = 1; i < len; ++i) next_code[i] = (next_code[i - 1] + frequent[i - 1]) << 1;
    for (int i = 0; i < len; ++i) if (length[i]) codes[i] = next_code[length[i]] ++;
    return codes;
}
vector< unsigned int > DecodeLength(int num)
{
    vector<unsigned int> length;
    while (length.size() != num)
    {
        auto sym = code_len_alphabet.Decode();
        unsigned int t = 0;
        if (sym <= 15) length.push_back(sym);
        else if (sym == 16)
        {
            t = data_reader.ReadBits(2) + 3;
            auto back = length.back();
            while (t--) length.push_back(back);
        }
        else if (sym == 17)
        {
            t = data_reader.ReadBits(3) + 3;
            while (t--) length.push_back(0);
        }
        else
        {
            t = data_reader.ReadBits(7) + 11;
            while (t--) length.push_back(0);
        }
    }
    return length;
}
void GetCodeLengthAphabet( int NCLEN )
{
    vector< int > index = { 16, 17, 18, 0, 8, 7, 9, 6, 10, 5, 11, 4, 12, 3, 13, 2, 14, 1, 15 };
    vector< unsigned int > length(19);
    for (int i = 0; i < NCLEN; ++i)
        length[index[i]] = data_reader.ReadBits(3);
    auto codes = GetCodes(length);
    code_len_alphabet.Build(codes, length);
}
void GetOherAlphabet( int NLIT, int NDIST )
{
    auto len_length = DecodeLength(NLIT);
    auto dis_length = DecodeLength(NDIST);
    auto len_codes = GetCodes(len_length);
    auto dis_codes = GetCodes(dis_length);
    len_alphabet.Build(len_codes, len_length);
    dis_alphabet.Build(dis_codes, dis_length);
}

在主函数中添加如下代码：

    GetCodeLengthAphabet(idat_header.NCLEN);
    GetOherAlphabet(idat_header.NLIT, idat_header.NDIST);
    dis_alphabet.Print();

以distance表为例，可以看到编码后的码表:
在这里插入图片描述

进行解码

添加声明：

vector< unsigned char > DecodeData();

进行实现：

unsigned int len_ex_bits[] = { 0,0,0,0,0,0,0,0,1,1,1,1,2,2,2,2,3,3,3,3,4,4,4,4,5,5,5,5,0 };
unsigned int len_base[] = { 3,4,5,6,7,8,9,10,11,13,15,17,19,23,27,31,35,43,51,59,67,83,99,115,131,163,195,227,0 };
unsigned int dis_ex_bits[] = { 0,0,0,0,1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,11,11,12,12,13,13 };
unsigned int dis_base[] = { 1,2,3,4,5,7,9,13,17,25,33,49,65,97,129,193,257,385,513,769,1025,1537,2049,3073,4097,6145,8193,12289,16385,24577 };
vector< unsigned char > DecodeData()
{
    vector< unsigned char > data;
    while (1)
    {
        auto sym = len_alphabet.Decode();
        if (sym == 256)
            return data;
        else
        {
            if (sym < 256) { data.push_back((unsigned char)sym); continue; }
            sym -= 257;
            auto len = len_base[sym] + data_reader.ReadBits(len_ex_bits[sym]);
            sym = dis_alphabet.Decode();
            auto dis = dis_base[sym] + data_reader.ReadBits(dis_ex_bits[sym]);
            for (int i = 0; i < len; ++i)
            {
                auto t = data[data.size() - dis];
                data.push_back(t);
            }
        }
    }
}

这是就得到了每个像素对应的调色板索引。

格式转换

添加声明：

void png2yuv(const string out_yuv_path, int width, int height, vector<unsigned char> data_buffer, pLTE* plte);

进行实现：

void png2yuv( const string out_yuv_path, int width, int height, vector<unsigned char> data_buffer, pLTE* plte)
{
    unsigned char* y, * u, * v;
    int y_size = width * height;
    int uv_size = y_size / 4;
    y = new unsigned char[y_size];
    u = new unsigned char[uv_size];
    v = new unsigned char[uv_size];
    int buffer_size = data_buffer.size();
    int uv_pos = 0, y_pos = 0;
    for (int i = 0; i < buffer_size; ++i)
    {
        if ((i + 1) % (width + 1) == 0) continue;
        int r, g, b; auto plte_tmp = plte[data_buffer[i]];
        r = plte_tmp.r, g = plte_tmp.g, b = plte_tmp.b;
        int h = i / (width + 1), w = i % (width + 1);
        y[y_pos++] = ((66 * r + 129 * g + 25 * b + 128) >> 8) + 16;
        if ((h & 1) || (w & 1)) continue;
        u[uv_pos] = ((-38 * r - 74 * g + 112 * b + 128) >> 8) + 128;
        v[uv_pos++] = ((112 * r - 94 * g - 18 * b + 128) >> 8) + 128;
    }
    ofstream out(out_yuv_path, ios::binary);
    out.write((char*)y, y_size); out.write((char*)u, uv_size); out.write((char*)v, uv_size);
    out.close();
    for (auto i : { &y, &u, &v }) delete[] * i;
}

在主程序中添加：

    auto data = DecodeData();
    png2yuv(out_path, ihdr.width, ihdr.height, data, plte);

即可完成解码工作。

实验结果

在这里插入图片描述

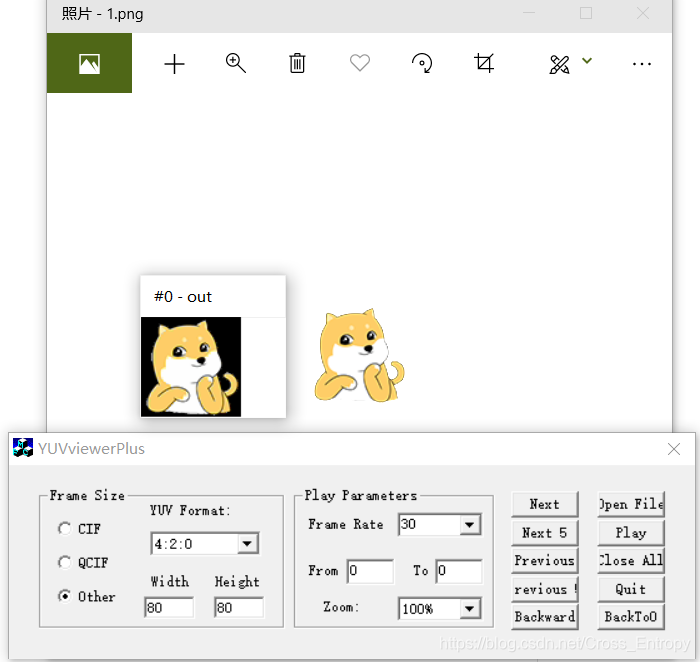

如图，可见转换时成功的。

完整代码

头文件header.h

#pragma once
#include <iostream>
#include <cstdio>
#include <fstream>
#include <vector>
#include <map>
#include <algorithm>
#include <set>
using namespace std;


struct fileHeader
{
    unsigned char head[8];
    void GetHead(ifstream& in) { in.read((char*)head, 8); }
};
struct iHDR
{
    unsigned int width, height;
    unsigned char bit_depth, color_type, compression_method, filter_method, interlace_method;
    void GetIHDR(unsigned char* buffer);
    void Print();
};
struct chunks
{
    unsigned int length;
    char type[4];
    std::string s_type = "";
    unsigned char* data;
    unsigned char CRC[4];
    chunks();
    void GetChunk(ifstream& in);
};
struct pLTE
{
    int r, g, b;
    static pLTE* GetPLTE(unsigned char* buffer, iHDR ihdr);
};
class dataReader
{
private:
    unsigned char* buffer;
    unsigned int bit_pos, byte_pos, pos_in_byte, length;
public:
    dataReader();
    void GetData(ifstream& in);
    void GetData(unsigned char* in_buffer, int length);
    unsigned int ReadNextBit();
    unsigned int ReadBits(int n);
    unsigned int ReadBitsR(int n);
    unsigned int ReadBytes(int n);
    void ReadBytes(unsigned char* buffer, int length);
    void GetPos();
};
struct IDATheader
{
    unsigned int CM, CINFO, FCHECK, FDICT, FLEVEL, DICTCHECK, CHECKSUM;
    unsigned int BFINAL, BTYPE;
    unsigned int LEN, NLEN;
    unsigned int NLIT, NDIST, NCLEN;
    void GetZlibHeader(dataReader& data_reader);
    void GetDeflateHeader(dataReader& data_reader);
    void Print();
};

class huffmanTree
{
private:
    int value;
    huffmanTree* left, * right;
public:
    huffmanTree();
    void Update(int index, unsigned int codes, unsigned int len);
    void Build(vector< unsigned int > codes, vector<unsigned int> length);
    int Decode();
    void Print(string s = "");
};

vector< unsigned int > GetCodes(vector<unsigned int> length);
vector< unsigned int > DecodeLength(int num);
void GetCodeLengthAphabet(int NCLEN);
void GetOherAlphabet(int NLIT, int NDIST);

vector< unsigned char > DecodeData();

void png2yuv(const string out_yuv_path, int width, int height, vector<unsigned char> data_buffer, pLTE* plte);

data_reader.cpp

#include "header.h"

void dataReader::GetPos()
{
    cout << "Byte pos: " << byte_pos << endl;
    cout << "Bit pos: " << bit_pos << endl;
    cout << "Pos in Byte: " << pos_in_byte << endl;
    cout << "total length: " << length << endl;
}
dataReader::dataReader()
{
    buffer = nullptr;
    bit_pos = byte_pos = pos_in_byte = length = 0;
}

void dataReader::GetData(ifstream& in)
{
    in.seekg(0, ios::end);
    length = in.tellg();
    in.seekg(0, ios::beg);
    buffer = new unsigned char[length];
    in.read((char*)buffer, length);
}
void dataReader::GetData( unsigned char* in_buffer, int length )
{
    buffer = in_buffer;
    this->length = length;
}

unsigned int dataReader::ReadNextBit()
{
    if (byte_pos >= length)
    {
        cout << "Out of boundary." << endl;
        exit(1);
    }
    unsigned int ans = 0;
    ans = (buffer[byte_pos] & (1 << pos_in_byte)) >> pos_in_byte;
    bit_pos++; pos_in_byte++;
    if (pos_in_byte == 8)
    {
        pos_in_byte = 0;
        byte_pos++;
    }
    return ans;
}
unsigned int dataReader::ReadBits(int n)
{
    unsigned int ans = 0;
    for (int i = 0; i < n; ++i)
        ans = ans | (ReadNextBit() << i);
    return ans;
}
unsigned int dataReader::ReadBitsR(int n)
{
    unsigned int ans = 0;
    for (int i = 0; i < n; ++i)
        ans = (ans << 1) | ReadNextBit();
    return ans;
}
unsigned int dataReader::ReadBytes(int n)
{
    unsigned int ans = 0;
    for (int i = 0; i < n; ++i)
    {
        ans = (ans << 8) | ReadBits(8);
    }
    return ans;
}
void dataReader::ReadBytes(unsigned char* buffer, int length)
{
    for (int i = 0; i < length; ++i)
        buffer[i] = this->buffer[byte_pos++];
}

png_tools.cpp

#include "header.h"

void iHDR::Print()
{
    cout << "width: " << (int)width << " height: " << height << endl;
    cout << "bit depth: " << (int)bit_depth << endl;
    cout << "color type: " << (int)color_type << endl;
    cout << "compression method: " << (int)compression_method << endl;
    cout << "interlace method : " << (int)interlace_method << endl;
}
void iHDR::GetIHDR(unsigned char* buffer)
{
    for (int i = 0; i < 4; ++i) { width = (width << 8) + buffer[i]; }
    for (int i = 0; i < 4; ++i) { height = (height << 8) + buffer[i + 4]; }
    int pos = 8;
    for (auto i : { &bit_depth, &color_type, &compression_method, &filter_method, &interlace_method })
        *i = buffer[pos++];
}
chunks::chunks()
{
    length = 0;
    memset(type, 0, sizeof(type));
    data = nullptr;
    s_type = "";
    memset(CRC, 0, sizeof(CRC));
}
void chunks::GetChunk(ifstream& in)
{
    unsigned char* buffer = new unsigned char[4];
    in.read((char*)buffer, 4);
    for (int i = 0; i < 4; ++i) { length = (length << 8) + buffer[i]; }
    in.read(type, 4);
    if (length != 0)
    {
        data = new unsigned char[length];
        in.read((char*)data, length);
    }
    in.read((char*)CRC, 4);
    for (auto i : type) s_type += (int)i;
    return;
}
pLTE* pLTE::GetPLTE(unsigned char* buffer, iHDR ihdr)
{
    int plte_size = 1 << ihdr.bit_depth;
    pLTE* plte = new pLTE[plte_size];
    int pos = 0;
    for (int i = 0; i < plte_size; ++i)
    {
        for (auto j : { &plte[i].r, &plte[i].g, &plte[i].b })
            *j = buffer[pos++];
    }
    return plte;
}

void png2yuv( const string out_yuv_path, int width, int height, vector<unsigned char> data_buffer, pLTE* plte)
{
    unsigned char* y, * u, * v;
    int y_size = width * height;
    int uv_size = y_size / 4;
    y = new unsigned char[y_size];
    u = new unsigned char[uv_size];
    v = new unsigned char[uv_size];
    int buffer_size = data_buffer.size();
    int uv_pos = 0, y_pos = 0;
    for (int i = 0; i < buffer_size; ++i)
    {
        if ((i + 1) % (width + 1) == 0) continue;
        int r, g, b; auto plte_tmp = plte[data_buffer[i]];
        r = plte_tmp.r, g = plte_tmp.g, b = plte_tmp.b;
        int h = i / (width + 1), w = i % (width + 1);
        y[y_pos++] = ((66 * r + 129 * g + 25 * b + 128) >> 8) + 16;
        if ((h & 1) || (w & 1)) continue;
        u[uv_pos] = ((-38 * r - 74 * g + 112 * b + 128) >> 8) + 128;
        v[uv_pos++] = ((112 * r - 94 * g - 18 * b + 128) >> 8) + 128;
    }
    ofstream out(out_yuv_path, ios::binary);
    out.write((char*)y, y_size); out.write((char*)u, uv_size); out.write((char*)v, uv_size);
    out.close();
    for (auto i : { &y, &u, &v }) delete[] * i;
}

IDAT_tools.cpp

#include "header.h"
extern dataReader data_reader;
huffmanTree code_len_alphabet, len_alphabet, dis_alphabet;
void IDATheader::GetZlibHeader(dataReader &data_reader)
{
    CM = data_reader.ReadBits(4);
    CINFO = data_reader.ReadBits(4);
    FCHECK = data_reader.ReadBits(5);
    FDICT = data_reader.ReadBits(1);
    FLEVEL = data_reader.ReadBits(2);
    if (FDICT) DICTCHECK = data_reader.ReadBytes(4);

}
void IDATheader::GetDeflateHeader(dataReader& data_reader)
{
    BFINAL = data_reader.ReadNextBit();
    BTYPE = data_reader.ReadBits(2);
    switch (BTYPE)
    {
    case 0:
        break;
    case 1:
        break;
    case 2:
    {
        NLIT = data_reader.ReadBits(5) + 257;
        NDIST = data_reader.ReadBits(5) + 1;
        NCLEN = data_reader.ReadBits(4) + 4;
        break;
    }
    }
}
void IDATheader::Print()
{
    cout << "CM: " << CM << endl;
    cout << "CINFO: " << CINFO << endl;
    cout << "FDICT: " << FDICT << endl;
    cout << "BIFNAL: " << BFINAL << endl;
    cout << "BTYPE: " << BTYPE << endl;
    cout << "NLIt: " << NLIT << endl;
    cout << "NDIST: " << NDIST << endl;
    cout << "NCLEN: " << NCLEN << endl;
}


huffmanTree::huffmanTree() { value = -1; left = right = nullptr; }
void huffmanTree::Update(int index, unsigned int codes, unsigned int len)
{
    if (len == 0)
    {
        value = index;
        left = right = nullptr;
        return;
    }

    if (codes & (1u << (len - 1)))
    {
        if (nullptr == right)
            right = new huffmanTree;
        right->Update(index, codes, len - 1);
    }
    else
    {
        if (nullptr == left)
            left = new huffmanTree;
        left->Update(index, codes, len - 1);
    }
}
void huffmanTree::Build(vector< unsigned int > codes, vector<unsigned int> length)
{
    int len = codes.size();
    for (int i = 0; i < len; ++i) if (length[i]) Update(i, codes[i], length[i]);
}
int huffmanTree::Decode()
{
    if (value != -1) return value;
    auto sym = data_reader.ReadNextBit();
    if (sym) right->Decode();
    else left->Decode();
}
void huffmanTree::Print(string s)
{
    if (value != -1)
    {
        cout << value << "\t" << s << endl;
        return;
    }
    if (nullptr != right)
        right->Print(s + '1');
    if (nullptr != left)
        left->Print(s + '0');
}

vector< unsigned int > GetCodes(vector<unsigned int> length)
{
    int len = length.size();
    vector< unsigned int > frequent(len), next_code(len), codes(len);
    for (auto i : length) if (i) frequent[i] ++;
    for (int i = 1; i < len; ++i) next_code[i] = (next_code[i - 1] + frequent[i - 1]) << 1;
    for (int i = 0; i < len; ++i) if (length[i]) codes[i] = next_code[length[i]] ++;
    return codes;
}
vector< unsigned int > DecodeLength(int num)
{
    vector<unsigned int> length;
    while (length.size() != num)
    {
        auto sym = code_len_alphabet.Decode();
        unsigned int t = 0;
        if (sym <= 15) length.push_back(sym);
        else if (sym == 16)
        {
            t = data_reader.ReadBits(2) + 3;
            auto back = length.back();
            while (t--) length.push_back(back);
        }
        else if (sym == 17)
        {
            t = data_reader.ReadBits(3) + 3;
            while (t--) length.push_back(0);
        }
        else
        {
            t = data_reader.ReadBits(7) + 11;
            while (t--) length.push_back(0);
        }
    }
    return length;
}
void GetCodeLengthAphabet( int NCLEN )
{
    vector< int > index = { 16, 17, 18, 0, 8, 7, 9, 6, 10, 5, 11, 4, 12, 3, 13, 2, 14, 1, 15 };
    vector< unsigned int > length(19);
    for (int i = 0; i < NCLEN; ++i)
        length[index[i]] = data_reader.ReadBits(3);
    auto codes = GetCodes(length);
    code_len_alphabet.Build(codes, length);
}
void GetOherAlphabet( int NLIT, int NDIST )
{
    auto len_length = DecodeLength(NLIT);
    auto dis_length = DecodeLength(NDIST);
    auto len_codes = GetCodes(len_length);
    auto dis_codes = GetCodes(dis_length);
    len_alphabet.Build(len_codes, len_length);
    dis_alphabet.Build(dis_codes, dis_length);
}

unsigned int len_ex_bits[] = { 0,0,0,0,0,0,0,0,1,1,1,1,2,2,2,2,3,3,3,3,4,4,4,4,5,5,5,5,0 };
unsigned int len_base[] = { 3,4,5,6,7,8,9,10,11,13,15,17,19,23,27,31,35,43,51,59,67,83,99,115,131,163,195,227,0 };
unsigned int dis_ex_bits[] = { 0,0,0,0,1,1,2,2,3,3,4,4,5,5,6,6,7,7,8,8,9,9,10,10,11,11,12,12,13,13 };
unsigned int dis_base[] = { 1,2,3,4,5,7,9,13,17,25,33,49,65,97,129,193,257,385,513,769,1025,1537,2049,3073,4097,6145,8193,12289,16385,24577 };
vector< unsigned char > DecodeData()
{
    vector< unsigned char > data;
    while (1)
    {
        auto sym = len_alphabet.Decode();
        if (sym == 256)
            return data;
        else
        {
            if (sym < 256) { data.push_back((unsigned char)sym); continue; }
            sym -= 257;
            auto len = len_base[sym] + data_reader.ReadBits(len_ex_bits[sym]);
            sym = dis_alphabet.Decode();
            auto dis = dis_base[sym] + data_reader.ReadBits(dis_ex_bits[sym]);
            for (int i = 0; i < len; ++i)
            {
                auto t = data[data.size() - dis];
                data.push_back(t);
            }
        }
    }
}

main.cpp

#include "header.h"

const string in_path = "1.png";
const string out_path = "out.yuv";
map< string, vector<int> > mp;
vector<chunks> chunks_vector;
dataReader data_reader;
extern huffmanTree code_len_alphabet, len_alphabet, dis_alphabet;

int main()
{
    ifstream in(in_path, ios::binary);
    if (!in.is_open())
    {
        cout << in_path << " open failed." << endl;
        exit(1);
    }
    fileHeader file_header;
    file_header.GetHead(in);
    int pos = 0;
    while (true)
    {
        chunks tmp;
        tmp.GetChunk(in);
        chunks_vector.push_back(tmp);
        mp[tmp.s_type].push_back(pos++);
        if (tmp.s_type == "IEND") break;
    }

    for (auto& i : mp)
    {
        cout << i.first << ": ";
        for (auto& j : i.second)
            cout << j << " ";
        cout << endl;
    }
    int position = mp["IHDR"][0];
    iHDR ihdr; ihdr.GetIHDR(chunks_vector[position].data);
    cout << endl;  ihdr.Print();

    position = mp["PLTE"][0];
    pLTE* plte = pLTE::GetPLTE(chunks_vector[position].data, ihdr);

    IDATheader idat_header;
    position = mp["IDAT"][0];
    data_reader.GetData(chunks_vector[position].data, chunks_vector[position].length);
    idat_header.GetZlibHeader(data_reader); idat_header.GetDeflateHeader(data_reader);
    idat_header.Print();

    GetCodeLengthAphabet(idat_header.NCLEN);
    GetOherAlphabet(idat_header.NLIT, idat_header.NDIST);
    dis_alphabet.Print();
    auto data = DecodeData();
    png2yuv(out_path, ihdr.width, ihdr.height, data, plte);
}
Python图像处理【3】Python图像处理库应用
qq_30167691的博客
12-01 10万+
和多数编程任务类似，在编写图像处理应用程序时，我们无需重复“造轮子”的过程，利用 Python 强大且丰富的第三方库能够大量缩减应用程序的编写时间，达到事半功倍的效果。在本节中，我们将学习使用不同的 Python 库实现一些常见的图像处理、变换和可视化技术，这些技术通常可以用作更复杂的图像处理任务的基本预处理/后处理步骤。
我的音视频技术路线
yanglusheng的专栏
03-30 3124
我的音视频技术路线 文章目录我的音视频技术路线音视频基础技术栈1. 关于音视频数据采集(Android)1.1 Android Camera API1.2 Camera HAL1.3 CameraX1.4 Camera专业视频(进阶)2. 关于图形渲染2.2 OpenGL/GLES2.3 音视频渲染引擎(扒抖音)3. 关于音视频图形部分3.1 滤镜篇3.2 美颜篇3.3 转场篇3.4 特效篇3.5...
将png格式图片转换成YUV格式，C++
09-11
能将png格式图片转换成YUV格式。 C++实现，并且自带可运行实例。
png文件转为yuv文件
Cross_Entropy的博客
03-31 2296
前言 由于png文件解码较为复杂，所以本次仅针对部分形式的图像，鲁棒性较差，仅作实验使用。 关于本次实验使用的文件： 实验过程 获取文件信息 #include <iostream> #include <fstream> #include <vector> #include <map> #include <set> using names...
PNG文件转YUV格式并实现播放
weixin_45671402的博客
04-08 1827
文章目录PNG文件转YUVPNG文件格式YUV文件格式什么是YUV格式文件？YUV采样YUV 4:2:0RGB转YUV实验过程获取PNG文件信息获取IHDR信息获取PLTE调色板信息获取IDAT信息对IDAT数据块进行解压缩将解压缩的IDAT数据进行转换多个YUV合成 PNG文件转YUV 前言：本次实验选用了PNG转YUV，做的过程十分煎熬…主要原因是PNG的IDAT数据块的解码部分没有自己手写轮子，直接调用的Python的zlib库，所以每个像素解压缩出来的数据分布完全没有概念，而且第一次选的图片还是带α
PNG文件转为YUV文件的C实现
pzp49666的博客
04-12 957
代码步骤核心思路具体实现首部处理数据块拆解子函数调用数据块分析IHDR文件头数据块 核心思路 核心思路是找到图像数据部分，根据调色板，找到数据部分后解码，处理为rgb后利用先前的rgb2yuv处理。 具体实现 首部处理 png文件开头8个字节为固定字节。目的是区分于其他文件，表明本文件是，其中第一个字节0x89超出了ASCII字符的范围，这是为了避免某些软件将PNG文件当做文本文件来处理。 ...
批量png图片数据转yuv格式数据并保存
Christo的博客
10-31 773
批量png图片数据转yuv格式数据并保存
集成基础图像处理算法库演示系统
03-05
使用这样的系统，开发者可以更专注于算法的创新和优化，而非重复造轮子，提高了工作效率。 总之，“集成基础图像处理算法库演示系统”是开发和研究图像处理技术的重要工具，它集成了各种基础算法，方便了研究人员和...
最全面鸿蒙系统开发的相关资料收录
Wscats
07-31 4909
开发 本示例基于 OpenHarmony 下的 JavaScript UI 框架，进行项目目录解读，JS FA、常用和自定义组件、用户交互、JS 动画的实现，通过本示例可以基本了解和学习到 JavaScript UI 的开发模式。 本项目是基于 OpenHarmony 项目而不是 HarmonyOS 项目，请注意运行环境。 请参考 OpenHarmony 项目配置方法 进行项目配置和运行。 如果你不熟悉 OpenHarmony 的 JS 开发，请参考该项目的 开发讲解。 示例 下载 awesome-har
一些实用的学生向脚本(补)
yuanfangyoushan的博客
05-12 7585
重定向优化百度搜狗谷歌必应搜 // ==UserScript== // @name AC-baidu:重定向优化百度搜狗谷歌必应搜索_favicon_双列 // @name:en AC-baidu:google_sogou_bing_RedirectRemove_favicon_adaway_TwoLine // @name:zh AC-baidu:重定向优化百度搜狗谷歌必应搜索_favicon_双列 // @name:zh-CN AC-bai
Jpg图片和Bmp图片转为YUV数据
04-21
可以将BMP文件和JPG文件转换为YUV数据，可以将YUV数据写成文件，也可以直接在内存中进行操作
YUYV或YUV422图片格式转png、jpg、jpeg、bmp的小工具
05-02
Qt开发的基于OpenCV的图片格式转换工具。我在用鱼眼摄像头拍照后想要预览或者处理时遇到了困难：因为摄像头拍照后的格式是YUV格式的（具体而言YUYV或YUV422）无法预览，网上虽然下到了能读的工具，但是无法保存。本工具提供了批量读入和批量转换的功能，同时提供了批量预览功能，希望对大家有帮助！
使用FFmpeg将RGB格式图片或视频转换为YUV格式
07-10
VC2008项目打包，使用FFmpeg版本为2.2.2 win32bit /* *将RGB转换为YUV420P * *码术 codemanship *http://blog.youkuaiyun.com/codemanship *微信公众号: codemanship *本程序实现了RGB像素数据转换为YUV像素数据 *是最简单的FFmpeg视频编码方面的教程。 *通过学习本例子可以了解FFmpeg的图片格式转换的过程。 */
Bmp转YUV工具
12-03
可以把bmp转成ＹＵＶ格式的文件，以实现对图片操作处理。
java把png改为yuv图像_PNG文件转为YUV文件的C实现
weixin_28826545的博客
02-28 423
代码步骤核心思路具体实现首部处理数据块拆解子函数调用数据块分析IHDR文件头数据块分析IHDR数据块IDAT图像数据块解压数据rgb文件转换为yuv文件核心思路核心思路是找到图像数据部分，根据调色板，找到数据部分后解码，处理为rgb后利用先前的rgb2yuv子函数去处理。具体实现首部处理png文件开头8个字节为固定字节。目的是区分于其他文件，表明本文件是，其中第一个字节0x89超出了ASCII字符...
数据压缩学习实验（三）PNG文件读取及转换至YUV色彩空间的C++实现
AaronXueNF的博客
04-10 836
实验目的 学习PNG文件格式，为随后学习图像的压缩做准备。 编程读取PNG文件中的外围解析，使用lodepng库解码被压缩的图像内容。 将文件内容转换至YUV色彩空间。 实验原理 PNG文件格式初步了解：数据压缩学习笔记（二）以PNG为例探讨设计思想和理解 YUV色彩空间的转换：数据压缩学习实验（一）RGB与YUV色彩空间转换的C++实现及误差分析 使用lodepng库对压缩图像进行解码：L...
png图像保存为yuv格式以及yuv格式转为png
Christo的博客
10-25 2446
png图像保存为yuv格式以及yuv格式转为png
FFMPEG转换png,yuv,avi,mp4
weixin_46406816的博客
07-12 2806
ffmpeg转换png,yuv,mp4,avi
opencv把jpg图片转化成yuv数据_opencv把Mat转换成yuv
cumtchw
06-10 3246
1 sprintf(imagepath, "/mnt/md/test/mtcnn/images/%d.jpg", i); 4 printf("imagepath:%s\n", imagepath); 5 cv::Mat cv_img = cv::imread(imagepath, 3); 6 if (cv_img.empty()) 7 { 8 fprin...
评论
添加红包

请填写红包祝福语或标题

个

红包个数最小为10个

元

红包金额最低5元

当前余额3.43元 前往充值 >
需支付：10.00元
成就一亿技术人!
领取后你会自动成为博主和红包主的粉丝 规则
hope_wisdom
发出的红包
实付元
使用余额支付
点击重新获取
扫码支付
钱包余额 0

抵扣说明：

1.余额是钱包充值的虚拟货币，按照1:1的比例进行支付金额的抵扣。
2.余额无法直接购买下载，可以购买VIP、付费专栏及课程。

余额充值
