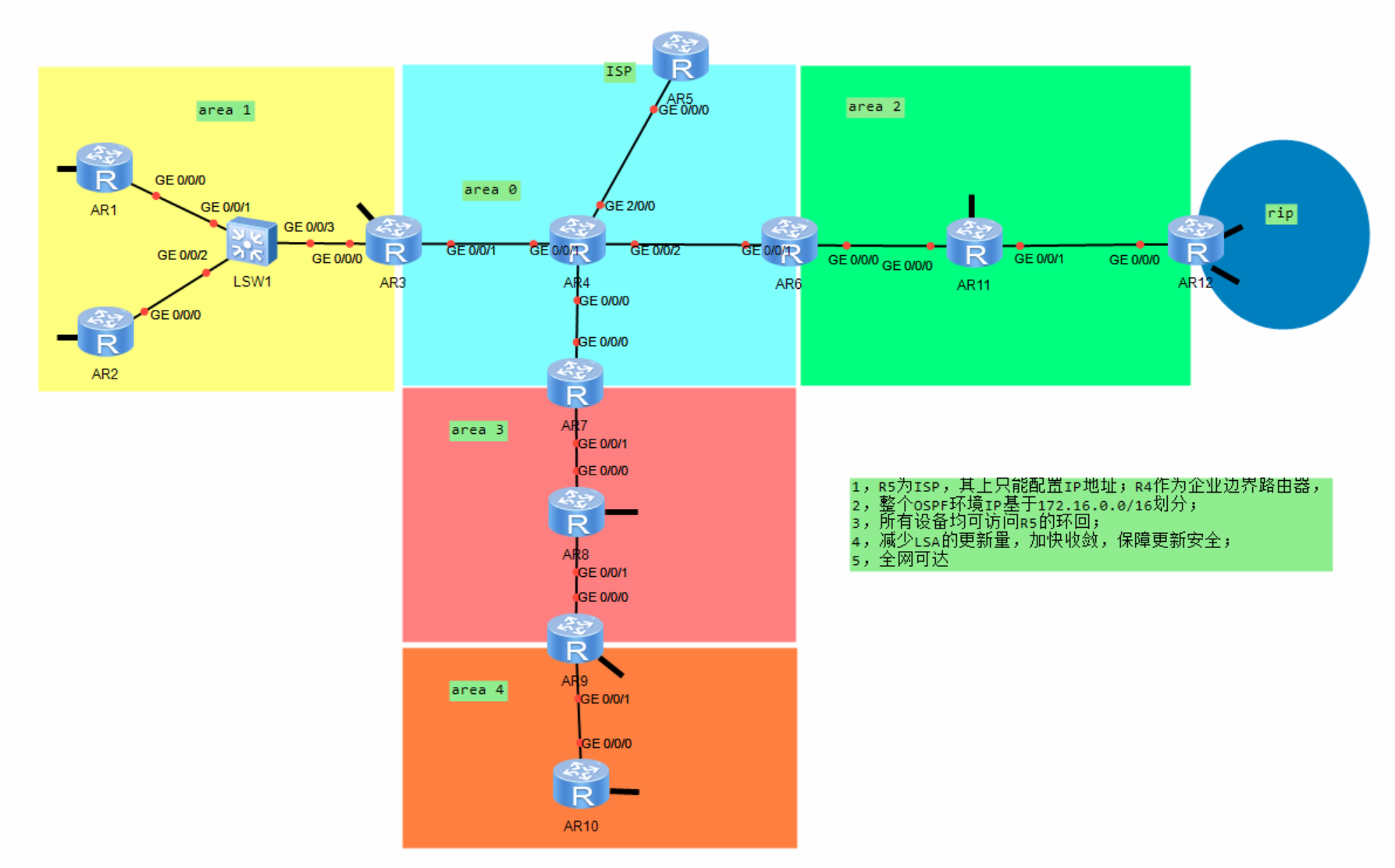

一、任务目标

1、R5为ISP，其上只能配置IP地址；R4作为企业边界路由器

2、整个OSPF环境IP基于172.16.0.0/16划分；

3、所有设备均可以访问R5的环回

4、减少LSA的更新量，加快收敛，保障更新安全；

5、全网可达

二、配置ip地址

PC1：

IP：192.168.1.254

子网掩码：255.255.255.0

网关：192.168.1.1

PC2：

IP：192.168.2.254

子网掩码：255.255.255.0

网关：192.168.2.2

PC3：

IP：192.168.3.254

子网掩码：255.255.255.0

网关：192.168.3.3

PC4：

IP：192.168.4.254

子网掩码：255.255.255.0

网关：192.168.4.4

R1:

[Huawei]sys AR1
[R1]int g0/0/0
[R1-GigabitEthernet0/0/0]int s 4/0/0
[R1-Serial4/0/0]ip address 15.1.1.1 24

R2：

[Huawei]sys R2
[R2]int g0/0/0
[R2-GigabitEthernet0/0/0]ip address 192.168.2.2 24
[R2-GigabitEthernet0/0/0]int s 4/0/0
[R2-Serial4/0/0]ip address 25.1.1.2 24

R3:

[Huawei]sys R3
[R3]int g0/0/0
[R3-GigabitEthernet0/0/0]ip ad 192.168.3.3 24
[R3-GigabitEthernet0/0/0]int s 4/0/0
[R3-Serial4/0/0]ip address 35.1.1.3 24

R4:

[Huawei]sys R4
[R4]int g 0/0/0
[R4-GigabitEthernet0/0/0]ip ad 192.168.4.4 24
[R4-GigabitEthernet0/0/0]int g 0/0/1
[R4-GigabitEthernet0/0/1]ip ad 45.1.1.4 24

R5:

[Huawei]sys R5
[R5]int s 4/0/1
[R5-Serial4/0/1]ip address 15.1.1.5 24
[R5-Serial4/0/1]int s 4/0/0
[R5-Serial4/0/0]ip address 35.1.1.5 24
[R5-Serial4/0/0]int s 3/0/1
[R5-Serial3/0/1]ip address 25.1.1.5 24
[R5]int g 0/0/0
[R5-GigabitEthernet0/0/0]ip address 45.1.1.5 24
[R5]int LoopBack 0
[R5-LoopBack0]ip address 5.5.5.5 24

三、全网可达

R1：

[R1]ip route-static 0.0.0.0 0 15.1.1.5

R2：

[R2]ip route-static 0.0.0.0 0 25.1.1.5
R3：

[R3]ip route-static 0.0.0.0 0 35.1.1.5
R4：

[R4]ip route-static 0.0.0.0 0 45.1.1.5

四、配置PAP，CHAP，HDLC，MGRE，GRE，RIP，NAT

4.1配置PAP

R5：

[R5]aaa
[R5-aaa]local-user ABC password cipher 12345
Info: Add a new user.
[R5-aaa]local-user ABC service-type ppp
[R5-aaa]int s 4/0/1
[R5-Serial4/0/1]ppp authentication-mode pap

R1：

[R1]int s 4/0/0
[R1-Serial4/0/0]ppp pap local-user ABC password cipher 12345

4.2配置CHAP

R5：

[R5]aaa
[R5-aaa]local-user abc password cipher 123456
Info: Add a new user.
[R5-aaa]local-user abc service-type ppp
[R5]int s 3/0/1
[R5-Serial3/0/1]ppp authentication-mode chap

R2：

[R2]int s 4/0/0
[R2-Serial4/0/0]ppp chap user abc
[R2-Serial4/0/0]ppp chap password cipher 123456

4.3配置HDLC

R3：

[R3-Serial4/0/0]link-protocol hdlc
Y
R5：
[R5-Serial4/0/0]link-protocol hdlc
Y

4.4配置MGRE、GRE

R1：

[R1]int Tunnel 0/0/0
[R1-Tunnel0/0/0]ip address 20.1.1.1 24
[R1-Tunnel0/0/0]tunnel-protocol gre p2mp
[R1-Tunnel0/0/0]source 15.1.1.1
[R1-Tunnel0/0/0]nhrp network-id 100
[R1]int Tunnel 0/0/1
[R1-Tunnel0/0/1]ip address 10.1.1.1 24
[R1-Tunnel0/0/1]tunnel-protocol gre
[R1-Tunnel0/0/1]source 15.1.1.1
[R1-Tunnel0/0/1]destination 45.1.1.4

R2：

[R2]int Tunnel 0/0/0
[R2-Tunnel0/0/0]ip address 20.1.1.2 24
[R2-Tunnel0/0/0]tunnel-protocol gre p2mp
[R2-Tunnel0/0/0]source Serial 4/0/0
[R2-Tunnel0/0/0]nhrp network-id 100
[R2-Tunnel0/0/0]nhrp entry 20.1.1.1 15.1.1.1 register

R3：

[R3]int Tunnel 0/0/0
[R3-Tunnel0/0/0]ip address 20.1.1.3 24
[R3-Tunnel0/0/0]tunnel-protocol gre p2mp
[R3-Tunnel0/0/0]source Serial 4/0/0
[R3-Tunnel0/0/0]nhrp network-id 100
[R3-Tunnel0/0/0]nhrp entry 20.1.1.1 15.1.1.1 register

R4：

[R4]int t 0/0/1
[R4-Tunnel0/0/1]ip address 10.1.1.4 24
[R4-Tunnel0/0/1]tunnel-protocol gre
[R4-Tunnel0/0/1]source 45.1.1.4
[R4-Tunnel0/0/1]destination 15.1.1.1

4.5配置RIP协议

R1：

[R1]rip 1
[R1-rip-1]version 2
[R1-rip-1]undo summary
[R1-rip-1]network 192.168.1.0
[R1-rip-1]network 20.0.0.0
[R1-rip-1]network 10.0.0.0
[R1-Tunnel0/0/1]undo rip split-horizon

R2：

[R2]rip 1
[R2-rip-1]version 2
[R2-rip-1]undo summary
[R2-rip-1]network 192.168.2.0
[R2-rip-1]network 20.0.0.2
[R2-Tunnel0/0/1]undo rip split-horizon

R3：

[R3]rip 1
[R3-rip-1]version 2
[R3-rip-1]undo summary
[R3-rip-1]network 192.168.3.0
[R3-rip-1]network 20.0.0.0
[R3-Tunnel0/0/1]undo rip split-horizon

R4：

[R4]rip 1
[R4-rip-1]version 2
[R4-rip-1]undo summary
[R4-rip-1]network 192.168.4.0
[R4-rip-1]network 10.0.0.0
[R4-Tunnel0/0/1]undo rip split-horizon

4.6配置NAT

R1：
[R1]acl number 2000
[R1-acl-basic-2000]rule 5 permit source 192.168.1.0 0.0.0.255
[R1-Serial4/0/0]nat outbound 2000

R2：

[R2]acl number 2000
[R2-acl-basic-2000]rule 5 permit source 192.168.2.0 0.0.0.255
[R2-Serial4/0/0]nat outbound 2000

R3：

[R3]acl number 2000
[R3-acl-basic-2000]rule 5 permit source 192.168.3.0 0.0.0.255
[R3-Serial4/0/0]nat outbound 2000

R4：

[R4]acl number 2000
[R4-acl-basic-2000]rule 5 permit source 192.168.4.0 0.0.0.255
[R4-GigabitEthernet0/0/1]nat outbound 2000
