TOGAF简介（六）

（三）架构内容框架 （Architecture Content Framework）(续二)

第3 - 架构交付(Architecture Deliverables)

TOGAF现提供共二十一类交付文档的定义、作用、内容及格式样板，可下载参考

架构交付文档	ADM阶段输出	ADM阶段输入
架构构建模块 (Architecture Building Blocks）	F, H	A, B, C, D, E
架构合约 (Architecture Contract)	-	-
架构定义文档 (Architecture Definition Document)	B, C, D, E, F	C, D, E, F, G, H
架构原则 (Architecture Principles)	Preliminary, A, B, C, D	Preliminary, A, B, C, D, E, F, G, H
架构文库 (Architecture Repository)	Preliminary	Preliminary, A, B, C, D, E, F, G, H, Requirements Management
架构需求定义 (Architecture Requirements Specification)	B, C, D, E, F, Requirements Management	C, D, Requirements Management
架构路线图 (Architecture Roadmap)	B, C, D, E, F	B, C, D, E, F
架构愿景 (Architecture Vision)	A, E	B, C, D, E, F, G, H, Requirements Management
业务原则、目标和驱动力 (Business Principles, Business Goals, and Business Drivers)	Preliminary, A, B	A, B
能力评估 (Capability Assessment)	A, E	B, C, D, E, F
改动申请 (Change Request)	F, G, H	-
沟通计划 (Communications Plan)	A	B, C, D, E, F
依从性评估 (Compliance Assessment)	G	H
实现和升级计划 (Implementation and Migration Plan)	E, F	F
实现监管 (Implementation Governance Model)	F	G, H
企业架构组织模型 (Organizational Model for Enterprise Architecture)	Preliminary	Preliminary, A, B, C, D, E, F, G, H, Requirements Management
架构审议申请 (Request for Architecture Work)	Preliminary, F, H	A, G
需求影响评估 (Requirements Impact Assessment)	Requirements Management	Requirements Management
解决方案构建模块 (Solution Building Blocks)	G	A, B, C, D, E, F, G
架构审议报告 (Statement of Architecture Work)	A, B, C, D, E, F, G, H	B, C, D, E, F, G, H, Requirements Management
适应架构框架 (Tailored Architecture Framework)	Preliminary, A	Preliminary, A, B, C, D, E, F, G, H, Requirements Management



第4 - 构建模块 (Building Blocks)

构建模块特性

• 分析和封装企业业务功能，

• 并对应于内容元模型(Content Metamodel)，

• 具有范围、边界和独立功能，

• 可接口其他模块，

• 可由其他模块组成，或加入其他模块构成，

• 目的是分解和抽象化功能，以利于未来架构的重用，

• 模块为两类，首类为架构构建模块 (Architecture Building Blocks)，次类为解决方案构建模块 (Solution Building Blocks)，

• 模块的形成在ADM各阶段逐步形成、发展和完善。

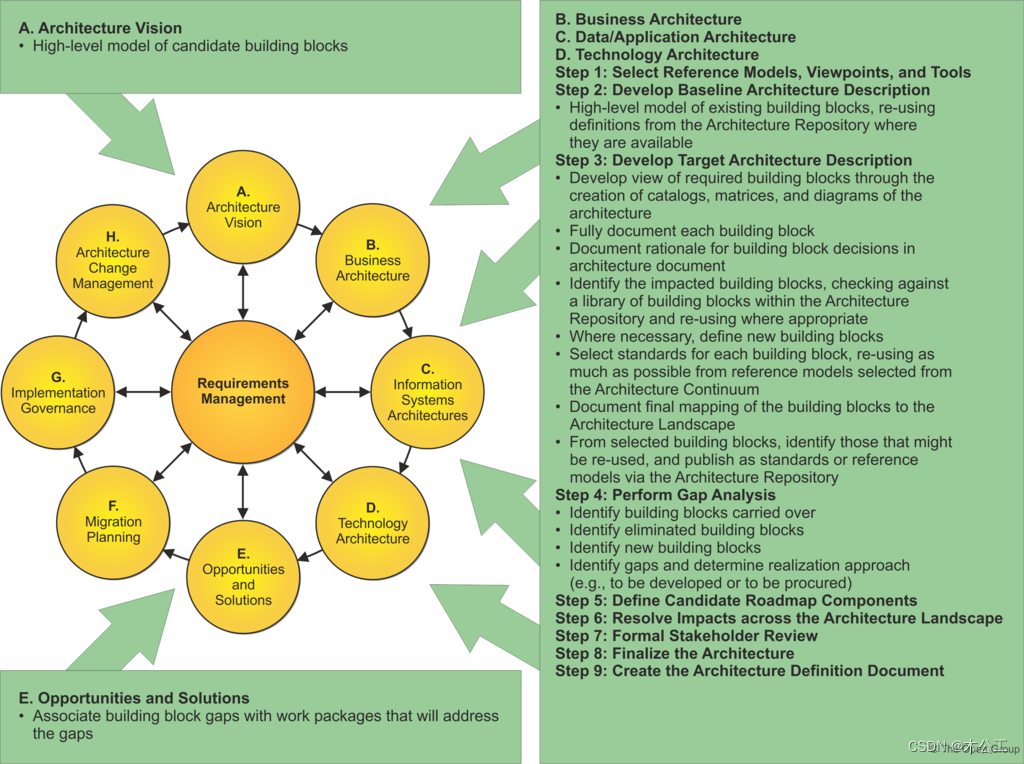

 ADM各阶段和构建模块之关系和作用

下期再续。
