Wallys /MediaTek MT7915 DR7915/Wi-Fi 6 Wave 1+ chipset/support openwrt.

WiFi6 MiniPCIe Module 2T2R

2×2.4GHz 2x5GHz MT7915 MT7975

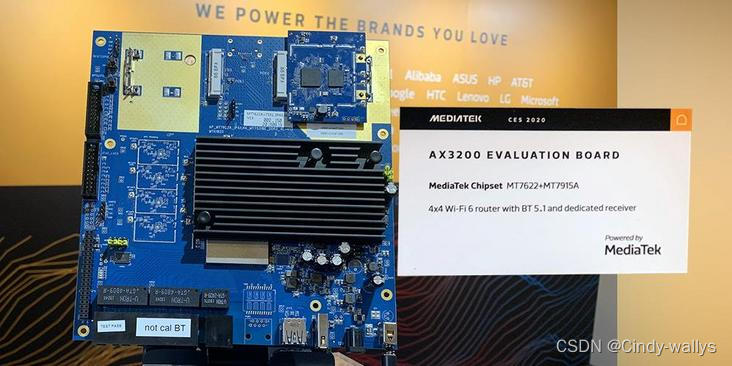

At CES 2020, MediaTek is showcasing its latest MT7915 Wi-Fi 6 & Bluetooth 5 combo chipset designed for high-performance AP routers, repeaters and mesh networking equipment. Suitable for use at home, in commercial or enterprise applications, the MT7915 chipset family (MT7915A/D) is already available for product development, with first devices expected to launch during Q1 2020.

MT7915 Industry Firsts

The MediaTek MT7915 is the world’s first single chip Wi-Fi 6 Wave 1+ and Bluetooth 5 combo solution. The chip integrates a dedicated RF receiver with ‘Zero-Wait DFS channel monitoring’ – an industry first – that brings faster, highly reliable and easier-to-use connectivity.

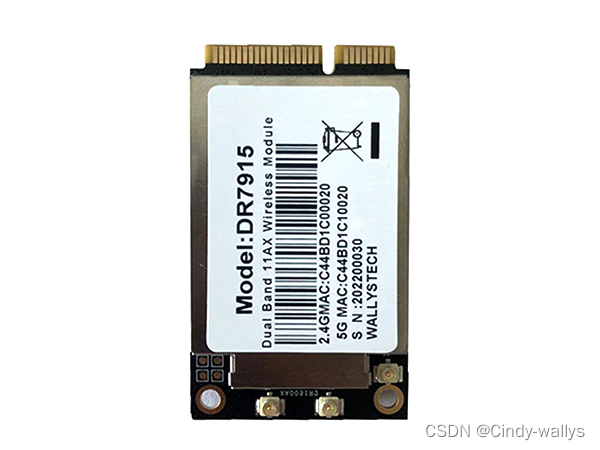

DR7915



The DR7915 is an enterprise wireless module that utilizes the MT7915+MT7975 chipset. It is specifically designed to provide users with mobile access to high-bandwidth applications such as video streaming, voice communication, and data transmission in challenging RF environments, including factories, warehouses, and office establishments.

The module incorporates a 2x2 2.4GHz high-power radio module and a 2x2 5GHz high-power radio module. This configuration enables it to support both the 2.4GHz and 5GHz frequency bands, providing flexibility and compatibility with a wide range of devices.

With its high-power capabilities, the DR7915 module can overcome obstacles and interference commonly found in challenging RF environments. It offers improved signal strength and coverage, allowing users to access reliable and high-speed wireless connectivity throughout the designated area.

The module's design and integration with the MT7915+MT7975 chipset ensure optimal performance and efficient data transmission. It leverages advanced technologies such as MIMO (Multiple-Input Multiple-Output), spatial multiplexing, cyclic-delay diversity, low-density parity check codes, maximal ratio combining, and space-time block code. These features enhance the module's ability to deliver reliable and high-quality wireless communication, even in demanding scenarios.

The DR7915 module is well-suited for enterprise applications where reliable and high-bandwidth wireless connectivity is crucial. Its robust design and compatibility with industry standards make it suitable for deployments in various environments, including factories, warehouses, and office spaces.

The following are our main chips and website information, if you are interested in our products, you can also directly contact our mailbox, we will provide you with the best service!

FYI, Wallys are able to provide customizable solutions based on your your Spec requirements for applications, feel free to let me know if any question

MT7915/MT7975/IPQ6000/IPQ6018/IPQ6010/IPQ4019/IPQ4029/ipq4018/IPQ4028/IPQ8072/IPQ8072A/IPQ8074/IPQ8074A/QCN6024/QCN9074/QCN9072/QCN9024/IPQ5018/AR9223/QCA9880/QCA9882 /AR9582/AR9531/AR9344 /AX200NGW/ AP9342

With over 15 years of experience in wireless industry and penetrating market olfaction, Wallys has designed and manufactured many high quality and cost-effective routerboards and wireless network cards.

In the complex market, Wallys products stand out and are affirmed by partners. From 802.11 a - ax, Wallys always keeps up with the most cutting-edge wireless technology, aimed to help customers take the preemptive opportunities to occupy the market and lead a win -win cooperation.
