Wallys/DR9574/ipq9554/4*4 2.4G/support for some GPIOs .

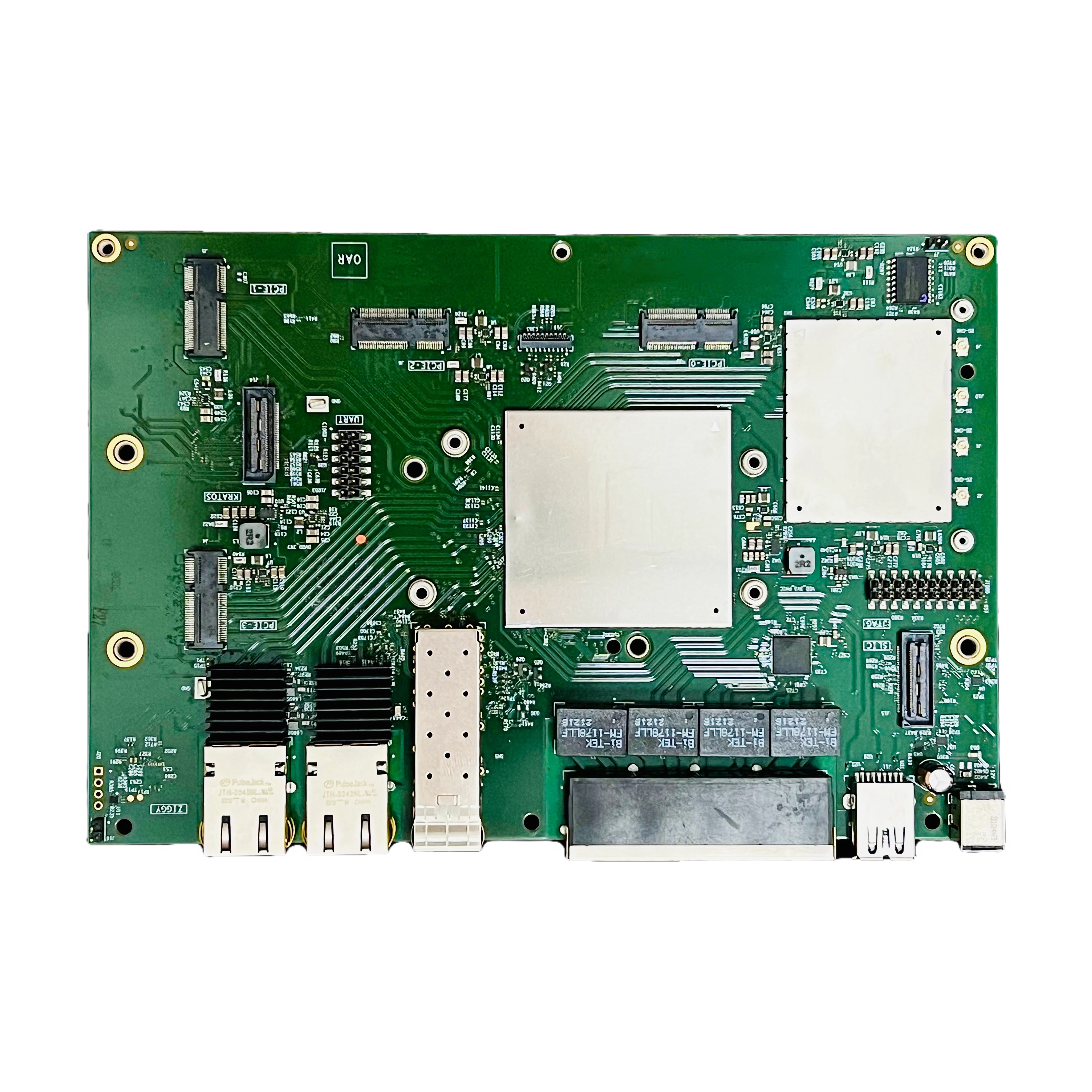

DR9574  is  chipseted  with   Qualcomm-Atheros IPQ9574.

This is the main chipset used in the system.

Memory:

DDR: DDR4 2GB

Flash: 32MB Nor flash + 256MB Nand Flash

Wireless:

Frequency Range: 4x4 2.4G

This indicates support for 4x4 MIMO technology at the 2.4GHz frequency range.

Ethernet Ports:

2x10G: Two 10 Gigabit Ethernet ports

4x1G: Four 1 Gigabit Ethernet ports

Expansion Slots:

M.2 slots: Four M.2 slots

These slots can be used for expanding storage or adding additional functionality using M.2 modules.

LEDs: NA

There are no LED indicators specified.

Power:

 Power Input: 12VDC

If Power over Ethernet (PoE) is required, it can be specified separately.

USB:

One USB 3.0 connector

Other Interfaces:

 GPIOs: The chipset has some General Purpose Input/Output pins.

Additional features: If there are specific requirements for other interfaces or features, they can be specified separately.

Size:

Mainboard: 138mm x 204mm

Module: 62mm x 57mm

Power Consumption: NA

The power consumption information is not provided.

IPQ9574 — Quad-core Arm Cortex-A73 (up to 2.2GHz), Wi-Fi 7(802.11be); 16Gbps peak speed; 320MHz channel support; 4K QAM; OpenWrt & Linux Kernel 5.4 support; 14nm process

Built with 4x M.2 slots, the DR9574 board offers enhanced expansion capabilities, allowing users to integrate additional features or accessories, such as storage modules or wireless adapters, to meet their specific requirements.

In addition to its ethernet interfaces, the DR9574 offers support for some GPIOs (unspecified). The company mentioned that if other additional features are needed, customization options are available upon request (i.e. Power over Ethernet support).
