FPGA按键消抖

关于按键的特性可以参照下文
按键消抖指南
下面分享两个从网上找到的消抖例子：

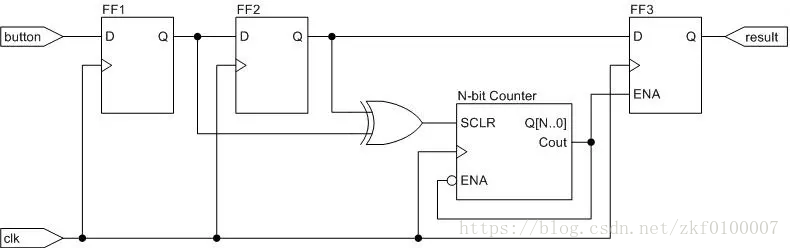

例子1：

代码如下：

LIBRARY ieee;
USE ieee.std_logic_1164.all;
USE ieee.std_logic_unsigned.all;

ENTITY debounce IS
  GENERIC(
    counter_size  :  INTEGER := 19); --counter size (19 bits gives 10.5ms with 50MHz clock)
  PORT(
    clk     : IN  STD_LOGIC;  --input clock
    button  : IN  STD_LOGIC;  --input signal to be debounced
    result  : OUT STD_LOGIC); --debounced signal
END debounce;

ARCHITECTURE logic OF debounce IS
  SIGNAL flipflops   : STD_LOGIC_VECTOR(1 DOWNTO 0); --input flip flops
  SIGNAL counter_set : STD_LOGIC;                    --sync reset to zero
  SIGNAL counter_out : STD_LOGIC_VECTOR(counter_size DOWNTO 0) := (OTHERS => '0'); --counter output
BEGIN

  counter_set <= flipflops(0) xor flipflops(1);   --determine when to start/reset counter

  PROCESS(clk)
  BEGIN
    IF(clk'EVENT and clk = '1') THEN
      flipflops(0) <= button;
      flipflops(1) <= flipflops(0);
      If(counter_set = '1') THEN                  --reset counter because input is changing
        counter_out <= (OTHERS => '0');
      ELSIF(counter_out(counter_size) = '0') THEN --stable input time is not yet met
        counter_out <= counter_out + 1;
      ELSE                                        --stable input time is met
        result <= flipflops(1);
      END IF;
    END IF;
  END PROCESS;
END logic;

其中的计数器长度由如下公式确定：

2是表示两级同步DFF的延迟，一般可以忽略， (2^19+2) / 50,000,000 = 10.49ms.

例子2

代码如下：

module PushButton_Debouncer(
    input clk,
    input PB,  // "PB" is the glitchy, asynchronous to clk, active low push-button signal

    // from which we make three outputs, all synchronous to the clock
    output reg PB_state,  // 1 as long as the push-button is active (down)
    output PB_down,  // 1 for one clock cycle when the push-button goes down (i.e. just pushed)
    output PB_up   // 1 for one clock cycle when the push-button goes up (i.e. just released)
);

// First use two flip-flops to synchronize the PB signal the "clk" clock domain
reg PB_sync_0;  always @(posedge clk) PB_sync_0 <= ~PB;  // invert PB to make PB_sync_0 active high
reg PB_sync_1;  always @(posedge clk) PB_sync_1 <= PB_sync_0;

// Next declare a 16-bits counter
reg [15:0] PB_cnt;

// When the push-button is pushed or released, we increment the counter
// The counter has to be maxed out before we decide that the push-button state has changed

wire PB_idle = (PB_state==PB_sync_1);
wire PB_cnt_max = &PB_cnt;  // true when all bits of PB_cnt are 1's

always @(posedge clk)
if(PB_idle)
    PB_cnt <= 0;  // nothing's going on
else
begin
    PB_cnt <= PB_cnt + 16'd1;  // something's going on, increment the counter
    if(PB_cnt_max) PB_state <= ~PB_state;  // if the counter is maxed out, PB changed!
end

assign PB_down = ~PB_idle & PB_cnt_max & ~PB_state;
assign PB_up   = ~PB_idle & PB_cnt_max &  PB_state;
endmodule
