接上一篇，在自己的imgui工程里加入imgui-node-editor.
imgui-node-editor 是一个简单但功能强大的Node Editor，是ImGui的扩展库，专为构建复杂的解决方案如蓝图编辑器而设计。这个项目提供了一个API友好的接口，让开发者可以专注于节点内容的渲染，而交互逻辑则由编辑器自动处理。它是一个轻量级、灵活且可高度定制化的工具，适合任何需要图形化表示程序流程的应用。

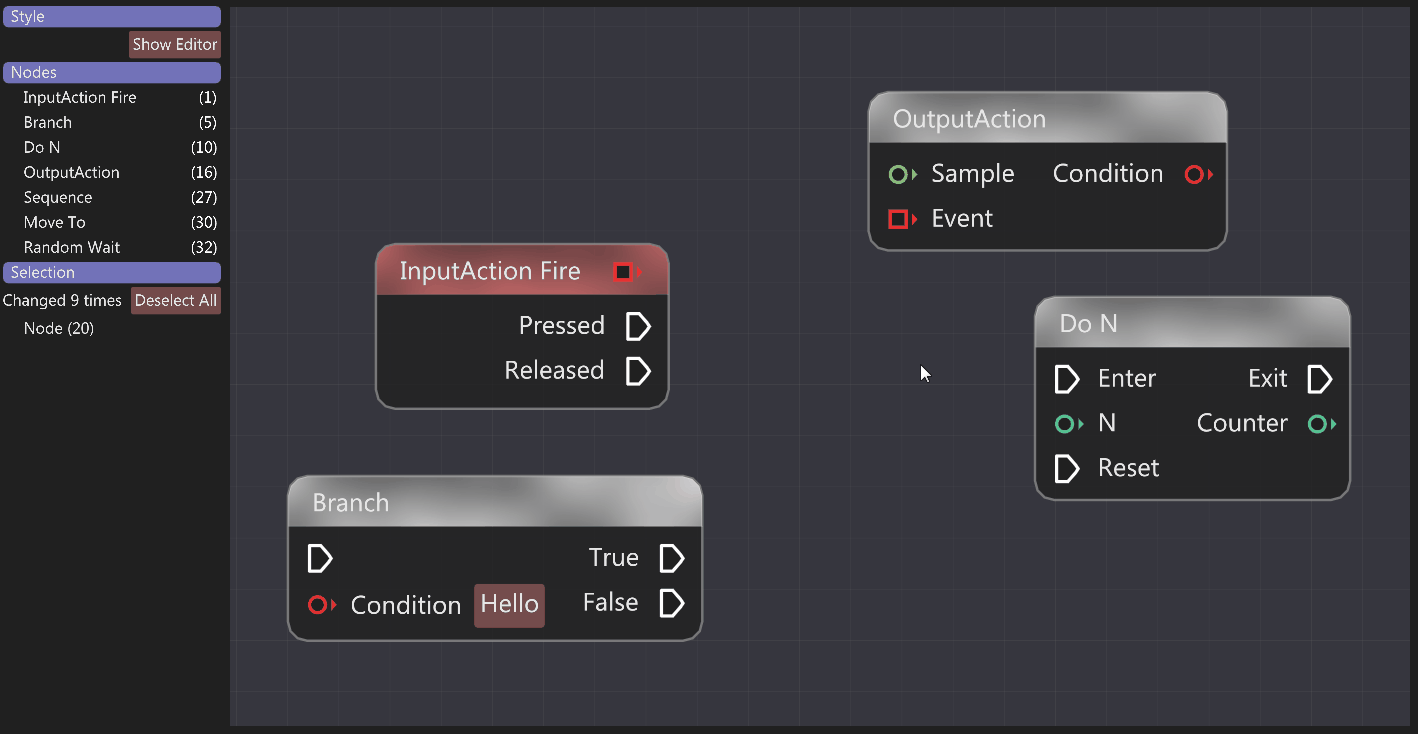

看起来很酷，现在就初步实现一下吧。
1、github上下载源码https://github.com/thedmd/imgui-node-editor
2、把imgui-node-editor放入自己工程的lib文件夹下，只需要保留当前文件夹下内容，example文件夹可删除。目录结构如下：
ImGUITest
├─lib
│ ├─glfw
| └─imgui-node-editor
│ │ *.h
│ │ *.cpp
│ └─imgui
│ │ imconfig.h
│ │ imgui.cpp
│ │ imgui.h
│ │ imgui_demo.cpp
│ │ imgui_draw.cpp
│ │ imgui_internal.h
│ │ imgui_tables.cpp
│ │ imgui_widgets.cpp
│ │ imstb_rectpack.h
│ │ imstb_textedit.h
│ │ imstb_truetype.h
│ │ LICENSE.txt
│ │
│ └─backend
│ imgui_impl_glfw.cpp
│ imgui_impl_glfw.h
│ imgui_impl_opengl3.cpp
│ imgui_impl_opengl3.h
│ imgui_impl_opengl3_loader.h
│
└─src
main.cpp
3、修改cmakelist.txt
注意c++标准必须17以上
cmake_minimum_required(VERSION 3.10)
project(imguiTest)
set(CMAKE_CXX_STANDARD 17)
set(CMAKE_CXX_STANDARD_REQUIRED ON)
set(GLFW3_WINDOWS ${CMAKE_CURRENT_SOURCE_DIR}/lib/GLFW/lib/windows/glfw3.dll)
set(EXECUTABLE ${CMAKE_PROJECT_NAME})
include_directories(lib/GLFW/inc
lib/imgui
lib/imgui/backends
lib/imgui-node-editor
)
link_directories(
lib/GLFW/lib/windows
)
file(GLOB_RECURSE IMGUI_SRCS lib/imgui/*.cpp)
file(GLOB_RECURSE NODE_EDITOR_SRCS lib/imgui-node-editor/*.cpp)
add_executable(${EXECUTABLE} WIN32 src/main.cpp ${IMGUI_SRCS} ${NODE_EDITOR_SRCS})
target_link_libraries(${EXECUTABLE} ${GLFW3_WINDOWS} -static opengl32)
add_custom_command(TARGET ${EXECUTABLE} POST_BUILD
COMMAND ${CMAKE_COMMAND} -E copy
${GLFW3_WINDOWS}
${CMAKE_BINARY_DIR}/glfw3.dll)4、仿照node-editor中example中例子，修改main函数。

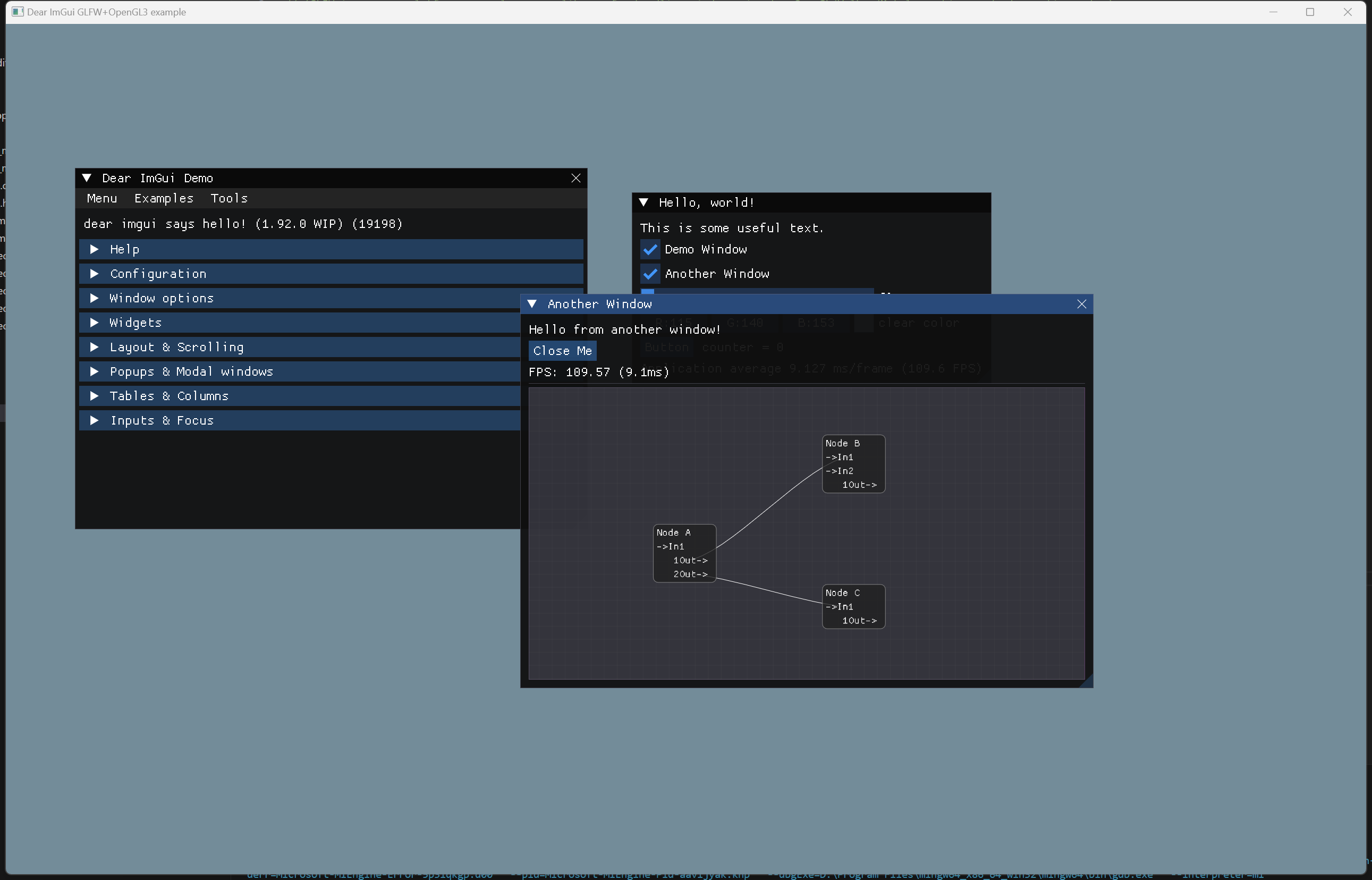

这个例子参考的 imgui-node-editor/examples/basic-interaction-example中的例子。其中simple-example中的例子也简单运行了一下，就是一个单点，basic-interaction-example这个例子包含了新建连接和删除连接。
blueprints-example这个例子是开头的效果，后续可以继续看一下这个例子。
// Dear ImGui: standalone example application for GLFW + OpenGL 3, using programmable pipeline
// (GLFW is a cross-platform general purpose library for handling windows, inputs, OpenGL/Vulkan/Metal graphics context creation, etc.)
// Learn about Dear ImGui:
// - FAQ https://dearimgui.com/faq
// - Getting Started https://dearimgui.com/getting-started
// - Documentation https://dearimgui.com/docs (same as your local docs/ folder).
// - Introduction, links and more at the top of imgui.cpp
#include "imgui.h"
#include "imgui_impl_glfw.h"
#include "imgui_impl_opengl3.h"
#include <stdio.h>
#define GL_SILENCE_DEPRECATION
#if defined(IMGUI_IMPL_OPENGL_ES2)
#include <GLES2/gl2.h>
#endif
#include <GLFW/glfw3.h> // Will drag system OpenGL headers
#include <imgui_node_editor.h>
#include <string>
#include <vector>
// [Win32] Our example includes a copy of glfw3.lib pre-compiled with VS2010 to maximize ease of testing and compatibility with old VS compilers.
// To link with VS2010-era libraries, VS2015+ requires linking with legacy_stdio_definitions.lib, which we do using this pragma.
// Your own project should not be affected, as you are likely to link with a newer binary of GLFW that is adequate for your version of Visual Studio.
#if defined(_MSC_VER) && (_MSC_VER >= 1900) && !defined(IMGUI_DISABLE_WIN32_FUNCTIONS)
#pragma comment(lib, "legacy_stdio_definitions")
#endif
// This example can also compile and run with Emscripten! See 'Makefile.emscripten' for details.
#ifdef __EMSCRIPTEN__
#include "../libs/emscripten/emscripten_mainloop_stub.h"
#endif
static void glfw_error_callback(int error, const char* description)
{
fprintf(stderr, "GLFW Error %d: %s\n", error, description);
}
// 节点和连接的唯一标识符
enum class PinType {
Input,
Output
};
struct Node {
ax::NodeEditor::NodeId Id;
std::string Title;
ImVec2 Position;
std::vector<ax::NodeEditor::PinId> Inputs;
std::vector<ax::NodeEditor::PinId> Outputs;
};
struct Link {
ax::NodeEditor::LinkId Id;
ax::NodeEditor::PinId StartPinId;
ax::NodeEditor::PinId EndPinId;
};
// 全局状态
ax::NodeEditor::EditorContext* g_Context = nullptr;
std::vector<Node> g_Nodes;
std::vector<Link> g_Links;
int g_NextNodeId = 100;
int g_NextPinId = 200;
int g_NextLinkId = 300;
// 创建新节点的函数
void CreateNode(const std::string& title, ImVec2 position, int inputCount = 1, int outputCount = 1) {
Node node;
node.Id = g_NextNodeId;
++g_NextNodeId;
node.Title = title;
node.Position = position;
// 创建输入引脚
for (int i = 0; i < inputCount; ++i) {
node.Inputs.push_back(g_NextPinId++);
}
// 创建输出引脚
for (int i = 0; i < outputCount; ++i) {
node.Outputs.push_back(g_NextPinId++);
}
g_Nodes.push_back(node);
}
// 初始化节点编辑器
void InitNodeEditor() {
// 创建编辑器上下文
g_Context = ax::NodeEditor::CreateEditor();
// 创建一些示例节点
CreateNode("Node A", ImVec2(10, 10), 1, 2);
CreateNode("Node B", ImVec2(300, 100), 2, 1);
CreateNode("Node C", ImVec2(150, 300), 1, 1);
// 创建一些示例连接
if (!g_Nodes.empty() && g_Nodes.size() >= 2) {
Link link1;
link1.Id = g_NextLinkId++;
link1.StartPinId = g_Nodes[0].Outputs[0];
link1.EndPinId = g_Nodes[1].Inputs[0];
g_Links.push_back(link1);
Link link2;
link2.Id = g_NextLinkId++;
link2.StartPinId = g_Nodes[0].Outputs[1];
link2.EndPinId = g_Nodes[2].Inputs[0];
g_Links.push_back(link2);
}
}
// Main code
int main(int, char**)
{
glfwSetErrorCallback(glfw_error_callback);
if (!glfwInit())
return 1;
// Decide GL+GLSL versions
#if defined(IMGUI_IMPL_OPENGL_ES2)
// GL ES 2.0 + GLSL 100 (WebGL 1.0)
const char* glsl_version = "#version 100";
glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 2);
glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 0);
glfwWindowHint(GLFW_CLIENT_API, GLFW_OPENGL_ES_API);
#elif defined(IMGUI_IMPL_OPENGL_ES3)
// GL ES 3.0 + GLSL 300 es (WebGL 2.0)
const char* glsl_version = "#version 300 es";
glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 0);
glfwWindowHint(GLFW_CLIENT_API, GLFW_OPENGL_ES_API);
#elif defined(__APPLE__)
// GL 3.2 + GLSL 150
const char* glsl_version = "#version 150";
glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 2);
glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE); // 3.2+ only
glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE); // Required on Mac
#else
// GL 3.0 + GLSL 130
const char* glsl_version = "#version 130";
glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);
glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 0);
//glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE); // 3.2+ only
//glfwWindowHint(GLFW_OPENGL_FORWARD_COMPAT, GL_TRUE); // 3.0+ only
#endif
// Create window with graphics context
float main_scale = ImGui_ImplGlfw_GetContentScaleForMonitor(glfwGetPrimaryMonitor()); // Valid on GLFW 3.3+ only
GLFWwindow* window = glfwCreateWindow((int)(1280 * main_scale), (int)(800 * main_scale), "Dear ImGui GLFW+OpenGL3 example", nullptr, nullptr);
if (window == nullptr)
return 1;
glfwMakeContextCurrent(window);
glfwSwapInterval(1); // Enable vsync
// Setup Dear ImGui context
IMGUI_CHECKVERSION();
ImGui::CreateContext();
ImGuiIO& io = ImGui::GetIO(); (void)io;
io.ConfigFlags |= ImGuiConfigFlags_NavEnableKeyboard; // Enable Keyboard Controls
io.ConfigFlags |= ImGuiConfigFlags_NavEnableGamepad; // Enable Gamepad Controls
// Setup Dear ImGui style
ImGui::StyleColorsDark();
//ImGui::StyleColorsLight();
// Setup scaling
ImGuiStyle& style = ImGui::GetStyle();
style.ScaleAllSizes(main_scale); // Bake a fixed style scale. (until we have a solution for dynamic style scaling, changing this requires resetting Style + calling this again)
style.FontScaleDpi = main_scale; // Set initial font scale. (using io.ConfigDpiScaleFonts=true makes this unnecessary. We leave both here for documentation purpose)
// Setup Platform/Renderer backends
ImGui_ImplGlfw_InitForOpenGL(window, true);
#ifdef __EMSCRIPTEN__
ImGui_ImplGlfw_InstallEmscriptenCallbacks(window, "#canvas");
#endif
ImGui_ImplOpenGL3_Init(glsl_version);
// Load Fonts
// - If no fonts are loaded, dear imgui will use the default font. You can also load multiple fonts and use ImGui::PushFont()/PopFont() to select them.
// - AddFontFromFileTTF() will return the ImFont* so you can store it if you need to select the font among multiple.
// - If the file cannot be loaded, the function will return a nullptr. Please handle those errors in your application (e.g. use an assertion, or display an error and quit).
// - Use '#define IMGUI_ENABLE_FREETYPE' in your imconfig file to use Freetype for higher quality font rendering.
// - Read 'docs/FONTS.md' for more instructions and details.
// - Remember that in C/C++ if you want to include a backslash \ in a string literal you need to write a double backslash \\ !
// - Our Emscripten build process allows embedding fonts to be accessible at runtime from the "fonts/" folder. See Makefile.emscripten for details.
//style.FontSizeBase = 20.0f;
//io.Fonts->AddFontDefault();
//io.Fonts->AddFontFromFileTTF("c:\\Windows\\Fonts\\segoeui.ttf");
//io.Fonts->AddFontFromFileTTF("../../misc/fonts/DroidSans.ttf");
//io.Fonts->AddFontFromFileTTF("../../misc/fonts/Roboto-Medium.ttf");
//io.Fonts->AddFontFromFileTTF("../../misc/fonts/Cousine-Regular.ttf");
//ImFont* font = io.Fonts->AddFontFromFileTTF("c:\\Windows\\Fonts\\ArialUni.ttf");
//IM_ASSERT(font != nullptr);
// Our state
bool show_demo_window = true;
bool show_another_window = false;
ImVec4 clear_color = ImVec4(0.45f, 0.55f, 0.60f, 1.00f);
//ax::NodeEditor::EditorContext* m_Context = nullptr;
//m_Context = ax::NodeEditor::CreateEditor();
InitNodeEditor();
// Main loop
#ifdef __EMSCRIPTEN__
// For an Emscripten build we are disabling file-system access, so let's not attempt to do a fopen() of the imgui.ini file.
// You may manually call LoadIniSettingsFromMemory() to load settings from your own storage.
io.IniFilename = nullptr;
EMSCRIPTEN_MAINLOOP_BEGIN
#else
while (!glfwWindowShouldClose(window))
#endif
{
// Poll and handle events (inputs, window resize, etc.)
// You can read the io.WantCaptureMouse, io.WantCaptureKeyboard flags to tell if dear imgui wants to use your inputs.
// - When io.WantCaptureMouse is true, do not dispatch mouse input data to your main application, or clear/overwrite your copy of the mouse data.
// - When io.WantCaptureKeyboard is true, do not dispatch keyboard input data to your main application, or clear/overwrite your copy of the keyboard data.
// Generally you may always pass all inputs to dear imgui, and hide them from your application based on those two flags.
glfwPollEvents();
if (glfwGetWindowAttrib(window, GLFW_ICONIFIED) != 0)
{
ImGui_ImplGlfw_Sleep(10);
continue;
}
// Start the Dear ImGui frame
ImGui_ImplOpenGL3_NewFrame();
ImGui_ImplGlfw_NewFrame();
ImGui::NewFrame();
// 1. Show the big demo window (Most of the sample code is in ImGui::ShowDemoWindow()! You can browse its code to learn more about Dear ImGui!).
if (show_demo_window)
ImGui::ShowDemoWindow(&show_demo_window);
// 2. Show a simple window that we create ourselves. We use a Begin/End pair to create a named window.
{
static float f = 0.0f;
static int counter = 0;
ImGui::Begin("Hello, world!"); // Create a window called "Hello, world!" and append into it.
ImGui::Text("This is some useful text."); // Display some text (you can use a format strings too)
ImGui::Checkbox("Demo Window", &show_demo_window); // Edit bools storing our window open/close state
ImGui::Checkbox("Another Window", &show_another_window);
ImGui::SliderFloat("float", &f, 0.0f, 1.0f); // Edit 1 float using a slider from 0.0f to 1.0f
ImGui::ColorEdit3("clear color", (float*)&clear_color); // Edit 3 floats representing a color
if (ImGui::Button("Button")) // Buttons return true when clicked (most widgets return true when edited/activated)
counter++;
ImGui::SameLine();
ImGui::Text("counter = %d", counter);
ImGui::Text("Application average %.3f ms/frame (%.1f FPS)", 1000.0f / io.Framerate, io.Framerate);
ImGui::End();
}
// 3. Show another simple window.
if (show_another_window)
{
ImGui::Begin("Another Window", &show_another_window); // Pass a pointer to our bool variable (the window will have a closing button that will clear the bool when clicked)
ImGui::Text("Hello from another window!");
if (ImGui::Button("Close Me"))
show_another_window = false;
auto& io = ImGui::GetIO();
ImGui::Text("FPS: %.2f (%.2gms)", io.Framerate, io.Framerate ? 1000.0f / io.Framerate : 0.0f);
ImGui::Separator();
ax::NodeEditor::SetCurrentEditor(g_Context);
ax::NodeEditor::Begin("My Editor", ImVec2(0.0, 0.0f));
// int uniqueId = 1;
// // Start drawing nodes.
// ax::NodeEditor::BeginNode(uniqueId++);
// ImGui::Text("Node A");
// ax::NodeEditor::BeginPin(uniqueId++, ax::NodeEditor::PinKind::Input);
// ImGui::Text("-> In");
// ax::NodeEditor::EndPin();
// ImGui::SameLine();
// ax::NodeEditor::BeginPin(uniqueId++, ax::NodeEditor::PinKind::Output);
// ImGui::Text("Out ->");
// ax::NodeEditor::EndPin();
// ax::NodeEditor::EndNode();
int nodeIndex = 0;
for (auto& node : g_Nodes) {
// 开始绘制节点
ax::NodeEditor::NodeId nodeId = node.Id;
ax::NodeEditor::PinId inputPinId = node.Inputs.empty() ? 0 : node.Inputs[0];
ax::NodeEditor::PinId outputPinId = node.Outputs.empty() ? 0 : node.Outputs[0];
ax::NodeEditor::BeginNode(nodeId);
ImGui::Text("%s", node.Title.c_str());
// 绘制输入引脚
for (size_t i = 0; i < node.Inputs.size(); ++i) {
ax::NodeEditor::BeginPin(node.Inputs[i], ax::NodeEditor::PinKind::Input);
ImGui::Text("->In%d ", (int)i + 1);
ax::NodeEditor::EndPin();
}
// 绘制输出引脚
for (size_t i = 0; i < node.Outputs.size(); ++i) {
ax::NodeEditor::BeginPin(node.Outputs[i], ax::NodeEditor::PinKind::Output);
ImGui::Text(" %dOut-> ", (int)i + 1);
ax::NodeEditor::EndPin();
}
ax::NodeEditor::EndNode();
nodeIndex++;
}
// 绘制连接
for (auto& link : g_Links) {
ax::NodeEditor::Link(link.Id, link.StartPinId, link.EndPinId);
}
if(ax::NodeEditor::BeginCreate())
{
// 处理新连接
ax::NodeEditor::LinkId newLinkId;
ax::NodeEditor::PinId startPinId=0, endPinId=0;
if (ax::NodeEditor::QueryNewLink(&startPinId, &endPinId)) {
// 检查连接是否有效（输入到输出）
bool startIsOutput = false;
bool endIsInput = false;
// 检查引脚类型
for (auto& node : g_Nodes) {
for (auto pin : node.Outputs) {
if (pin == startPinId) startIsOutput = true;
}
for (auto pin : node.Inputs) {
if (pin == endPinId) endIsInput = true;
}
}
if (startIsOutput && endIsInput) {
if( ax::NodeEditor::AcceptNewItem())
{
// 创建新连接
Link link;
link.Id = g_NextLinkId++;
link.StartPinId = startPinId;
link.EndPinId = endPinId;
g_Links.push_back(link);
ax::NodeEditor::Link(g_Links.back().Id, g_Links.back().StartPinId, g_Links.back().EndPinId);
}
} else {
// 拒绝连接
ax::NodeEditor::RejectNewItem();
}
}
}
ax::NodeEditor::EndCreate();
if(ax::NodeEditor::BeginDelete())
{
// 处理删除连接
ax::NodeEditor::LinkId deletedLinkId;
if (ax::NodeEditor::QueryDeletedLink(&deletedLinkId)) {
if(ax::NodeEditor::AcceptDeletedItem())
{
for (auto it = g_Links.begin(); it != g_Links.end(); ++it) {
if (it->Id == deletedLinkId) {
g_Links.erase(it);
break;
}
}
}
}
}
ax::NodeEditor::EndDelete();
ax::NodeEditor::End();
ax::NodeEditor::SetCurrentEditor(nullptr);
ImGui::End();
}
// Rendering
ImGui::Render();
int display_w, display_h;
glfwGetFramebufferSize(window, &display_w, &display_h);
glViewport(0, 0, display_w, display_h);
glClearColor(clear_color.x * clear_color.w, clear_color.y * clear_color.w, clear_color.z * clear_color.w, clear_color.w);
glClear(GL_COLOR_BUFFER_BIT);
ImGui_ImplOpenGL3_RenderDrawData(ImGui::GetDrawData());
glfwSwapBuffers(window);
}
#ifdef __EMSCRIPTEN__
EMSCRIPTEN_MAINLOOP_END;
#endif
// Cleanup
ImGui_ImplOpenGL3_Shutdown();
ImGui_ImplGlfw_Shutdown();
ImGui::DestroyContext();
glfwDestroyWindow(window);
glfwTerminate();
ax::NodeEditor::DestroyEditor(g_Context);
return 0;
}
5、用vscode打开代码文件夹，新建终端输入：
cmake -G "MinGW Makefiles" -DCMAKE_C_COMPILER=gcc -DCMAKE_CXX_COMPILER=g++ ..
6、输入 mingw32-make
f5运行：点击another window 查看绘制的点。
扫一扫
1639
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
