ENSP实现AC间三层漫游

实验拓扑如下图：

AC1和AC2属于不同的IP地址段，实现终端在不同AC间的三层漫游

效果：终端从AC1/AP1漫游到AC2/AP2后IP地址不变，业务不中断

配置如下表：

AC1	AC2	R1	R2
vlan batch 10 20 40 88 dhcp enable # interface Vlanif10  ip address 10.1.10.1 255.255.255.0  dhcp select interface # interface Vlanif20  ip address 10.1.20.1 255.255.255.0  dhcp select interface # interface Vlanif88  ip address 192.168.88.1 255.255.255.0 # interface GigabitEthernet0/0/1  port link-type access  port default vlan 10 # interface GigabitEthernet0/0/2  port link-type trunk  port trunk pvid vlan 10  port trunk allow-pass vlan 10 20 # interface GigabitEthernet0/0/8  port link-type access  port default vlan 88  undo negotiation auto  duplex half # ip route-static 0.0.0.0 0.0.0.0 10.1.10.2 ip route-static 2.2.2.2 255.255.255.255 192.168.88.2 # capwap source interface vlanif10 # wlan  security-profile name office  ssid-profile name office   ssid office  vap-profile name office   service-vlan vlan-id 20   ssid-profile office   security-profile office   home-agent ac   //默认家乡为AP  regulatory-domain-profile name china  ap auth-mode no-auth  mobility-group name mo  //漫游组配置   member ip-address 10.1.30.1   member ip-address 10.1.10.1  ap-group name home   regulatory-domain-profile china   radio 0    vap-profile office wlan 1   radio 1    vap-profile office wlan 1   radio 2    vap-profile office wlan 1  ap-group name default  ap-id 0 type-id 56 ap-mac 00e0-fc50-1c60 ap-sn 210235448310941BA75E   ap-name AP1   ap-group home #	vlan batch 20 30 40 # dhcp enable # interface Vlanif30  ip address 10.1.30.1 255.255.255.0  dhcp select interface # interface Vlanif40  ip address 10.1.40.1 255.255.255.0  dhcp select interface # interface GigabitEthernet0/0/1  port link-type access  port default vlan 30 # interface GigabitEthernet0/0/2  port link-type trunk  port trunk pvid vlan 30  port trunk allow-pass vlan 30 40 # ip route-static 0.0.0.0 0.0.0.0 10.1.30.2 # capwap source interface vlanif30 # wlan  security-profile name office  ssid-profile name office   ssid office   vap-profile name office   service-vlan vlan-id 40   ssid-profile office   security-profile office   home-agent ac  regulatory-domain-profile name china  ap auth-mode no-auth  mobility-group name mo   member ip-address 10.1.10.1   member ip-address 10.1.30.1  ap-group name home   regulatory-domain-profile china   radio 0    vap-profile office wlan 1   radio 1    vap-profile office wlan 1   radio 2    vap-profile office wlan 1  ap-id 0 type-id 56 ap-mac 00e0-fca3-20c0 ap-sn 210235448310E32A704C   ap-name AP2   ap-group home  #	# interface GigabitEthernet0/0/0  ip address 10.1.10.2 255.255.255.0  # interface GigabitEthernet0/0/1  ip address 10.1.30.2 255.255.255.0  # ip route-static 10.1.20.0 255.255.255.0 10.1.10.1 ip route-static 10.1.40.0 255.255.255.0 10.1.30.1 #	# interface GigabitEthernet0/0/0  ip address 192.168.88.2 255.255.255.0  # interface LoopBack0  ip address 2.2.2.2 255.255.255.255  # ip route-static 0.0.0.0 0.0.0.0 192.168.88.1 #

过程关注：

        1. 配置完漫游组后，终端获取的IP地址不是业务vlan20段的地址，重启AP后正常。另外需要注意，在AC2上要增加vlan20；AC1上要增加vlan40，否则获取不到正确的IP地址。

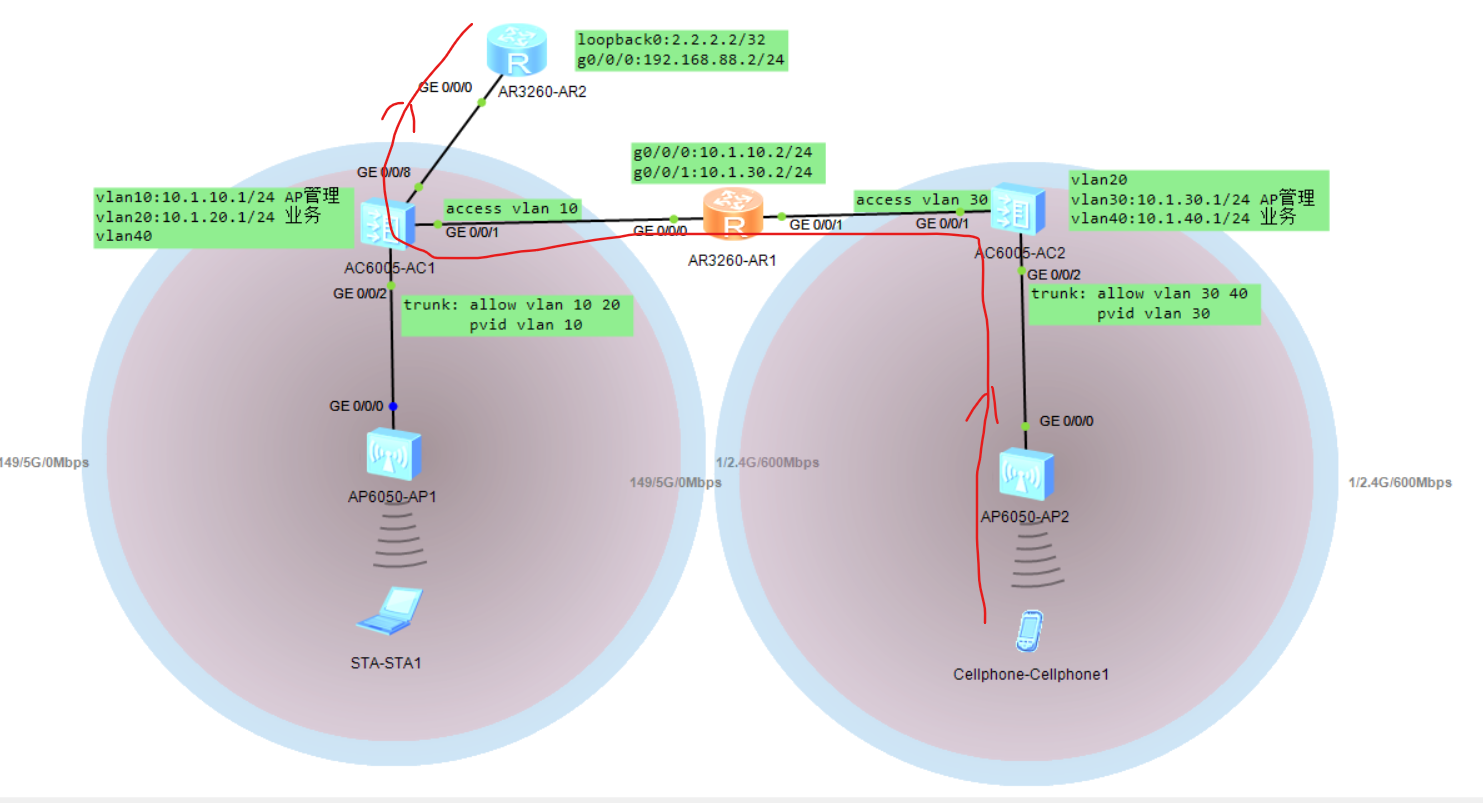

        2. 默认家乡代理为AP，即终端从AC1漫游到AC2后，流量经AP转发，如下图：

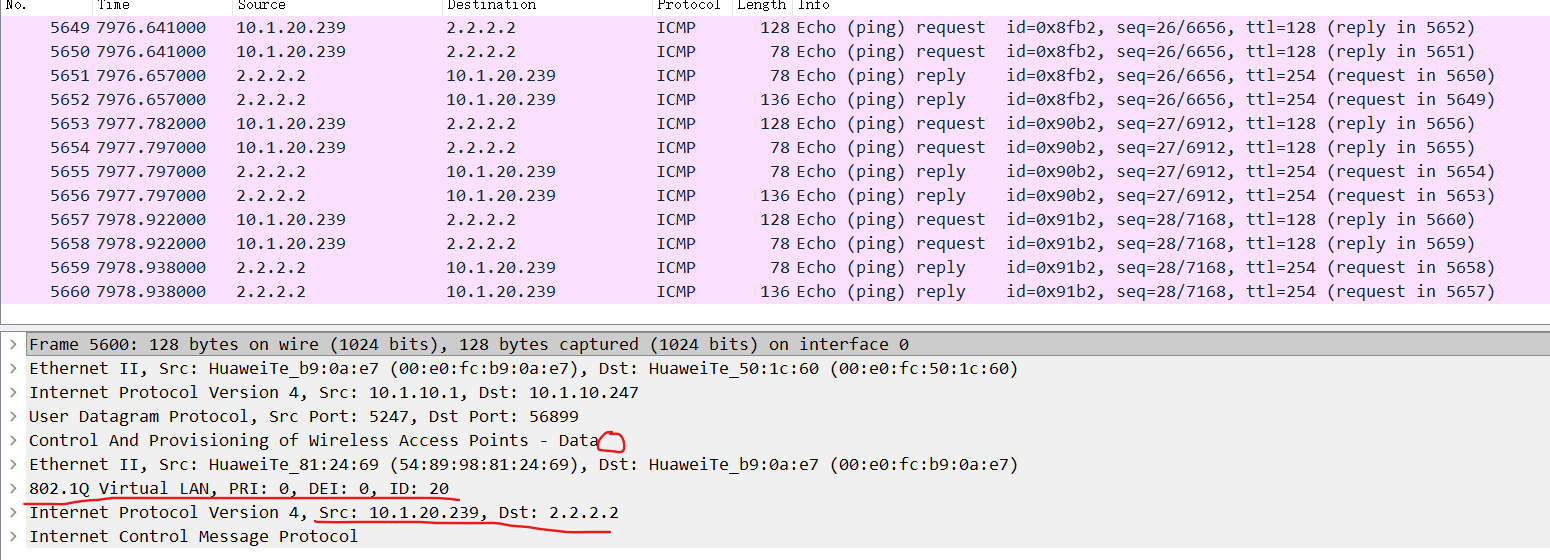

在AP1接口G0/0/0上抓包如下：

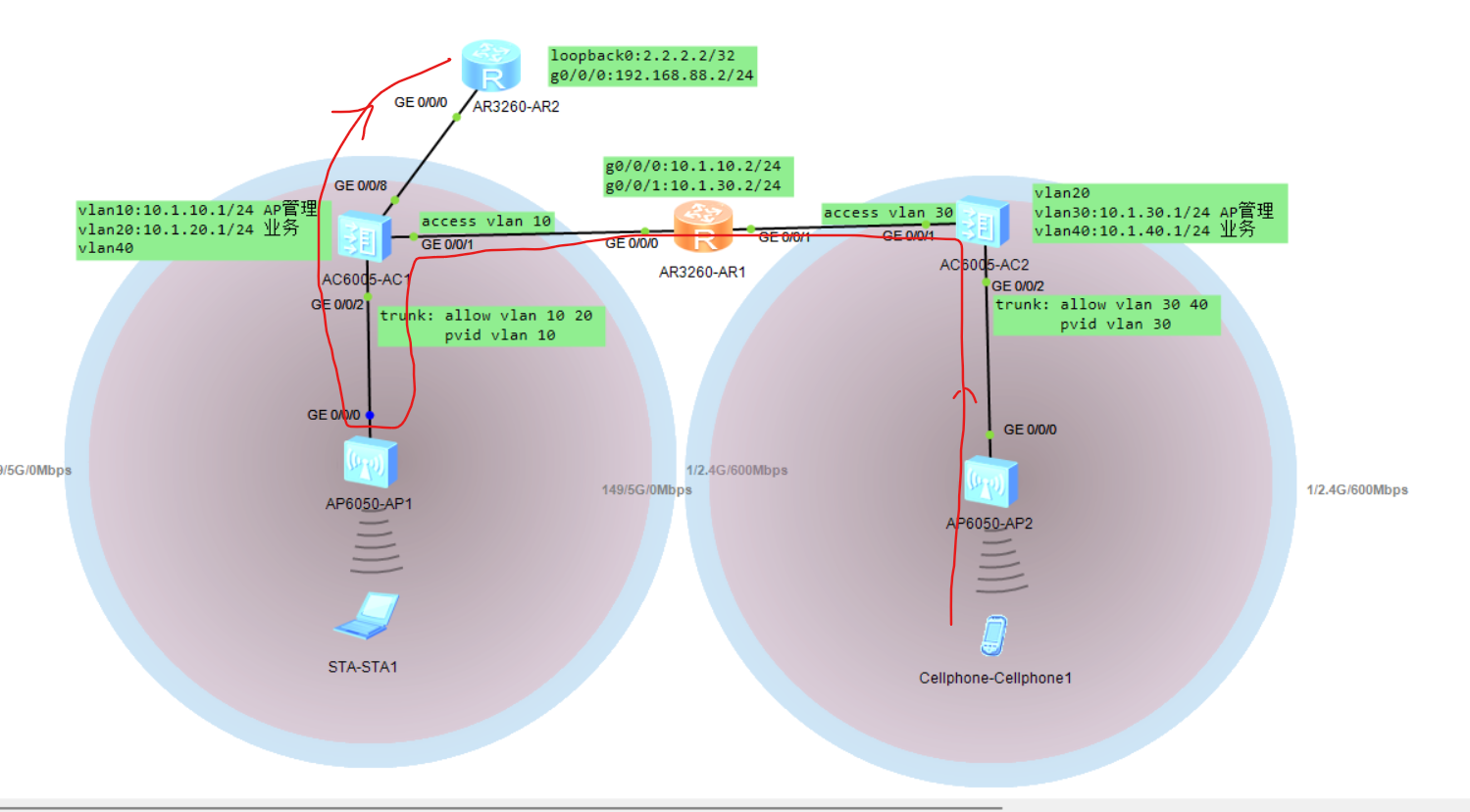

        3. 修改家乡代理为AC后，流量不经过AP，直接通过AC转发。前提是AC和AP在同一二层网络中。如下图：

注：修改家乡代理后，终端会断线，需重连。

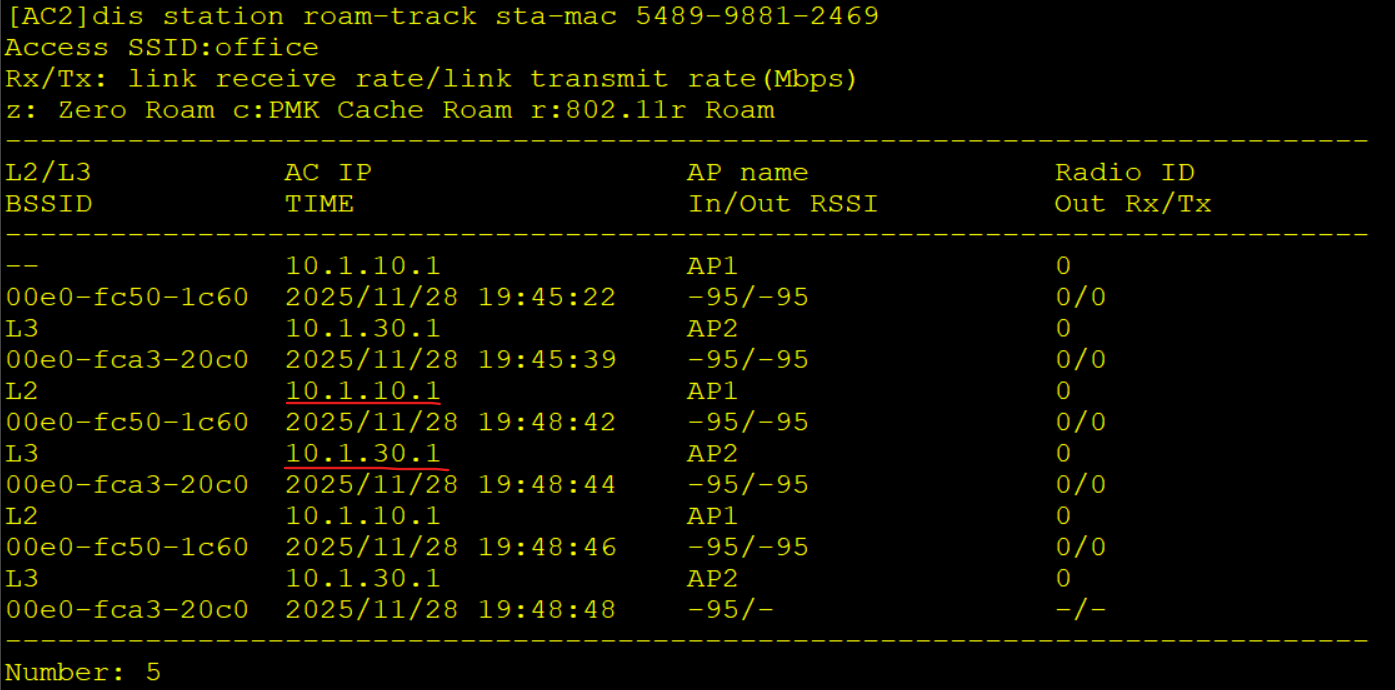

        4. 通过dis station roam-track sta-mac 5489-9881-2469命令查看终端漫游记录，如下图：
