ENSP实现WLAN AC可靠性VRRP双机热备

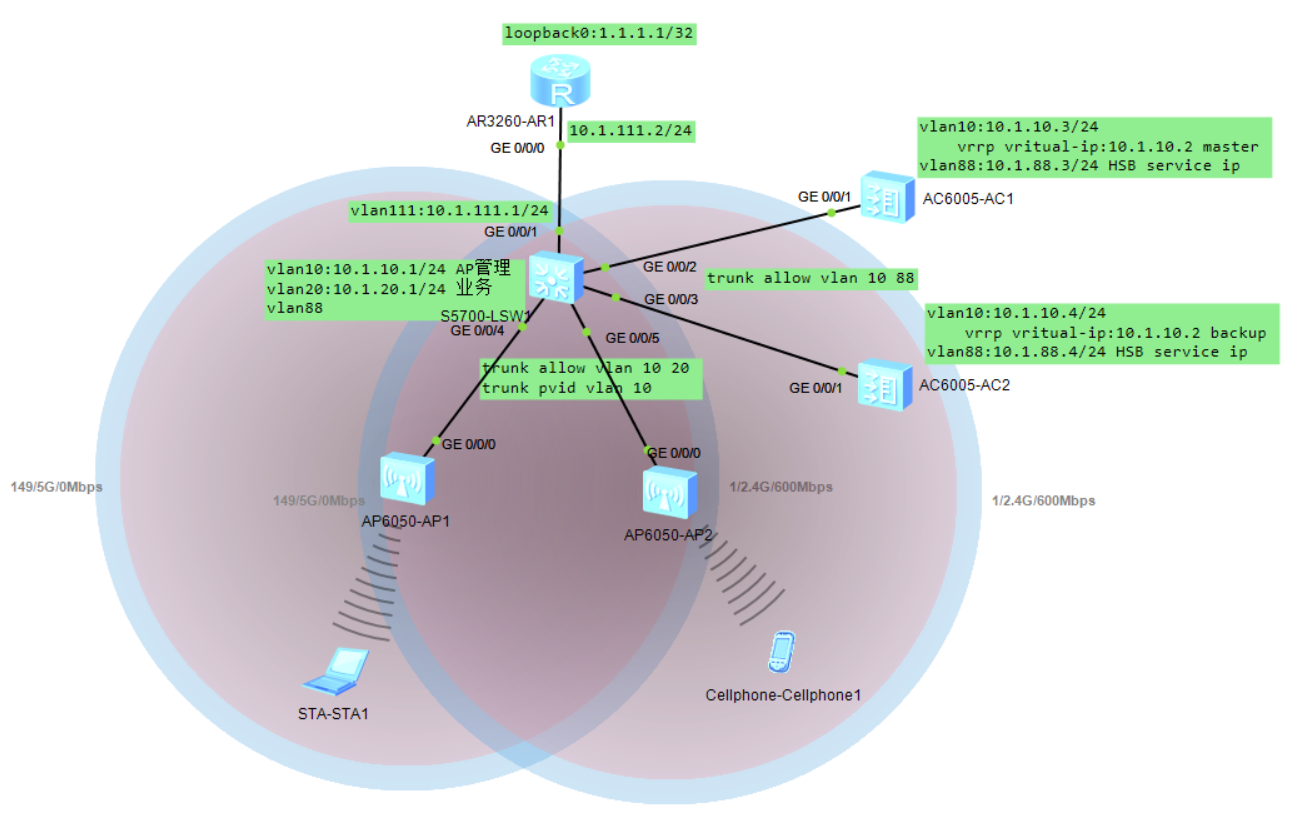

实验拓扑图：

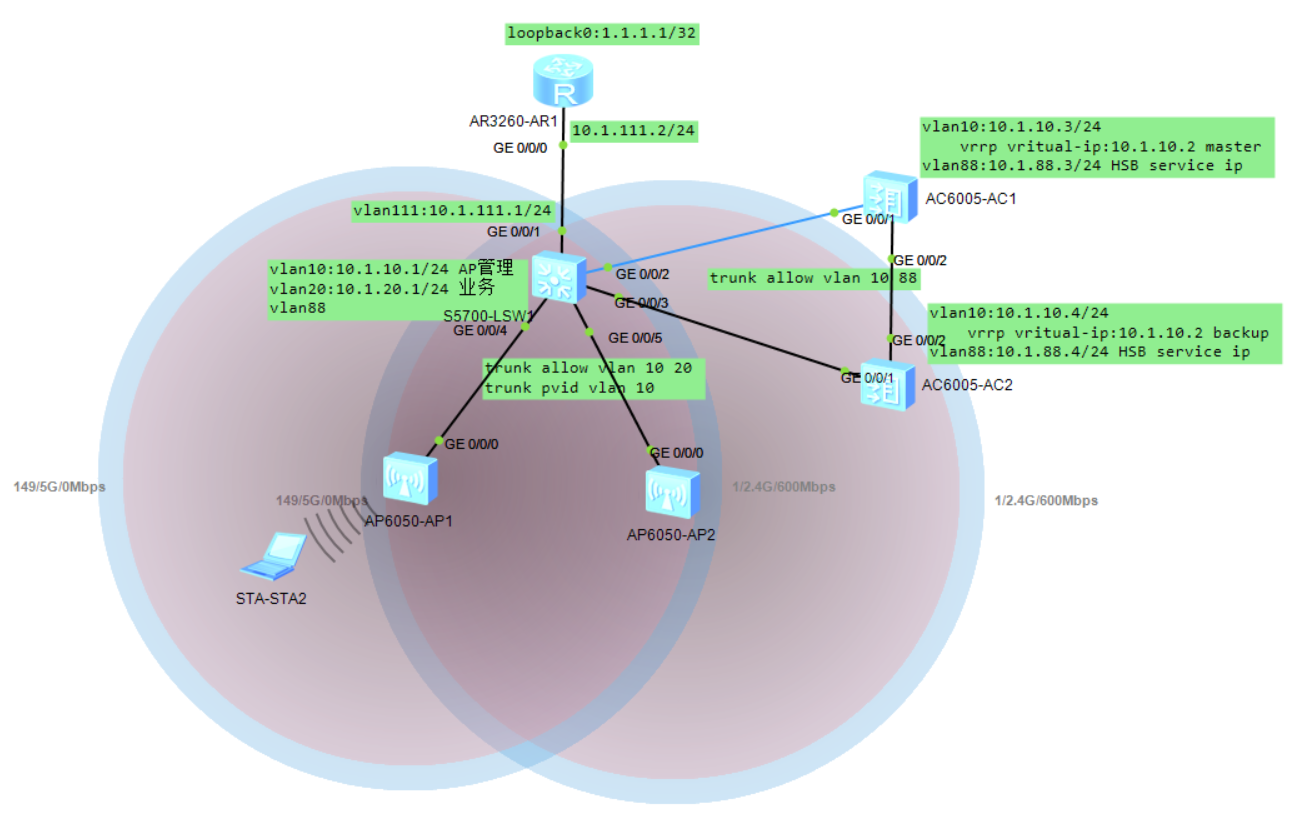

也可以使用独立的链路做为HSB专用链路，如下图：

AC1和AC2之间vlan10组成VRRP备份组，使用虚拟IP作为capwap隧道源IP

AC1和AC2之间vlan88作为HSB服务的检测IP

AC1和AC2上的WLAN配置需要手动配置，真机新版本上可以自动同步

配置如下表：

AC1	AC2	SW	R1
# vlan batch 10 88 # interface Vlanif10  ip address 10.1.10.3 255.255.255.0  vrrp vrid 10 virtual-ip 10.1.10.2  admin-vrrp vrid 10  vrrp vrid 10 priority 120 # interface Vlanif88  ip address 10.1.88.3 255.255.255.0 # interface GigabitEthernet0/0/1  port link-type trunk  port trunk allow-pass vlan 10 88 # ip route-static 0.0.0.0 0.0.0.0 10.1.10.1 # capwap source ip-address 10.1.10.2 # hsb-service 0  service-ip-port local-ip 10.1.88.3 peer-ip 10.1.88.4 local-data-port 12345 peer -data-port 12345 # hsb-group 0  track vrrp vrid 10 interface Vlanif10  bind-service 0  hsb enable # hsb-service-type access-user hsb-group 0 # hsb-service-type ap hsb-group 0 # wlan  security-profile name home  ssid-profile name home   ssid home  vap-profile name home   service-vlan vlan-id 20   ssid-profile home   security-profile home   regulatory-domain-profile name china  ap-group name home   regulatory-domain-profile china   radio 0    vap-profile home wlan 1   radio 1    vap-profile home wlan 1   radio 2    vap-profile home wlan 1  ap-id 0 type-id 56 ap-mac 00e0-fc7d-66e0 ap-sn 210235448310206B7F19   ap-name AP2   ap-group home  ap-id 1 type-id 56 ap-mac 00e0-fc3a-1520 ap-sn 210235448310613FDB28   ap-name AP1   ap-group home #	# vlan batch 10 88 # interface Vlanif10  ip address 10.1.10.4 255.255.255.0  vrrp vrid 10 virtual-ip 10.1.10.2  admin-vrrp vrid 10 # interface Vlanif88  ip address 10.1.88.4 255.255.255.0 # interface GigabitEthernet0/0/1  port link-type trunk  port trunk allow-pass vlan 10 88 # ip route-static 0.0.0.0 0.0.0.0 10.1.10.1 # capwap source ip-address 10.1.10.2 # hsb-service 0  service-ip-port local-ip 10.1.88.4 peer-ip 10.1.88.3 local-data-port 12345 peer -data-port 12345 # hsb-group 0  track vrrp vrid 10 interface Vlanif10  bind-service 0  hsb enable # hsb-service-type access-user hsb-group 0 # hsb-service-type ap hsb-group 0 # wlan  security-profile name home  ssid-profile name home   ssid home  vap-profile name home   service-vlan vlan-id 20   ssid-profile home   security-profile home  regulatory-domain-profile name china  ap-group name home   regulatory-domain-profile china   radio 0    vap-profile home wlan 1   radio 1    vap-profile home wlan 1   radio 2    vap-profile home wlan 1  ap-id 0 type-id 56 ap-mac 00e0-fc7d-66e0 ap-sn 210235448310206B7F19   ap-name AP2   ap-group home  ap-id 1 type-id 56 ap-mac 00e0-fc3a-1520 ap-sn 210235448310613FDB28   ap-name AP1   ap-group home #	# vlan batch 10 20 88 111 # dhcp enable # interface Vlanif10  ip address 10.1.10.1 255.255.255.0  dhcp select interface  dhcp server excluded-ip-address 10.1.10.2 10.1.10.4 # interface Vlanif20  ip address 10.1.20.1 255.255.255.0  dhcp select interface # interface Vlanif111  ip address 10.1.111.1 255.255.255.0 # interface GigabitEthernet0/0/1  port link-type access  port default vlan 111 # interface GigabitEthernet0/0/2  port link-type trunk  port trunk allow-pass vlan 10 88 # interface GigabitEthernet0/0/3  port link-type trunk  port trunk allow-pass vlan 10 88 # interface GigabitEthernet0/0/4  port link-type trunk  port trunk pvid vlan 10  port trunk allow-pass vlan 10 20 # interface GigabitEthernet0/0/5  port link-type trunk  port trunk pvid vlan 10  port trunk allow-pass vlan 10 20 # ip route-static 0.0.0.0 0.0.0.0 10.1.111.2 #	# interface GigabitEthernet0/0/0  ip address 10.1.111.2 255.255.255.0 # interface LoopBack0  ip address 1.1.1.1 255.255.255.255 # ip route-static 0.0.0.0 0.0.0.0 10.1.111.1 #

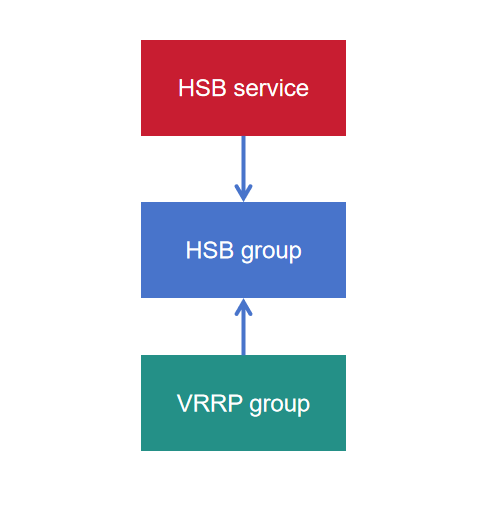

HSB配置逻辑：

验证：

        通过改变VRRP的优先级切换主备，AP状态很快便切换过来了。

        通过关闭交换机端口再启用的方式，AP状态需要等很长时间才切换过来，中间出现AP掉线。可以通过增加VRRP抢占延迟，避免此现象。

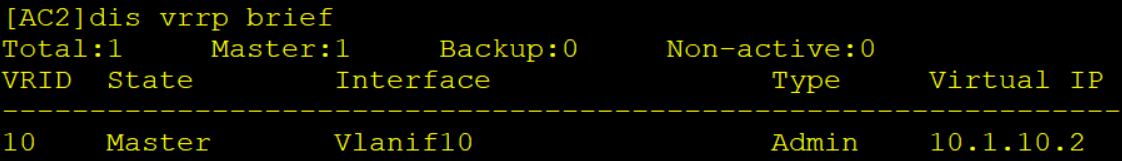

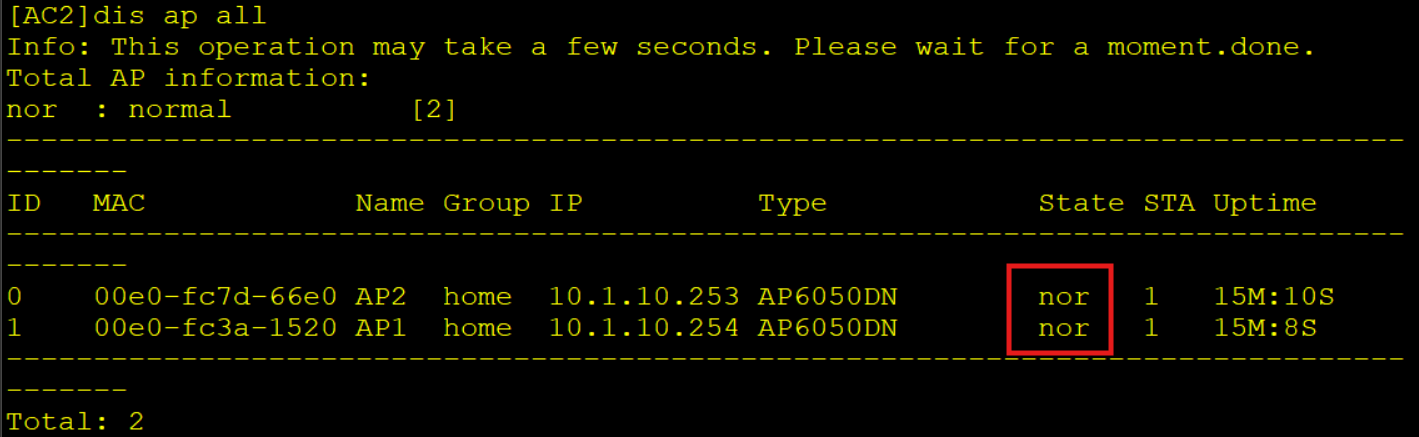

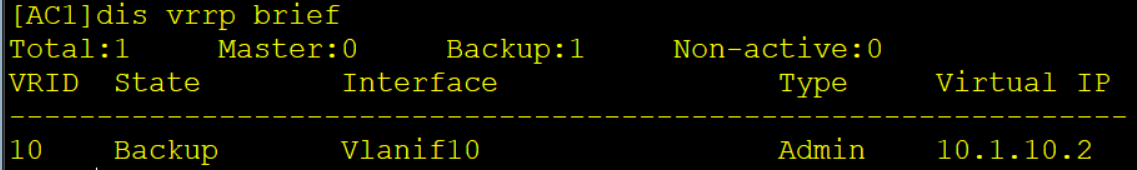

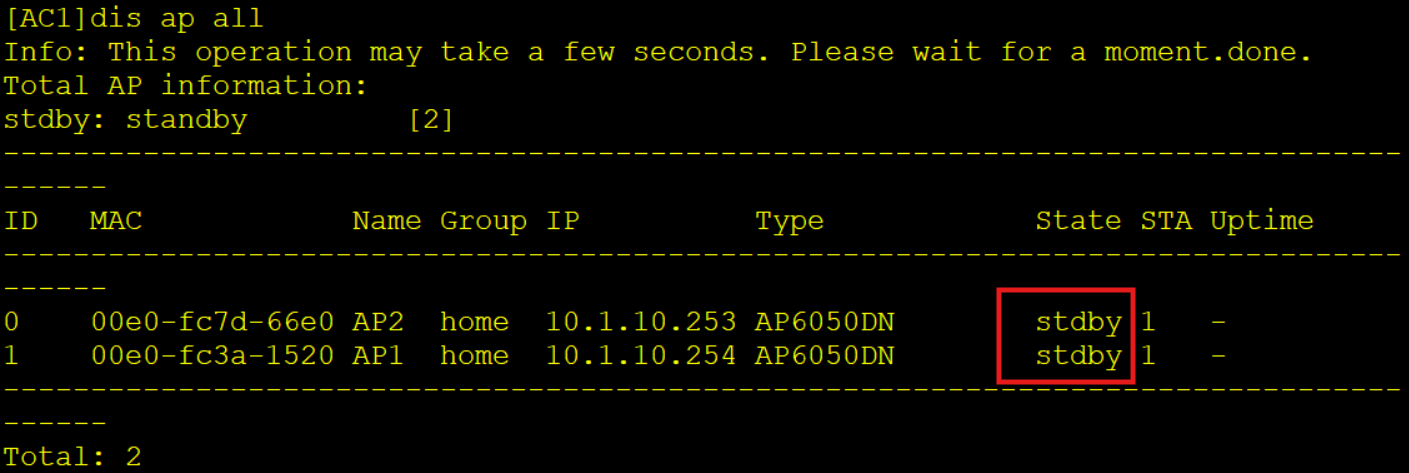

AC2为nor状态，AC1为standby状态
