创建下肢全景 X 射线

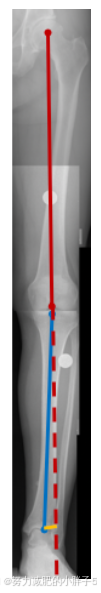

膝关节对齐测量有助于诊断关节炎状况以及规划和评估手术干预。对齐是通过站立、负重、X 射线图像中的髋膝踝 ( H K A HKA HKA) 角来测量的。该角度由股骨和胫骨机械轴定义。股骨轴由股骨头中心和中髁点定义。胫骨轴由胫骨平台中心到胫骨平台中心定义。
由 H K A HKA HKA 角度定义的三种姿势是：
- 中立对齐， H K A = 0 o HKA=0^o HKA=0o。
- 内翻，罗圈腿， H K A < 0 o HKA<0^o HKA<0o。
- 外翻，膝外翻， H K A > 0 o HKA>0^o HKA>0o。
有关更多信息，请参阅：
- T. D. Cooke 等人，“额平面膝关节对齐：呼吁标准化测量”，J Rheumatol。 2007。
- A. F. Kamath 等人，“[什么是内翻或外翻膝关节对齐？：呼吁统一的放射学分类]（https://www.ncbi.nlm.nih.gov/pubmed/20361279）”，临床骨科相关研究。2010。

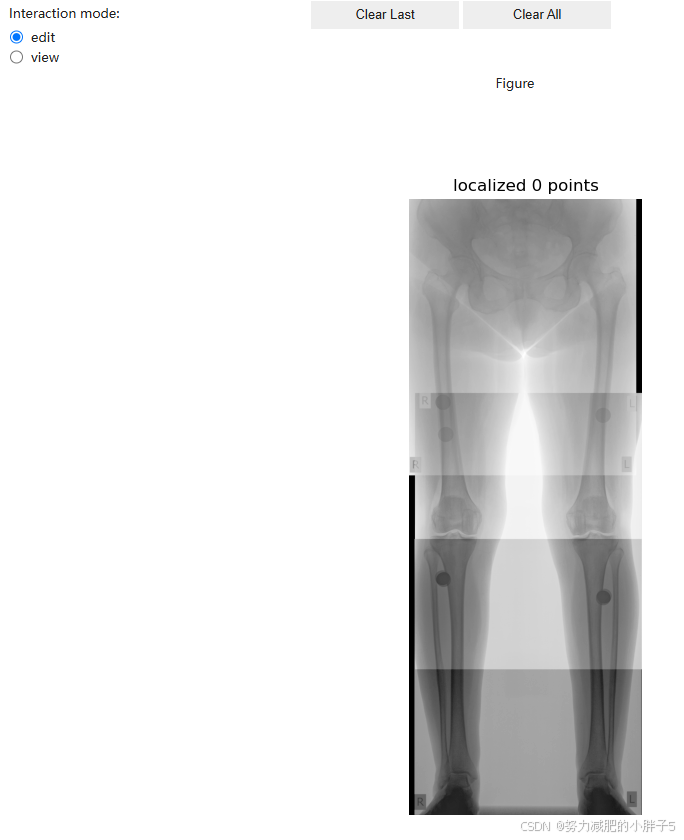

为了对 H K A HKA HKA 角度进行可靠的估计，我们希望使用包含从股骨头到踝关节的解剖结构的单个图像。使用标准 x 射线成像设备无法获取此类图像。通过获取多个部分重叠的图像并将它们对齐、注册到同一坐标系，可以实现这一点。本笔记本的主题。
本笔记本部分基于以下文献中描述的工作：“一种用于髋膝踝轴畸形评估的站立式 X 射线全景重建的无标记配准方法”，Y. K. Ben-Zikri、Z. Yaniv、K. Baum、C. A. Linte，生物力学与生物医学工程中的计算机方法：成像与可视化，DOI：10.1080/21681163.2018.1537859。
import SimpleITK as sitk
import numpy as np
import os.path
import copy
%matplotlib widget
import gui
import matplotlib.pyplot as plt
# utility method that either downloads data from the Girder repository or
# if already downloaded returns the file name for reading from disk (cached data)
%run update_path_to_download_script
from downloaddata import fetch_data as fdata
Loading data
# Fetch all of the data associated with this example.
data_directory = os.path.dirname(fdata("leg_panorama/readme.txt"))
hip_image = sitk.ReadImage(os.path.join(data_directory, "hip.mha"))
knee_image = sitk.ReadImage(os.path.join(data_directory, "knee.mha"))
ankle_image = sitk.ReadImage(os.path.join(data_directory, "ankle.mha"))
gui.multi_image_display2D([hip_image, knee_image, ankle_image], figure_size=(10, 4));
Fetching leg_panorama/readme.txt
了解您的数据
由于我们的目标是配准图像，因此我们需要确定适当的相似性度量和转换类型。
相似性度量
鉴于我们使用同一设备获取多个部分重叠的图像，我们预计相同解剖结构的强度在所有图像中都是相同的。我们首先目视检查上面显示的图像。如果将光标悬停在图像上，您将在右下角看到强度值。

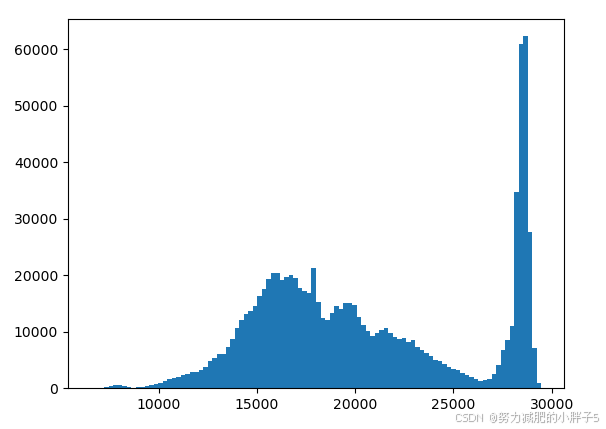

我们接下来绘制其中一张图像的直方图。
intensity_profile_image = knee_image
fig = plt.figure()
plt.hist(sitk.GetArrayViewFromImage(intensity_profile_image).flatten(), bins=100);
请注意，图像具有高动态范围，但在显示时会映射到低动态范围，因此我们无法观察到所有潜在的强度变化。理想情况下，X 射线图像中的强度变化仅在成像物体发生变化时才会发生。实际上，我们可以观察到由于 X 射线设备的结构而导致的不均匀强度（例如，X 射线阳极对光子的吸收，称为 脚跟效应）。

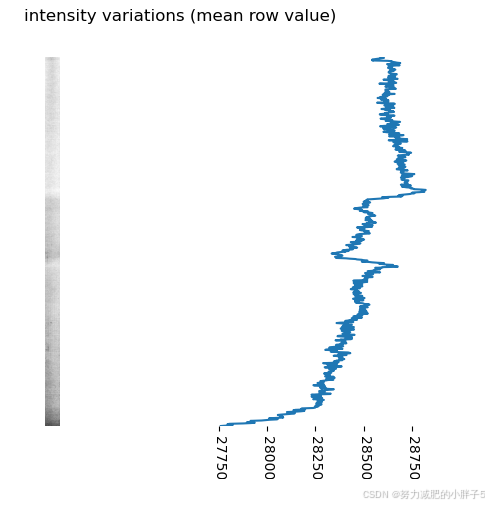

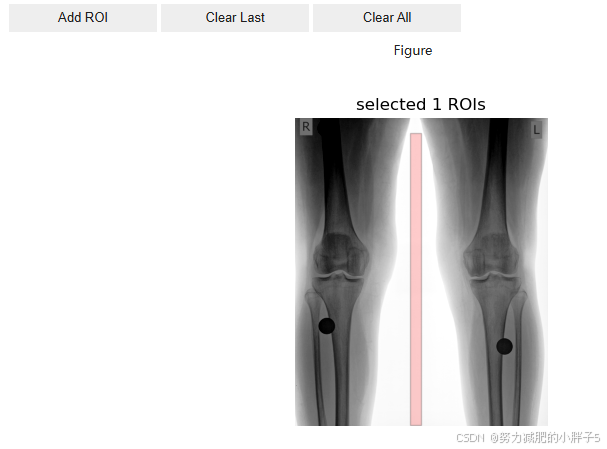

在下一个代码单元中，我们在预期具有均匀强度值（空气）的区域中定义一个矩形感兴趣区域（使用鼠标左键，单击并拖动以定义），并绘制每行的平均强度。您可以很容易地注意到，在预期均匀的区域中存在强度变化。
# The ROI we specify is in a region that is expected to have uniform intensities.
# You can clear this ROI and specify your own in the GUI below.
roi_list = [((396, 436), (52, 1057))]
roi_gui = gui.ROIDataAquisition(intensity_profile_image, figure_size=(8, 4))
roi_gui.set_rois(roi_list)
# Get the region of interest (first entry in the list of ROIs)
roi = roi_gui.get_rois()[0]
intensities = sitk.GetArrayFromImage(
intensity_profile_image[roi[0][0] : roi[0][1], roi[1][0] : roi[1][1]]
)
fig, axes = plt.subplots(1, 2, sharey=True)
fig.suptitle("intensity variations (mean row value)")
axes[0].imshow(intensities, cmap=plt.cm.Greys_r)
axes[0].set_axis_off()
axes[1].plot(intensities.mean(axis=1), range(intensities.shape[0]))
axes[1].get_yaxis().set_visible(False)
axes[1].tick_params(axis="x", rotation=-90)
plt.box(on=None)
根据我们上述的观察，我们将使用相关性作为相似度测量，而不是均方。
变换类型
一般来说，X 射线机被建模为针孔相机，我们的图像使用前平行设置获取，相机进行平移。这将一般模型从图像之间的单应性变换简化为平面平移。有关详细推导，请参阅 Z. Yaniv、L. Joskowicz，“透视 X 射线图像的长骨全景图”，IEEE Trans Med Imaging。2004 年。
虽然我们的变换类型是平移，但通过查看多个三元组图像，我们发现重叠区域的大小（预期平移）具有显着的变化。因此，我们将使用启发式探索-利用方法来提高我们的配准方法的稳健性。
配准 - 探索步骤

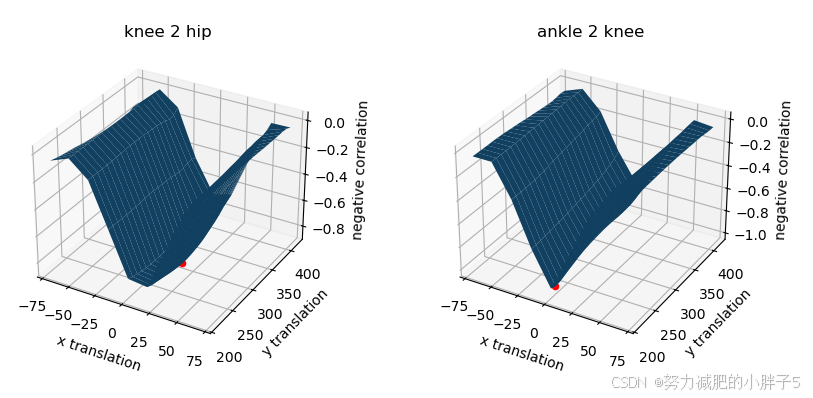

由于图像重叠存在相当大的差异，我们将使用 ExhaustiveOptimizer 来获取几个起点，即我们的探索步骤。然后，我们使用这些初始转换估计值开始标准配准，即我们的利用步骤。最后，我们从利用步骤中选择最佳转换。
class Evaluate2DTranslationCorrelation:
"""
Class for evaluating the correlation value for a given set of
2D translations between two images. The general relationship between
the fixed and moving images is assumed (fixed is "below" the moving).
We use the Exhaustive optimizer to sample the possible set of translations
and an observer to tabulate the results.
In this class we abuse the Python dictionary by using a float
value as the key. This is a unique situation in which the floating
values are fixed (not resulting from various computations) so that we
can compare them for exact equality. This means they have the
same hash value in the dictionary.
"""
def __init__(
self,
metric_sampling_percentage,
min_row_overlap,
max_row_overlap,
column_overlap,
dx_step_num,
dy_step_num,
):
"""
Args:
metric_sampling_percentage: Percentage of samples to use
when computing correlation.
min_row_overlap: Minimal number of rows that overlap between
the two images.
max_row_overlap: Maximal number of rows that overlap between
the two images.
column_overlap: Maximal translation in columns either in positive
and negative direction.
dx_step_num: Number of samples in parameter space for translation along
the x axis is 2*dx_step_num+1.
dy_step_num: Number of samples in parameter space for translation along
the y axis is 2*dy_step_num+1.
"""
self._registration_values_dict = {}
self.X = None
self.Y = None
self.C = None
self._metric_sampling_percentage = metric_sampling_percentage
self._min_row_overlap = min_row_overlap
self._max_row_overlap = max_row_overlap
self._column_overlap = column_overlap
self._dx_step_num = dx_step_num
self._dy_step_num = dy_step_num
def _start_observer(self):
self._registration_values_dict = {}
self.X = None
self.Y = None
self.C = None
def _iteration_observer(self, registration_method):
x, y = registration_method.GetOptimizerPosition()
if y in self._registration_values_dict.keys():
self._registration_values_dict[y].append(
(x, registration_method.GetMetricValue())
)
else:
self._registration_values_dict[y] = [
(x, registration_method.GetMetricValue())
]
def evaluate(self, fixed_image, moving_image):
"""
Assume the fixed image is lower than the moving image (e.g. fixed=knee, moving=hip).
The transformations map points in the fixed_image to the moving_image.
Args:
fixed_image: Image to use as fixed image in the registration.
moving_image: Image to use as moving image in the registration.
"""
minimal_overlap = np.array(
moving_image.TransformContinuousIndexToPhysicalPoint(
(
-self._column_overlap,
moving_image.GetHeight() - self._min_row_overlap,
)
)
) - np.array(fixed_image.GetOrigin())
maximal_overlap = np.array(
moving_image.TransformContinuousIndexToPhysicalPoint(
(self._column_overlap, moving_image.GetHeight() - self._max_row_overlap)
)
) - np.array(fixed_image.GetOrigin())
transform = sitk.TranslationTransform(
2,
(
(maximal_overlap[0] + minimal_overlap[0]) / 2.0,
(maximal_overlap[1] + minimal_overlap[1]) / 2.0,
),
)
# Total number of evaluations, translations along the y axis in both directions around the initial
# value is 2*dy_step_num+1.
dy_step_length = (maximal_overlap[1] - minimal_overlap[1]) / (
2 * self._dy_step_num
)
dx_step_length = (maximal_overlap[0] - minimal_overlap[0]) / (
2 * self._dx_step_num
)
step_length = dx_step_length
parameter_scales = [1, dy_step_length / dx_step_length]
registration_method = sitk.ImageRegistrationMethod()
registration_method.SetMetricAsCorrelation()
registration_method.SetMetricSamplingStrategy(registration_method.RANDOM)
registration_method.SetMetricSamplingPercentage(
self._metric_sampling_percentage
)
registration_method.SetInitialTransform(transform, inPlace=True)
registration_method.SetOptimizerAsExhaustive(
numberOfSteps=[self._dx_step_num, self._dy_step_num], stepLength=step_length
)
registration_method.SetOptimizerScales(parameter_scales)
registration_method.AddCommand(
sitk.sitkIterationEvent,
lambda: self._iteration_observer(registration_method),
)
registration_method.AddCommand(sitk.sitkStartEvent, self._start_observer)
registration_method.Execute(fixed_image, moving_image)
# Convert the data obtained by the observer to three numpy arrays X,Y,C
x_lists = []
val_lists = []
for k in self._registration_values_dict.keys():
x_list, val_list = zip(*(sorted(self._registration_values_dict[k])))
x_lists.append(x_list)
val_lists.append(val_list)
self.X = np.array(x_lists)
self.C = np.array(val_lists)
self.Y = np.array(
[
list(self._registration_values_dict.keys()),
]
* self.X.shape[1]
).transpose()
def get_raw_data(self):
"""
Get the raw data, the translations and corresponding correlation values.
Returns:
A tuple of three numpy arrays (X,Y,C) where (X[i], Y[i]) are the translation
and C[i] is the correlation value for that translation.
"""
return (np.copy(self.X), np.copy(self.Y), np.copy(self.C))
def get_candidates(self, num_candidates, correlation_threshold, nms_radius=2):
"""
Get the best (most correlated, minimal correlation value) transformations
from the sample set.
Args:
num_candidates: Maximal number of candidates to return.
correlation_threshold: Minimal correlation value required for returning
a candidate.
nms_radius: Non-Minima (the optimizer is negating the correlation) suppression
region around the local minimum.
Returns:
List of tuples containing (transform, correlation). The order of the transformations
in the list is based on the correlation value (best correlation is entry zero).
"""
candidates = []
_C = np.copy(self.C)
done = num_candidates - len(candidates) <= 0
while not done:
min_index = np.unravel_index(_C.argmin(), _C.shape)
if -_C[min_index] < correlation_threshold:
done = True
else:
candidates.append(
(
sitk.TranslationTransform(
2, (self.X[min_index], self.Y[min_index])
),
self.C[min_index],
)
)
# None-minima suppression in the region around our minimum
start_nms = np.maximum(
np.array(min_index) - nms_radius, np.array([0, 0])
)
# for the end coordinate we add nms_radius+1 because the slicing operator _C[],
# excludes the end
end_nms = np.minimum(
np.array(min_index) + nms_radius + 1, np.array(_C.shape)
)
_C[start_nms[0] : end_nms[0], start_nms[1] : end_nms[1]] = 0
done = num_candidates - len(candidates) <= 0
return candidates
def create_images_in_shared_coordinate_system(image_transform_list):
"""
Resample a set of images onto the same region in space (the bounding)
box of all images.
Args:
image_transform_list: A list of tuples each containing a transformation and an image. The transformations map the
images to a shared coordinate system.
Returns:
list of images: All images are resampled into the same coordinate system and the bounding box of all images is
used to define the new image extent onto which the originals are resampled. The background value
for the resampled images is set to 0.
"""
pnt_list = []
for image, transform in image_transform_list:
pnt_list.append(transform.TransformPoint(image.GetOrigin()))
pnt_list.append(
transform.TransformPoint(
image.TransformIndexToPhysicalPoint(
(image.GetWidth() - 1, image.GetHeight() - 1)
)
)
)
max_coordinates = np.max(pnt_list, axis=0)
min_coordinates = np.min(pnt_list, axis=0)
# We assume the spacing for all original images is the same and we keep it.
output_spacing = image_transform_list[0][0].GetSpacing()
# We assume the pixel type for all images is the same and we keep it.
output_pixelID = image_transform_list[0][0].GetPixelID()
# We assume the direction for all images is the same and we keep it.
output_direction = image_transform_list[0][0].GetDirection()
output_width = int(
np.round((max_coordinates[0] - min_coordinates[0]) / output_spacing[0])
)
output_height = int(
np.round((max_coordinates[1] - min_coordinates[1]) / output_spacing[1])
)
output_origin = (min_coordinates[0], min_coordinates[1])
images_in_shared_coordinate_system = []
for image, transform in image_transform_list:
images_in_shared_coordinate_system.append(
sitk.Resample(
image,
(output_width, output_height),
transform.GetInverse(),
sitk.sitkLinear,
output_origin,
output_spacing,
output_direction,
0.0,
output_pixelID,
)
)
return images_in_shared_coordinate_system
def composite_images_alpha_blending(images_in_shared_coordinate_system, alpha=0.5):
"""
Composite a list of images sharing the same extent (size, origin, spacing, direction cosine).
Args:
images_in_shared_coordinate_system: A list of images sharing the same meta-information (origin, size, spacing, direction cosine).
We assume zero denotes background.
Returns:
SimpleITK image with pixel type sitkFloat32: alpha blending of the images.
"""
# Composite all of the images using alpha blending where there is overlap between two images, otherwise
# just paste the image values into the composite image. We assume that at most two images overlap.
composite_image = sitk.Cast(images_in_shared_coordinate_system[0], sitk.sitkFloat32)
for img in images_in_shared_coordinate_system[1:]:
current_image = sitk.Cast(img, sitk.sitkFloat32)
mask1 = sitk.Cast(composite_image != 0, sitk.sitkFloat32)
mask2 = sitk.Cast(current_image != 0, sitk.sitkFloat32)
intersection_mask = mask1 * mask2
composite_image = (
alpha * intersection_mask * composite_image
+ (1 - alpha) * intersection_mask * current_image
+ (mask1 - intersection_mask) * composite_image
+ (mask2 - intersection_mask) * current_image
)
return composite_image
我们首先执行探索步骤，获得多个起点候选。
下面我们还绘制了相似度度量曲面和最小值。
metric_sampling_percentage = 0.2
min_row_overlap = 20
max_row_overlap = 0.5 * hip_image.GetHeight()
column_overlap = 0.2 * hip_image.GetWidth()
dx_step_num = 4
dy_step_num = 10
initializer = Evaluate2DTranslationCorrelation(
metric_sampling_percentage,
min_row_overlap,
max_row_overlap,
column_overlap,
dx_step_num,
dy_step_num,
)
# Get potential starting points for the knee-hip images.
initializer.evaluate(
fixed_image=sitk.Cast(knee_image, sitk.sitkFloat32),
moving_image=sitk.Cast(hip_image, sitk.sitkFloat32),
)
plotting_data = [("knee 2 hip", initializer.get_raw_data())]
k2h_candidates = initializer.get_candidates(num_candidates=4, correlation_threshold=0.5)
# Get potential starting points for the ankle-knee images.
initializer.evaluate(
fixed_image=sitk.Cast(ankle_image, sitk.sitkFloat32),
moving_image=sitk.Cast(knee_image, sitk.sitkFloat32),
)
plotting_data.append(("ankle 2 knee", initializer.get_raw_data()))
a2k_candidates = initializer.get_candidates(num_candidates=4, correlation_threshold=0.5)
# Plot the similarity metric terrain and mark the minimum with a red sphere.
from mpl_toolkits.mplot3d import Axes3D
fig = plt.figure(figsize=(10, 4))
for i, plot_data in enumerate(plotting_data, 1):
ax = fig.add_subplot(1, 2, i, projection="3d")
ax.plot_surface(*(plot_data[1]))
ax.set_xlabel("x translation")
ax.set_ylabel("y translation")
ax.set_zlabel("negative correlation")
ax.set_title(plot_data[0])
min_index = np.unravel_index((plot_data[1])[2].argmin(), (plot_data[1])[2].shape)
ax.scatter(
(plot_data[1])[0][min_index],
(plot_data[1])[1][min_index],
(plot_data[1])[2][min_index],
marker="o",
color="red",
);
# We will use the hip image coordinate system as the common coordinate system
# and visualize the results with the transformations corresponding to the best
# similarity metric values.
knee2hip_transform = k2h_candidates[0][0]
ankle2knee_transform = a2k_candidates[0][0]
ankle2hip_transform = sitk.CompositeTransform(
[knee2hip_transform, ankle2knee_transform]
)
image_transform_list = [
(hip_image, sitk.TranslationTransform(2)),
(knee_image, knee2hip_transform),
(ankle_image, ankle2hip_transform),
]
composite_image = composite_images_alpha_blending(
create_images_in_shared_coordinate_system(image_transform_list)
)
gui.multi_image_display2D([composite_image], figure_size=(4, 8))
print(f"knee2hip_correlation: {k2h_candidates[0][1]:.2f}")
print(f"ankle2hip_correlation: {a2k_candidates[0][1]:.2f}")
knee2hip_correlation: -0.84
ankle2hip_correlation: -0.99
配准 - 利用步骤
现在，我们已经有了一组良好的（从相似度度量角度来看）初始转换估计值，我们将使用基于标准 GradientDescent 的配准来完善它们。
最终的转换是那些与最佳相似度度量值相对应的转换。
def final_registration(fixed_image, moving_image, initial_mutable_transformations):
"""
Register the two images using multiple starting transformations.
Args:
fixed_image (SimpleITK image): Estimated transformation maps points from this image to the
moving_image.
moving_image (SimpleITK image): Estimated transformation maps points from the fixed image to
this image.
initial_mutable_transformations (iterable, list like): Set of initial transformations, these will
be modified in place.
"""
registration_method = sitk.ImageRegistrationMethod()
registration_method.SetMetricAsCorrelation()
registration_method.SetMetricSamplingStrategy(registration_method.RANDOM)
registration_method.SetMetricSamplingPercentage(0.2)
registration_method.SetOptimizerAsGradientDescent(
learningRate=1.0, numberOfIterations=200
)
registration_method.SetOptimizerScalesFromPhysicalShift()
def reg(transform):
registration_method.SetInitialTransform(transform)
registration_method.Execute(fixed_image, moving_image)
return registration_method.GetMetricValue()
final_values = [reg(transform) for transform in initial_mutable_transformations]
return list(zip(initial_mutable_transformations, final_values))
# Copy the initial transformations for use in the final registration
initial_transformation_list_k2h = [
sitk.TranslationTransform(t) for t, corr in k2h_candidates
]
initial_transformation_list_a2k = [
sitk.TranslationTransform(t) for t, corr in a2k_candidates
]
# Perform the final registration
k2h_final = final_registration(
fixed_image=sitk.Cast(knee_image, sitk.sitkFloat32),
moving_image=sitk.Cast(hip_image, sitk.sitkFloat32),
initial_mutable_transformations=initial_transformation_list_k2h,
)
a2k_final = final_registration(
fixed_image=sitk.Cast(ankle_image, sitk.sitkFloat32),
moving_image=sitk.Cast(knee_image, sitk.sitkFloat32),
initial_mutable_transformations=initial_transformation_list_a2k,
)
knee2hip = min(k2h_final, key=lambda x: x[1])
knee2hip_transform = knee2hip[0]
ankle2knee = min(a2k_final, key=lambda x: x[1])
ankle2hip_transform = sitk.CompositeTransform([knee2hip_transform, ankle2knee[0]])
image_transform_list = [
(hip_image, sitk.TranslationTransform(2)),
(knee_image, knee2hip_transform),
(ankle_image, ankle2hip_transform),
]
composite_image = composite_images_alpha_blending(
create_images_in_shared_coordinate_system(image_transform_list)
)
gui.multi_image_display2D([composite_image], figure_size=(4, 8))
print(f"knee2hip_correlation: {knee2hip[1]:.2f}")
print(f"ankle2hip_correlation: {ankle2knee[1]:.2f}")
knee2hip_correlation: -0.92
ankle2hip_correlation: -0.99
其他值得思考的问题
- 最佳最终转换是否与最佳初始转换相对应？
- 找到探索阶段的最佳参数空间采样（同时考虑时间和准确性）。
测量角度
从顶部开始，按以下顺序标记点：
- 股骨头。
- 股骨中髁点。
- 胫骨棘凹口中心。
- 胫骨基台中心。
measurement_gui = gui.PointDataAquisition(composite_image);
points_top_to_bottom = measurement_gui.get_points()
if len(points_top_to_bottom) == 4:
femoral_axis = np.array(points_top_to_bottom[1]) - np.array(points_top_to_bottom[0])
tibial_axis = np.array(points_top_to_bottom[3]) - np.array(points_top_to_bottom[2])
angle = np.arctan2(tibial_axis[1], tibial_axis[0]) - np.arctan2(
femoral_axis[1], femoral_axis[0]
)
print(f"Angle is (degrees): {np.degrees(angle)}")
扫一扫
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
