Iceberg源码学习：flink checkpoint流程分析一

开始

checkpoint流程入口：

# Dispatcher.runJob(JobGraph jobGraph)
private CompletableFuture<Void> runJob(JobGraph jobGraph) {
		Preconditions.checkState(!jobManagerRunnerFutures.containsKey(jobGraph.getJobID()));

		final CompletableFuture<JobManagerRunner> jobManagerRunnerFuture = createJobManagerRunner(jobGraph);

		jobManagerRunnerFutures.put(jobGraph.getJobID(), jobManagerRunnerFuture);

		return jobManagerRunnerFuture
			.thenApply(FunctionUtils.uncheckedFunction(this::startJobManagerRunner))
			.thenApply(FunctionUtils.nullFn())
			.whenCompleteAsync(
				(ignored, throwable) -> {
					if (throwable != null) {
						jobManagerRunnerFutures.remove(jobGraph.getJobID());
					}
				},
				getMainThreadExecutor());
	}

将JobGraph提交到Dispatcher后，会调用createJobManagerRunner和startJobManagerRunner。其中，
1、createJobManagerRunner实例创建checkpoint，并注册定时任务。
2、startJobManagerRunner启动checkpoint定时任务。

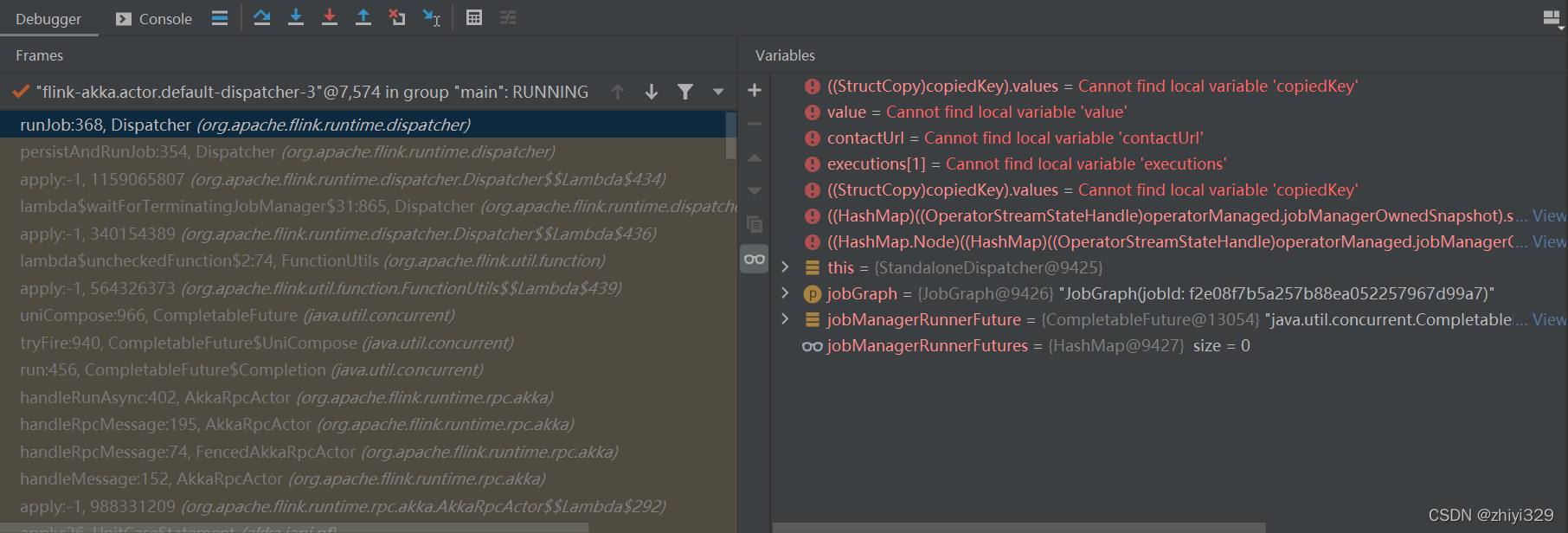

执行图：

构建checkpoint

createJobManagerRunner阶段，会创建一个JobManagerRunner实例，在该过程和checkpoint有关的是会启动listener去监听job的状态。流程如下：

// Dispatcher类
private CompletableFuture<JobManagerRunner> createJobManagerRunner(JobGraph jobGraph) {
   final RpcService rpcService = getRpcService();

   return CompletableFuture.supplyAsync(
      () -> {
         try {
            return jobManagerRunnerFactory.createJobManagerRunner(
               jobGraph,
               configuration,
               rpcService,
               highAvailabilityServices,
               heartbeatServices,
               jobManagerSharedServices,
               new DefaultJobManagerJobMetricGroupFactory(jobManagerMetricGroup),
               fatalErrorHandler);
         } catch (Exception e) {
            throw new CompletionException(new JobExecutionException(jobGraph.getJobID(), "Could not instantiate JobManager.", e));
         }
      },
      rpcService.getExecutor());
}
// 过程中会创建JobMaster，构建ExecutionGraph
// 过程JobManagerRunnerFactory.createJobManagerRunner -> new JobManagerRunnerImpl()-> DefaultJobMasterServiceFactory.createJobMasterService -> new JobMaster() -> createScheduler() -> DefaultSchedulerFactory.createInstance()-> new DefaultScheduler()-> createAndRestoreExecutionGraph -> createExecutionGraph() -> ExecutionGraphBuilder.buildGraph()

ExecutionGraphBuilder调用buildGraph()时，会调用ExecutionGraph.enableCheckpointing()方法，这个方法不管任务里有没有设置checkpoint都会调用的。
在enableCheckpointing()方法里会创建CheckpointCoordinator，这是负责checkpoint的核心实现类，同时会给job添加一个监听器CheckpointCoordinatorDeActivator（只有设置了checkpoint才会注册这个监听器），CheckpointCoordinatorDeActivator负责checkpoint的启动和停止。
源码如下：

// ExecutionGraphBuilder类
public static ExecutionGraph buildGraph(
   @Nullable ExecutionGraph prior,
   JobGraph jobGraph,
   Configuration jobManagerConfig,
   ScheduledExecutorService futureExecutor,
   Executor ioExecutor,
   SlotProvider slotProvider,
   ClassLoader classLoader,
   CheckpointRecoveryFactory recoveryFactory,
   Time rpcTimeout,
   RestartStrategy restartStrategy,
   MetricGroup metrics,
   BlobWriter blobWriter,
   Time allocationTimeout,
   Logger log,
   ShuffleMaster<?> shuffleMaster,
   JobMasterPartitionTracker partitionTracker,
   FailoverStrategy.Factory failoverStrategyFactory) throws JobExecutionException, JobException {

   checkNotNull(jobGraph, "job graph cannot be null");

   ...

   // create a new execution graph, if none exists so far
   final ExecutionGraph executionGraph;
   try {
      executionGraph = (prior != null) ? prior :
         new ExecutionGraph(
            jobInformation,
            futureExecutor,
            ioExecutor,
            rpcTimeout,
            restartStrategy,
            maxPriorAttemptsHistoryLength,
            failoverStrategyFactory,
            slotProvider,
            classLoader,
            blobWriter,
            allocationTimeout,
            partitionReleaseStrategyFactory,
            shuffleMaster,
            partitionTracker,
            jobGraph.getScheduleMode());
   } catch (IOException e) {
      throw new JobException("Could not create the ExecutionGraph.", e);
   }

   ...

   // configure the state checkpointing
   JobCheckpointingSettings snapshotSettings = jobGraph.getCheckpointingSettings();
   if (snapshotSettings != null) {
      ...
      final CheckpointCoordinatorConfiguration chkConfig = snapshotSettings.getCheckpointCoordinatorConfiguration();

      executionGraph.enableCheckpointing(
         chkConfig,
         triggerVertices,
         ackVertices,
         confirmVertices,
         hooks,
         checkpointIdCounter,
         completedCheckpoints,
         rootBackend,
         checkpointStatsTracker);
   }
   ...

   return executionGraph;
}

在enableCheckpointing()方法中主要是创建了checkpoint失败时的failureManager处理、设置了checkpoint的核心类CheckpointCoordinator。

// ExecutionGraph类
public void enableCheckpointing(
      CheckpointCoordinatorConfiguration chkConfig,
      List<ExecutionJobVertex> verticesToTrigger,
      List<ExecutionJobVertex> verticesToWaitFor,
      List<ExecutionJobVertex> verticesToCommitTo,
      List<MasterTriggerRestoreHook<?>> masterHooks,
      CheckpointIDCounter checkpointIDCounter,
      CompletedCheckpointStore checkpointStore,
      StateBackend checkpointStateBackend,
      CheckpointStatsTracker statsTracker) {

   checkState(state == JobStatus.CREATED, "Job must be in CREATED state");
   checkState(checkpointCoordinator == null, "checkpointing already enabled");

   ExecutionVertex[] tasksToTrigger = collectExecutionVertices(verticesToTrigger);
   ExecutionVertex[] tasksToWaitFor = collectExecutionVertices(verticesToWaitFor);
   ExecutionVertex[] tasksToCommitTo = collectExecutionVertices(verticesToCommitTo);

   final Collection<OperatorCoordinatorCheckpointContext> operatorCoordinators = buildOpCoordinatorCheckpointContexts();

   checkpointStatsTracker = checkNotNull(statsTracker, "CheckpointStatsTracker");

   CheckpointFailureManager failureManager = new CheckpointFailureManager(
      chkConfig.getTolerableCheckpointFailureNumber(),
      new CheckpointFailureManager.FailJobCallback() {
         @Override
         public void failJob(Throwable cause) {
            getJobMasterMainThreadExecutor().execute(() -> failGlobal(cause));
         }

         @Override
         public void failJobDueToTaskFailure(Throwable cause, ExecutionAttemptID failingTask) {
            getJobMasterMainThreadExecutor().execute(() -> failGlobalIfExecutionIsStillRunning(cause, failingTask));
         }
      }
   );

   checkState(checkpointCoordinatorTimer == null);

   checkpointCoordinatorTimer = Executors.newSingleThreadScheduledExecutor(
      new DispatcherThreadFactory(
         Thread.currentThread().getThreadGroup(), "Checkpoint Timer"));

   // create the coordinator that triggers and commits checkpoints and holds the state
   checkpointCoordinator = new CheckpointCoordinator(
      jobInformation.getJobId(),
      chkConfig,
      tasksToTrigger,
      tasksToWaitFor,
      tasksToCommitTo,
      operatorCoordinators,
      checkpointIDCounter,
      checkpointStore,
      checkpointStateBackend,
      ioExecutor,
      new ScheduledExecutorServiceAdapter(checkpointCoordinatorTimer),
      SharedStateRegistry.DEFAULT_FACTORY,
      failureManager);

   // register the master hooks on the checkpoint coordinator
   for (MasterTriggerRestoreHook<?> hook : masterHooks) {
      if (!checkpointCoordinator.addMasterHook(hook)) {
         LOG.warn("Trying to register multiple checkpoint hooks with the name: {}", hook.getIdentifier());
      }
   }

   checkpointCoordinator.setCheckpointStatsTracker(checkpointStatsTracker);

   // 如果没有设置checkpoint的话，则不会注册这个checkpoint监听器
   // interval of max long value indicates disable periodic checkpoint,
   // the CheckpointActivatorDeactivator should be created only if the interval is not max value
   if (chkConfig.getCheckpointInterval() != Long.MAX_VALUE) {
      // the periodic checkpoint scheduler is activated and deactivated as a result of
      // job status changes (running -> on, all other states -> off)
      registerJobStatusListener(checkpointCoordinator.createActivatorDeactivator());
   }

   this.stateBackendName = checkpointStateBackend.getClass().getSimpleName();
}

创建一个listener监听器checkpointCoordinator，并注册到jobStatusListeners列表中，在job任务出现改变时会进行一些相应的操作。

// CheckpointCoordinator类
public JobStatusListener createActivatorDeactivator() {
   synchronized (lock) {
      if (shutdown) {
         throw new IllegalArgumentException("Checkpoint coordinator is shut down");
      }

      if (jobStatusListener == null) {
         jobStatusListener = new CheckpointCoordinatorDeActivator(this);
      }

      return jobStatusListener;
   }
}

// ExecutionGraph类
// 添加到列表中
public void registerJobStatusListener(JobStatusListener listener) {
   if (listener != null) {
      jobStatusListeners.add(listener);
   }
}

Jobmanager启动checkpoint调度

在JobManager端开始进行任务调度的时候，会对job的状态进行转换，由CREATED转成RUNNING,实现在transitionState()方法中，在这个过程中刚才设置的job监听器CheckpointCoordinatorDeActivator就开始启动checkpoint的定时任务了。调用过程从Dispatcher.startJobManagerRunner开始，

JobManagerRunnerImpl.start() -> StandaloneLeaderElectionService.start() -> JobManagerRunnerImpl.grantLeadership() -> verifyJobSchedulingStatusAndStartJobManager() -> startJobMaster() -> JobMaster.start() -> startJobExecution() -> resetAndStartScheduler() -> startScheduling() -> SchedulerBase.startScheduling() -> DefaultScheduler.startSchedulingInternal() -> SchedulerBase.prepareExecutionGraphForNgScheduling() -> ExecutionGraph.transitionToRunning() -> transitionState() -> notifyJobStatusChange() -> CheckpointCoordinatorDeActivator.jobStatusChanges() -> CheckpointCoordinator.startCheckpointScheduler()

源码如下：

// ExecutionGraph类
public void transitionToRunning() {
   if (!transitionState(JobStatus.CREATED, JobStatus.RUNNING)) {
      throw new IllegalStateException("Job may only be scheduled from state " + JobStatus.CREATED);
   }
}


public boolean transitionState(JobStatus current, JobStatus newState) {
   return transitionState(current, newState, null);
}


private boolean transitionState(JobStatus current, JobStatus newState, Throwable error) {
   assertRunningInJobMasterMainThread();
   // consistency check
   if (current.isTerminalState()) {
      String message = "Job is trying to leave terminal state " + current;
      LOG.error(message);
      throw new IllegalStateException(message);
   }

   // now do the actual state transition
   if (state == current) {
      state = newState;
      LOG.info("Job {} ({}) switched from state {} to {}.", getJobName(), getJobID(), current, newState, error);

      stateTimestamps[newState.ordinal()] = System.currentTimeMillis();
      notifyJobStatusChange(newState, error);
      return true;
   }
   else {
      return false;
   }
}


private void notifyJobStatusChange(JobStatus newState, Throwable error) {
   if (jobStatusListeners.size() > 0) {
      final long timestamp = System.currentTimeMillis();
      final Throwable serializedError = error == null ? null : new SerializedThrowable(error);

      for (JobStatusListener listener : jobStatusListeners) {
         try {
            listener.jobStatusChanges(getJobID(), newState, timestamp, serializedError);
         } catch (Throwable t) {
            LOG.warn("Error while notifying JobStatusListener", t);
         }
      }
   }
}

// CheckpointCoordinatorDeActivator类
public void jobStatusChanges(JobID jobId, JobStatus newJobStatus, long timestamp, Throwable error) {
   if (newJobStatus == JobStatus.RUNNING) {
      // start the checkpoint scheduler
      coordinator.startCheckpointScheduler();
   } else {
      // anything else should stop the trigger for now
      coordinator.stopCheckpointScheduler();
   }
}

CheckpointCoordinator会部署一个定时任务，用于周期性的触发checkpoint，这个定时任务就是CheckpointCoordinator内部类ScheduledTrigger类

// CheckpointCoordinator类
public void startCheckpointScheduler() {
   synchronized (lock) {
      if (shutdown) {
         throw new IllegalArgumentException("Checkpoint coordinator is shut down");
      }

      // make sure all prior timers are cancelled
      stopCheckpointScheduler();

      periodicScheduling = true;
      currentPeriodicTrigger = scheduleTriggerWithDelay(getRandomInitDelay());
   }
}


private ScheduledFuture<?> scheduleTriggerWithDelay(long initDelay) {
   return timer.scheduleAtFixedRate(
      new ScheduledTrigger(),
      initDelay, baseInterval, TimeUnit.MILLISECONDS);
}


private final class ScheduledTrigger implements Runnable {

   @Override
   public void run() {
      try {
         triggerCheckpoint(true);
      }
      catch (Exception e) {
         LOG.error("Exception while triggering checkpoint for job {}.", job, e);
      }
   }
}

ScheduledTrigger定时触发checkpoint，触发过程中：

1、在触发checkpoint之前先做一遍检查，检查当前正在处理的checkpoint是否超过设置的最大并发checkpoint数量，检查checkpoint的间隔是否达到设置的两次checkpoint的时间间隔，在都没有问题的情况下才可以触发checkpoint

2、获取所有的executions task，即所有的source task，过程中检查需要触发的task是否都正常运行。

3、获取所有的ackTasks，这里就是所有运行task，过程中需要确认checkpoint信息的task是否正常运行。所有的task最终都需要向JobManager发送确认自己checkpoint的信息。

4、正式开始触发checkpoint，创建一个PendingCheckpoint，包含了checkpointID和timestamp，向所有的source task去触发checkpoint

//CheckpointCoordinator类
public CompletableFuture<CompletedCheckpoint> triggerCheckpoint(
      CheckpointProperties props,
      @Nullable String externalSavepointLocation,
      boolean isPeriodic,
      boolean advanceToEndOfTime) {

   if (advanceToEndOfTime && !(props.isSynchronous() && props.isSavepoint())) {
      return FutureUtils.completedExceptionally(new IllegalArgumentException(
         "Only synchronous savepoints are allowed to advance the watermark to MAX."));
   }

   CheckpointTriggerRequest request = new CheckpointTriggerRequest(props, externalSavepointLocation, isPeriodic, advanceToEndOfTime);
   requestDecider
      .chooseRequestToExecute(request, isTriggering, lastCheckpointCompletionRelativeTime)
      .ifPresent(this::startTriggeringCheckpoint);
   return request.onCompletionPromise;
}

// 触发前的检查
Optional<CheckpointTriggerRequest> chooseRequestToExecute(CheckpointTriggerRequest newRequest, boolean isTriggering, long lastCompletionMs) {
   synchronized (lock) {
      if (queuedRequests.size() >= maxQueuedRequests && !queuedRequests.last().isPeriodic) {
         // there are only non-periodic (ie user-submitted) requests enqueued - r
