Iceberg源码学习：flink写iceberg四种TaskWriter区别

最新推荐文章于 2023-12-31 11:09:22 发布

zhiyi329

最新推荐文章于 2023-12-31 11:09:22 发布

阅读量2k

点赞数 2

分类专栏： flink 文章标签： flink 大数据 iceberg

本文链接：https://blog.youkuaiyun.com/yiweiyi329/article/details/122012474

版权

开始

flink写iceberg时，IcebergStreamWriter的open()方法中，会调用TaskWriterFactory.create()，会创建四种类型的写（UnpartitionedDeltaWriter/UnpartitionedWriter/PartitionedDeltaWriter/RowDataPartitionedFanoutWriter），本文主要追踪这四种类型的写。
其中，IcebergStreamWriter.open()方法：

    public void open() {
        this.subTaskId = this.getRuntimeContext().getIndexOfThisSubtask();
        this.attemptId = this.getRuntimeContext().getAttemptNumber();
        this.taskWriterFactory.initialize(this.subTaskId, this.attemptId);
        this.writer = this.taskWriterFactory.create();
    }

TaskWriterFactory.create()方法：

    public TaskWriter<RowData> create() {
        Preconditions.checkNotNull(this.outputFileFactory, "The outputFileFactory shouldn't be null if we have invoked the initialize().");
        if (this.equalityFieldIds != null && !this.equalityFieldIds.isEmpty()) {
            return (TaskWriter)(this.spec.isUnpartitioned() ? new UnpartitionedDeltaWriter(this.spec, this.format, this.appenderFactory, this.outputFileFactory, this.io, this.targetFileSizeBytes, this.schema, this.flinkSchema, this.equalityFieldIds) : new PartitionedDeltaWriter(this.spec, this.format, this.appenderFactory, this.outputFileFactory, this.io, this.targetFileSizeBytes, this.schema, this.flinkSchema, this.equalityFieldIds));
        } else {
            return (TaskWriter)(this.spec.isUnpartitioned() ? new UnpartitionedWriter(this.spec, this.format, this.appenderFactory, this.outputFileFactory, this.io, this.targetFileSizeBytes) : new RowDataTaskWriterFactory.RowDataPartitionedFanoutWriter(this.spec, this.format, this.appenderFactory, this.outputFileFactory, this.io, this.targetFileSizeBytes, this.schema, this.flinkSchema));
        }
    }

继承关系

此方法中根据是否指定字段，构造分区写(PartitionedDeltaWriter/RowDataPartitionedFanoutWriter)和非分区写实例(UnpartitionedDeltaWriter/UnpartitionedWriter)

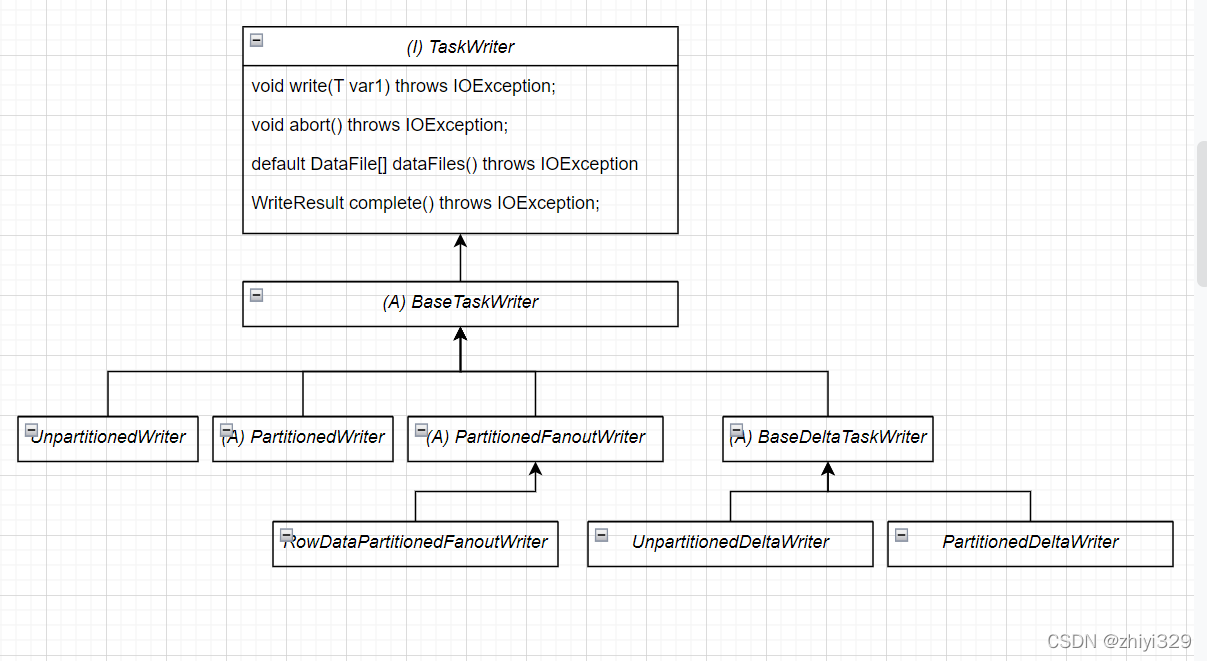

关系图

在这里插入图片描述
从图中可以看出，几种类型的写均继承自BaseTaskWriter抽象类。区别在于 Partitioned方式的写需要处理一些分区 Key 生成的逻辑。
其中：

TaskWriter/BaseTaskWriter/UnpartitionedWriter/PartitionedWriter/RowDataPartitionedFanoutWriter均在org.apache.iceberg.io 这个包，这里面的类或接口都是在 iceberg-core 模块中，这里面定义了 Iceberg 写数据的公共逻辑；
PartitionedDeltaWriter和UnpartitionedDeltaWriter是在org.apache.iceberg.flink.sink包中，flink connector模块实现的。

以上类均实现TaskWriter接口：

public interface TaskWriter<T> extends Closeable {
    void write(T var1) throws IOException;

    void abort() throws IOException;

    default DataFile[] dataFiles() throws IOException {
        WriteResult result = this.complete();
        Preconditions.checkArgument(result.deleteFiles() == null || result.deleteFiles().length == 0, "Should have no delete files in this write result.");
        return result.dataFil
