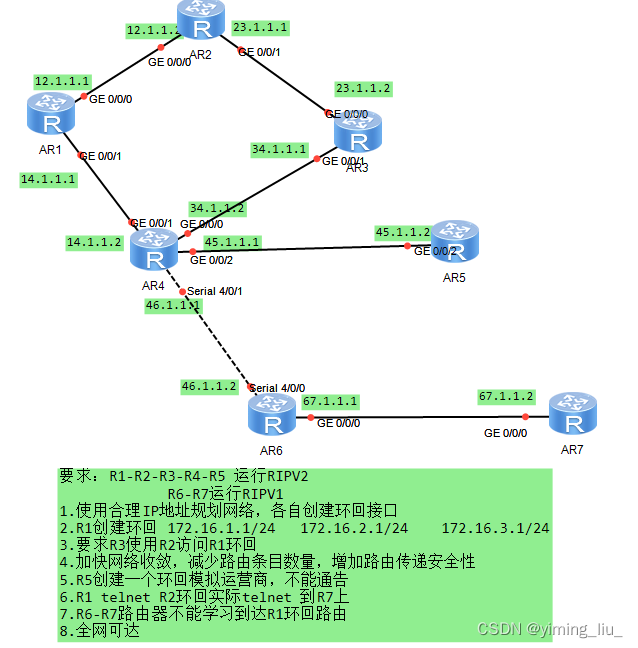

ACL+RIP综合实验

sysname R1

acl number 2000

 rule 5 permit source 7.0.0.0 0

#

interface GigabitEthernet0/0/0

 ip address 14.1.1.2 255.255.255.0

 rip summary-address 172.16.0.0 255.255.252.0

#

interface GigabitEthernet0/0/1

 ip address 12.1.1.1 255.255.255.0

 rip authentication-mode simple cipher %$%$A32e-91:oFp|=vRp4-H3D4_|%$%$

 rip metricout 2000 5

 rip summary-address 172.16.0.0 255.255.252.0

#

interface LoopBack0

 ip address 1.1.1.1 255.255.255.0

#

interface LoopBack1

 ip address 172.16.1.1 255.255.255.0

#

interface LoopBack2

 ip address 172.16.2.1 255.255.255.0

#

interface LoopBack3

 ip address 172.16.3.1 255.255.255.0

#

rip 100

 version 2

 network 12.0.0.0
