【YOLOv8改进】 YOLOv8 更换骨干网络之GhostNetV3步骤详解

这里yolov8源码版本是 ultralytics-8.2.54

GhostNetV3 源码下载 https://codeload.github.com/huawei-noah/Efficient-AI-Backbones

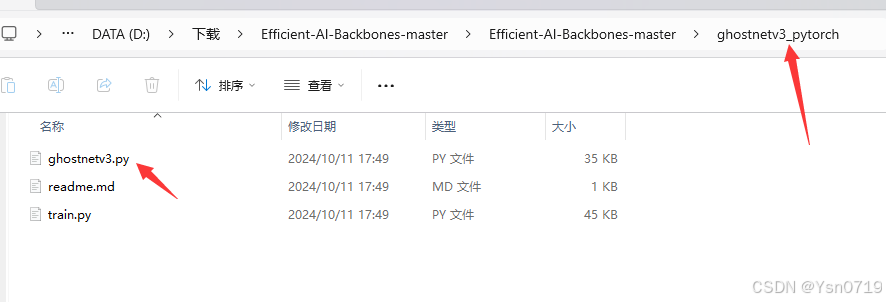

将ghostnetv3.py文件复制一份到源码./ultralytics-8.2.54/ultralytics/nn/modules路径下
我根据mobilenetv4的教程，修改了ghostnetv3.py文件的以下部分：

class GhostNet(nn.Module):
    def __init__(self, block_specs, num_classes=1000):
        super(GhostNet, self).__init__()

        width=1.6
        dropout=0.2
        block=GhostBottleneck
        # setting of inverted residual blocks
        self.dropout = dropout

        # building first layer
        output_channel = _make_divisible(16 * width, 4)
        self.conv_stem = nn.Conv2d(3, output_channel, 3, 2, 1, bias=False)
        self.bn1 = nn.BatchNorm2d(output_channel)
        self.act1 = nn.ReLU(inplace=True)
        input_channel = output_channel

        # building inverted residual blocks
        stages = []
        layer_id=0
        for block_cfg in block_specs:
            layers = []
            for k, exp_size, c, se_ratio, s in block_cfg:
                output_channel = _make_divisible(c * width, 4)
                hidden_channel = _make_divisible(exp_size * width, 4)
                if block==GhostBottleneck:
                    layers.append(block(input_channel, hidden_channel, output_channel, k, s, se_ratio=se_ratio,layer_id=layer_id))
                input_channel = output_channel
                layer_id+=1
            stages.append(nn.Sequential(*layers))

        output_channel = _make_divisible(exp_size * width, 4)
        stages.append(nn.Sequential(ConvBnAct(input_channel, output_channel, 1)))
        input_channel = output_channel

        self.blocks = nn.Sequential(*stages)
        del self.blocks[9]
        # building last several layers
        output_channel = 1280
        self.global_pool = nn.AdaptiveAvgPool2d((1, 1))
        self.conv_head = nn.Conv2d(input_channel, output_channel, 1, 1, 0, bias=True)
        self.act2 = nn.ReLU(inplace=True)
        self.classifier = nn.Linear(output_channel, num_classes)
        self.layers_out_filters = [16, 24, 40, 112, 160]
        self.channels = [40, 64, 180, 256]

    def forward(self, x):
        x = self.conv_stem(x)
        x = self.bn1(x)
        x = self.act1(x)
        feature_maps = []
        for idx, block in enumerate(self.blocks):
            x = block(x)
            if idx in [2,4,6,8]:
                feature_maps.append(x)
        return feature_maps

    # def forward_ori(self, x):
    #     x = self.conv_stem(x)
    #     x = self.bn1(x)
    #     x = self.act1(x)
    #     x = self.blocks(x)
    #     x = self.global_pool(x)
    #     x = self.conv_head(x)
    #     x = self.act2(x)
    #     x = x.view(x.size(0), -1)
    #     if self.dropout > 0.:
    #         x = F.dropout(x, p=self.dropout, training=self.training)
    #     x = self.classifier(x)
    #     x = x.squeeze()
    #     return x


    def reparameterize(self):
        for _, module in self.named_modules():
            if isinstance(module, GhostModule):
                module.reparameterize()
            if isinstance(module, GhostBottleneck):
                module.reparameterize()

@register_model
def ghostnetv3(**kwargs):
    """
    Constructs a GhostNet model
    """
    block_specs = [
        # k, t, c, SE, s
        # stage1
        [[3,  16,  16, 0, 1]],
        # stage2
        [[3,  48,  24, 0, 2]],
        [[3,  72,  24, 0, 1]],
        # stage3
        [[5,  72,  40, 0.25, 2]],
        [[5, 120,  40, 0.25, 1]],
        # stage4
        [[3, 240,  80, 0, 2]],
        [[3, 200,  80, 0, 1],
         [3, 184,  80, 0, 1],
         [3, 184,  80, 0, 1],
         [3, 480, 112, 0.25, 1],
         [3, 672, 112, 0.25, 1]
        ],
        # stage5
        [[5, 672, 160, 0.25, 2]],
        [[5, 960, 160, 0, 1],
         [5, 960, 160, 0.25, 1],
         [5, 960, 160, 0, 1],
         [5, 960, 160, 0.25, 1]
        ]
    ]
    model = GhostNet(block_specs, **kwargs) #num_classes=4, width=1.6, dropout=0.2)
    return model

模型注册以及引入

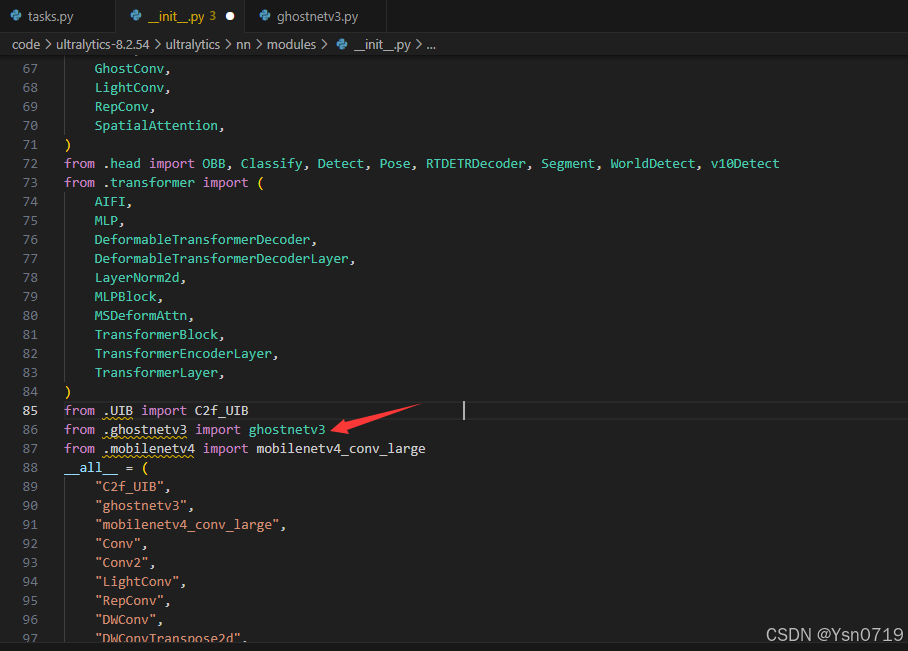

需要在./ultralytics-8.2.54/ultralytics/nn/modules/init.py文件中引入ghostnetv3

task.py文件的修改
（如果不了解这个文件是做啥的，推荐学习一下https://www.bilibili.com/video/BV1QC4y1R74t/?spm_id_from=333.999.top_right_bar_window_default_collection.content.click）

# Ultralytics YOLO 🚀, AGPL-3.0 license

import contextlib
from copy import deepcopy
from pathlib import Path

import torch
import torch.nn as nn

from ultralytics.nn.modules import (
    C2f_UIB,
    mobilenetv4_conv_large,
    ghostnetv3,
    AIFI,
    C1,
    C2,
    C3,
    C3TR,
    ELAN1,
    OBB,
    PSA,
    SPP,
    SPPELAN,
    SPPF,
    AConv,
    ADown,
    Bottleneck,
    BottleneckCSP,
    C2f,
    C2fAttn,
    C2fCIB,
    C3Ghost,
    C3x,
    CBFuse,
    CBLinear,
    Classify,
    Concat,
    Conv,
    Conv2,
    ConvTranspose,
    Detect,
    DWConv,
    DWConvTranspose2d,
    Focus,
    GhostBottleneck,
    GhostConv,
    HGBlock,
    HGStem,
    ImagePoolingAttn,
    Pose,
    RepC3,
    RepConv,
    RepNCSPELAN4,
    RepVGGDW,
    ResNetLayer,
    RTDETRDecoder,
    SCDown,
    Segment,
    WorldDetect,
    v10Detect,
)
from ultralytics.utils import DEFAULT_CFG_DICT, DEFAULT_CFG_KEYS, LOGGER, colorstr, emojis, yaml_load
from ultralytics.utils.checks import check_requirements, check_suffix, check_yaml
from ultralytics.utils.loss import (
    E2EDetectLoss,
    v8ClassificationLoss,
    v8DetectionLoss,
    v8OBBLoss,
    v8PoseLoss,
    v8SegmentationLoss,
)
from ultralytics.utils.plotting import feature_visualization
from ultralytics.utils.torch_utils import (
    fuse_conv_and_bn,
    fuse_deconv_and_bn,
    initialize_weights,
    intersect_dicts,
    make_divisible,
    model_info,
    scale_img,
    time_sync,
)

try:
    import thop
except ImportError:
    thop = None


class BaseModel(nn.Module):
    """The BaseModel class serves as a base class for all the models in the Ultralytics YOLO family."""

    def forward(self, x, *args, **kwargs):
        """
        Forward pass of the model on a single scale. Wrapper for `_forward_once` method.

        Args:
            x (torch.Tensor | dict): The input image tensor or a dict including image tensor and gt labels.

        Returns:
            (torch.Tensor): The output of the network.
        """
        if isinstance(x, dict):  # for cases of training and validating while training.
            return self.loss(x, *args, **kwargs)
        return self.predict(x, *args, **kwargs)

    def predict(self, x, profile=False, visualize=False, augment=False, embed=None):
        """
        Perform a forward pass through the network.

        Args:
            x (torch.Tensor): The input tensor to the model.
            profile (bool):  Print the computation time of each layer if True, defaults to False.
            visualize (bool): Save the feature maps of the model if True, defaults to False.
            augment (bool): Augment image during prediction, defaults to False.
            embed (list, optional): A list of feature vectors/embeddings to return.

        Returns:
            (torch.Tensor): The last output of the model.
        """
        if augment:
            return self._predict_augment(x)
        return self._predict_once(x, profile, visualize, embed)

    def _predict_once(self, x, profile=False, visualize=False, embed=None):
        """
        Perform a forward pass through the network.

        Args:
            x (torch.Tensor): The input tensor to the model.
            profile (bool):  Print the computation time of each layer if True, defaults to False.
            visualize (bool): Save the feature maps of the model if True, defaults to False.
            embed (list, optional): A list of feature vectors/embeddings to return.

        Returns:
            (torch.Tensor): The last output of the model.
        """
        y, dt, embeddings = [], [], []  # outputs
        for m in self.model:
            if m.f != -1:  # if not from previous layer
                x = y[m.f] if isinstance(m.f, int) else [x if j == -1 else y[j] for j in m.f]  # from earlier layers
            if profile:
                self._profile_one_layer(m, x, dt)
            if hasattr(m, 'backbone'):
                x = m(x)
                for _ in range(5 - len(x)):
                    x.insert(0, None)
                for i_idx, i in enumerate(x):
                    if i_idx in self.save:
                        y.append(i)
                    else:
                        y.append(None)
                x = x[-1]
            else:
                x = m(x)  # run
                y.append(x if m.i in self.save else None)  # save output
            if visualize:
                feature_visualization(x, m.type, m.i, save_dir=visualize)
            if embed and m.i in embed:
                embeddings.append(nn.functional.adaptive_avg_pool2d(x, (1, 1)).squeeze(-1).squeeze(-1))  # flatten
                if m.i == max(embed):
                    return torch.unbind(torch.cat(embeddings, 1), dim=0)
        return x

    def _predict_augment(self, x):
        """Perform augmentations on input image x and return augmented inference."""
        LOGGER.warning(
            f"WARNING ⚠️ {
     self.__class__.__name__} does not support augmented inference yet. "
            f"Reverting to single-scale inference instead."
        )
        return self._predict_once(x)

    def _profile_one_layer(self, m, x, dt):
        """
        Profile the computation time and FLOPs of a single layer of the model on a given input. Appends the results to
        the provided list.

        Args:
            m (nn.Module): The layer to be profiled.
            x (torch.Tensor): The input data to the layer.
            dt (list): A list to store the computation time of the layer.

        Returns:
            None
        """
        c = m == self.model[-1] and isinstance(x, list)  # is final layer list, copy input as inplace fix
        flops = thop.profile(m, inputs=[x.copy() if c else x], verbose=False)[0] / 1e9 * 2 if thop else 0  # GFLOPs
        t = time_sync()
        for _ in range(10):
            m(x.copy() if c else x)
        dt.append((time_sync() - t) * 100)
        if m == self.model[0]:
            LOGGER.info(f"{
     'time (ms)':>10s} {
     'GFLOPs':>10s} {
     'params':>10s}  module")
        LOGGER.info(f"{
     dt[-1]:10.2f} {
     flops:10.2f} {
     m.np:10.0f}  {
     m.type}")
        if c:
            LOGGER.info(f"{
     sum(dt):10.2f} {
     '-':>10s} {
     '-'
