使用 R语言 进行简单制图（plot,hist）

• 确保已安装R语言(R)
• 本文在RStudio(RStudio)下运行，运行代码之前加载对应的包library($\cdot$)

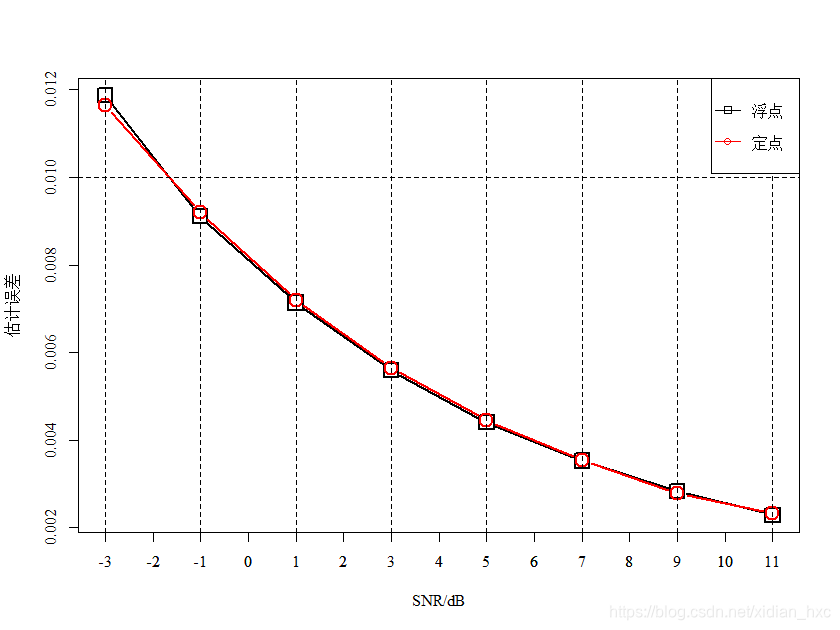

1、plot(代码注释说明)

x<-seq(-3,11,len=8)
y_float<-c(0.0118740242521950,0.0091057538361494,0.0071377665672741,0.0055924181000629,0.0044031276652462,	0.0035296146085217,	0.0028331581203653,0.0022862284829942)
y_int<-c(0.011646798525798,0.009197650732455,0.007194266428098,0.005641787783029,0.004451607654203,0.003545816453096,0.002774558531322,0.002327307729162)
windowsFonts(TNM = windowsFont("Times New Roman"))           #字体设置
windowsFonts(Son = windowsFont("宋体"))

plot(
     x,y_float,
     xlim=c(-3,11),             #x轴范围设置（最大最小值）
     xlab="SNR/dB",             #x轴标题
     ylab="估计误差",            #y轴标题
     family="Son",
     family="TNM",               #字体设置
     col='black',                #颜色
     # yaxs="i",xaxs="i",        #去掉坐标预留空间
     lty=1,                      #线型
     lwd=2,                      #线宽
     pch=0,                      #点的符号形状
     cex=2,                      #符号大小
     type='b',                   #点连接方式 l线 b点线 p点
     )

lines(                       #在前一条产生窗口的绘图指令上添加线条
  x,y_int,
  xlim=c(-3,11),
  xlab="SNR/dB",
  ylab="估计误差",
  family="Son",
  family="TNM",
  col='red',
  # yaxs="i",xaxs="i",
  lty=1,
  lwd=2,
  pch=1,
  cex=2,
  type='b',
)

axis(1,                       #轴线（1234->下左上右）
     seq(-3,11),seq(-3,11),   #坐标控制
     las=1,                   #文字方向
     font.axis=1,             #字体（粗细斜）
     family="TNM")

abline(v=x,lty=2)            #作直线 v竖h横
abline(h=c(0.01),lty=2)
#grid(nx=7,ny=6,lwd=2,col='blue')#作网格
legend("topright",legend=c("浮点","定点"),col=c("black","red"),pch=c(0,1),lty=1)
                             #图例 top/bottom+left/right(位置设置)

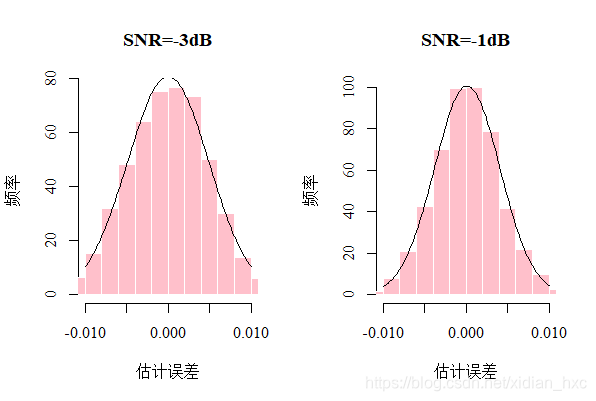

2、hist(代码注释说明)

windowsFonts(TNM = windowsFont("Times New Roman"))
windowsFonts(Son = windowsFont("宋体"))
freq_offset <- matrix(1:4000,nrow=2)    #生成4000个元素的矩阵，分两行
freq_offset[1,] <- rnorm(2000,0,0.005)  #正态随机生成2000个数，均值0，标准差0.005）
freq_offset[2,] <- rnorm(2000,0,0.004)
par(mfrow=c(1,2))                #多图同时显示（左右顺序排布）

###############################################################
num_1=as.numeric(freq_offset[1,])#freq_offset为导入得2x2000 tbl_df 格式矩阵文件，转为numeric格式（只能向量转）
hist(num_1,
     breaks = 20,       #分割直方个数
     freq = F,          #纵坐标:T为频数，F为频率
     col="pink",
     border = 'white',  #直方边颜色
     main='SNR=-3dB',family="Son",family="TNM", #标题与字体
     xlab = '估计误差',xlim=c(-0.01,0.01),ylab = '频率')
curve(dnorm(x,          #函数正态拟合 curve为函数作图
            mean=mean(num_1),
            sd=sd(num_1)),
      xlim=c(-0.01,0.01),
      add=TRUE)          #线条加入到上一幅图（FALSE为独立显示）
###############################################################
num_2 <-as.numeric(freq_offset[2,])
hist(num_2,
     breaks = 20,
     freq = FALSE,
     col="pink",
     border = 'white',
     main='SNR=-1dB',family="Son",family="TNM",
     xlab = '估计误差',xlim=c(-0.01,0.01),ylab = '频率')
curve(dnorm(x,
            mean=mean(num_2),
            sd=sd(num_2)),
      xlim=c(-0.01,0.01),
      add=TRUE)

参考文章：

1、R语言绘图样式设置（符号、线条、颜色、文本属性）
2、R语言hist绘图函数
3、R语言作图：坐标轴设置
4、R语言中Legend 函数的参数详解

错误解决：

1、Error in plot.new() : figure margins too large
