win10系统中Visual Studio Code 搭建 Fortran 调试环境详细步骤

最新推荐文章于 2025-03-07 21:24:40 发布

xbfengyu

最新推荐文章于 2025-03-07 21:24:40 发布

阅读量4.8k

点赞数 2

本文链接：https://blog.youkuaiyun.com/xbfengyu/article/details/115701659

版权

1. 第一步安装 MINGW-W64

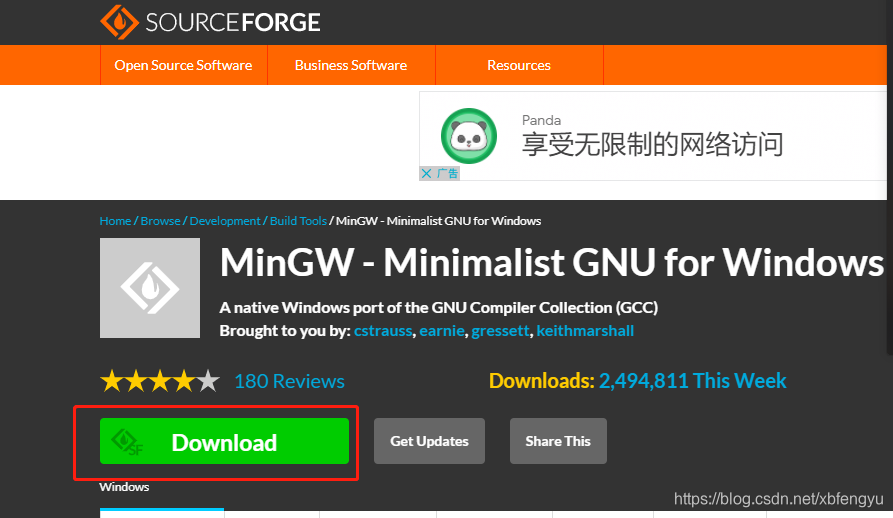

1.1 下载MINGW-W64，地址：https://sourceforge.net/projects/mingw/

具体安装步骤请参考：https://cloud.tencent.com/developer/article/1357939 注意要选择Fortran进行安装，安装完后要配置环境变量

2.查看C:\MinGW\bin安装目录下有没有gdb.exe 如果没有，则在cmd窗口安装（mingw-get install gdb）

3.Visual Studio Code 搭建

参考：https://blog.youkuaiyun.com/qq_24197463/article/details/89634794

参考：https://www.jianshu.com/p/98e16631c852

注意我是在C:\MinGW\bin中安装的gdb.exe 所以我的 launch.json中 "miDebuggerPath": "C:\\MinGW\\bin\\gdb.exe",

{
    "version": "0.0.1",
    "configurations": [
        {
            "name": "Fortran Launch (GDB)",
            "type": "cppdbg",
            "request": "launch",
            "targetArchitecture": "x86",
            "program": "${workspaceRoot}\\${fileBasenameNoExtension}.exe",
            "miDebuggerPath": "C:\\MinGW\\bin\\gdb.exe",
            "args": [],
            "stopAtEntry": false,
            "cwd": "${workspaceRoot}",
            "externalConsole": true,
            "preLaunchTask": "gfortran"
        },
        {
            "name": "Intel Debug Attach",
            "type": "cppvsdbg",
            "request": "attach",
            "processId": "${command:pickProcess}"
        }
    ] }

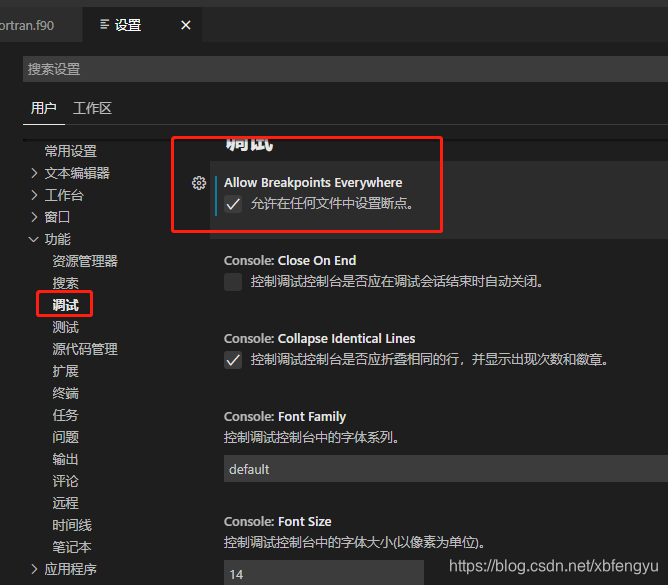

4.如果vscode 不能打断点，依次打开文件->首选项->设置。并按下图勾选
