本文介绍了在STM32开发中如何使用CubeMX进行引脚配置，并展示了涉及的定时器中断、GPIO读取、PWM控制、ADC输入捕获、USART通信以及EEPROM存储的相关代码片段，以实现按键输入处理和实时数据更新。

摘要生成于 C知道，由 DeepSeek-R1 满血版支持，前往体验 >

第一次做题用到eeprom，把写入和读取的代码背一下，用的时候还是蛮好用的。

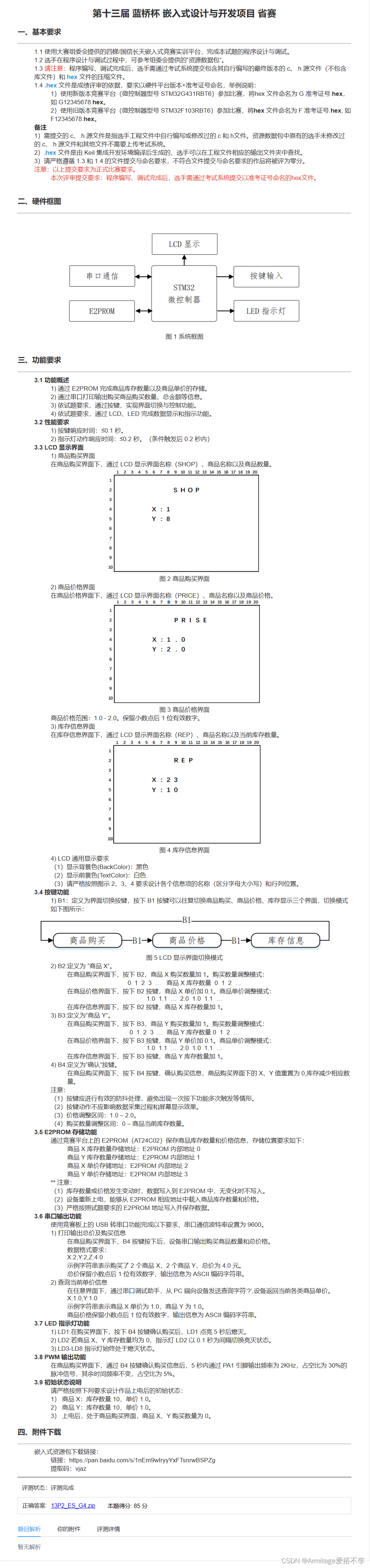

题目

CubeMX配置

这里就给大家看一下引脚配置了，具体的配置其他作品都有，大家可以去看。

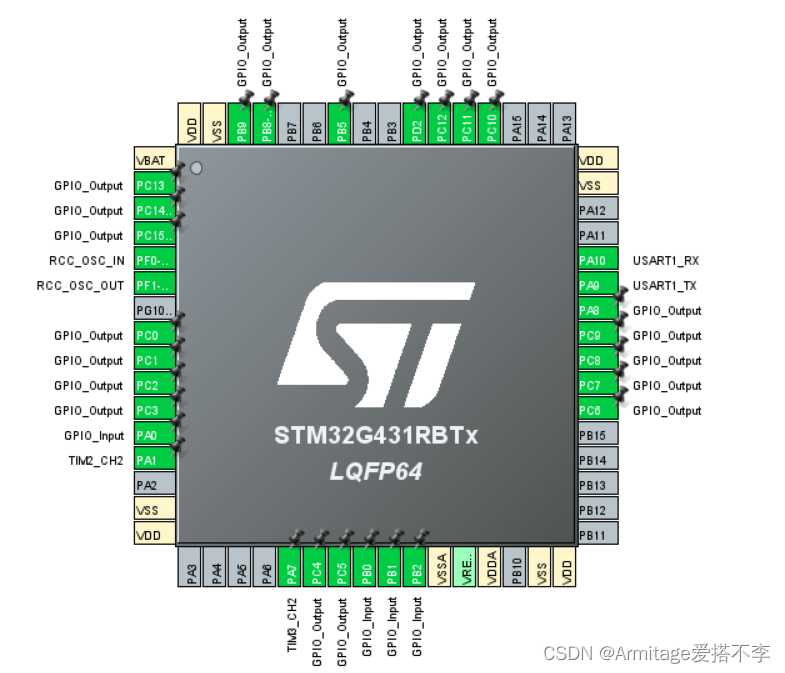

引脚配置

代码实现

回调函数

#include "interrupt.h"
#include "usart.h"


extern int pwm_flag,X_rep,Y_rep;
int pwm_time,led_time;
struct keys key[4]={0,0,0,0};
void HAL_TIM_PeriodElapsedCallback(TIM_HandleTypeDef *htim)
{
    if(htim->Instance==TIM4)
    {
        key[0].key_sta=HAL_GPIO_ReadPin(GPIOB,GPIO_PIN_0);
        key[1].key_sta=HAL_GPIO_ReadPin(GPIOB,GPIO_PIN_1);
        key[2].key_sta=HAL_GPIO_ReadPin(GPIOB,GPIO_PIN_2);
        key[3].key_sta=HAL_GPIO_ReadPin(GPIOA,GPIO_PIN_0);
        for(int i=0;i<4;i++)
        {
            switch(key[i].judge_flag)
            {
                case 0:
                {
                    if(key[i].key_sta==0)
                        key[i].judge_flag=1;
                }
                break;
                case 1:
                {
                    if(key[i].key_sta==0)
                    {
                        key[i].judge_flag=2;
                        key[i].single_flag=1;
                    }
                    else
                        key[i].judge_flag=0;
                }
                break;
                case 2:
                {
                    if(key[i].key_sta==1)
                        key[i].judge_flag=0;
                }
                break;
            }
        }
    }
    if(htim->Instance==TIM6)
    {
        if(pwm_flag==1)
            pwm_time++;
        if(pwm_time>50)
        {
            pwm_flag=0;
            pwm_time=0;
        }
    }
    if(htim->Instance==TIM8)
    {
        if(X_rep==0&&Y_rep==0)
            led_time++;
        else
            led_time=0;
    }
}

//输入捕获测PWM
//uint16_t ccr1,ccr2;
//uint16_t duty, frq;
//void HAL_TIM_IC_CaptureCallback(TIM_HandleTypeDef *htim)
//{
//    if(htim->Instance==TIM3)
//    {
//        if(htim->Channel==HAL_TIM_ACTIVE_CHANNEL_2)
//        {
//            ccr1 = TIM3->CCR2;
//            ccr2 = TIM3->CCR1;
//            frq = 1000000/(ccr1+1);
//            duty = 100*(ccr2+1)/(ccr1+1);
//            HAL_TIM_IC_Start(htim,TIM_CHANNEL_2);
//            HAL_TIM_IC_Start(htim,TIM_CHANNEL_1);
//        }
//    }
//}

unsigned char rxdata[20];
uint8_t rxda;
int rx_pointer;
void HAL_UART_RxCpltCallback(UART_HandleTypeDef *huart)
{
    rxdata[rx_pointer++]=rxda;
    HAL_UART_Receive_IT(&huart1,&rxda,1);
}

头文件和定义

/* USER CODE BEGIN Includes */
#include "lcd.h"
#include "i2c_hal.h"
#include "stdio.h"
#include "string.h"
#include "interrupt.h"
/* USER CODE END Includes */

/* Private typedef -----------------------------------------------------------*/
/* USER CODE BEGIN PTD */
extern struct keys key[4];
extern unsigned char rxdata[20];
extern uint8_t rxda;
extern int rx_pointer;
extern int pwm_time,led_time;
//extern uint16_t duty,frq;

int view=0;
char text[20];
int X_num,Y_num;
int X_rep=10,Y_rep=10;
double X_Price=1.0,Y_Price=1.0;
int pwm_flag;
unsigned char led=0x00;

LED和EEPROM

void led_disp(unsigned char dsled)
{
    HAL_GPIO_WritePin(GPIOC,GPIO_PIN_All,GPIO_PIN_SET);
    HAL_GPIO_WritePin(GPIOC,dsled<<8,GPIO_PIN_RESET);
    HAL_GPIO_WritePin(GPIOD,GPIO_PIN_2,GPIO_PIN_SET);
    HAL_GPIO_WritePin(GPIOD,GPIO_PIN_2,GPIO_PIN_RESET);
}

void eepromwrite(u8 add,u8 data)
{
    I2CStart();
    I2CSendByte(0xa0);
    I2CWaitAck();

    I2CSendByte(add);
    I2CWaitAck();
    I2CSendByte(data);
    I2CWaitAck();
    I2CStop();
    HAL_Delay(10);
}

u8 eepromread(u8 add)
{
    u8 data;
    I2CStart();
    I2CSendByte(0xa0);
    I2CWaitAck();

    I2CSendByte(add);
    I2CWaitAck();
    I2CStop();

    I2CStart();
    I2CSendByte(0xa1);
    I2CWaitAck();
    data = I2CReceiveByte();
    I2CSendNotAck();
    I2CStop();
    return data;
}

LCD

void lcd_pro(void)
{
    if(view==0)
    {
        LCD_DisplayStringLine(Line1,(u8 *)"        SHOP  ");
        sprintf(text,"     X:%d  ",X_num);
        LCD_DisplayStringLine(Line3,(u8 *)text);
        sprintf(text,"     Y:%d  ",Y_num);
        LCD_DisplayStringLine(Line4,(u8 *)text);
    }
    if(view==1)
    {
        LCD_DisplayStringLine(Line1,(u8 *)"        PRICE  ");
        sprintf(text,"     X:%.1f  ",X_Price);
        LCD_DisplayStringLine(Line3,(u8 *)text);
        sprintf(text,"     Y:%.1f  ",Y_Price);
        LCD_DisplayStringLine(Line4,(u8 *)text);
    }
    if(view==2)
    {
        LCD_DisplayStringLine(Line1,(u8 *)"        REP  ");
        sprintf(text,"     X:%d  ",X_rep);
        LCD_DisplayStringLine(Line3,(u8 *)text);
        sprintf(text,"     Y:%d  ",Y_rep);
        LCD_DisplayStringLine(Line4,(u8 *)text);
    }
}

void key_pro(void)
{
    if(key[0].single_flag==1)
    {
        view++;
        if(view==3)
            view=0;
        LCD_Clear(Black);
        key[0].single_flag=0;
    }

    if(key[1].single_flag==1)
    {
        switch(view)
        {
            case 0:
                X_num++;
                if(X_num>X_rep)
                    X_num = 0;
            break;
            case 1:
                X_Price+=0.1;
                if(X_Price>=2.1)
                    X_Price=1.0;
            break;
            case 2:
                X_rep++;
            break;
        }
        key[1].single_flag=0;
    }
    if(key[2].single_flag==1)
    {
       switch(view)
        {
            case 0:
                Y_num++;
                if(Y_num>Y_rep)
                    Y_num = 0;
            break;
            case 1:
                Y_Price+=0.1;
                if(Y_Price>=2.1)
                    Y_Price=1.0;
            break;
            case 2:
                Y_rep++;
            break;
        }
        key[2].single_flag=0;
    }
    if(view==0)
    {
        if(key[3].single_flag==1)
        {
            X_rep -= X_num;
            Y_rep -= Y_num;
            pwm_time=0;
            pwm_flag=1;
            sprintf(text,"X:%d,Y:%d,Z:%.1f;",X_num,Y_num,X_num*X_Price+Y_num*Y_Price);
            HAL_UART_Transmit(&huart1,(u8 *)text,sizeof(text),50);
            X_num=0;
            Y_num=0;
            key[3].single_flag=0;
        }
    }
    eepromwrite(0x00,X_rep);
    eepromwrite(0x01,Y_rep);
    eepromwrite(0x02,X_Price*10);
    eepromwrite(0x03,Y_Price*10);
}

EEPROM、USART、PWM、LED


void e2pread(void)
{
    if(eepromread(0x08)!=0xaa)
    {
        eepromwrite(0x08,0xaa);
        eepromwrite(0x00,10);
        eepromwrite(0x01,10);
        eepromwrite(0x02,10);
        eepromwrite(0x03,10);
    }
    X_rep = eepromread(0x00);
    Y_rep = eepromread(0x01);
    X_Price = (double)eepromread(0x02)/10;
    Y_Price = (double)eepromread(0x03)/10;
}
void rx_pro(void)
{
    if(rx_pointer>0)
    {
        if(rx_pointer==1)
        {
            if(rxda=='?')
            {
                sprintf(text,"X:%.1f,Y:%.1f",X_Price,Y_Price);
                HAL_UART_Transmit(&huart1,(u8 *)text,sizeof(text),50);
            }
        }
        rx_pointer=0;
        memset(rxdata,0,10);
    }
}
void pwm_pro(void)
{
    if(pwm_time>0)
        TIM2->CCR2 = 0.3*(TIM2->ARR+1);
    if(pwm_time==0)
        TIM2->CCR2 = 0.05*(TIM2->ARR+1);
}
void led_pro(void)
{
    if(pwm_time>0)
        led |= 0x01;
    else
        led &= ~0x01;
    if(led_time%2==1)
        led |= 0x02;
    if(led_time%2==0)
        led &= ~0x02;
    led_disp(led);
}

初始化

    LCD_Init();
    I2CInit();
    LCD_Clear(Black);
    LCD_SetBackColor(Black);
    LCD_SetTextColor(White);
    led_disp(led);
    e2pread();

    HAL_TIM_PWM_Start(&htim2,TIM_CHANNEL_2);
    HAL_TIM_IC_Start_IT(&htim3,TIM_CHANNEL_2);
    HAL_TIM_IC_Start_IT(&htim3,TIM_CHANNEL_1);
    HAL_TIM_Base_Start_IT(&htim4);
    HAL_TIM_Base_Start_IT(&htim6);
    HAL_TIM_Base_Start_IT(&htim8);
    HAL_UART_Receive_IT(&huart1,&rxda,1);
