RingBuffer循环缓冲区的应用

一.背景描述

        在项目中用到了编码器功能，编码器的报文发送周期是40ms，如果滚动编码器的速度过快就会出现丢帧的问题，为了解决该问题在代码中引入了Ring buffer。

二.代码实现

/*Ringbuffer structural define*/
typedef struct {
    uint8_t     *buffer_ptr;      /*point to a array, used for save data*/
    uint16_t    read_index;       /*used for read data from ring buffer*/
    uint16_t    write_index;      /*used for write data to ring buffer*/
    uint16_t    buffer_size;      /*define the size of ring buffer*/
    uint16_t    buffer_length;    /*the length of ring buffer which have been used*/
}RingBuffer_TypeDef;

/*the status of ring buffer*/
typedef enum {
    RINGBUFFER_EMPTY,             /*ring buffer is empty*/
    RINGBUFFER_FULL,              /*ring buffer is full*/
    RINGBUFFER_HALFFULL,          /* half full is neitherfull nor empty */
}RingBuffer_State ;

RingBuffer_TypeDef EncodeRingBUffer;
uint8_t EcoderBuffer[ENCODER_RINGBUFFER_SIZE] = {0};

/**
 * @brief IGet the ringbuffer buffer status.
 *
 * @param rb        A pointer to the ring buffer object.
 *
 * @return Return the status.
 */
RingBuffer_State ringbuffer_status(RingBuffer_TypeDef *rb)
{
    if (rb->buffer_length == rb->buffer_size) {
        return RINGBUFFER_FULL;
    } else if (rb->buffer_length == 0) {
        return RINGBUFFER_EMPTY;
    } else {
        return RINGBUFFER_HALFFULL;
    }
}

/**
 * @brief Get the ringbuffer buffer remain to read.
 *
 * @param rb        A pointer to the ring buffer object.
 *
 * @return ringbuffer buffer remain to read.
 */
uint16_t ringbuffer_length(RingBuffer_TypeDef *rb)
{
    return rb->buffer_length;
}

/**
 * @brief Initialize the ring buffer object.
 *
 * @param rb        A pointer to the ring buffer object.
 * @param pool      A pointer to the buffer.
 * @param size      The size of the buffer in bytes.
 *
 * @return Return the status.
 */
int8_t ringbuffer_init(RingBuffer_TypeDef *rb,uint8_t *pool,int16_t size)
{
    if(rb == NULL) {
        return -1;
    }
    if(size == 0) {
        return -1;
    }

    /* initialize read and write index */
    rb->read_index = 0;
    rb->write_index = 0;

    /* set buffer pool and size */
    rb->buffer_ptr = pool;
    rb->buffer_size = size;
    rb->buffer_length = 0;
    return 1;
}

/**
 * @brief Put the data into the ring buffer
 *
 * @param rb            A pointer to the ring buffer object.
 * @param Data          the data need write to buffer.
 *
 * @return Return the status.
 */
int8_t ringbuffer_put(RingBuffer_TypeDef *rb,uint8_t Data)
{
    if(rb == NULL) {
        return -1;
    }

    /* no space */
    if (ringbuffer_status(rb) == RINGBUFFER_FULL){
        return -1;
    }

    rb->buffer_ptr[rb->write_index] = Data;
    rb->write_index = (rb->write_index + 1) % rb->buffer_size;
    rb->buffer_length++;
    return 1;
}

/**
 * @brief Get the data in the ring buffer.
 *
 * @param rb        The pointer to the ring buffer object.
 * @param ptr       A pointer to the data buffer.
 *
 * @return Return the status.
 */
int8_t ringbuffer_get(RingBuffer_TypeDef *rb,uint8_t *ptr)
{
    if(rb == NULL) {
        return -1;
    }

    /* no data */
    if (ringbuffer_status(rb) == RINGBUFFER_EMPTY) {
        return -1;
    }

    *ptr = rb->buffer_ptr[rb->read_index];
    rb->read_index = (rb->read_index + 1) % rb->buffer_size;
    rb->buffer_length--;
    return 1;
}

三.验证

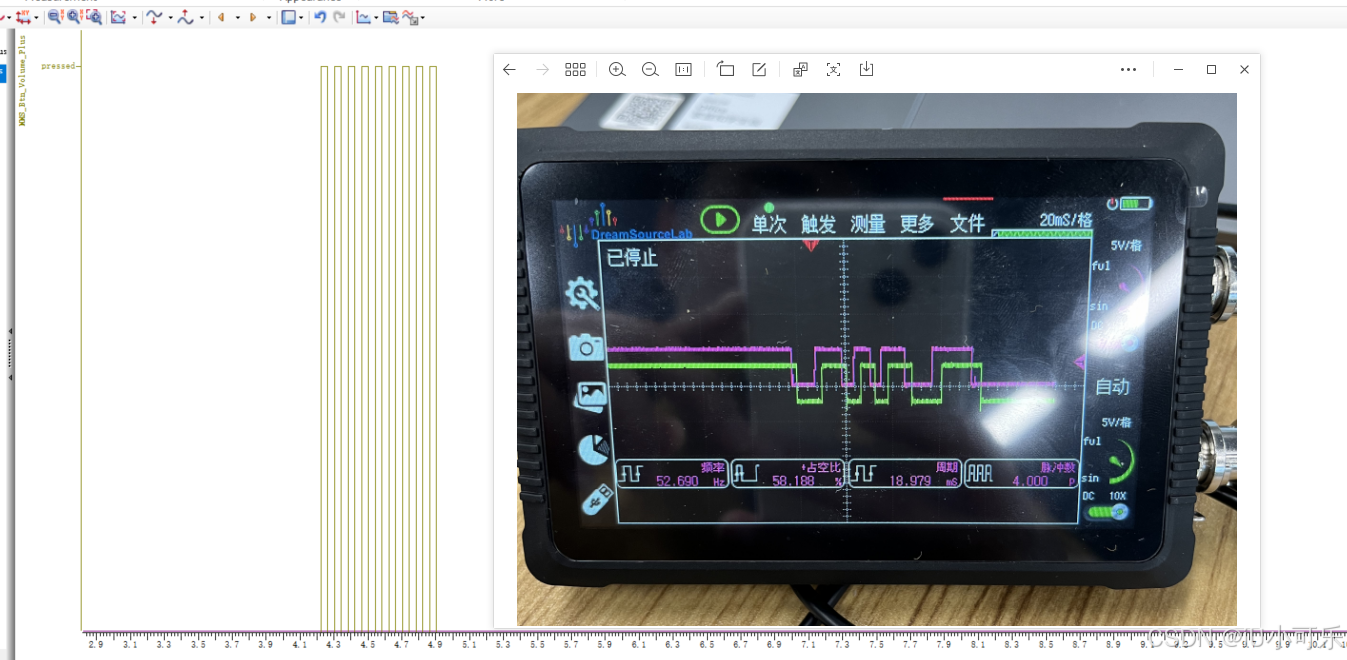

         如上图所示，示波器抓取到编码器滚动了9次(该编码器一次边沿跳变认为是一次有效信号)，CANoe检测到该编码器信号也发送了9次，没有出现丢帧的现象。
