1.下载软件包：网上一大堆下载链接，也可以公众号搜索
2.效果图先附上

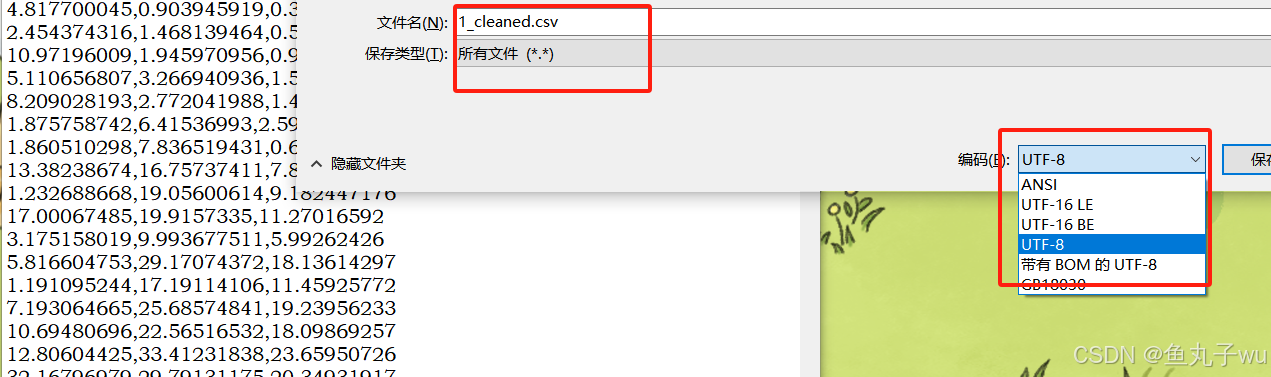

3，所需数据：验证数据为csv表格-UTM8编码格式！！！r语言不能直接读取excel表格，需将EXCEL先用记事本打开--再保存为csv表格，编码为UTM
4，代码执行：
# 安装和加载必要的包
if (!require(ggplot2)) install.packages("ggplot2")
if (!require(dplyr)) install.packages("dplyr")
if (!require(data.table)) install.packages("data.table")
library(ggplot2)
library(dplyr)
library(data.table)
# 设置系统编码
Sys.setlocale("LC_ALL", "Chinese")
# 让用户输入文件路径
cat("请输入CSV文件的完整路径（或按回车使用文件选择对话框）：\n")
file_path <- readline()
# 如果用户没有输入路径，则使用文件选择对话框
if (file_path == "") {
cat("请在弹出窗口中选择文件...\n")
file_path <- file.choose()
}
# 在tryCatch中使用file_path替换硬编码的路径
tryCatch({
# 尝试不同的编码方式
encodings <- c("UTF-8", "GBK", "GB18030", "BIG5")
data <- NULL
for (enc in encodings) {
tryCatch({
cat("尝试使用", enc, "编码读取文件...\n")
temp_data <- read.csv(file_path,
fileEncoding = enc,
check.names = FALSE,
stringsAsFactors = FALSE)
if (!is.null(temp_data) && nrow(temp_data) > 0 && ncol(temp_data) > 0) {
data <- temp_data
cat("成功使用", enc, "编码读取文件\n")
break
}
}, error = function(e) {
cat("使用", enc, "编码失败:", conditionMessage(e), "\n")
})
}
# 读取数据后，显示列名
cat("\n读取到的列名：\n")
print(names(data))
# 只检查必需的三列
required_cols <- c("站点观测", "VPM10km", "VPM500m")
# 标准化列名（移除特殊字符并统一格式）
standardize_colname <- function(name) {
name <- gsub("[^a-zA-Z0-9\u4e00-\u9fa5]", "", name) # 只保留字母、数字和中文
return(tolower(name)) # 转换为小写
}
# 创建列名映射
column_mapping <- list(
"站点观测" = c("站点观测", "站点_观测", "观测站点", "观测"),
"VPM10km" = c("VPM10km", "VPM-10km", "VPM_10km", "vpm10km", "VPM 10km"),
"VPM500m" = c("VPM500m", "VPM-500m", "VPM_500m", "vpm500m", "VPM 500m")
)
# 标准化当前列名
current_cols <- names(data)
standardized_current <- sapply(current_cols, standardize_colname)
# 检查并重命名列
for (expected_col in required_cols) {
variants <- column_mapping[[expected_col]]
standardized_variants <- sapply(variants, standardize_colname)
# 查找匹配的列名
found <- FALSE
for (i in seq_along(current_cols)) {
if (standardized_current[i] %in% standardized_variants) {
if (current_cols[i] != expected_col) {
data[[expected_col]] <- data[[current_cols[i]]]
data[[current_cols[i]]] <- NULL
}
found <- TRUE
break
}
}
if (!found) {
stop(sprintf("找不到必需的列: %s", expected_col))
}
}
# 验证最终的列名
cat("\n最终的列名：\n")
print(names(data))
# 检查并转换所有数据列为数值型
for (col in names(data)) {
data[[col]] <- as.numeric(as.character(data[[col]]))
if (all(is.na(data[[col]]))) {
stop(sprintf("列 '%s' 包含无效数据", col))
}
}
# 显示数据基本信息
cat("\n数据维度：", dim(data), "\n")
cat("列名：", names(data), "\n")
cat("\n数据前几行：\n")
print(head(data))
# 读取数据后，先检查数据的完整性
cat("\n数据总行数：", nrow(data), "\n")
# 检查每列的数据范围和异常值
for (col in names(data)) {
cat("\n", col, "的统计信息：\n")
cat("最小值：", min(data[[col]], na.rm = TRUE), "\n")
cat("最大值：", max(data[[col]], na.rm = TRUE), "\n")
cat("平均值：", mean(data[[col]], na.rm = TRUE), "\n")
cat("中位数：", median(data[[col]], na.rm = TRUE), "\n")
cat("NA值数量：", sum(is.na(data[[col]])), "\n")
# 检查异常值（超过3个标准差的值）
mean_val <- mean(data[[col]], na.rm = TRUE)
sd_val <- sd(data[[col]], na.rm = TRUE)
outliers <- data[[col]][abs(data[[col]] - mean_val) > 3 * sd_val]
if(length(outliers) > 0) {
cat("可能的异常值：", outliers, "\n")
}
}
# 检查x和y轴的数据对应关系
cat("\n检查站点观测和VPM10km的对应关系：\n")
correlation <- cor(data$站点观测, data$VPM10km, use = "complete.obs")
cat("相关系数：", correlation, "\n")
# 输出散点图矩阵
pairs(data[, c("站点观测", "VPM10km", "VPM500m")])
# 设置多图布局
par(mfrow = c(1, 2)) # 1行2列的布局
# 分别创建两个对比图
# 1. 站点观测 vs VPM10km
title_1 <- "(A)VPM10km vs 站点观测"
plot_comparison_base(data$站点观测, data$VPM10km, title_1)
# 2. 站点观测 vs VPM500m
title_2 <- "(B)VPM500m vs 站点观测"
plot_comparison_base(data$站点观测, data$VPM500m, title_2)
# 重置图形参数
par(mfrow = c(1, 1))
# 显示这对数据的统计指标
cat("\nVPM500m vs 站点观测的统计指标：\n")
cat("R²:", round(cor(data$VPM500m, data$站点观测, use = "complete.obs")^2, 3), "\n")
cat("RMSE:", round(RMSE(data$VPM500m, data$站点观测), 3), "\n")
cat("NSE:", round(NSE(data$VPM500m, data$站点观测), 3), "\n")
cat("Bias:", round(Bias(data$VPM500m, data$站点观测), 3), "\n")
}, error = function(e) {
cat("错误信息：", conditionMessage(e), "\n")
cat("\n请检查：\n")
cat("1. 文件是否存在\n")
cat("2. 文件是否为标准CSV格式\n")
cat("3. 文件是否包含所需的所有列\n")
cat("4. 数据是否为有效的数值\n")
cat("5. 文件编码是否正确\n")
})
NSE <- function(Qsim, Qobs){
# 创建数据框而不是data.table
df <- data.frame(Qsim = Qsim, Qobs = Qobs)
df <- na.omit(df)
# 如果数据为空，返回NA
if(nrow(df) == 0) return(NA)
Qsim <- df$Qsim
Qobs <- df$Qobs
Qobs_mean <- mean(Qobs)
Emod <- sum((Qsim - Qobs)^2)
Eref <- sum((Qobs - Qobs_mean)^2)
if (Emod == 0 & Eref == 0) {
NSE <- 0
} else {
NSE <- (1 - Emod / Eref)
}
NSE
}
RMSE <- function(Qsim, Qobs){
df <- data.frame(Qsim = Qsim, Qobs = Qobs)
df <- na.omit(df)
if(nrow(df) == 0) return(NA)
Qsim <- df$Qsim
Qobs <- df$Qobs
sqrt(mean((Qsim - Qobs)^2))
}
Bias <- function(Qsim, Qobs){
df <- data.frame(Qsim = Qsim, Qobs = Qobs)
df <- na.omit(df)
if(nrow(df) == 0) return(NA)
Qsim <- df$Qsim
Qobs <- df$Qobs
sumQobs <- sum(Qobs)
sumQsim <- sum(Qsim)
if (sumQobs == 0) {
BIAS <- 0
} else {
BIAS <- (sumQsim - sumQobs) / sumQobs
}
BIAS
}
# 美化后的对比图函数
plot_comparison_base <- function(sim_data, obs_data, title) {
# 创建数据框
plot_data <- data.frame(sim = sim_data, obs = obs_data)
plot_data <- na.omit(plot_data)
# 输出用于拟合的数据点数量
cat("\n用于", title, "的有效数据点数量：", nrow(plot_data), "\n")
# 计算统计指标
r2 <- round(cor(plot_data$sim, plot_data$obs)^2, 3)
rmse <- round(sqrt(mean((plot_data$sim - plot_data$obs)^2)), 3)
lm_result <- lm(obs ~ sim, data = plot_data)
slope <- round(coef(lm_result)[2], 3)
intercept <- round(coef(lm_result)[1], 3)
# 计算绘图范围
max_val <- max(c(plot_data$sim, plot_data$obs))
plot_range <- c(0, max_val * 1.1)
# 设置绘图参数
par(mar = c(5, 5, 4, 2)) # 增加边距
par(mgp = c(3.5, 1, 0)) # 调整轴标签位置
# 绘制散点图
plot(plot_data$sim, plot_data$obs,
xlim = plot_range, ylim = plot_range,
xlab = "站点观测VS VPM-10KM",
ylab = "(gC m⁻² 5day⁻¹)",
main = title,
pch = 21, # 圆形带边框的点
col = "black", # 点的边框颜色
bg = rgb(0, 0, 1, 0.5), # 半透明蓝色填充
cex = 1.2, # 点的大小
cex.lab = 1.2, # 轴标签字体大小
cex.axis = 1.1, # 轴刻度字体大小
cex.main = 1.3, # 标题字体大小
font.lab = 2, # 轴标签字体加粗
font.main = 2) # 标题字体加粗
# 添加网格线
grid(col = "gray90", lty = "dotted")
# 添加1:1线
abline(0, 1, lty = 2, col = "gray50", lwd = 2)
# 添加拟合线
abline(lm_result, col = "red", lwd = 2)
# 添加统计信息
legend_text <- c(
sprintf("R² = %.3f", r2),
sprintf("RMSE = %.3f", rmse),
sprintf("slope = %.3f", slope),
sprintf("intercept = %.3f", intercept)
)
# 添加半透明背景的图例框
legend("topleft",
legend = legend_text,
bty = "n", # 移除边框
bg = rgb(1, 1, 1, 0.8), # 半透明白色背景
box.col = "gray70", # 边框颜色
cex = 1.1, # 文字大小
text.font = 1, # 文字字体
inset = 0.02) # 与边框的距离
# 显示统计指标
cat("\n", title, "的统计指标：\n")
cat("R²:", r2, "\n")
cat("RMSE:", rmse, "\n")
cat("NSE:", round(NSE(plot_data$sim, plot_data$obs), 3), "\n")
cat("Bias:", round(Bias(plot_data$sim, plot_data$obs), 3), "\n")
}
5.输入代码后选定文件即可执行啦
多数据对比：
# 安装和加载必要的包
if (!require(ggplot2)) install.packages("ggplot2")
if (!require(dplyr)) install.packages("dplyr")
if (!require(data.table)) install.packages("data.table")
library(ggplot2)
library(dplyr)
library(data.table)
# 设置系统编码
Sys.setlocale("LC_ALL", "Chinese")
# 让用户输入文件路径
cat("请输入CSV文件的完整路径（或按回车使用文件选择对话框）：\n")
file_path <- readline()
# 如果用户没有输入路径，则使用文件选择对话框
if (file_path == "") {
cat("请在弹出窗口中选择文件...\n")
file_path <- file.choose()
}
# 在tryCatch中使用file_path替换硬编码的路径
tryCatch({
# 尝试不同的编码方式
encodings <- c("UTF-8", "GBK", "GB18030", "BIG5")
data <- NULL
for (enc in encodings) {
tryCatch({
cat("尝试使用", enc, "编码读取文件...\n")
temp_data <- read.csv(file_path,
fileEncoding = enc,
check.names = FALSE,
stringsAsFactors = FALSE)
if (!is.null(temp_data) && nrow(temp_data) > 0 && ncol(temp_data) > 0) {
data <- temp_data
cat("成功使用", enc, "编码读取文件\n")
break
}
}, error = function(e) {
cat("使用", enc, "编码失败:", conditionMessage(e), "\n")
})
}
# 读取数据后，显示列名
cat("\n读取到的列名：\n")
print(names(data))
# 只检查必需的三列
required_cols <- c("站点观测", "VPM10km", "VPM500m")
# 标准化列名（移除特殊字符并统一格式）
standardize_colname <- function(name) {
name <- gsub("[^a-zA-Z0-9\u4e00-\u9fa5]", "", name) # 只保留字母、数字和中文
return(tolower(name)) # 转换为小写
}
# 创建列名映射
column_mapping <- list(
"站点观测" = c("站点观测", "站点_观测", "观测站点", "观测"),
"VPM10km" = c("VPM10km", "VPM-10km", "VPM_10km", "vpm10km", "VPM 10km"),
"VPM500m" = c("VPM500m", "VPM-500m", "VPM_500m", "vpm500m", "VPM 500m")
)
# 标准化当前列名
current_cols <- names(data)
standardized_current <- sapply(current_cols, standardize_colname)
# 检查并重命名列
for (expected_col in required_cols) {
variants <- column_mapping[[expected_col]]
standardized_variants <- sapply(variants, standardize_colname)
# 查找匹配的列名
found <- FALSE
for (i in seq_along(current_cols)) {
if (standardized_current[i] %in% standardized_variants) {
if (current_cols[i] != expected_col) {
data[[expected_col]] <- data[[current_cols[i]]]
data[[current_cols[i]]] <- NULL
}
found <- TRUE
break
}
}
if (!found) {
stop(sprintf("找不到必需的列: %s", expected_col))
}
}
# 验证最终的列名
cat("\n最终的列名：\n")
print(names(data))
# 检查并转换所有数据列为数值型
for (col in names(data)) {
data[[col]] <- as.numeric(as.character(data[[col]]))
if (all(is.na(data[[col]]))) {
stop(sprintf("列 '%s' 包含无效数据", col))
}
}
# 显示数据基本信息
cat("\n数据维度：", dim(data), "\n")
cat("列名：", names(data), "\n")
cat("\n数据前几行：\n")
print(head(data))
# 读取数据后，先检查数据的完整性
cat("\n数据总行数：", nrow(data), "\n")
# 检查每列的数据范围和异常值
for (col in names(data)) {
cat("\n", col, "的统计信息：\n")
cat("最小值：", min(data[[col]], na.rm = TRUE), "\n")
cat("最大值：", max(data[[col]], na.rm = TRUE), "\n")
cat("平均值：", mean(data[[col]], na.rm = TRUE), "\n")
cat("中位数：", median(data[[col]], na.rm = TRUE), "\n")
cat("NA值数量：", sum(is.na(data[[col]])), "\n")
# 检查异常值（超过3个标准差的值）
mean_val <- mean(data[[col]], na.rm = TRUE)
sd_val <- sd(data[[col]], na.rm = TRUE)
outliers <- data[[col]][abs(data[[col]] - mean_val) > 3 * sd_val]
if(length(outliers) > 0) {
cat("可能的异常值：", outliers, "\n")
}
}
# 检查x和y轴的数据对应关系
cat("\n检查站点观测和VPM10km的对应关系：\n")
correlation <- cor(data$站点观测, data$VPM10km, use = "complete.obs")
cat("相关系数：", correlation, "\n")
# 创建两个子图的布局
par(mfrow = c(1, 2))
# 第一个子图：10km分辨率的对比
plot_data_10km <- data.frame(
obs = c(data$站点观测, data$站点观测),
sim = c(data$VPM10km, data$`MODIS-10KM`),
type = factor(rep(c("VPM-10km", "MODIS-10km"), each = nrow(data)))
)
plot_data_10km <- na.omit(plot_data_10km)
# 第一个子图的设置和绘制
max_val_10km <- max(c(plot_data_10km$sim, plot_data_10km$obs))
plot_range_10km <- c(0, max_val_10km * 1.1)
plot(NULL,
xlim = plot_range_10km, ylim = plot_range_10km,
xlab = "站点观测",
ylab = "(gC m⁻² 5day⁻¹)",
main = "10km分辨率产品对比",
cex.lab = 1.2,
cex.axis = 1.1,
cex.main = 1.3,
font.lab = 2,
font.main = 2)
grid(col = "gray90", lty = "dotted")
abline(0, 1, lty = 2, col = "gray50", lwd = 2)
# VPM-10km点和拟合线
points(plot_data_10km$obs[plot_data_10km$type == "VPM-10km"],
plot_data_10km$sim[plot_data_10km$type == "VPM-10km"],
pch = 21,
col = "black",
bg = rgb(1, 0, 0, 0.5),
cex = 1.2)
# MODIS-10km点和拟合线
points(plot_data_10km$obs[plot_data_10km$type == "MODIS-10km"],
plot_data_10km$sim[plot_data_10km$type == "MODIS-10km"],
pch = 21,
col = "black",
bg = rgb(0, 0, 1, 0.5),
cex = 1.2)
# 添加拟合线
lm_vpm_10km <- lm(sim ~ obs, data = plot_data_10km[plot_data_10km$type == "VPM-10km",])
lm_modis_10km <- lm(sim ~ obs, data = plot_data_10km[plot_data_10km$type == "MODIS-10km",])
abline(lm_vpm_10km, col = "red", lwd = 2)
abline(lm_modis_10km, col = "blue", lwd = 2)
# 计算统计指标
r2_vpm_10km <- round(cor(data$VPM10km, data$站点观测, use = "complete.obs")^2, 3)
r2_modis_10km <- round(cor(data$`MODIS-10KM`, data$站点观测, use = "complete.obs")^2, 3)
rmse_vpm_10km <- round(RMSE(data$VPM10km, data$站点观测), 3)
rmse_modis_10km <- round(RMSE(data$`MODIS-10KM`, data$站点观测), 3)
# 添加图例
legend("topleft",
legend = c(
"VPM-10km",
sprintf("R² = %.3f", r2_vpm_10km),
sprintf("RMSE = %.3f", rmse_vpm_10km),
"",
"MODIS-10km",
sprintf("R² = %.3f", r2_modis_10km),
sprintf("RMSE = %.3f", rmse_modis_10km)
),
pch = c(21, NA, NA, NA, 21, NA, NA),
pt.bg = c(rgb(1, 0, 0, 0.5), NA, NA, NA, rgb(0, 0, 1, 0.5), NA, NA),
col = c("black", NA, NA, NA, "black", NA, NA),
pt.cex = 1.2,
bty = "n",
bg = rgb(1, 1, 1, 0.8),
cex = 1.1,
text.font = 1,
inset = 0.02)
# 第二个子图：500m分辨率的对比
plot_data_500m <- data.frame(
obs = c(data$站点观测, data$站点观测),
sim = c(data$VPM500m, data$`MODIS-500m`),
type = factor(rep(c("VPM-500m", "MODIS-500m"), each = nrow(data)))
)
plot_data_500m <- na.omit(plot_data_500m)
# 第二个子图的设置和绘制
max_val_500m <- max(c(plot_data_500m$sim, plot_data_500m$obs))
plot_range_500m <- c(0, max_val_500m * 1.1)
plot(NULL,
xlim = plot_range_500m, ylim = plot_range_500m,
xlab = "站点观测",
ylab = "(gC m⁻² 5day⁻¹)",
main = "500m分辨率产品对比",
cex.lab = 1.2,
cex.axis = 1.1,
cex.main = 1.3,
font.lab = 2,
font.main = 2)
grid(col = "gray90", lty = "dotted")
abline(0, 1, lty = 2, col = "gray50", lwd = 2)
# VPM-500m点和拟合线
points(plot_data_500m$obs[plot_data_500m$type == "VPM-500m"],
plot_data_500m$sim[plot_data_500m$type == "VPM-500m"],
pch = 21,
col = "black",
bg = rgb(1, 0, 0, 0.5),
cex = 1.2)
# MODIS-500m点和拟合线
points(plot_data_500m$obs[plot_data_500m$type == "MODIS-500m"],
plot_data_500m$sim[plot_data_500m$type == "MODIS-500m"],
pch = 21,
col = "black",
bg = rgb(0, 0, 1, 0.5),
cex = 1.2)
# 添加拟合线
lm_vpm_500m <- lm(sim ~ obs, data = plot_data_500m[plot_data_500m$type == "VPM-500m",])
lm_modis_500m <- lm(sim ~ obs, data = plot_data_500m[plot_data_500m$type == "MODIS-500m",])
abline(lm_vpm_500m, col = "red", lwd = 2)
abline(lm_modis_500m, col = "blue", lwd = 2)
# 计算统计指标
r2_vpm_500m <- round(cor(data$VPM500m, data$站点观测, use = "complete.obs")^2, 3)
r2_modis_500m <- round(cor(data$`MODIS-500m`, data$站点观测, use = "complete.obs")^2, 3)
rmse_vpm_500m <- round(RMSE(data$VPM500m, data$站点观测), 3)
rmse_modis_500m <- round(RMSE(data$`MODIS-500m`, data$站点观测), 3)
# 添加图例
legend("topleft",
legend = c(
"VPM-500m",
sprintf("R² = %.3f", r2_vpm_500m),
sprintf("RMSE = %.3f", rmse_vpm_500m),
"",
"MODIS-500m",
sprintf("R² = %.3f", r2_modis_500m),
sprintf("RMSE = %.3f", rmse_modis_500m)
),
pch = c(21, NA, NA, NA, 21, NA, NA),
pt.bg = c(rgb(1, 0, 0, 0.5), NA, NA, NA, rgb(0, 0, 1, 0.5), NA, NA),
col = c("black", NA, NA, NA, "black", NA, NA),
pt.cex = 1.2,
bty = "n",
bg = rgb(1, 1, 1, 0.8),
cex = 1.1,
text.font = 1,
inset = 0.02)
# 恢复原始绘图参数
par(mfrow = c(1, 1))
}, error = function(e) {
cat("错误信息：", conditionMessage(e), "\n")
cat("\n请检查：\n")
cat("1. 文件是否存在\n")
cat("2. 文件是否为标准CSV格式\n")
cat("3. 文件是否包含所需的所有列\n")
cat("4. 数据是否为有效的数值\n")
cat("5. 文件编码是否正确\n")
})
NSE <- function(Qsim, Qobs){
# 创建数据框而不是data.table
df <- data.frame(Qsim = Qsim, Qobs = Qobs)
df <- na.omit(df)
# 如果数据为空，返回NA
if(nrow(df) == 0) return(NA)
Qsim <- df$Qsim
Qobs <- df$Qobs
Qobs_mean <- mean(Qobs)
Emod <- sum((Qsim - Qobs)^2)
Eref <- sum((Qobs - Qobs_mean)^2)
if (Emod == 0 & Eref == 0) {
NSE <- 0
} else {
NSE <- (1 - Emod / Eref)
}
NSE
}
RMSE <- function(Qsim, Qobs){
df <- data.frame(Qsim = Qsim, Qobs = Qobs)
df <- na.omit(df)
if(nrow(df) == 0) return(NA)
Qsim <- df$Qsim
Qobs <- df$Qobs
sqrt(mean((Qsim - Qobs)^2))
}
Bias <- function(Qsim, Qobs){
df <- data.frame(Qsim = Qsim, Qobs = Qobs)
df <- na.omit(df)
if(nrow(df) == 0) return(NA)
Qsim <- df$Qsim
Qobs <- df$Qobs
sumQobs <- sum(Qobs)
sumQsim <- sum(Qsim)
if (sumQobs == 0) {
BIAS <- 0
} else {
BIAS <- (sumQsim - sumQobs) / sumQobs
}
BIAS
}
# 美化后的对比图函数
plot_comparison_base <- function(sim_data, obs_data, title) {
# 创建数据框
plot_data <- data.frame(sim = sim_data, obs = obs_data)
plot_data <- na.omit(plot_data)
# 输出用于拟合的数据点数量
cat("\n用于", title, "的有效数据点数量：", nrow(plot_data), "\n")
# 计算统计指标
r2 <- round(cor(plot_data$sim, plot_data$obs)^2, 3)
rmse <- round(sqrt(mean((plot_data$sim - plot_data$obs)^2)), 3)
lm_result <- lm(obs ~ sim, data = plot_data)
slope <- round(coef(lm_result)[2], 3)
intercept <- round(coef(lm_result)[1], 3)
# 计算绘图范围
max_val <- max(c(plot_data$sim, plot_data$obs))
plot_range <- c(0, max_val * 1.1)
# 设置绘图参数
par(mar = c(5, 5, 4, 2)) # 增加边距
par(mgp = c(3.5, 1, 0)) # 调整轴标签位置
# 绘制散点图
plot(plot_data$sim, plot_data$obs,
xlim = plot_range, ylim = plot_range,
xlab = "站点观测VS VPM-10KM",
ylab = "(gC m⁻² 5day⁻¹)",
main = title,
pch = 21, # 圆形带边框的点
col = "black", # 点的边框颜色
bg = rgb(0, 0, 1, 0.5), # 半透明蓝色填充
cex = 1.2, # 点的大小
cex.lab = 1.2, # 轴标签字体大小
cex.axis = 1.1, # 轴刻度字体大小
cex.main = 1.3, # 标题字体大小
font.lab = 2, # 轴标签字体加粗
font.main = 2) # 标题字体加粗
# 添加网格线
grid(col = "gray90", lty = "dotted")
# 添加1:1线
abline(0, 1, lty = 2, col = "gray50", lwd = 2)
# 添加拟合线
abline(lm_result, col = "red", lwd = 2)
# 添加统计信息
legend_text <- c(
sprintf("R² = %.3f", r2),
sprintf("RMSE = %.3f", rmse),
sprintf("slope = %.3f", slope),
sprintf("intercept = %.3f", intercept)
)
# 添加半透明背景的图例框
legend("topleft",
legend = legend_text,
bty = "n", # 移除边框
bg = rgb(1, 1, 1, 0.8), # 半透明白色背景
box.col = "gray70", # 边框颜色
cex = 1.1, # 文字大小
text.font = 1, # 文字字体
inset = 0.02) # 与边框的距离
# 显示统计指标
cat("\n", title, "的统计指标：\n")
cat("R²:", r2, "\n")
cat("RMSE:", rmse, "\n")
cat("NSE:", round(NSE(plot_data$sim, plot_data$obs), 3), "\n")
cat("Bias:", round(Bias(plot_data$sim, plot_data$obs), 3), "\n")
}
扫一扫
175
被折叠的 条评论
为什么被折叠?
到【灌水乐园】发言
