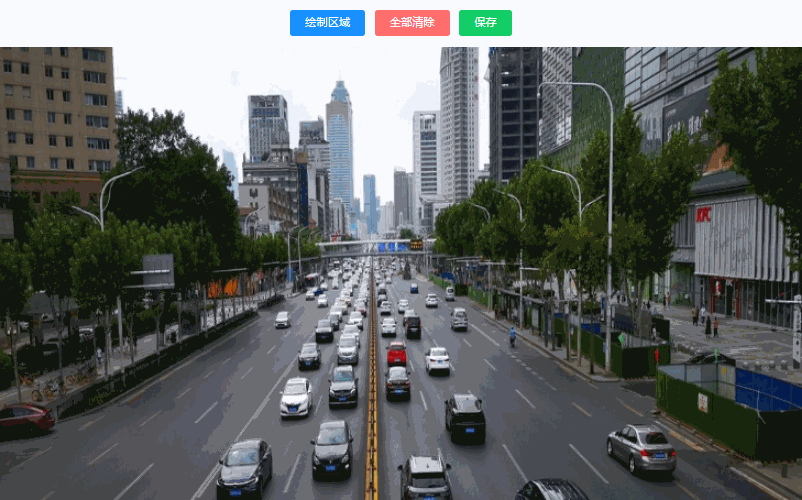

Canvas绘制图片和区域

如何使用Canvas在图片上绘制区域？

一. 首先，我们需要初始化三个canvas画布（初始化Canvas）



initCanvas() {
  // 初始化canvas画布
  let canvasWrap = document.getElementsByClassName("canvas-wrap");
  this.wrapWidth = canvasWrap[0].clientWidth;
  this.wrapHeight = canvasWrap[0].clientHeight;

  this.imgCanvas = document.getElementById("imgCanvas");
  this.imgCtx = this.imgCanvas.getContext("2d");

  // 绘制canvas
  this.drawCanvas = document.getElementById("drawCanvas");
  this.drawCtx = this.drawCanvas.getContext("2d");

  // 保存绘制区域 saveCanvas
  this.saveCanvas = document.getElementById("saveCanvas");
  this.saveCtx = this.saveCanvas.getContext("2d");
}

1. imgCanvas用于绘制原始图片
2. drawCanvas用于临时绘制区域
3. saveCanvas用于保存最终绘制的区域

二. 计算并设置canvas的宽高比例，以适应图片尺寸

initImgCanvas() {
  // 计算宽高比
  let ww = this.wrapWidth; // 画布宽度
  let wh = this.wrapHeight; // 画布高度
  let iw = this.imgWidth; // 图片宽度
  let ih = this.imgHeight; // 图片高度

  if (iw / ih < ww / wh) {
    // 以高为主
    this.ratio = ih / wh;
    this.canvasHeight = wh;
    this.canvasWidth = (wh * iw) / ih;
  } else {
    // 以宽为主
    this.ratio = iw / ww;
    this.canvasWidth = ww;
    this.canvasHeight = (ww * ih) / iw;
  }

  // 初始化画布大小
  this.imgCanvas.width = this.canvasWidth;
  this.imgCanvas.height = this.canvasHeight;
  this.drawCanvas.width = this.canvasWidth;
  this.drawCanvas.height = this.canvasHeight;
  this.saveCanvas.width = this.canvasWidth;
  this.saveCanvas.height = this.canvasHeight;

  // 图片加载绘制
  let img = document.createElement("img");
  img.src = this.imgUrl;
  img.onload = () => {
    console.log("图片已加载");
    this.imgCtx.drawImage(img, 0, 0, this.canvasWidth, this.canvasHeight);
    this.renderDatas(); // 渲染原有数据
  };
}

这里先计算画布和图片的宽高比,根据比例关系决定以宽为主还是以高为主进行等比缩放。然后设置三个canvas的宽高,并在图片加载完成后将其绘制到imgCanvas上。renderDatas函数用于渲染已有的绘制数据。

三. 绘制的主要逻辑

startDraw() {
  // 绘制区域
  if (this.isDrawing) return;
  this.isDrawing = true;
  // 绘制逻辑
  this.drawCanvas.addEventListener("click", this.drawImageClickFn);
  this.drawCanvas.addEventListener("dblclick", this.drawImageDblClickFn);
  this.drawCanvas.addEventListener("mousemove", this.drawImageMoveFn);
}
