嵌入式-51单片机-最简单的L9110S电机驱动模块控制小车

目录：

一：最简单的51开发板电机驱动小车实物接线图

1.电机模块开发

1.1接线图

1.2实物图

1.3电机模块

二：电机模块开发代码

2.1代码界面预览（代码封装）

2.2主函数main.c

2.3电机motor.c

2.4延时函数delay.c

2.5延时头文件

2.6 52头文件

…分割线…

内容：

一：最简单的51开发板电机驱动小车实物接线图

1.电机模块开发

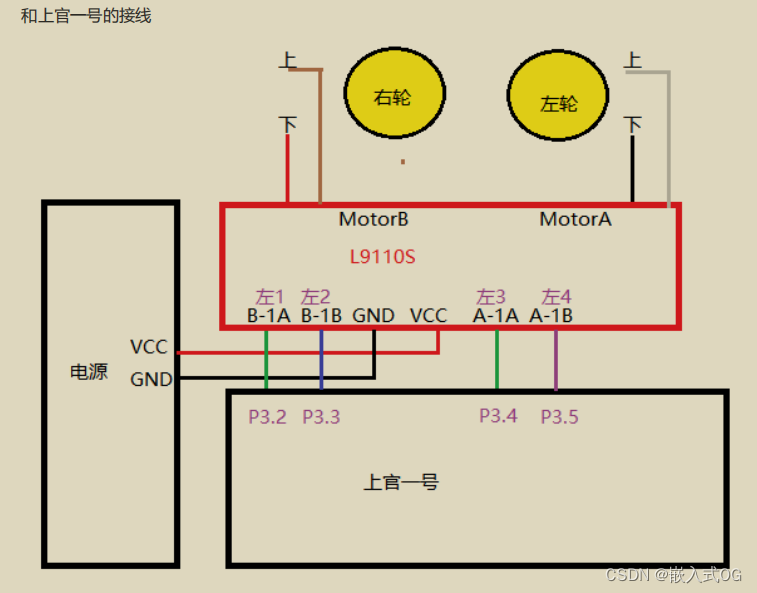

1.1接线图

L9110s是一种双路直流电机驱动芯片，常用于控制小型电机的转动。它有多种封装形式，如DIP、SOP等，可以方便地与其他电路连接。L9110具有低电压、低电流和高效率等特点，能够提供稳定的电机驱动电流，同时还具有过热保护功能，能有效地保护电机和芯片本身。由于其成本低廉、易于使用，因此在智能小车、机器人、飞行器等各种电子设备中广泛应用。

单片机只连接P3^3,的线 和P3-4+5+6的线（输入法问题），电机驱动芯片的电源由电池驱动

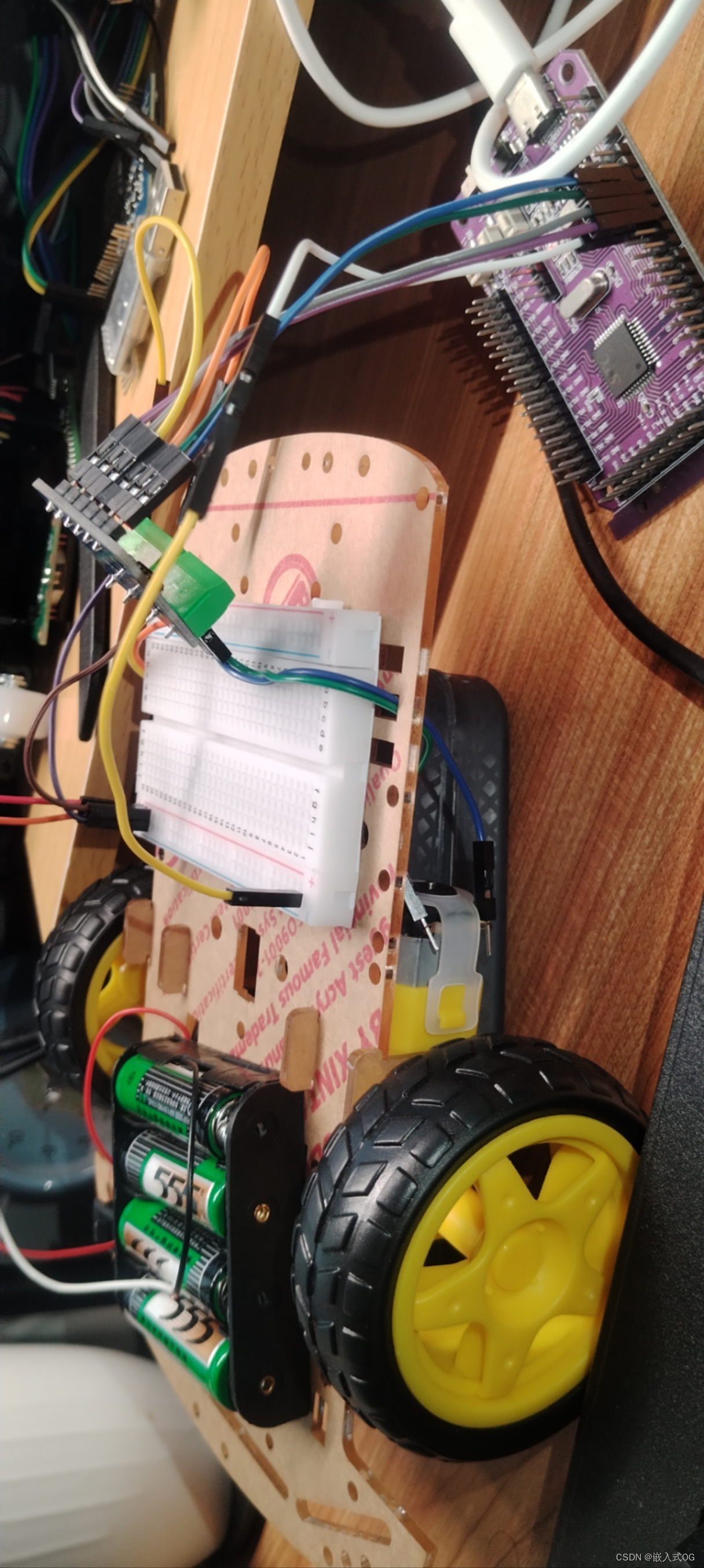

1.2实物图

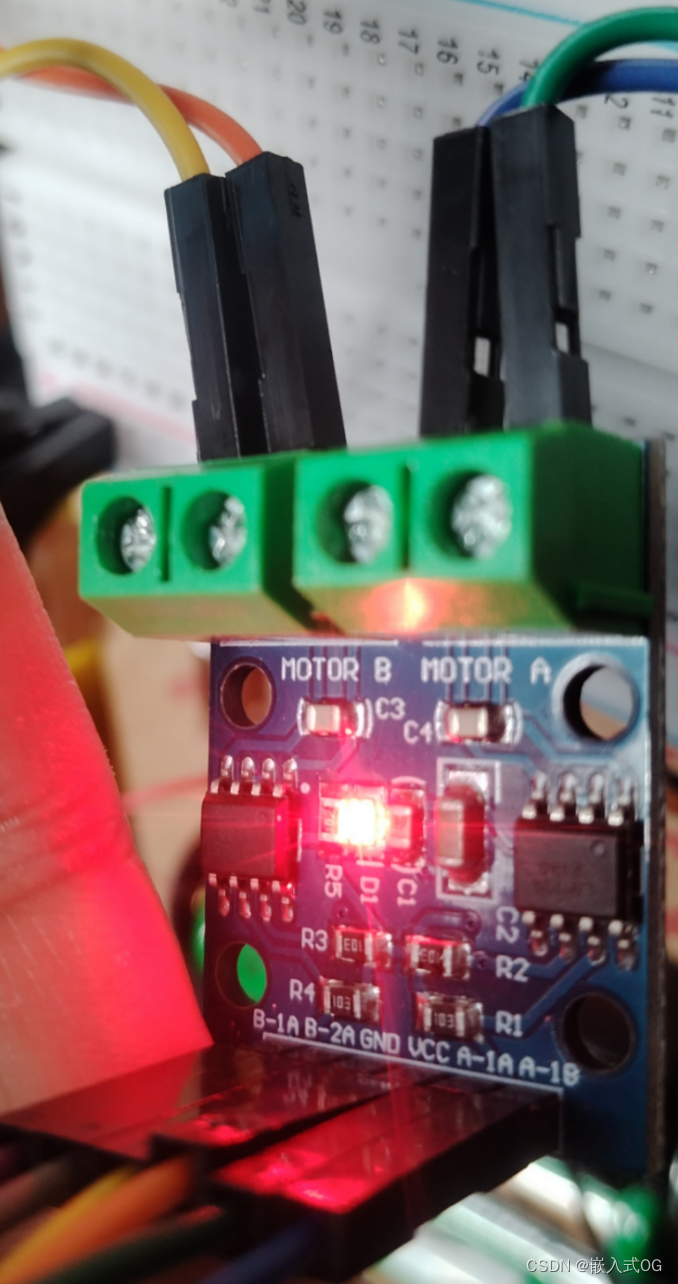

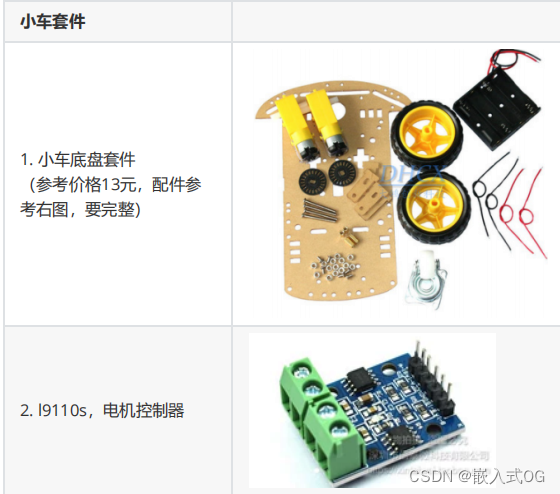

1.3电机模块

二：电机模块开发代码

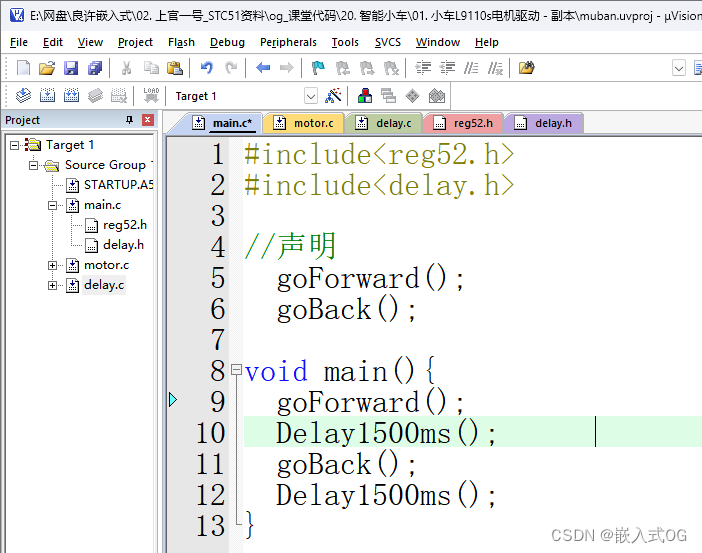

2.1代码界面预览（代码封装）

2.2主函数main.c

#include<reg52.h>
#include<delay.h>

//声明
	goForward();
	goBack();

void main(){
	goForward();
	Delay1500ms();
	goBack();
	Delay1500ms();
}

2.3电机motor.c

#include<reg52.h>//要用sbit,就要用到reg52.h
sbit RightCon1A =P3^2;
sbit RightCon1B = P3^3;

sbit LeftCon1A = P3^4;
sbit LeftCon1B = P3^5;

void goForward(){
	LeftCon1A = 0;//是0还是1，得看datasheet,现场也可以自己调试出来
	LeftCon1B = 1;

	RightCon1A = 0;
	RightCon1B = 1;
}
void goBack(){
	LeftCon1A = 1;
	LeftCon1B = 0;

	RightCon1A = 1;
	RightCon1B = 0;
}

2.4延时函数 delay.c

//用stc烧录软件自动生成

#include<intrins.h>

void Delay1500ms()		//@11.0592MHz
{
	unsigned char i, j, k;

	_nop_();
	i = 11;
	j = 130;
	k = 111;
	do
	{
		do
		{
			while (--k);
		} while (--j);
	} while (--i);
}

2.5延时头文件

void Delay1500ms();

2.6 52头文件

（这部分代码可以忽略，一般不需要改，只要在main.c头文件引用了#include<reg52.h> ）

/*--------------------------------------------------------------------------
REG52.H

Header file for generic 80C52 and 80C32 microcontroller.
Copyright (c) 1988-2002 Keil Elektronik GmbH and Keil Software, Inc.
All rights reserved.
--------------------------------------------------------------------------*/

#ifndef __REG52_H__
#define __REG52_H__

/*  BYTE Registers  */
sfr P0    = 0x80;
sfr P1    = 0x90;
sfr P2    = 0xA0;
sfr P3    = 0xB0;
sfr PSW   = 0xD0;
sfr ACC   = 0xE0;
sfr B     = 0xF0;
sfr SP    = 0x81;
sfr DPL   = 0x82;
sfr DPH   = 0x83;
sfr PCON  = 0x87;
sfr TCON  = 0x88;
sfr TMOD  = 0x89;
sfr TL0   = 0x8A;
sfr TL1   = 0x8B;
sfr TH0   = 0x8C;
sfr TH1   = 0x8D;
sfr IE    = 0xA8;
sfr IP    = 0xB8;
sfr SCON  = 0x98;
sfr SBUF  = 0x99;
//sfr AUXR = 0x8E;  //配置寄存器地址,手动添加

/*  8052 Extensions  */
sfr T2CON  = 0xC8;
sfr RCAP2L = 0xCA;
sfr RCAP2H = 0xCB;
sfr TL2    = 0xCC;
sfr TH2    = 0xCD;


/*  BIT Registers  */
/*  PSW  */
sbit CY    = PSW^7;
sbit AC    = PSW^6;
sbit F0    = PSW^5;
sbit RS1   = PSW^4;
sbit RS0   = PSW^3;
sbit OV    = PSW^2;
sbit P     = PSW^0; //8052 only

/*  TCON  */
sbit TF1   = TCON^7;
sbit TR1   = TCON^6;
sbit TF0   = TCON^5;
sbit TR0   = TCON^4;
sbit IE1   = TCON^3;
sbit IT1   = TCON^2;
sbit IE0   = TCON^1;
sbit IT0   = TCON^0;

/*  IE  */
sbit EA    = IE^7;
sbit ET2   = IE^5; //8052 only
sbit ES    = IE^4;
sbit ET1   = IE^3;
sbit EX1   = IE^2;
sbit ET0   = IE^1;
sbit EX0   = IE^0;

/*  IP  */
sbit PT2   = IP^5;
sbit PS    = IP^4;
sbit PT1   = IP^3;
sbit PX1   = IP^2;
sbit PT0   = IP^1;
sbit PX0   = IP^0;

/*  P3  */
sbit RD    = P3^7;
sbit WR    = P3^6;
sbit T1    = P3^5;
sbit T0    = P3^4;
sbit INT1  = P3^3;
sbit INT0  = P3^2;
sbit TXD   = P3^1;
sbit RXD   = P3^0;

/*  SCON  */
sbit SM0   = SCON^7;
sbit SM1   = SCON^6;
sbit SM2   = SCON^5;
sbit REN   = SCON^4;
sbit TB8   = SCON^3;
sbit RB8   = SCON^2;
sbit TI    = SCON^1;
sbit RI    = SCON^0;

/*  P1  */
sbit T2EX  = P1^1; // 8052 only
sbit T2    = P1^0; // 8052 only

/*  T2CON  */
sbit TF2    = T2CON^7;
sbit EXF2   = T2CON^6;
sbit RCLK   = T2CON^5;
sbit TCLK   = T2CON^4;
sbit EXEN2  = T2CON^3;
sbit TR2    = T2CON^2;
sbit C_T2   = T2CON^1;
sbit CP_RL2 = T2CON^0;

#endif

以上，完
