OpenCV with Python

一、Section #1 - Basics

1.basic_functions

#pylint:disable=no-member

import cv2 as cv

# Read in an image

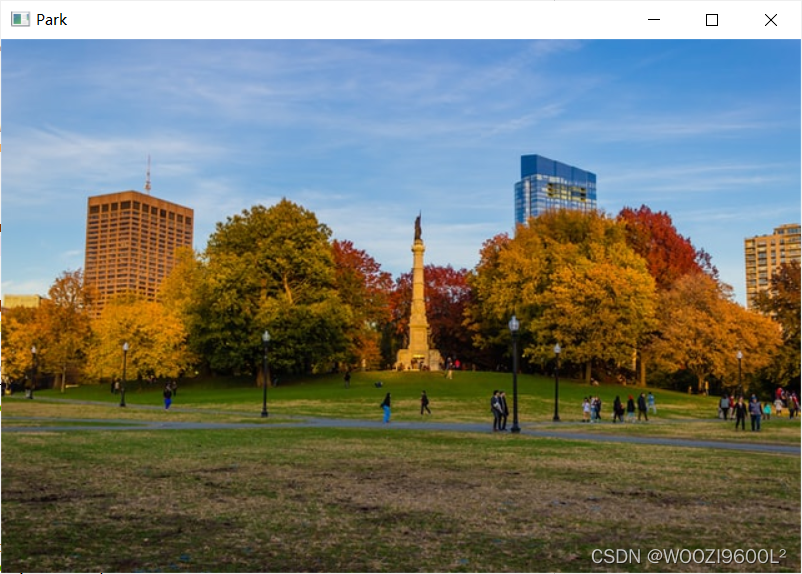

img = cv.imread('../Resources/Photos/park.jpg')
cv.imshow('Park', img)

# Converting to grayscale
gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
cv.imshow('Gray', gray)

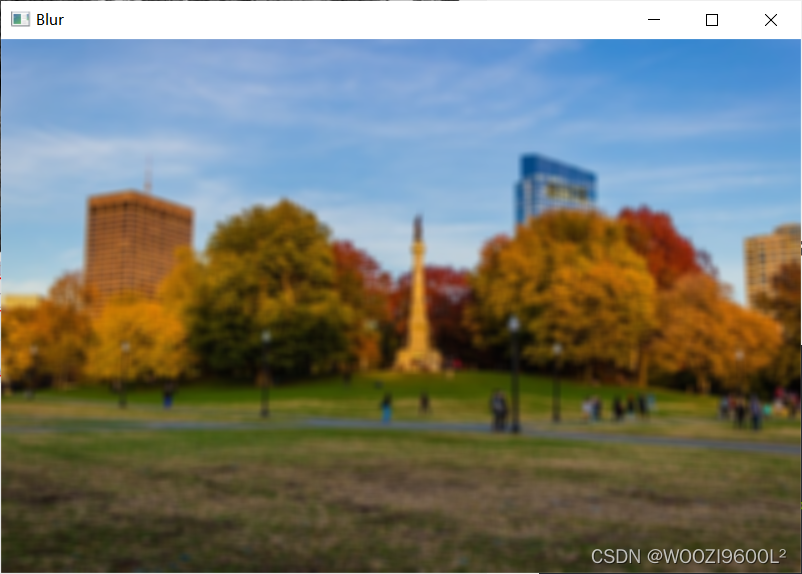

# Blur
blur = cv.GaussianBlur(img, (7,7), cv.BORDER_DEFAULT)
cv.imshow('Blur', blur)

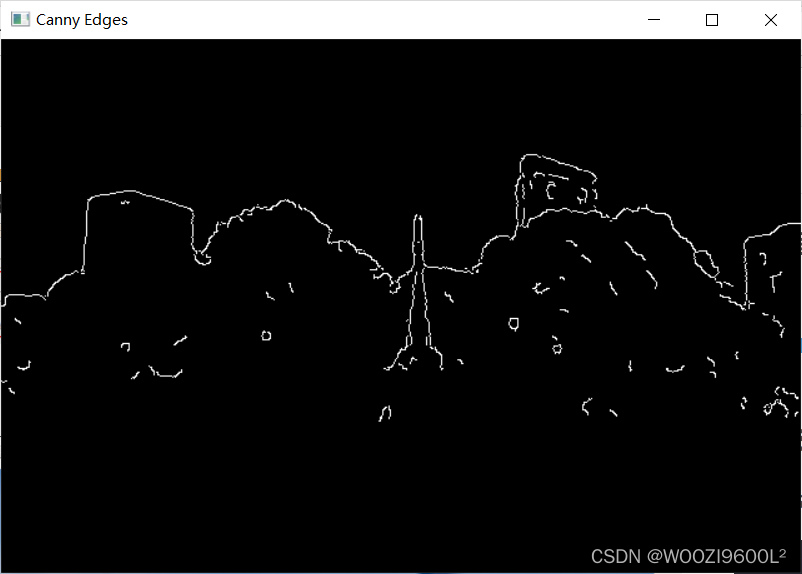

# Edge Cascade
canny = cv.Canny(blur, 125, 175)
cv.imshow('Canny Edges', canny)

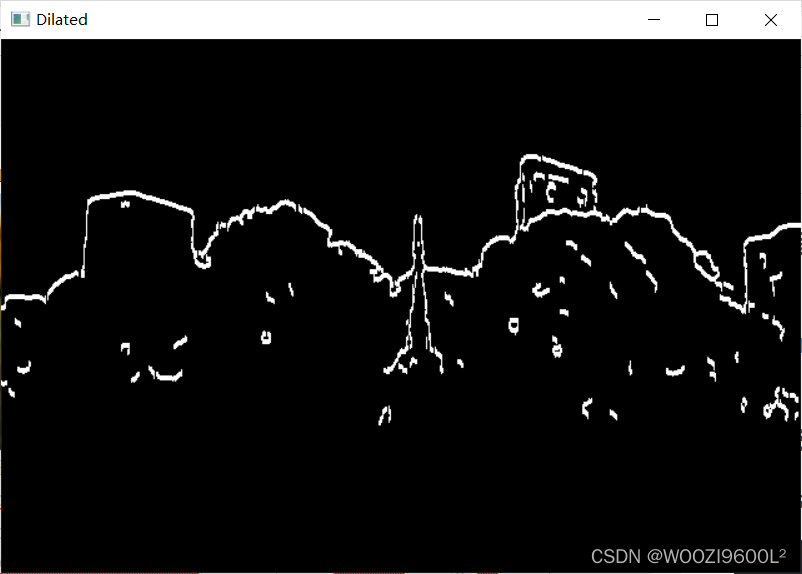

# Dilating the image
dilated = cv.dilate(canny, (7,7), iterations=3)
cv.imshow('Dilated', dilated)

# Eroding
eroded = cv.erode(dilated, (7,7), iterations=3)
cv.imshow('Eroded', eroded)

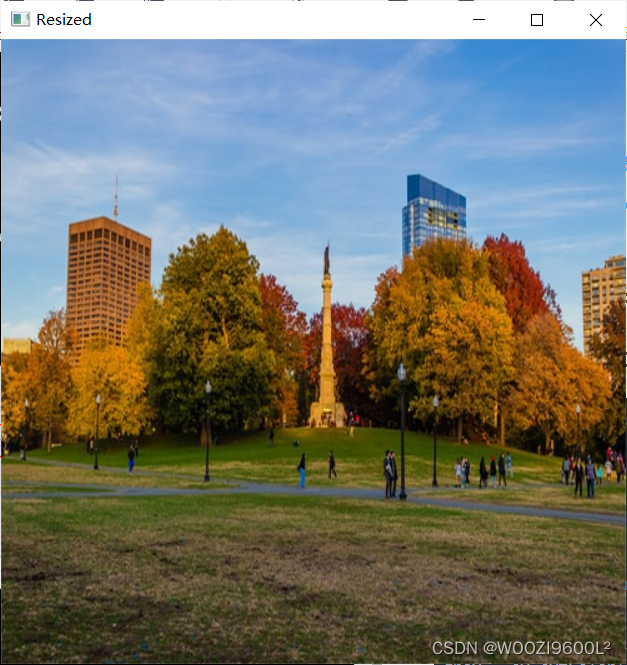

# Resize
resized = cv.resize(img, (500,500), interpolation=cv.INTER_CUBIC)
cv.imshow('Resized', resized)

# Cropping
cropped = img[50:200, 200:400]
cv.imshow('Cropped', cropped)

cv.waitKey(0)

2.contours

#pylint:disable=no-member

import cv2 as cv
import numpy as np

img = cv.imread('../Resources/Photos/cats.jpg')
cv.imshow('Cats', img)

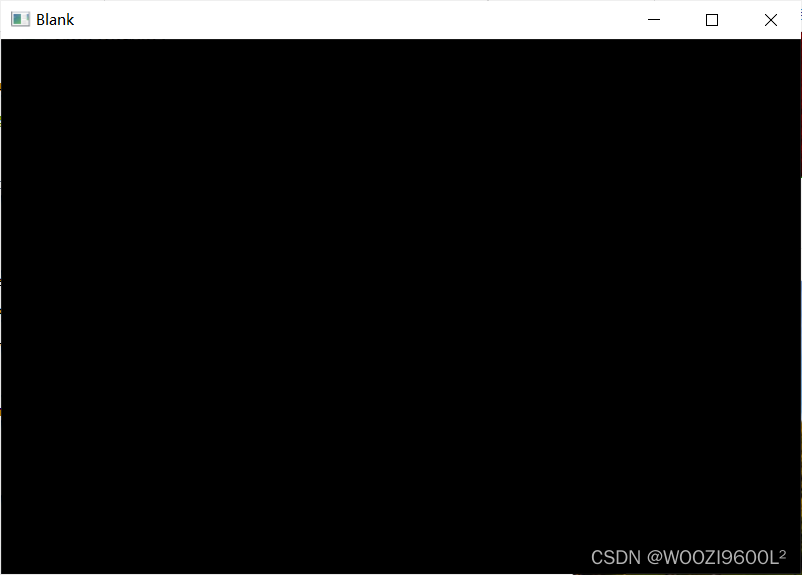

blank = np.zeros(img.shape, dtype='uint8')
cv.imshow('Blank', blank)

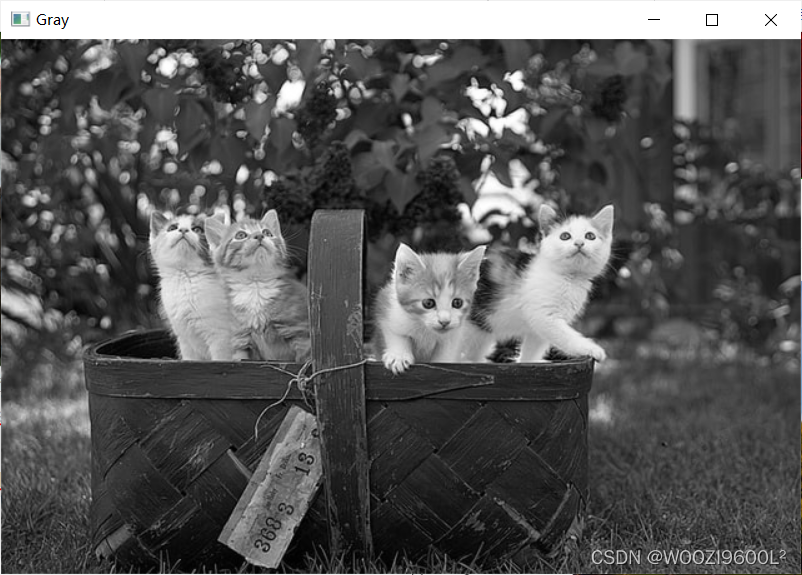

gray = cv.cvtColor(img, cv.COLOR_BGR2GRAY)
cv.imshow('Gray', gray)

blur = cv.GaussianBlur(gray, (5,5), cv.BORDER_DEFAULT)
cv.imshow('Blur', blur)

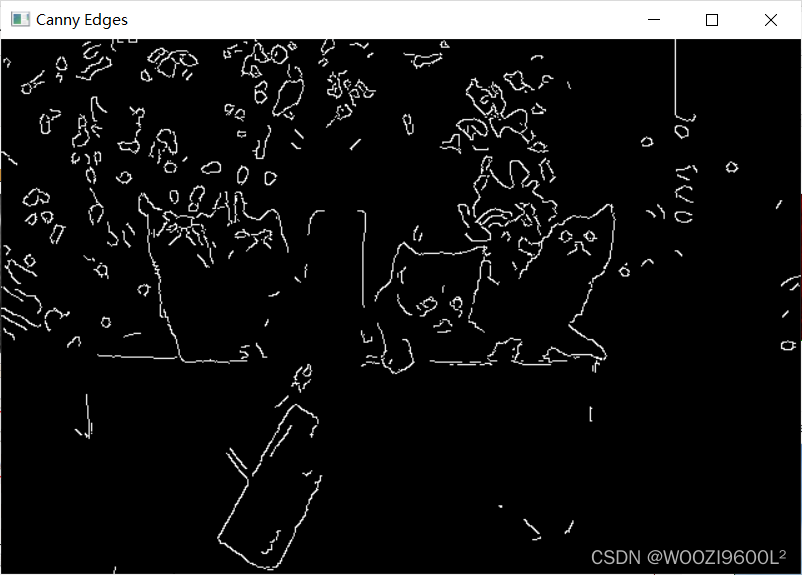

canny = cv.Canny(blur, 125, 175)
cv.imshow('Canny Edges', canny)

# ret, thresh = cv.threshold(gray, 125, 255, cv.THRESH_BINARY)
# cv.imshow('Thresh', thresh)

contours, hierarchies = cv.findContours(canny, cv.RETR_LIST, cv.CHAIN_APPROX_SIMPLE)
print(f'{len(contours)} contour(s) found!')

cv.drawContours(blank, contours, -1, (0,0,255), 1)

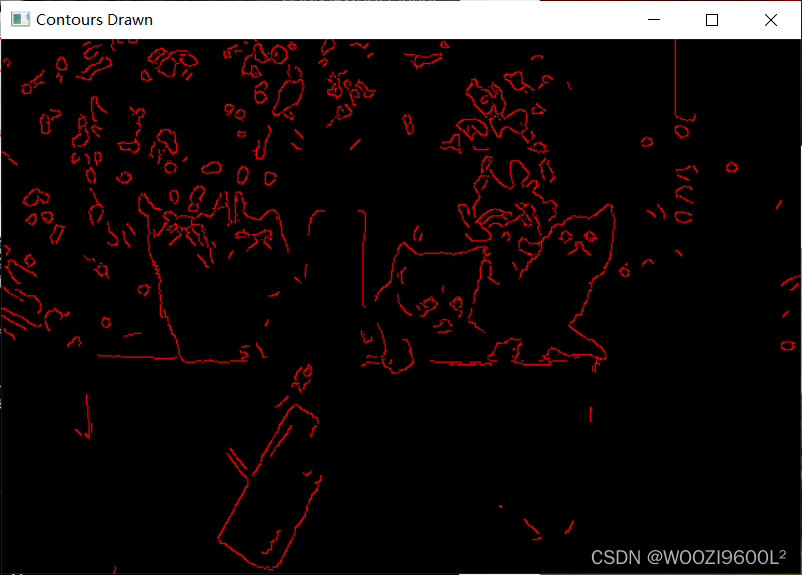

cv.imshow('Contours Drawn', blank)

cv.waitKey(0)

3.draw

#pylint:disable=no-member

import cv2 as cv
import numpy as np

blank = np.zeros((500,500,3), dtype='uint8')
cv.imshow('Blank', blank)

# 1. Paint the image a certain colour
blank[200:300, 300:400] = 0,0,255
cv.imshow('Green', blank)

# 2. Draw a Rectangle
cv.rectangle(blank, (0,0), (blank.shape[1]//2, blank.shape[0]//2), (0,255,0), thickness=-1)
cv.imshow('Rectangle', blank)

# 3. Draw A circle
cv.circle(blank, (blank
