根据经纬度、半径、方位角获取下一个点经纬度，画线、画圆

//gis根据一个点的经纬度、方位角、半径求下个点的经纬度 再画线
var poine2=getLonAndLat(data[0].lng,data[0].lat,data[0].azimuth,data[0].radius);
var polyline = new BMap.Polyline([
new BMap.Point(data[0].lng,data[0].lat),//起始点的经纬度
new BMap.Point(poine2.lng,poine2.lat)//终止点的经纬度
], {strokeColor:“blue”,//设置颜色
strokeWeight:2, //宽度
strokeOpacity:0.7});//透明度
map.addOverlay(polyline);

            var circle = new BMap.Circle(point2,data[0].radius,{strokeColor:"blue", strokeWeight:2, strokeOpacity:0.5});
            map.addOverlay(circle);

下面是经纬度获取脚本

/**

• 度换成弧度
• @param {Float} d 度
• @return {[Float} 弧度
  /
  function rad (d){
  return d * Math.PI / 180.0;
  };
  /*
• 弧度换成度
• @param {Float} x 弧度
• @return {Float} 度
  /
  function deg (x){
  return x180/Math.PI;
  };
  /**
• @param {*} lng 经度 113.3960698
• @param {*} lat 纬度 22.941386
• @param {*} brng 方位角 45 ---- 正北方：000°或360° 正东方：090° 正南方：180° 正西方：270°
• @param {*} dist 距离 9000

*/
function getLonAndLat (lng,lat,brng,dist){
//大地坐标系资料WGS-84 长半径a=6378137 短半径b=6356752.3142 扁率f=1/298.2572236
var a=6378137;
var b=6356752.3142;
var f=1/298.257223563;

var lon1 = lng*1;
var lat1 = lat*1;
var s = dist;
var alpha1 = rad(brng);
var sinAlpha1 = Math.sin(alpha1);
var cosAlpha1 = Math.cos(alpha1);

var tanU1 = (1-f) * Math.tan(rad(lat1));
var cosU1 = 1 / Math.sqrt((1 + tanU1*tanU1)), sinU1 = tanU1*cosU1;
var sigma1 = Math.atan2(tanU1, cosAlpha1);
var sinAlpha = cosU1 * sinAlpha1;
var cosSqAlpha = 1 - sinAlpha*sinAlpha;
var uSq = cosSqAlpha * (a*a - b*b) / (b*b);
var A = 1 + uSq/16384*(4096+uSq*(-768+uSq*(320-175*uSq)));
var B = uSq/1024 * (256+uSq*(-128+uSq*(74-47*uSq)));

var sigma = s / (b*A), sigmaP = 2*Math.PI;
while (Math.abs(sigma-sigmaP) > 1e-12) {
	var cos2SigmaM = Math.cos(2*sigma1 + sigma);
	var sinSigma = Math.sin(sigma);
	var cosSigma = Math.cos(sigma);
	var deltaSigma = B*sinSigma*(cos2SigmaM+B/4*(cosSigma*(-1+2*cos2SigmaM*cos2SigmaM)-
		B/6*cos2SigmaM*(-3+4*sinSigma*sinSigma)*(-3+4*cos2SigmaM*cos2SigmaM)));
	sigmaP = sigma;
	sigma = s / (b*A) + deltaSigma;
}

var tmp = sinU1*sinSigma - cosU1*cosSigma*cosAlpha1;
var lat2 = Math.atan2(sinU1*cosSigma + cosU1*sinSigma*cosAlpha1,
	(1-f)*Math.sqrt(sinAlpha*sinAlpha + tmp*tmp));
var lambda = Math.atan2(sinSigma*sinAlpha1, cosU1*cosSigma - sinU1*sinSigma*cosAlpha1);
var C = f/16*cosSqAlpha*(4+f*(4-3*cosSqAlpha));
var L = lambda - (1-C) * f * sinAlpha *
	(sigma + C*sinSigma*(cos2SigmaM+C*cosSigma*(-1+2*cos2SigmaM*cos2SigmaM)));

var revAz = Math.atan2(sinAlpha, -tmp);  // final bearing

var lngLatObj = {lng:lon1+deg(L),lat:deg(lat2)}
return lngLatObj;

}

/**

• 度换成弧度
• @param {Float} d 度
• @return {[Float} 弧度
  /
  function rad (d){
  return d * Math.PI / 180.0;
  };
  /*
• 弧度换成度
• @param {Float} x 弧度
• @return {Float} 度
  /
  function deg (x){
  return x180/Math.PI;
  };
  /**
• @param {*} lng 经度 113.3960698
• @param {*} lat 纬度 22.941386
• @param {*} brng 方位角 45 ---- 正北方：000°或360° 正东方：090° 正南方：180° 正西方：270°
• @param {*} dist 距离 9000

*/
function getLonAndLat (lng,lat,brng,dist){
//大地坐标系资料WGS-84 长半径a=6378137 短半径b=6356752.3142 扁率f=1/298.2572236
var a=6378137;
var b=6356752.3142;
var f=1/298.257223563;

var lon1 = lng*1;
var lat1 = lat*1;
var s = dist;
var alpha1 = rad(brng);
var sinAlpha1 = Math.sin(alpha1);
var cosAlpha1 = Math.cos(alpha1);

var tanU1 = (1-f) * Math.tan(rad(lat1));
var cosU1 = 1 / Math.sqrt((1 + tanU1*tanU1)), sinU1 = tanU1*cosU1;
var sigma1 = Math.atan2(tanU1, cosAlpha1);
var sinAlpha = cosU1 * sinAlpha1;
var cosSqAlpha = 1 - sinAlpha*sinAlpha;
var uSq = cosSqAlpha * (a*a - b*b) / (b*b);
var A = 1 + uSq/16384*(4096+uSq*(-768+uSq*(320-175*uSq)));
var B = uSq/1024 * (256+uSq*(-128+uSq*(74-47*uSq)));

var sigma = s / (b*A), sigmaP = 2*Math.PI;
while (Math.abs(sigma-sigmaP) > 1e-12) {
	var cos2SigmaM = Math.cos(2*sigma1 + sigma);
	var sinSigma = Math.sin(sigma);
	var cosSigma = Math.cos(sigma);
	var deltaSigma = B*sinSigma*(cos2SigmaM+B/4*(cosSigma*(-1+2*cos2SigmaM*cos2SigmaM)-
		B/6*cos2SigmaM*(-3+4*sinSigma*sinSigma)*(-3+4*cos2SigmaM*cos2SigmaM)));
	sigmaP = sigma;
	sigma = s / (b*A) + deltaSigma;
}

var tmp = sinU1*sinSigma - cosU1*cosSigma*cosAlpha1;
var lat2 = Math.atan2(sinU1*cosSigma + cosU1*sinSigma*cosAlpha1,
	(1-f)*Math.sqrt(sinAlpha*sinAlpha + tmp*tmp));
var lambda = Math.atan2(sinSigma*sinAlpha1, cosU1*cosSigma - sinU1*sinSigma*cosAlpha1);
var C = f/16*cosSqAlpha*(4+f*(4-3*cosSqAlpha));
var L = lambda - (1-C) * f * sinAlpha *
	(sigma + C*sinSigma*(cos2SigmaM+C*cosSigma*(-1+2*cos2SigmaM*cos2SigmaM)));

var revAz = Math.atan2(sinAlpha, -tmp);  // final bearing

var lngLatObj = {lng:lon1+deg(L),lat:deg(lat2)}
return lngLatObj;

}

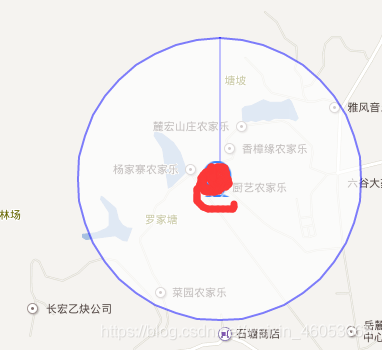

效果图：
