拼图游戏(puzzle)是一种常见的益智游戏，玩家通过拖动图块来正确拼接成完整的图片。

由一张原图，分割成图块，拼图块的大小将会根据行列数自动调整，然后随机打乱，玩家通过拖拽图块，最后复原原图。

🐛图片分割

将原图分割成 piece1~9

from PIL import Image

def split_image(image_path):
    img = Image.open(image_path)
    width, height = img.size
    piece_width = width // 3
    piece_height = height // 3

    count = 1
    for i in range(3):
        for j in range(3):
            box = (j * piece_width, i * piece_height, (j + 1) * piece_width, (i + 1) * piece_height)
            piece = img.crop(box)
            piece.save(f'piece{count}.png')
            count += 1

if __name__ == '__main__':
    split_image('test.jpg')

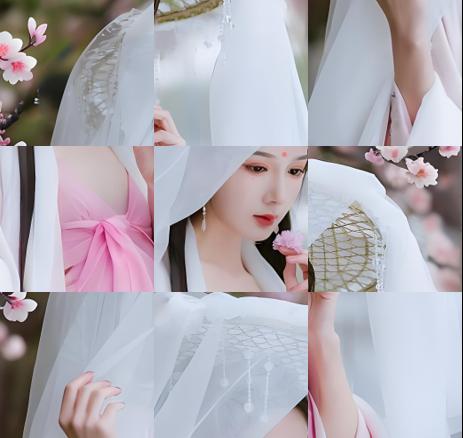

🐛图片乱拼

将分割的图片乱拼起来，合成一张新的图

from PIL import Image
import random


def split_image(image_path):
    img = Image.open(image_path)
    width, height = img.size
    piece_width = width // 3
    piece_height = height // 3

    count = 1
    pieces = []
    for i in range(3):
        for j in range(3):
            box = (j * piece_width, i * piece_height, (j + 1) * piece_width, (i + 1) * piece_height)
            piece = img.crop(box)
            pieces.append(piece)

    random.shuffle(pieces)

    new_img = Image.new('RGB', (width, height))
    count = 0
    for i in range(3):
        for j in range(3):
            new_img.paste(pieces[count], (j * piece_width, i * piece_height))
            count += 1

    new_img.save('new_image.jpg')


if __name__ == '__main__':
    split_image('test.jpg')

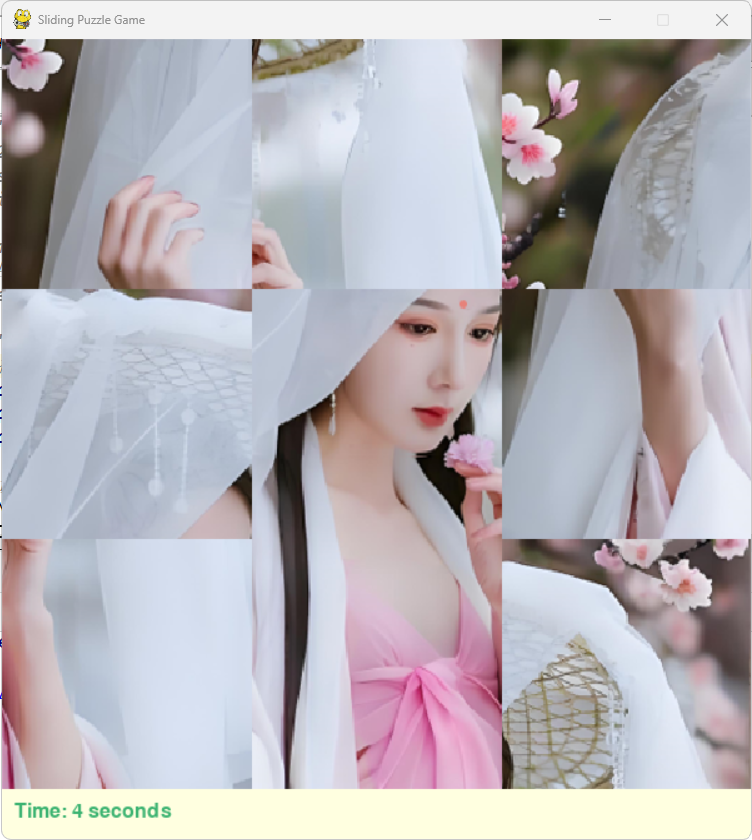

🐛九宫格拼图

# 拖拽拼图
import pygame
import random
import sys

# 设置屏幕尺寸和信息框高度
WINDOW_WIDTH, WINDOW_HEIGHT = 600, 640
WIDTH, HEIGHT = 600, 600
INFO_BOX_HEIGHT = 40
TILE_SIZE = 200  # 每个拼图块的大小
ROWS, COLS = 3, 3  # 拼图的行数和列数

# 随机打乱拼图
def shuffle_image(image):
    pieces = [image.subsurface((x * TILE_SIZE, y * TILE_SIZE, TILE_SIZE, TILE_SIZE))
              for y in range(ROWS) for x in range(COLS)]
    pieces = random.sample(pieces, len(pieces))
    return pieces

# 主函数
def main():
    pygame.init()
    screen = pygame.display.set_mode((WINDOW_WIDTH, WINDOW_HEIGHT))
    pygame.display.set_caption("Sliding Puzzle Game")

    clock = pygame.time.Clock()
    start_time = pygame.time.get_ticks()  # 记录开始时间
    finished = False
    #game_over = False  # 游戏结束标志

    #original_image = pygame.image.load("new_image.jpg")
    original_image = pygame.image.load("test.jpg")
    original_image = pygame.transform.scale(original_image, (WIDTH, HEIGHT))

    pieces = shuffle_image(original_image)
    empty_tile = len(pieces) - 1  # 空白拼图块的索引
    selected_tile = None  # 当前选中的拼图块索引
    #drag_offset = (0, 0)  # 拖拽时的偏移量

    while not finished:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                pygame.quit()
                sys.exit()

            if event.type == pygame.MOUSEBUTTONDOWN:
                if event.button == 1:
                    x, y = pygame.mouse.get_pos()
                    selected_tile = (y // TILE_SIZE) * COLS + (x // TILE_SIZE)
                    #if selected_tile != empty_tile:
                        #drag_offset = (x - (selected_tile % COLS) * TILE_SIZE, y - (selected_tile // COLS) * TILE_SIZE)

            if event.type == pygame.MOUSEBUTTONUP:
                if event.button == 1 and selected_tile is not None:
                    x, y = pygame.mouse.get_pos()
                    target_tile = (y // TILE_SIZE) * COLS + (x // TILE_SIZE)
                    if target_tile != empty_tile and target_tile != selected_tile:
                        pieces[selected_tile], pieces[target_tile] = pieces[target_tile], pieces[selected_tile]
                        selected_tile = None

        screen.fill((0, 0, 0))

        # 绘制拼图部分
        for i, piece in enumerate(pieces):
            x = (i % COLS) * TILE_SIZE
            y = (i // COLS) * TILE_SIZE
            screen.blit(piece, (x, y))

        # 绘制信息框
        pygame.draw.rect(screen, (255, 255, 224), (0, WINDOW_HEIGHT - INFO_BOX_HEIGHT, WINDOW_WIDTH, INFO_BOX_HEIGHT))

        # 绘制计时信息
        current_time = (pygame.time.get_ticks() - start_time) // 1000  # 计算当前用时（秒）
        font = pygame.font.Font(None, 24)
        time_text = font.render("Time: {} seconds".format(current_time), True, (60, 179, 113))
        screen.blit(time_text, (10, WINDOW_HEIGHT - INFO_BOX_HEIGHT + 10))

        pygame.display.flip()
        clock.tick(60)

if __name__ == "__main__":
    main()

在这里插入图片描述

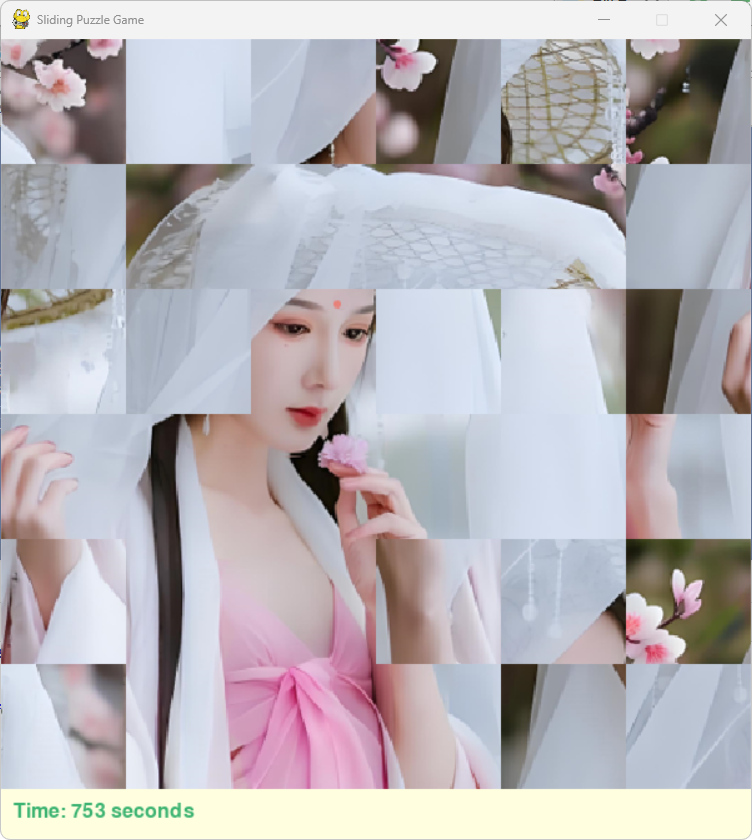

🐛拼图小游戏

行列数更大，图块分得更小，难度更大

"""
description: 拼图小游戏(拖拽拼图)@2024-05-25
written by yjan.10:16
remark:
  - 原图: test.jpg
"""
import pygame
import random
import sys

# 基本设置
WINDOW_WIDTH, WINDOW_HEIGHT = 600, 640 # 设置屏幕尺寸
WIDTH, HEIGHT = 600, 600 # 拼图区域大小
INFO_BOX_HEIGHT = 40 # 信息框高度
#TILE_SIZE = 100  # 每个拼图块的大小
#ROWS, COLS = 6, 6  # 拼图的行数和列数
ROWS, COLS = 6, 6  # 拼图的行数和列数
TILE_SIZE = WIDTH // COLS # 图块的大小

# 随机打乱拼图
def shuffle_image(image):
    pieces = [image.subsurface((x * TILE_SIZE, y * TILE_SIZE, TILE_SIZE, TILE_SIZE))
              for y in range(ROWS) for x in range(COLS)]
    pieces = random.sample(pieces, len(pieces))
    return pieces

# 主函数
def main():
    pygame.init()
    screen = pygame.display.set_mode((WINDOW_WIDTH, WINDOW_HEIGHT))
    pygame.display.set_caption("Sliding Puzzle Game")

    clock = pygame.time.Clock()
    start_time = pygame.time.get_ticks()  # 记录开始时间
    finished = False
    #game_over = False  # 游戏结束标志

    #original_image = pygame.image.load("new_image.jpg")
    original_image = pygame.image.load("test.jpg")
    original_image = pygame.transform.scale(original_image, (WIDTH, HEIGHT))

    pieces = shuffle_image(original_image)
    empty_tile = len(pieces) - 1  # 空白拼图块的索引
    selected_tile = None  # 当前选中的拼图块索引
    #drag_offset = (0, 0)  # 拖拽时的偏移量

    while not finished:
        for event in pygame.event.get():
            if event.type == pygame.QUIT:
                pygame.quit()
                sys.exit()

            if event.type == pygame.MOUSEBUTTONDOWN:
                if event.button == 1:
                    x, y = pygame.mouse.get_pos()
                    selected_tile = (y // TILE_SIZE) * COLS + (x // TILE_SIZE)
                    #if selected_tile != empty_tile:
                        #drag_offset = (x - (selected_tile % COLS) * TILE_SIZE, y - (selected_tile // COLS) * TILE_SIZE)

            if event.type == pygame.MOUSEBUTTONUP:
                if event.button == 1 and selected_tile is not None:
                    x, y = pygame.mouse.get_pos()
                    target_tile = (y // TILE_SIZE) * COLS + (x // TILE_SIZE)
                    if target_tile != empty_tile and target_tile != selected_tile:
                        pieces[selected_tile], pieces[target_tile] = pieces[target_tile], pieces[selected_tile]
                        selected_tile = None

        screen.fill((0, 0, 0))

        # 绘制拼图部分
        for i, piece in enumerate(pieces):
            x = (i % COLS) * TILE_SIZE
            y = (i // COLS) * TILE_SIZE
            screen.blit(piece, (x, y))

        # 绘制信息框
        pygame.draw.rect(screen, (255, 255, 224), (0, WINDOW_HEIGHT - INFO_BOX_HEIGHT, WINDOW_WIDTH, INFO_BOX_HEIGHT))

        # 绘制计时信息
        current_time = (pygame.time.get_ticks() - start_time) // 1000  # 计算当前用时（秒）
        font = pygame.font.Font(None, 24)
        time_text = font.render("Time: {} seconds".format(current_time), True, (60, 179, 113))
        screen.blit(time_text, (10, WINDOW_HEIGHT - INFO_BOX_HEIGHT + 10))

        pygame.display.flip()
        clock.tick(60)

if __name__ == "__main__":
    main()
